Silver 4U rack chassis with thirty-six front 3.5 inch drive bays and dual redundant power supplies

Supermicro

Supermicro SYS-6048R-E1CR36N rack server 2x Xeon E5-2680 v4 512GB DDR4 36 bay

SKU CH-1F3E-4T9MN

A 4U rack server with dual 14-core Xeon processors, 512 GB DDR4 memory and 36 hot-swap 3.5-inch drive bays for high-density storage

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual 14-core Xeon processors at 2.4 GHz deliver 28 threads for heavy workloads
  • 512 GB DDR4 ECC memory across 16 modules ensures data integrity at scale
  • MegaRAID 9361-8i hardware controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 36 hot-swap 3.5" drive bays provide massive SAS/SATA storage density
  • Quad 10GBase-T LAN ports with IPMI 2.0 enable high-speed remote management

Dense 36-bay storage server

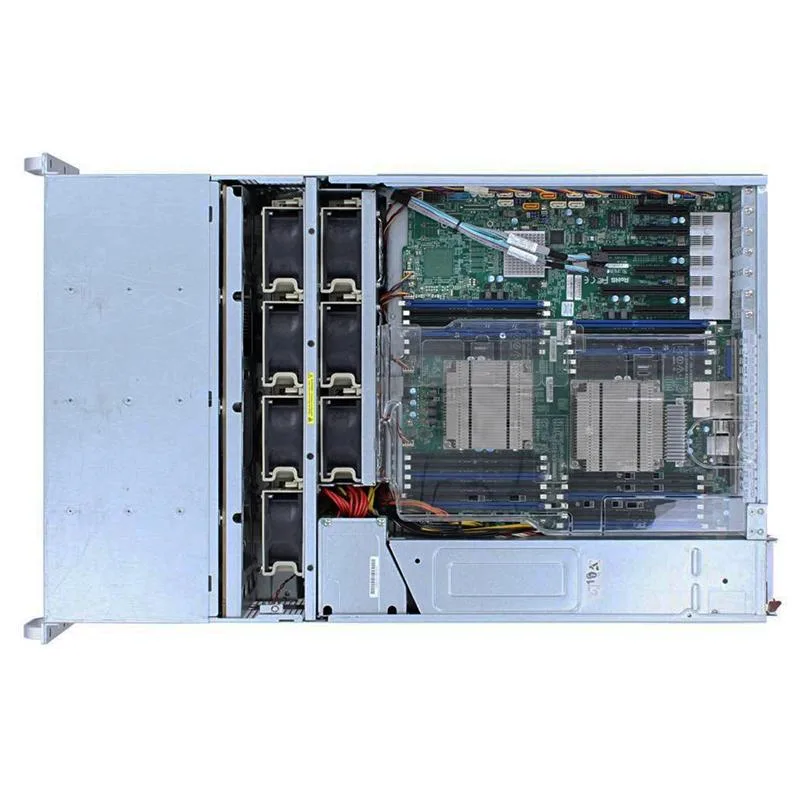

This 4U rackmount system delivers 36 hot-swap 3.5-inch SATA/SAS drive bays in a single chassis, paired with dual Xeon E5-2680 v4 processors at 2.4 GHz and 512 GB of DDR4 ECC memory. It targets organisations that need massive raw capacity and hardware RAID in one enclosure.

Dual 1280 W platinum supplies and quad 10GBase-T

Redundant hot-swap power modules keep the array running during a supply failure, while four Intel X540 10GBase-T ports provide high-throughput networking without extra cards. The LSI MegaRAID 9361-8i controller occupies a single PCIe slot and manages RAID 0, 1, 5, 6, 10, 50 and 60 with 1 GB cached battery-backed write-back.

512 GB memory and 36 drive slots

Sixteen 32 GB DDR4 modules fill half the 24 DIMM slots, leaving room to grow toward the platform maximum. Thirty-six trays accept 3.5-inch SAS or SATA drives; the eight-port RAID controller limits simultaneous hardware-managed arrays to eight drives unless an expander is added. No drives, rails or front bezel are included.

Besonderheiten

  • Dual 14-core Xeon processors at 2.4 GHz deliver 28 threads for heavy workloads
  • 512 GB DDR4 ECC memory across 16 modules ensures data integrity at scale
  • MegaRAID 9361-8i hardware controller supports RAID 0, 1, 5, 6, 10, 50, 60
  • 36 hot-swap 3.5" drive bays provide massive SAS/SATA storage density
  • Quad 10GBase-T LAN ports with IPMI 2.0 enable high-speed remote management

Technische Daten

BrandSUPERMICRO
SeriesCSE-847BE1C-R1K28LPB-X10DRi-T4+
ModelSYS-6048R-E1CR36N
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2680 V4
Installed Memory Size512GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T LAN with Intel X540 Ethernet Controller
Management PortRJ 45
Features36 x 3.5" SATA/SAS Hot-Plug Drive Bays

Fragen zu diesem Artikel

How many 3.5-inch drive bays does the SYS-6048R-E1CR36N provide for sustained storage workloads?

The chassis holds 36 hot-swap 3.5-inch SATA or SAS bays, giving the highest drive count in this form factor for continuous read and write operations.

What is the power supply rating and efficiency of the dual PSUs in the SYS-6048R-E1CR36N?

Two redundant 1280-watt 80 Plus Platinum units share the load, keeping heat and fan noise lower during all-day operation.

Which rack rails and front bezel must the buyer supply for the SYS-6048R-E1CR36N?

The system ships without rack-mount rails or a front bezel, so you need to provide standard 4U sliding rails and a matching bezel yourself.
