Supermicro SYS-8048B-TRFT 4U rack server 4x Xeon E7-4820 v2 2.0GHz 8-core 768GB DDR3 24x 3.5" bays

Quad-Socket Xeon E7-4820 v2 Server

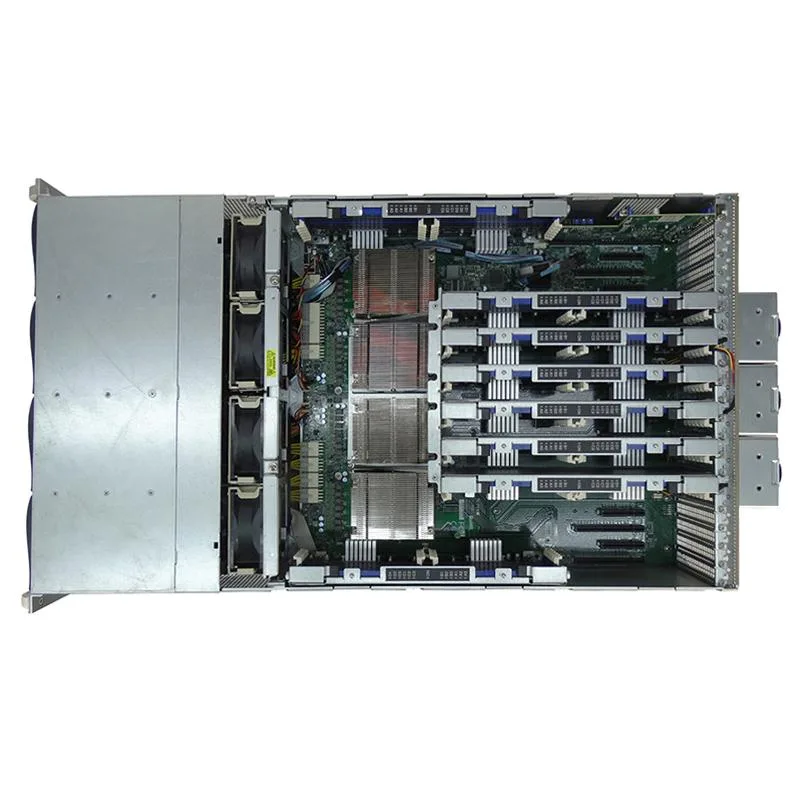

The Supermicro SYS-8048B-TRFT is a 4U rackmount server populated with four Intel Xeon E7-4820 v2 processors running at 2.0 GHz with eight cores each. It ships with 768 GB of DDR3 1600 MHz registered ECC memory across 96 DIMM slots. The system targets enterprise workloads that demand high core counts and large memory capacity in a single chassis.

24-Bay SAS/SATA Storage With MegaRAID 9361-8i

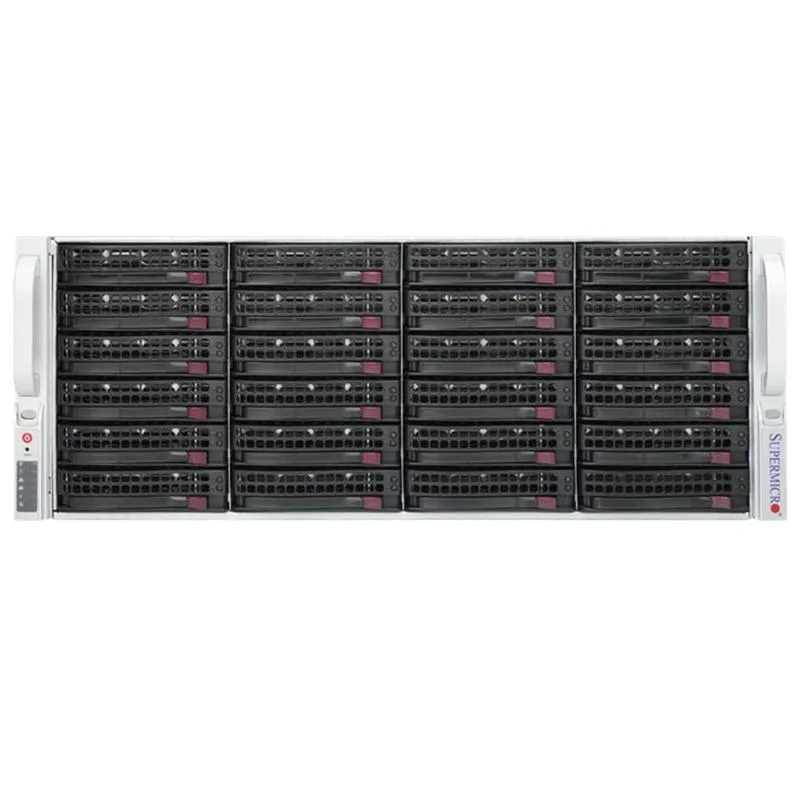

Twenty-four front-accessible 3.5-inch hot-swap bays accept SAS or SATA drives for high-capacity arrays. The included LSI MegaRAID 9361-8i controller provides eight ports of 12 Gb/s SAS connectivity with 1 GB cache and battery backup. Supported RAID levels span 0, 1, 5, 6, 10, 50 and 60. The controller port count limits simultaneous drive connections to eight without additional HBAs.

Tool-Less Drive Trays And Redundant Power

Drive trays slide into the front bays without tools and lock with a latch mechanism. Four 1620 W platinum redundant power supplies share the load and allow hot-swap replacement. IPMI 2.0 with a dedicated RJ45 port enables remote KVM-over-LAN and virtual media. Front bezel and rack rails are not included and must be sourced separately.
