TERRAMASTER D8 Hybrid 4 Bay SATA + 4 NVMe drive enclosure
An 8-bay DAS enclosure holding four SATA drives and four NVMe SSDs with USB 3.2 Gen 2 10Gbps, hardware RAID 0/1/JBOD/Single and a smart cooling fan
- ColorBlack
- Size4 Bays + 4 x M.2 NVMe Slots
- TypeEnclosure
- MaterialPlastic
- Internal InterfaceUSB3.2 10Gpbs Type C
- HDD Count Supported4 Bays + 4 x M.2 NVMe Slots
Models D8 Hybrid
- D8 Hybrid
- D5 Hybrid
Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.
- Hybrid design combines 4 SATA bays with 4 NVMe slots for up to 128TB capacity
- USB 3.2 Gen 2 Type-C delivers 10Gbps bandwidth for fast file transfers

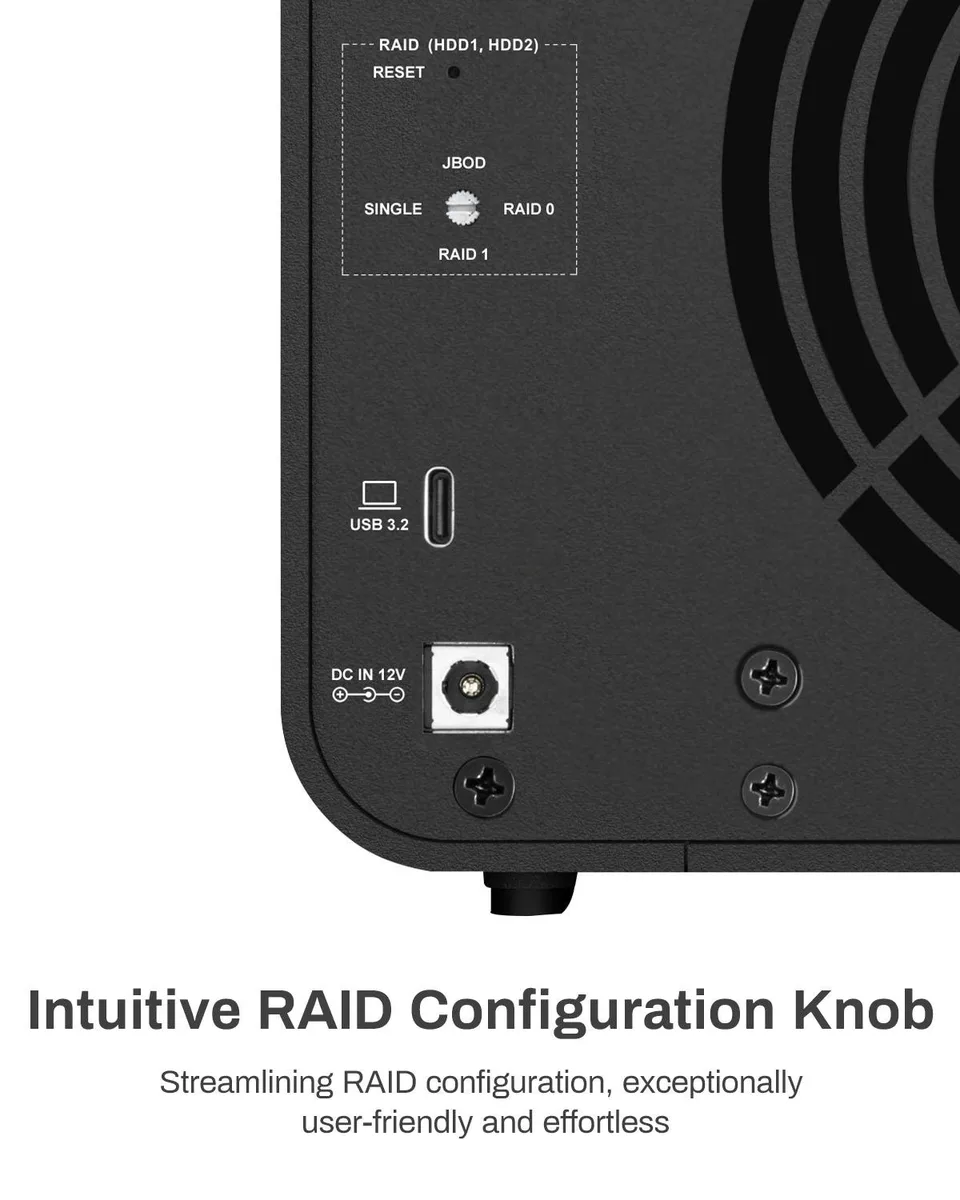

- Hardware RAID modes include RAID 0, 1, JBOD and Single on first two bays
- Tool-free trays with Push-Lock mechanism enable quick drive installation without tools
- Smart temperature-controlled fan adjusts speed for quiet, efficient cooling
Hybrid capacity for creative workloads
The TerraMaster D8 Hybrid is an eight-bay direct-attached storage enclosure that combines four SATA drive bays with four M.2 NVMe slots in a single USB 3.2 Gen 2 Type-C chassis. It targets video editors, photographers and data-intensive professionals who want high-capacity hard drives and fast solid-state storage on one cable without a full NAS operating system.
Suits single-workstation workflows.
This unit fits a desktop creator who needs local scratch disks and archive volumes connected to one computer. It does not serve network clients, so teams requiring shared access, remote sync or server applications should look at a dedicated NAS platform instead.
10Gbps USB link caps combined throughput
The single USB 3.2 Gen 2 connection limits total bandwidth to 10Gbps, so simultaneous heavy traffic from all eight drives will bottleneck at the host port rather than at the individual drive speeds.
Besonderheiten
- Hybrid design combines 4 SATA bays with 4 NVMe slots for up to 128TB capacity
- USB 3.2 Gen 2 Type-C delivers 10Gbps bandwidth for fast file transfers
- Hardware RAID modes include RAID 0, 1, JBOD and Single on first two bays
- Tool-free trays with Push-Lock mechanism enable quick drive installation without tools
- Smart temperature-controlled fan adjusts speed for quiet, efficient cooling
Technische Daten
| Brand | TerraMaster |
|---|---|
| Model | D8 Hybrid |
| Color | Black |
| Size | 4 Bays + 4 x M.2 NVMe Slots |
| Type | Enclosure |
| Material | Plastic |
| Internal Interface | USB3.2 10Gpbs Type C |
| HDD Count Supported | 4 Bays + 4 x M.2 NVMe Slots |
| Number of Bay | buffer_95558 |
| Operating Systems Supported | Windows OS, Mac OS, Linux |
| Dimensions | 222 x 179 x 154 mm |
| Weight | 1.9KG |
Fragen zu diesem Artikel
How much noise and heat does the smart cooling fan produce during continuous operation?
An intelligent fan adjusts speed based on temperature, ensuring optimal cooling with minimal noise for stable performance.
What host interface and cable does the D8 Hybrid require on my computer?
It connects via USB 3.2 Gen 2 Type-C at 10Gbps and works with Windows, Mac OS and Linux.
Can I mix my existing SATA drives with new NVMe SSDs in the same enclosure?
Yes, the hybrid design supports four SATA HDDs or SSDs plus four M.2 NVMe SSDs simultaneously in independent RAID groups.
