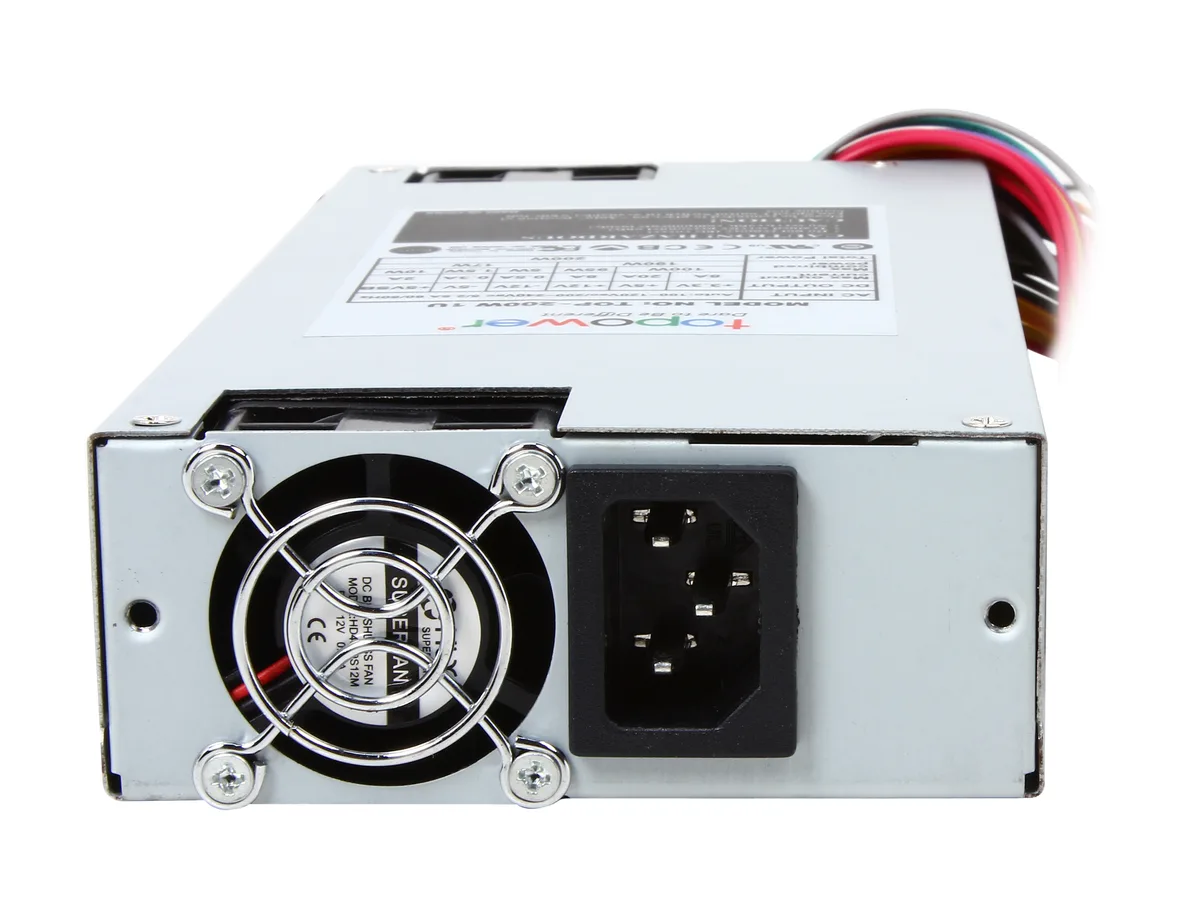

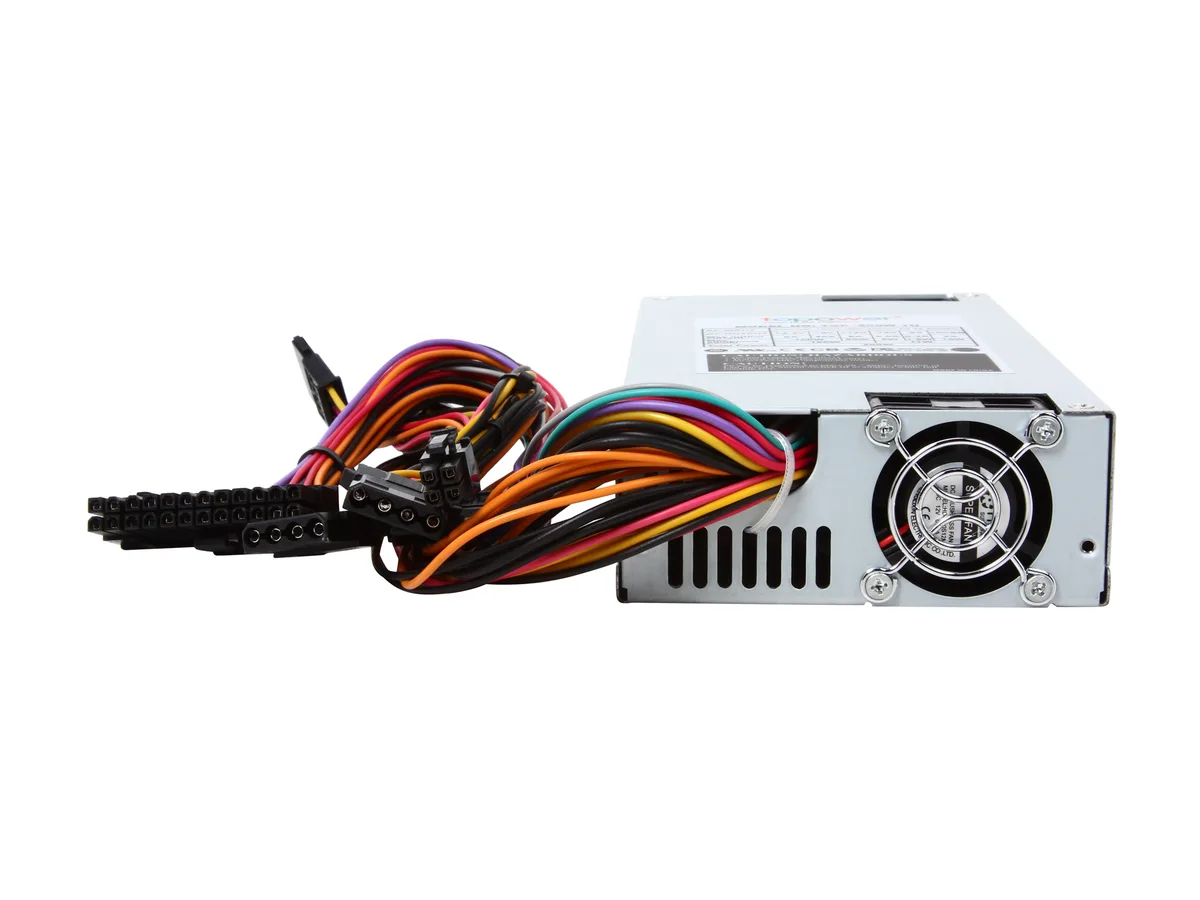

Rectangular silver metal 1U server PSU, 1.57 by 3.94 by 7.87 inches, fan grille rear, 20+4 pin cable

TOPOWER

TOPOWER TOP-200W1U 200W server power supply

SKU CH-ZTBN-ZAEYQ MPN TOP-200W1U

Single 200W ATX server supply with 20+4 pin connector and universal 100-240V input

  • TypeATX
  • Single/RedundantSingle
  • Maximum Power200W

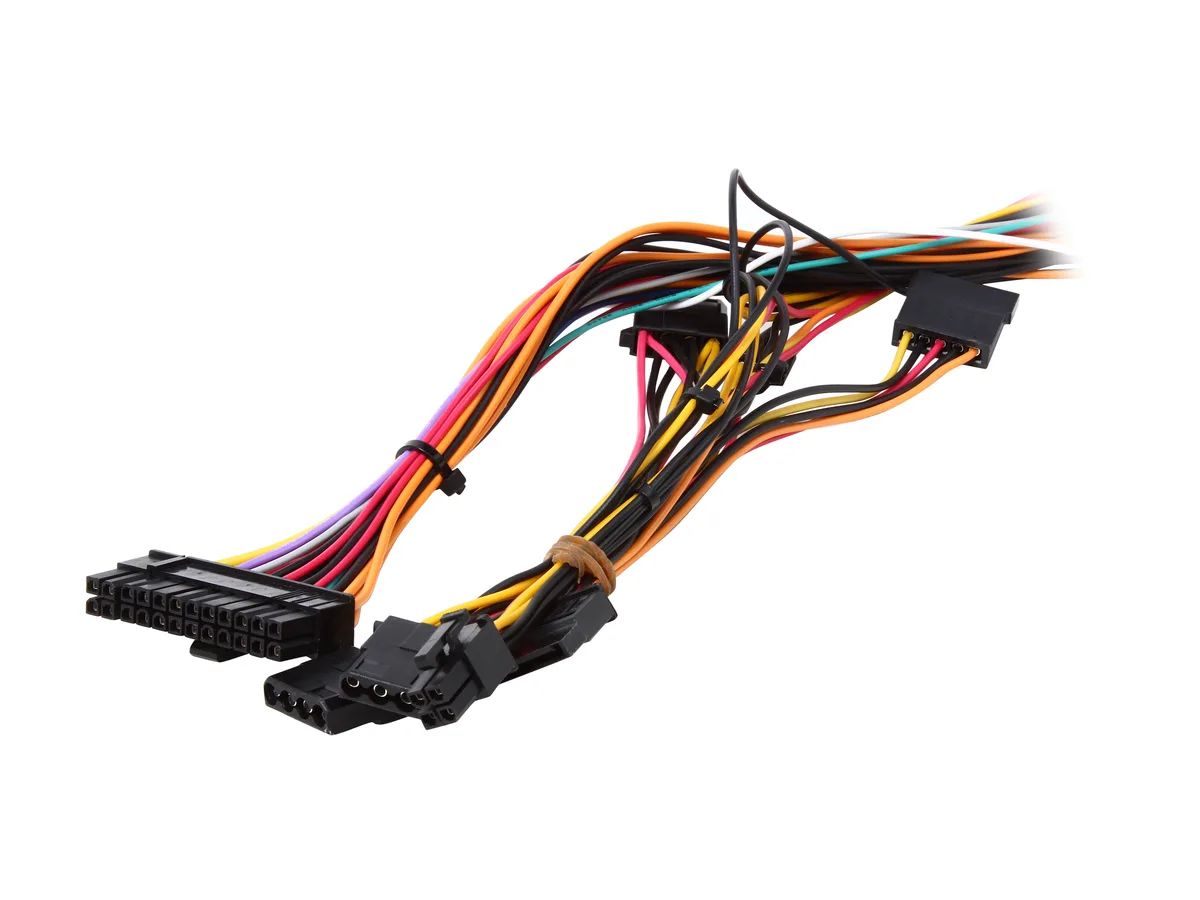

  • Main Connector20+4Pin
  • Output Current+3.3V@18A, +5V@20A, +12V@8A, [email protected] , [email prot
  • Input Voltage100 - 120 V / 200 - 240 V
  • 200W output powers compact server builds
  • 20+4 pin main connector fits standard ATX motherboards
  • Wide 100-240V input supports global deployments
  • 1U slim profile at 1.57" height saves rack space
  • Multi-rail design delivers 18A on 3.3V and 20A on 5V

Server PSU for 1U racks

The TOPOWER TOP-200W1U is a 200W single ATX unit built for 1U server chassis. It targets system integrators and IT teams maintaining legacy rackmount hardware that requires a compact, standard-form-factor power source.

1U form factor with standard ATX connector

The supply measures 1.57" x 3.94" x 7.87" to fit 1U bays and uses a 20+4Pin main connector for motherboard compatibility. It delivers +3.3V@18A, +5V@20A and +12V@8A across a 100-120V or 200-240V input range. The single non-redundant design suits standalone nodes where hot-swap redundancy is not required.

Replaces failed 200W 1U units

This unit directly replaces a failed or end-of-life 200W 1U ATX supply in existing rackmount servers. The upgrade is worthwhile when the original PSU has failed or when a spare is needed for quick swap-out in a maintenance window. It is not for builders needing redundant power, higher wattage for GPU compute or modern EPS12V connectors.

Besonderheiten

  • 200W output powers compact server builds
  • 20+4 pin main connector fits standard ATX motherboards
  • Wide 100-240V input supports global deployments
  • 1U slim profile at 1.57" height saves rack space
  • Multi-rail design delivers 18A on 3.3V and 20A on 5V

Technische Daten

BrandTOPOWER
ModelTOP-200W1U
TypeATX
Single/RedundantSingle
Maximum Power200W
Main Connector20+4Pin

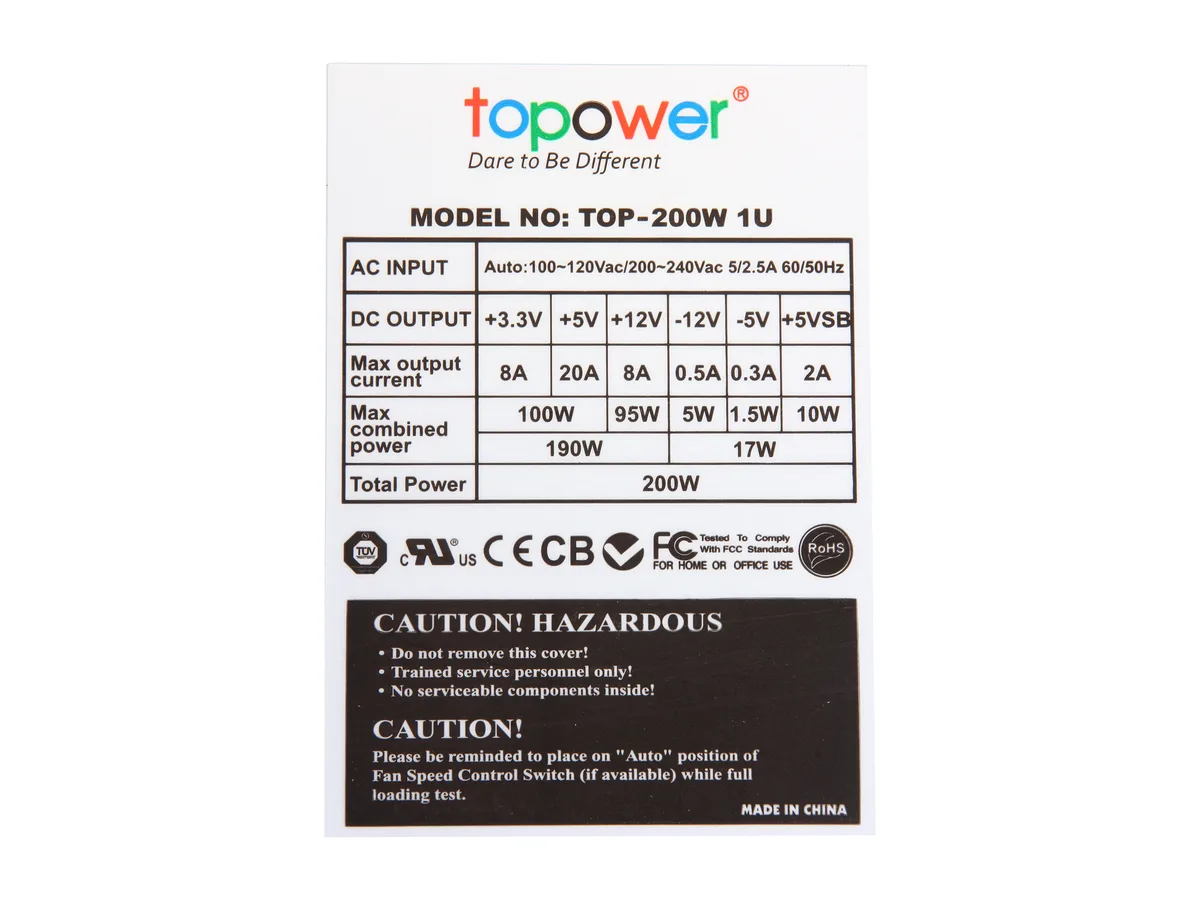

Output Current+3.3V@18A, +5V@20A, +12V@8A, [email protected] , [email protected] , [email protected]
Input Voltage100 - 120 V / 200 - 240 V
Dimensions1.57" x 3.94" x 7.87"(H x W x L)
Versandgewicht0.97 kg
Paketgröße239 × 177 × 67 mm

Fragen zu diesem Artikel

What does the 20+4Pin main connector support on this 200W ATX unit?

The 20+4Pin connector delivers +3.3V at 18A, +5V at 20A, and +12V at 8A for standard ATX motherboards.

Will the 1.57" height fit a 1U server chassis?

Yes, the 1.57" height matches the 1U form factor, with a 3.94" width and 7.87" depth for standard rack mounting.

How do I set the input voltage before installing this supply?

Select 100-120V or 200-240V on the switch to match your mains supply before powering on.
