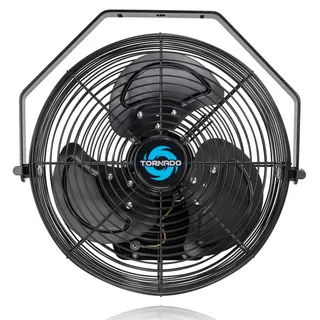

Black 12-inch metal wall-mount fan with IPX4 water-resistant grille and pull-chain control

Tornado HI-FAN-12HVWM-WR-1P 12 Inch IPX4 Wall Mount Industrial Cooling Fan

SKU CH-8J1F-201EW

IPX4-rated 12-inch wall-mount metal fan delivers 1650 CFM airflow with three speeds, 180-degree tilt and quiet 48 dB operation for indoor or outdoor use

  • TypeWall Mount
  • Air Flow1650 cubic_feet_per_minute
  • Motor RPM1500 rpm
  • Motor TypeAC
  • Fan RPM1500 rpm
  • Voltage120/240

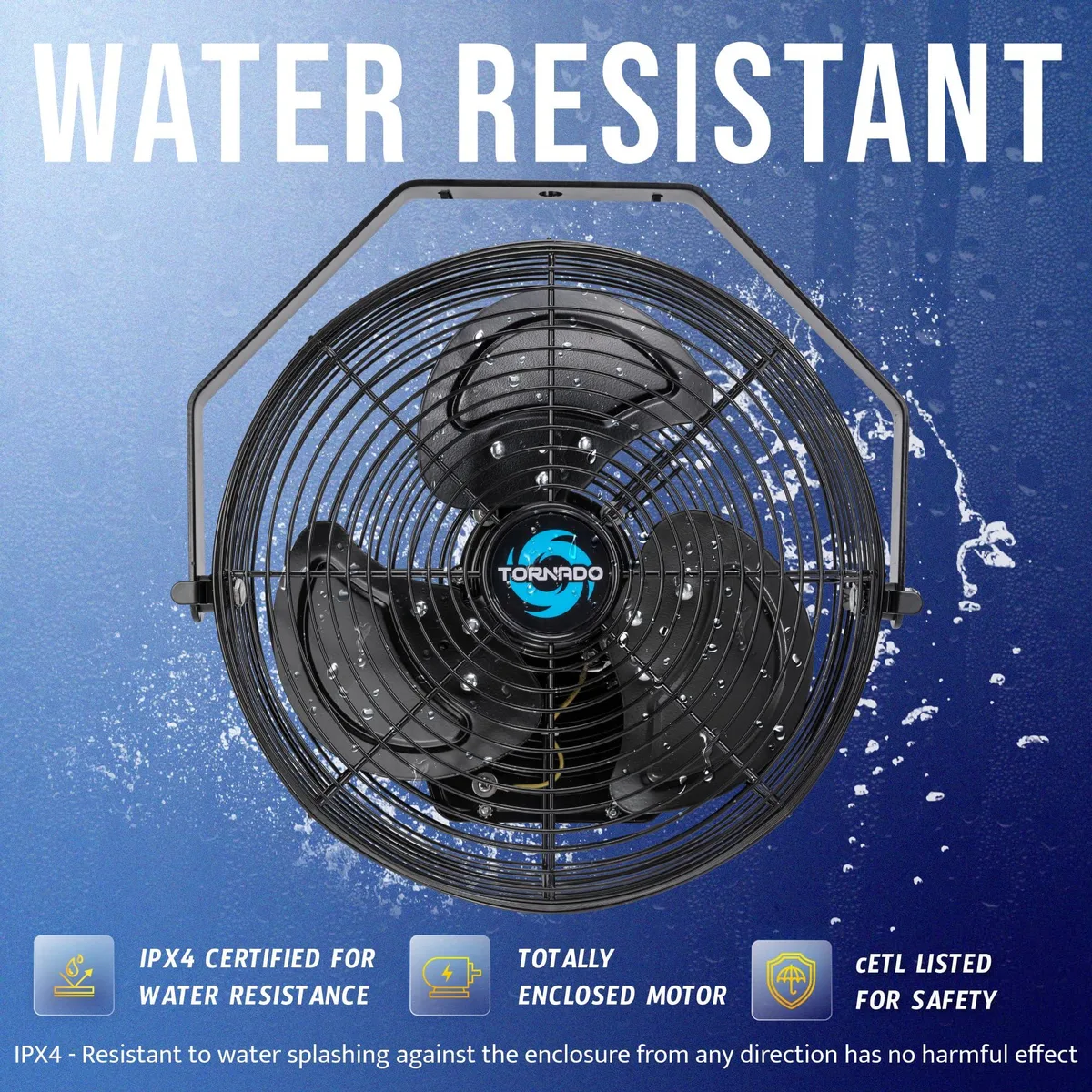

  • IPX4 water-resistant rating protects motor from splashing water
  • 1650 CFM high-velocity airflow cools large spaces quickly
  • Three speed settings (1650/1420/1200 CFM) match airflow to task
  • 180-degree vertical tilt directs air exactly where needed
  • Quiet 48 dB operation suits noise-sensitive work areas

Industrial wall-mount fan

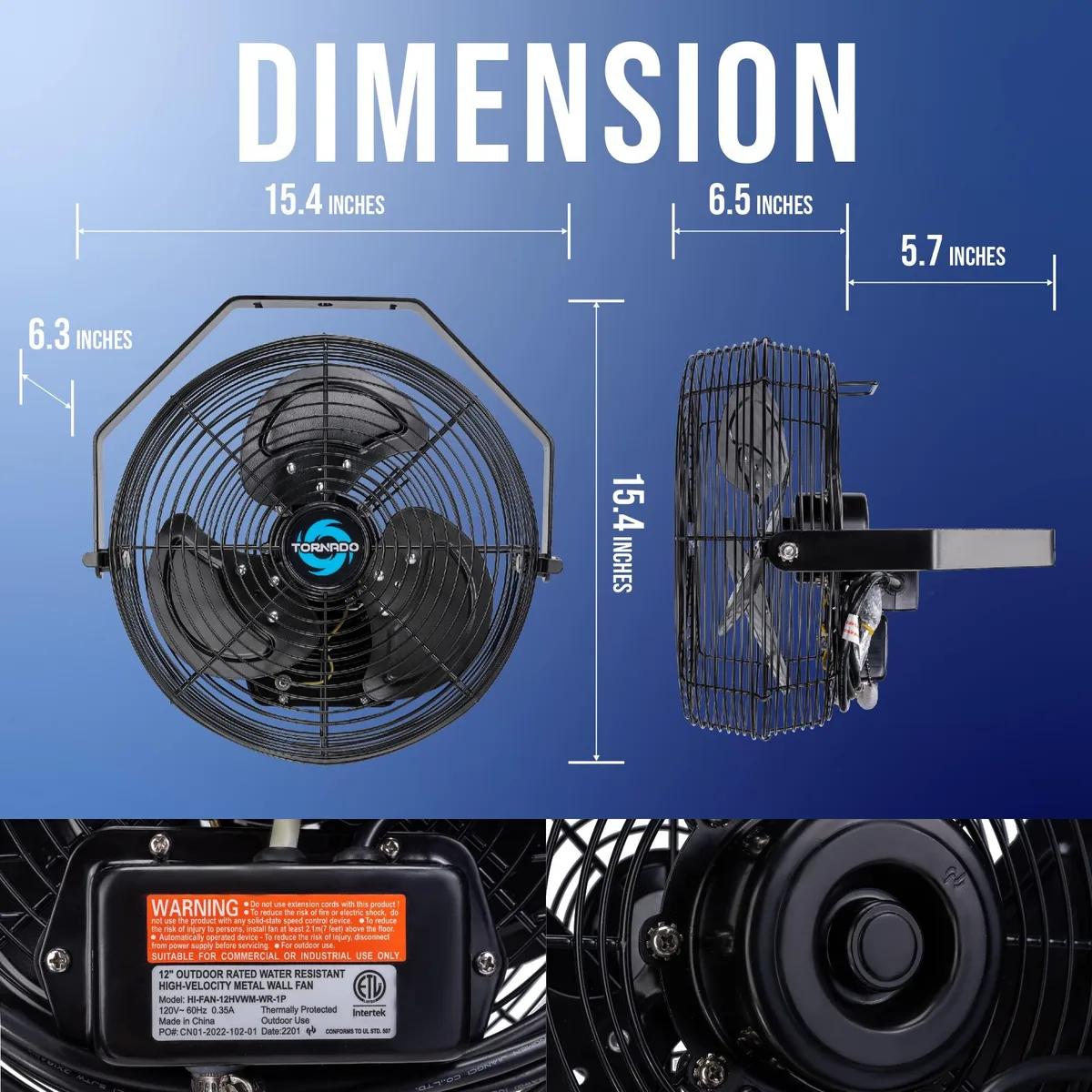

The Tornado HI-FAN-12HVWM-WR-1P is a 12 inch IPX4 rated metal fan built for indoor and outdoor environments. Its water-resistant aluminium and steel construction suits warehouses, workshops, patios and greenhouses where reliable air circulation is required. The fan mounts on concrete or metal surfaces using a single M10x80 expansion bolt and can also be ceiling-mounted. A 6.6 foot SJTW cord provides flexible placement.

Airflow capacity and speed range

Three speed settings deliver 1650, 1420 and 1200 cubic feet per minute at 1500 RPM maximum. The 42 watt AC motor produces 1/15 horsepower while drawing 0.35 amps at 120 volts. Overheat protection and enclosed ball bearings extend motor life in dusty or humid conditions. At the highest setting the unit reaches 52 decibels, dropping to 48 decibels on lower speeds for quieter operation.

Power and mounting constraints

The fan operates on 120 volt single-phase power through a standard corded connection. Vertical tilt adjustment spans 180 degrees for precise airflow direction. The IPX4 rating covers splashing water from any direction but does not protect against immersion or pressurised jets. An optional misting kit can be added for evaporative cooling, though the kit is not included.

Besonderheiten

  • IPX4 water-resistant rating protects motor from splashing water
  • 1650 CFM high-velocity airflow cools large spaces quickly
  • Three speed settings (1650/1420/1200 CFM) match airflow to task
  • 180-degree vertical tilt directs air exactly where needed
  • Quiet 48 dB operation suits noise-sensitive work areas

Technische Daten

TypeWall Mount
BrandTornado
ModelHI-FAN-12HVWM-WR-1P
Air Flow1650 cubic_feet_per_minute
Motor RPM1500 rpm
Motor TypeAC
Fan RPM1500 rpm
Voltage120/240
Hznot_applicable
Phase120, Corded Electric
Amps20
Horsepower20
Mount TypeWall Mount, Wall Mounted
Fan Typeceiling_fan
Parts1 Year
Labor1 Year
Part NumberHI-FAN-12HVWM-WR-1P

Fragen zu diesem Artikel

Will the 12-inch Tornado wall fan's 6.6 ft cord reach an existing 120 V outlet without an extension lead?

The supplied 6.6 ft SJTW cord plugs directly into a standard 120 V outlet; measure your mounting point to the socket to confirm reach before fixing the fan.

How can I verify the fan is delivering the rated 1650 CFM on its highest speed after installation?

With the pull-chain set to speed one you should feel a strong, steady airflow across the full 12-inch blade span and hear a noise level around 48–52 dB, matching the published high-speed figures.

Does the box include the M10×80 expansion bolt for concrete mounting, or must I buy it separately?

The package contains the fan, 6.6 ft power cord and pull-chain control; the single M10×80 expansion bolt required for concrete or metal walls is not included and must be purchased separately.
