Vantec NST-205C3-SG M.2 NVMe drive enclosure
Tool-free enclosure turns an M.2 NVMe drive into a USB 3.1 Gen 2 Type-C portable drive with a hardware read-only switch and anodized-aluminium heatsink
- ColorSilver
- SizeM.2 (Length support 2230, 2242, 2260, 2280)
- TypeEnclosure
- AC AdapterNo
- MaterialAnodized Aluminum with Heat Sink
- Internal Interface1 x M.2 (NVMe , M-Key)
- USB 3.1 Gen 2 enables rapid file transfers
- Write-protect switch blocks unauthorised changes to data
- Anodized aluminium heatsink keeps the drive cool under load
- Supports M.2 2230, 2242, 2260 and 2280 NVMe modules
- Bus-powered design needs no external power supply
Portable NVMe Enclosure

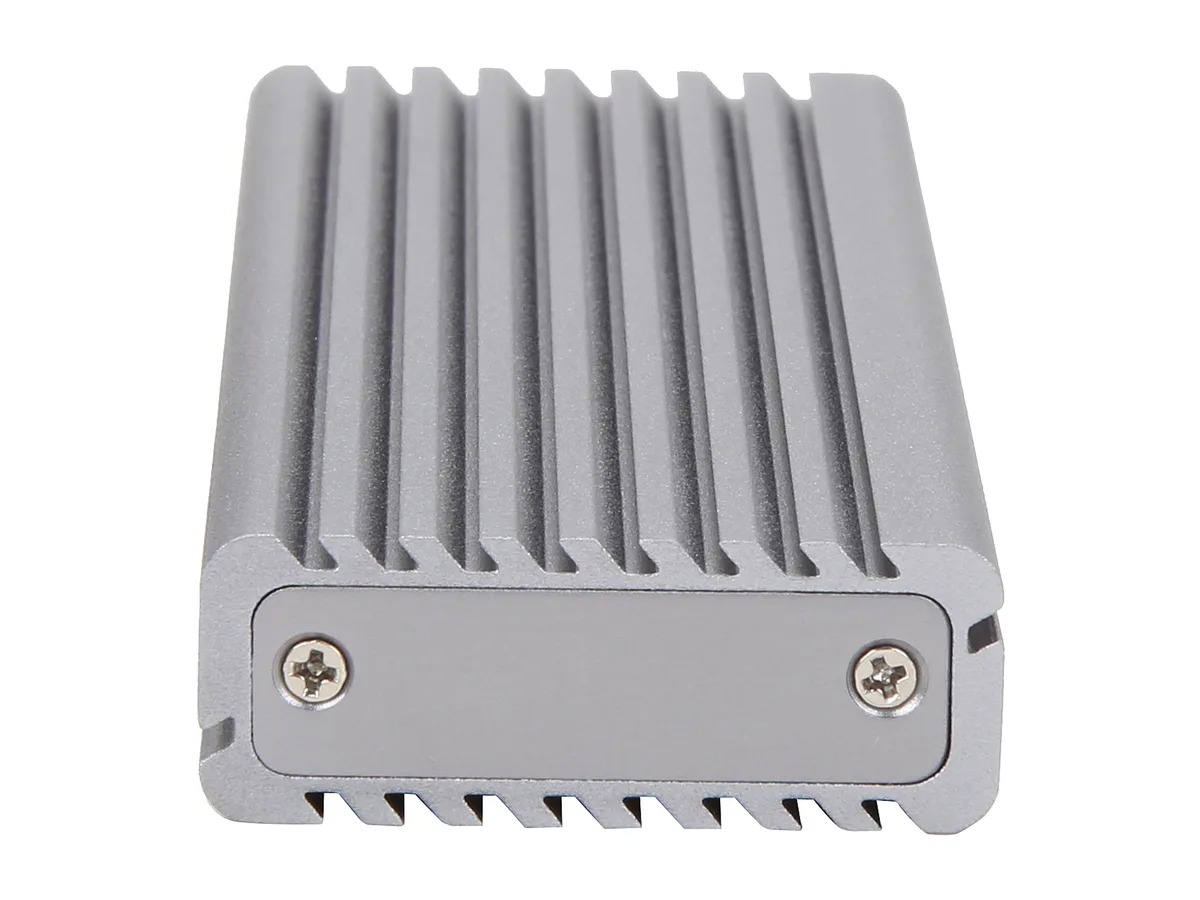

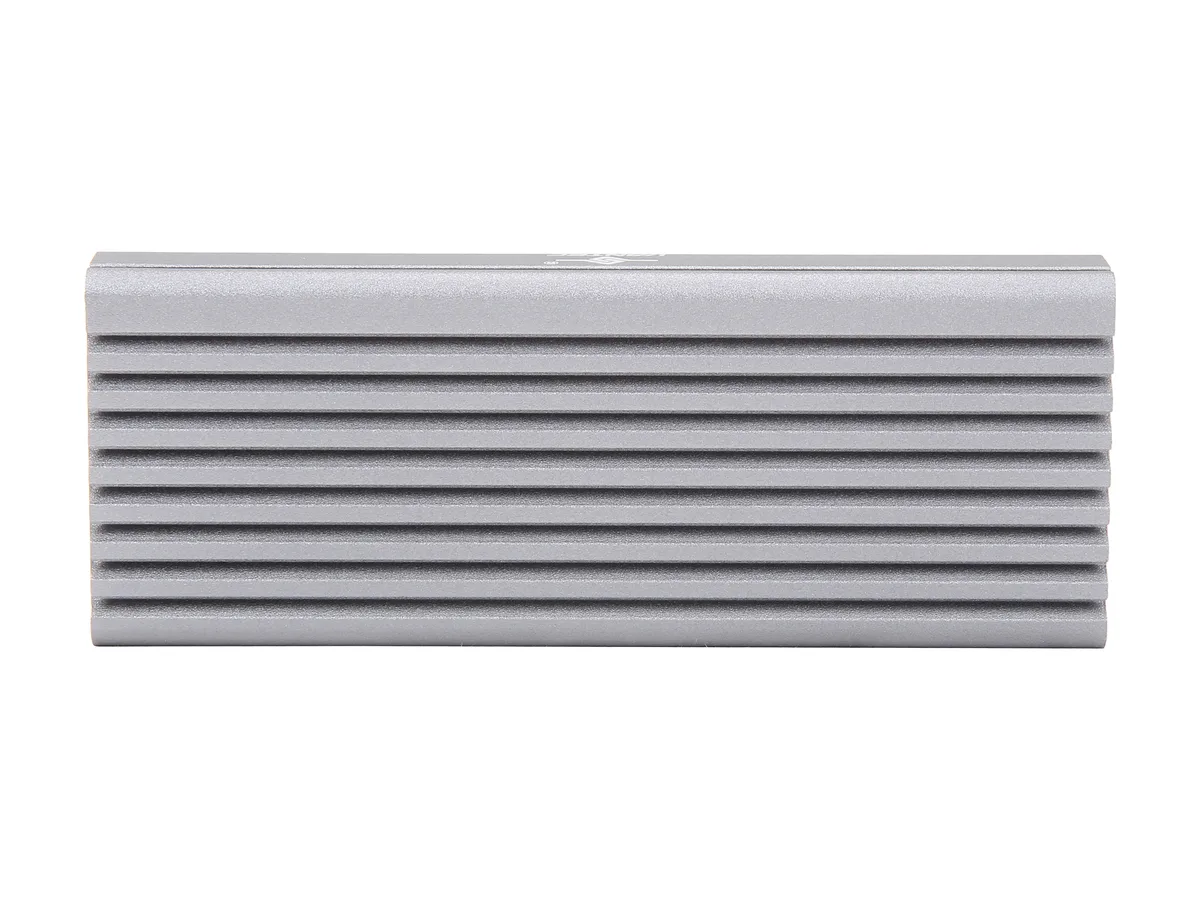

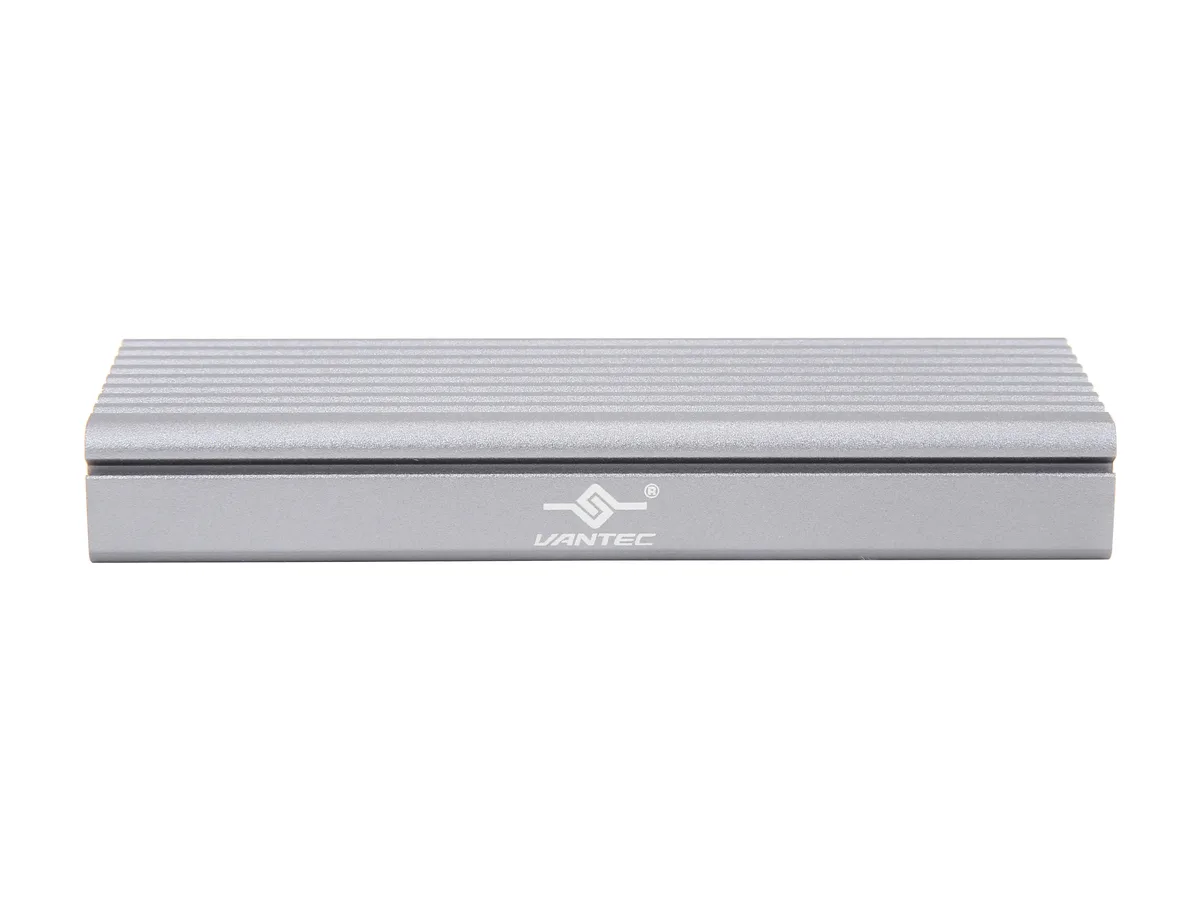

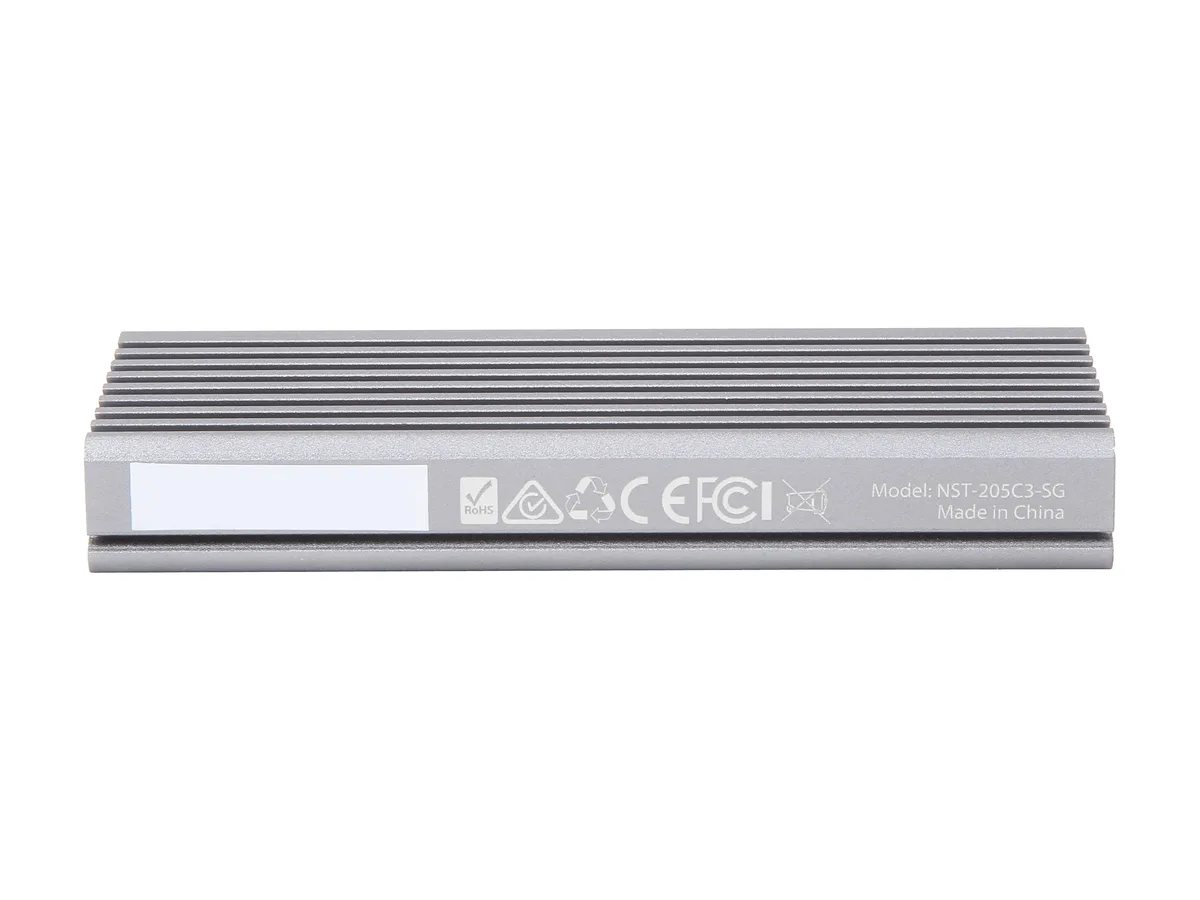

The Vantec NST-205C3-SG is a bus-powered M.2 NVMe enclosure that connects to a host via USB 3.1 Gen 2 Type-C. Its anodised aluminium shell acts as a heatsink for the installed module. The package includes a USB-C to USB-C cable, thermal pad, heat-transfer plate, screwdriver and mounting screws. It supports module lengths 2230, 2242, 2260 and 2280 with an M-key interface.
Who It Suits

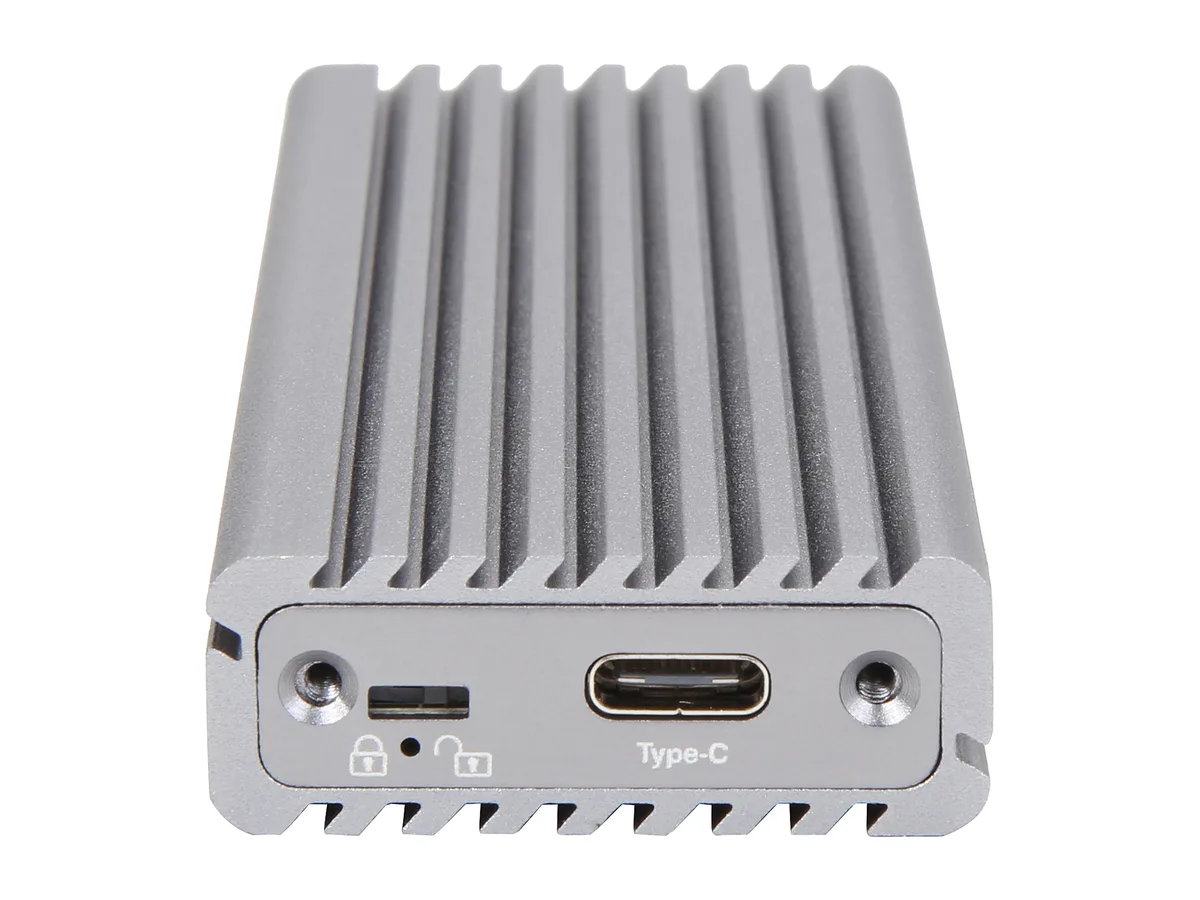

Travellers and technicians who want a compact, driver-free way to read or write a single NVMe module on Windows 10, Mac OS X 10.10 or later, Chrome OS or Linux. A physical switch sets read-only mode to guard data against modification. Buyers who need to house more than one module at a time should look at multi-bay alternatives. The enclosure has no fan and relies on passive cooling alone.
M-Key Only Constraint
The internal slot accepts M.2 NVMe modules with an M-key notch only; B-key or B+M-key drives will not fit. This single specification decides whether your existing SSD is compatible. Supported lengths are 2230, 2242, 2260 and 2280. No external power adapter is required.
Besonderheiten
- USB 3.1 Gen 2 enables rapid file transfers
- Write-protect switch blocks unauthorised changes to data
- Anodized aluminium heatsink keeps the drive cool under load
- Supports M.2 2230, 2242, 2260 and 2280 NVMe modules
- Bus-powered design needs no external power supply
Technische Daten
| Brand | VANTEC |
|---|---|
| Model | NST-205C3-SG |
| Color | Silver |
| Size | M.2 (Length support 2230, 2242, 2260, 2280) |
| Type | Enclosure |
| AC Adapter | No |
| Material | Anodized Aluminum with Heat Sink |
| Internal Interface | 1 x M.2 (NVMe , M-Key) |
| External Interface | 1 x USB 3.1 Gen 2 USB-C |
| Number of Bay | 1 |
| Fan | No |
| Power | Bus-powered, no external power supply needed |
| Specifications | M.2 size: Length support 2230, 2242, 2260, 2280 M.2 Support: M.2 NVMe with "M" Key Only USB cable connector: USB-C to USB-C USB cable length: 300mm / 11.8 inches |
| Operating Systems Supported | Mac OS X 10.10 or higher, Windows 10, Latest Chrome OS, Latest Linux kernel USB Type-C port Latest OS support for USB-C M.2 NVMe module with "M" Key only |
| Features | Design For Ultra-Fast NVMe module Latest NVMe Storage solution with USB 3.1 Gen2 for Speed Write Protect Function Switch to Read Only to Protect against Virus Anodized Aluminum to Keep Cool Strong, durable and heat dissipation properties Small Pocket size 104x40x15mm and Fit Big Capacity NVMe USB 3.1 Gen 2 with USB-C interface Next Gen USB, designed to very fast LED Clear indication for protected data Red for Read Only, White for Read/Write Design for Multi-OS compatibility Windows 10, Chrome OS, OS X 10.10 or Better, Latest Linux Kernel Support multi-size M.2; USB-C to C cable Modul |
| Dimensions | 104 x 40 x 15 mm / 4.1 x 1.6 x 0.6 inches |
| Weight | 142 grams / 5.0 oz. |
| Package Contents | M.2 NVMe SSD to USB 3.1 Gen 2 Type C Enclosure, USB-C to USB-C cable, Screw Driver, Heat Transfer Plate, Thermal Pad, Screws set, Quick Guide |
| Versandgewicht | 0.16 kg |
| Paketgröße | 135 × 89 × 38 mm |
Fragen zu diesem Artikel
Will this enclosure work with my older laptop that only has USB-A ports?
The enclosure uses a USB-C connector and includes a USB-C to USB-C cable; you will need a USB-C to USB-A adapter or cable to connect to a USB-A port.
How do I confirm the enclosure is running at USB 3.1 Gen 2 speed after I install my NVMe drive?
Check the operating system device manager or system report for a 10 Gbps link speed, and verify sustained transfer rates approach the drive's rated maximum.
Does the package include a thermal pad and screwdriver for installing a 2280 NVMe module?
Yes, the box contains a thermal pad, heat transfer plate, screwdriver, screw set and quick guide along with the enclosure and USB-C cable.
