Rectangular 2U rackmount UPS, dark metal front with LCD display and status lights

Vertiv

Vertiv PSI5-2200RT120LIN UPS 1920VA 120V 2U Lithium-Ion

SKU CH-G44M-4E54A MPN PSI5-2200RT120LIN

Rack-mount lithium-ion UPS delivers 1920 VA pure sine-wave power with 8.6 minutes runtime at full load and two-hour recharge to 90 percent

  • International Version120VAC Default; 100/110/115/125VAC User Selectable
  • Input Voltage Range75-146 VAC
  • Input Frequency55~65Hz (57~63Hz Battery to Normal Comeback)
  • Input ConnectionNEMA L5-20P (5-20 Adapter included)
  • VA Rating1920VA
  • Watts1920W

Option PSI5-2200RT120LIN

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • 10-year lithium-ion battery reduces replacement cycles
  • Pure sine wave output protects sensitive equipment
  • 2U rack or tower form factor fits standard enclosures
  • Seven outlets including one locking L5-20R and six 5-20R
  • USB port plus included SNMP card enable remote monitoring

Vertiv PSI5 1920VA Lithium-Ion UPS

The Vertiv PSI5-2200RT120LIN is a line-interactive uninterruptible power supply rated at 1920VA and 1920W with pure sine-wave output. It uses lithium-ion cells rated for a ten-year service life and fits in a 2U rack or tower form factor. Seven outlets include one NEMA L5-20R and six NEMA 5-20R receptacles. A USB port and included SNMP card enable remote management and programmable outlet control.

Upgrade from lead-acid UPS when runtime

Replacing a valve-regulated lead-acid unit with this lithium-ion model cuts battery weight and extends replacement intervals to roughly ten years. The jump is worthwhile when rack density limits favour a lighter 2U chassis and when the 8.6-minute full-load or 19-minute half-load runtime covers your graceful-shutdown window. Recharge to 90 percent capacity takes two hours, reducing exposure during repeated outages.

Verify input plug voltage window

Confirm the site voltage sits within the 75 to 146 VAC input range and that the NEMA L5-20P plug with its 5-20 adapter matches the branch circuit. Ensure the single L5-20R and six 5-20R outlets suit the equipment power cords you plan to connect. Operating temperature must stay between 32 and 104 degrees Fahrenheit. No network card is required beyond the supplied SNMP module for remote monitoring.

Besonderheiten

  • 10-year lithium-ion battery reduces replacement cycles
  • Pure sine wave output protects sensitive equipment
  • 2U rack or tower form factor fits standard enclosures
  • Seven outlets including one locking L5-20R and six 5-20R
  • USB port plus included SNMP card enable remote monitoring

Technische Daten

BrandLiebert
SeriesPSI5
ModelPSI5-2200RT120LIN
International Version120VAC Default; 100/110/115/125VAC User Selectable
Input Voltage Range75-146 VAC
Input Frequency55~65Hz (57~63Hz Battery to Normal Comeback)
Input ConnectionNEMA L5-20P (5-20 Adapter included)
VA Rating1920VA
Watts1920W
Output Voltage120 VAC Default; 100/110/115/125 VAC User Selectable
Outlets7
Outlet Type1 x NEMA L5-20R, 6 x NEMA 5-20R
Battery TypeLithium Ion

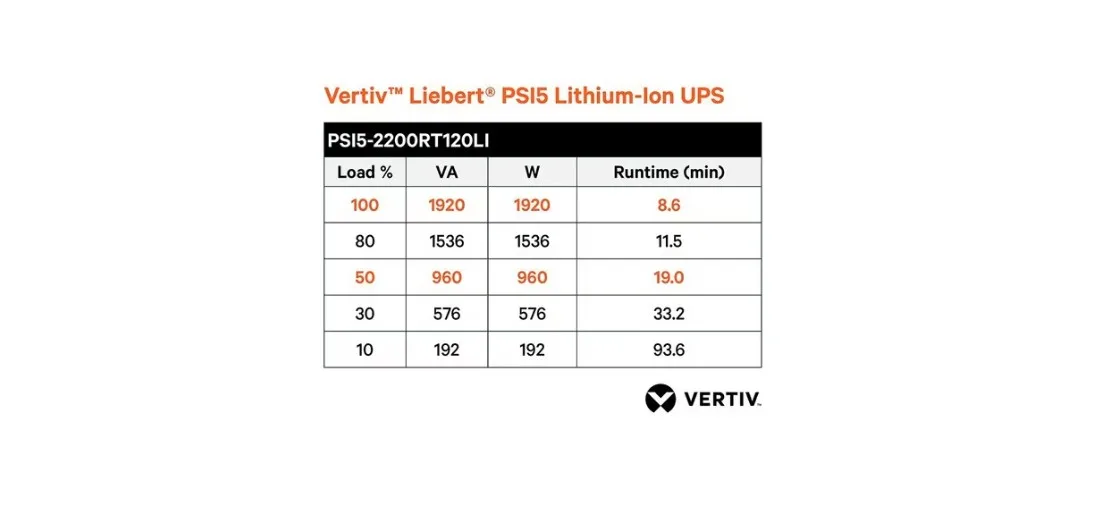

Battery Run TimeFull load: 8.6 min
Half load: 19.0 min
Battery Recharge Time2hrs to 90%
Interface PortUSB
ApprovalsUL 1642 (LiFe cells), UL 1973 (LiFe pack), UL 1778, CSA 22.2 no. 107.3
Rackmountable2U Rack / Tower
Surge ProtectionANSI C62.41, Category A, Level 3
TemperatureOperating Temperature,°F (°C): 32° to 104° (0° to 40°)
Storage Temperature °F (°C): 5° to 120° (-15° to 50°)
Humidity20% - 90%, non-condensing
Dimensions3.38" x 17.24" x 20.07"
Weight39.5 lbs.
Package Contentswith RDU120 Network Card
Versandgewicht24.27 kg
Paketgröße511 × 437 × 86 mm

Andere Versionen dieses Modells

4 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Will the 2U rack chassis fit a standard 19-inch cabinet with 3.38-inch vertical clearance?

The unit measures 3.38 inches high, 17.24 inches wide and 20.07 inches deep, matching a 2U rack space in a standard 19-inch enclosure.

Does the NEMA L5-20P input plug require a 20-amp circuit, and is the 5-20 adapter used for a 15-amp receptacle?

Connect the L5-20P to a 20-amp branch circuit; the included 5-20 adapter lets you plug into a NEMA 5-20R outlet, not a 15-amp 5-15R.

When should the internal lithium-ion battery pack be replaced after the 10-year design life?

Plan replacement at the 10-year mark; the pack recharges to 90 percent in 2 hours and delivers 8.6 minutes at full load or 19.0 minutes at half load when new.
