Wavlink
Wavlink RapidFire U2DA Dual M.2 NVMe Enclosure 20Gbps Gray
Dual-bay M.2 NVMe enclosure with 20Gbps USB-C, RAID 0 support and OTG compatibility for Windows, macOS and Android
- ColorGray
- MaterialPlastic
- Internal InterfaceM.2 NVME B+M-Key
- Specifications1.Model: RapidFire U2DA 2.Ports: SSD1 M.2 slot; SSD1 Indicat
- TypeM.2 NVMe SSD Enclosure
- Number of Bay2
Ports USB3.2
- USB4
- USB3.2
Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.
- Dual M.2 NVMe slots expand storage up to 16TB

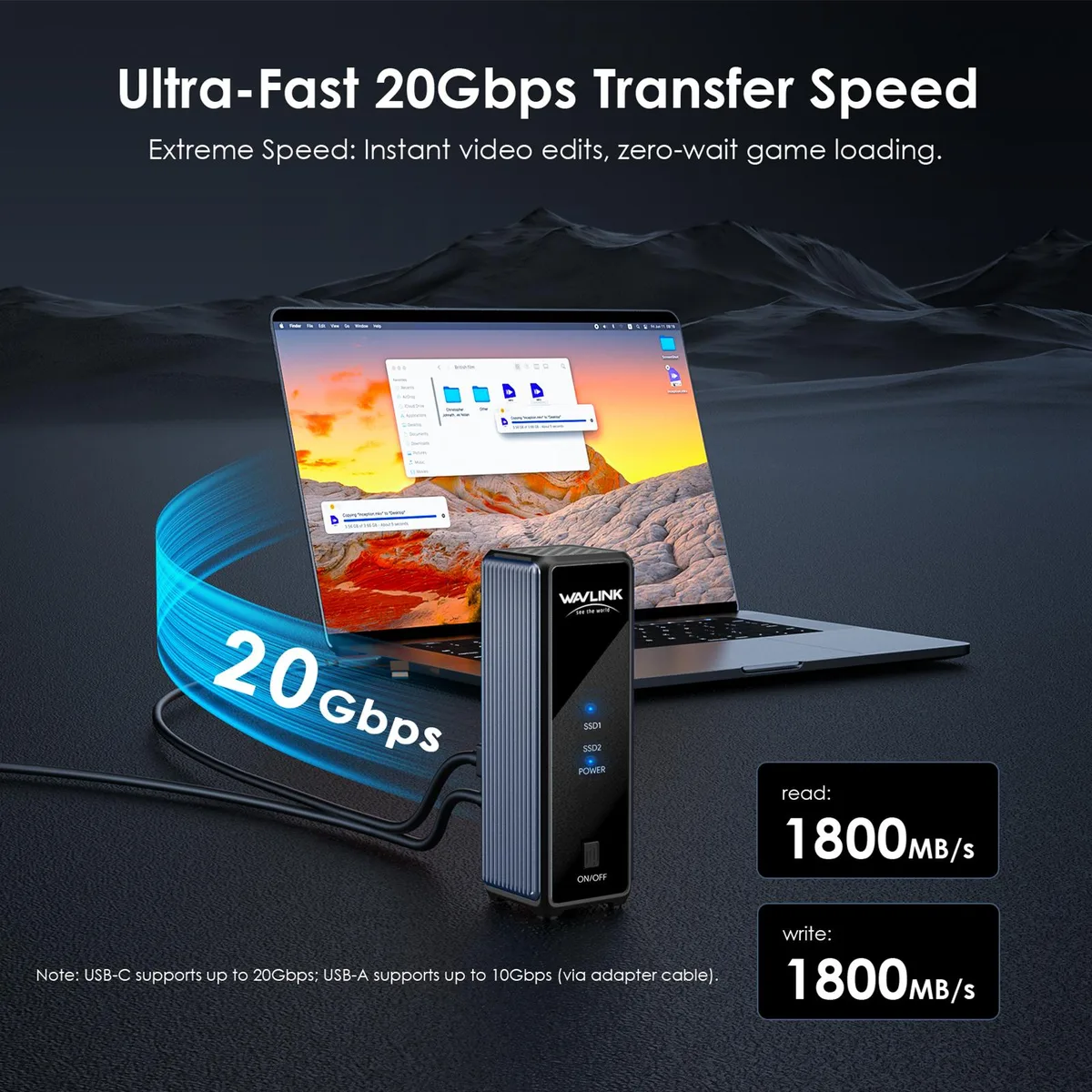

- USB3.2 Gen 2x2 delivers 20Gbps for 2000MB/s reads

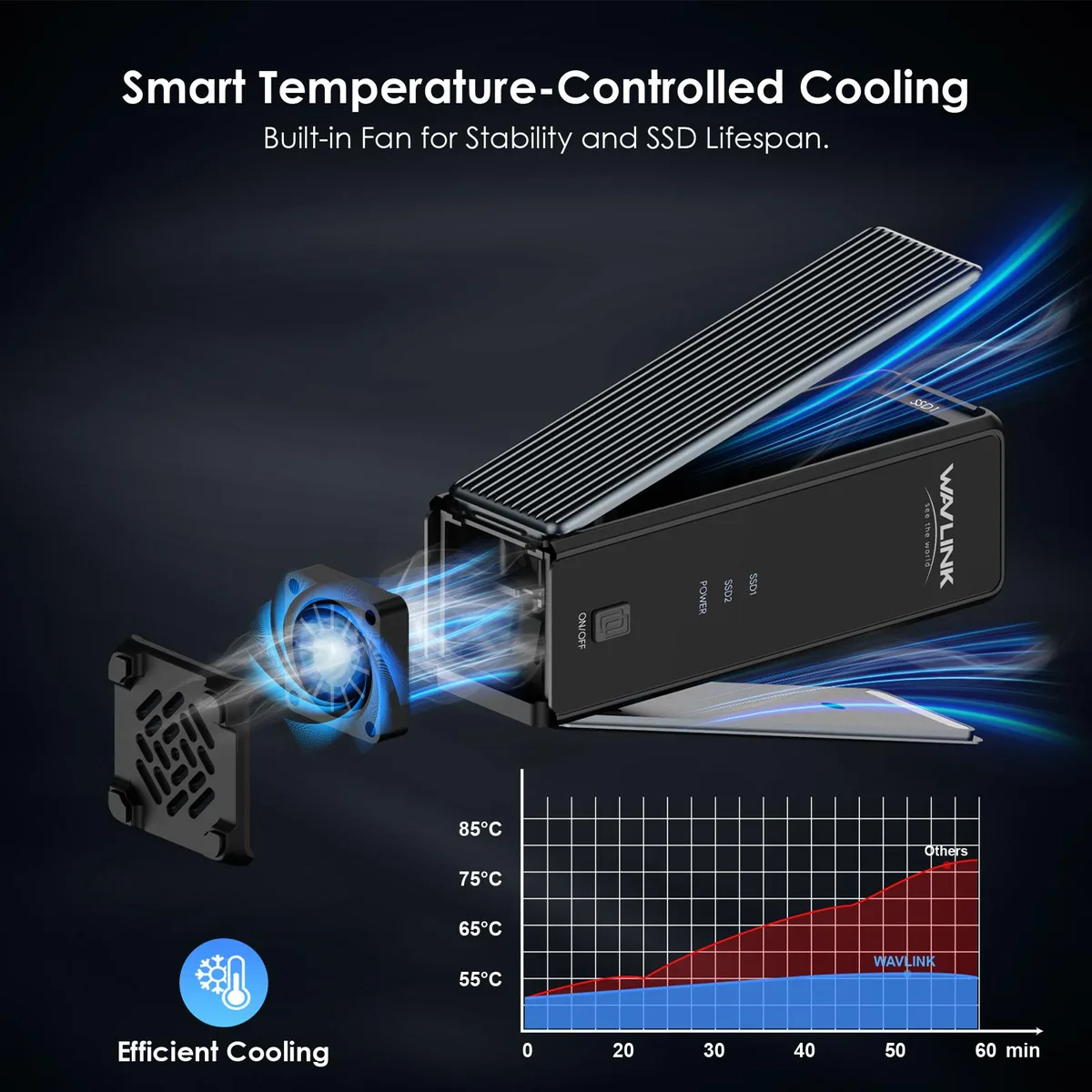

- Aluminum-alloy body with auto-speed fan keeps drives cool
- OTG support lets Android devices read and write directly
- RAID 0 option merges two SSDs for speed and capacity
Dual M.2 NVMe enclosure
The Wavlink RapidFire U2DA holds two PCIe NVMe SSDs in M-key or B+M-key form factors sized 2230, 2242, 2260 or 2280. Each bay accepts up to 8TB for a combined 16TB of portable storage. A USB3.2 Gen 2x2 Type-C port provides up to 20Gbps bandwidth, while the aluminium-and-plastic housing measures 1.6 by 5.0 by 1.7 inches.
Creators and mobile workers
Suits users who need fast, high-capacity external storage for large media libraries or backups and want OTG access from Android devices. RAID 0 is available for combined speed and capacity. Not for buyers who rely on SATA M.2 drives, which are not supported, or who need more than two NVMe slots in a single enclosure.
Tool-free drive installation
Each SSD secures with a supplied thumb screw; no other tools are required. The enclosure is plug-and-play on Windows, macOS and Android with UASP and Trim active. An included PD power adapter and USB-C to USB-C cable with detachable USB-A connector handle host power and charging. The built-in fan adjusts speed automatically, though heavy sustained writes can still raise drive temperatures.
Besonderheiten
- Dual M.2 NVMe slots expand storage up to 16TB
- USB3.2 Gen 2x2 delivers 20Gbps for 2000MB/s reads
- Aluminum-alloy body with auto-speed fan keeps drives cool
- OTG support lets Android devices read and write directly
- RAID 0 option merges two SSDs for speed and capacity
Technische Daten
| Brand | Wavlink |
|---|---|
| Model | WL-RapidFire U2DA |
| Color | Gray |
| Material | Plastic |
| Internal Interface | M.2 NVME B+M-Key |
| Specifications | 1.Model: RapidFire U2DA 2.Ports: SSD1 M.2 slot; SSD1 Indicator; SSD2 Indicator; Power Indicator; Power Button; SSD2 M.2 slot; USB-C; PD-IN 3.Unit Size: 1.6 x 5.0 x 1.7 inch 4.Housing Material: Aluminum alloy with ABS plastic |
| Type | M.2 NVMe SSD Enclosure |
| Number of Bay | 2 |
| Maximum Capacity (per Bay) | Up to 8TB |
| Operating Systems Supported | Systems Microsoft Windows Apple Mac OS Android |
| Features | -Transform two M.2 NVMe SSDs into blazing-fast, ultra-reliable, and fully portable standalone drives! -Supports mobile OTG function, enabling easy reading and writing of data from mobile devices to the hard disk. -USB-C interface with a transfer rate of up to 20Gbps, compatible with Thunderbolt 5/4/3, USB4/3.2/2.0 computers. -A single drive supports a maximum sequential read speed of 2000MB/s and a maximum sequential write speed of 1900MB/s. -Compatible with M.2 M-key and M&B-Key NVMe form factor sizes:2230/2242/2260/2280. -Plug and play, no drivers needed. |
| Package Contents | 1 x USB-C 20Gbps Dual-Bay PCIe NVMe SSD Enclosure 1 x USB-C to USB-C with USB-A cable 2 x Thumb Screw (SSD fasteners) 1 x PD Power Adapter 1 x USB-C to USB-C Charging Cable 1 x Quick Start Guide |
Fragen zu diesem Artikel
Which NVMe SSD sizes and key types does this enclosure accept?
It accepts M-key and B+M-key PCIe NVMe SSDs in 2230, 2242, 2260 and 2280 form factors; SATA drives are not supported.
What speed will I see when connecting the USB-C port to a 10Gbps USB-A port?
The USB-A connection is limited to 10Gbps, so transfers will run at up to half the enclosure's 20Gbps potential.
How do I confirm both SSDs are recognised and running at full 20Gbps speed?
Check that both SSD indicators and the power indicator are lit, then run a sequential read test — a single drive should approach 2000MB/s, two drives share the 20Gbps bandwidth.
