Compact desktop laser engraver with enclosed grey housing and transparent front panel

XTOOL

XTOOL F1 Ultra 20W Fiber & Diode Laser Engraver

SKU CH-GFGP-C067G

Dual 20W fiber and diode laser engraves metals, wood and more at up to 10000mm/s with a 220mm x 220mm bed expandable to 500mm

  • Engrave almost any material with dual 20W fiber and diode lasers
  • Achieve 10000mm/s engraving speed for rapid batch production
  • Create detailed 3D embossing and deep engraving on metal and wood
  • Work on large 220x220mm area expandable to 220x500mm with conveyor
  • Cut up to 15mm wood and 12mm black acrylic with diode laser

Dual 20W fiber and diode lasers

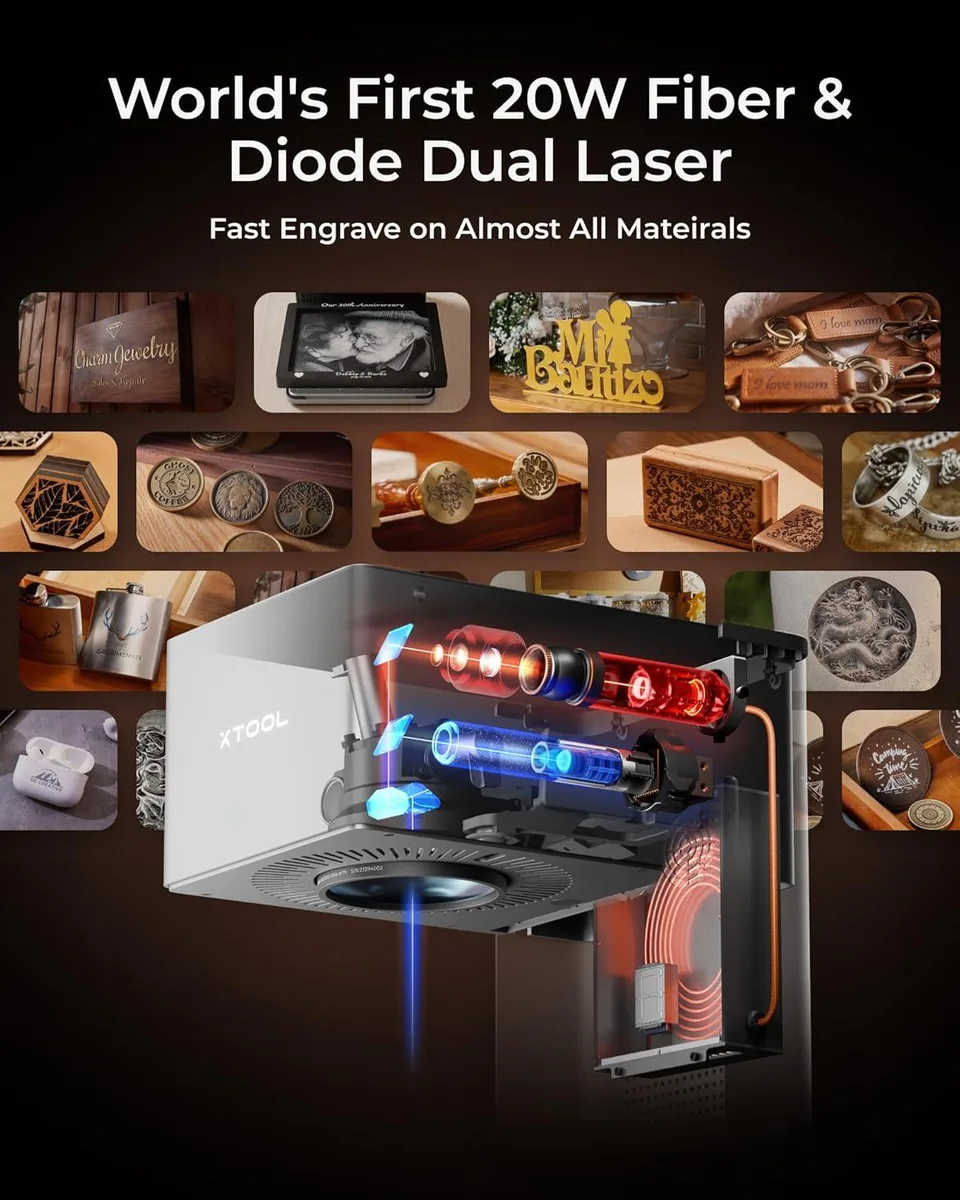

The XTOOL F1 Ultra combines a 20W fiber laser and a 20W blue diode laser in one desktop engraver. It marks metals such as gold, silver, copper, stainless steel, brass and titanium with the fiber source, while the diode source handles wood, acrylic, leather, glass, rubber and fabric. The system reaches speeds up to 10000mm/s for rapid throughput.

Upgrade from single-source engravers

Makers who currently run separate fiber and diode machines can consolidate to one unit that covers almost all common materials. The jump is worth it when workflow demands both metal marking and non-metal cutting in the same shop, eliminating changeover time and reducing bench space. Buyers who only process one material type will not use the dual capability.

220mm by 220mm work area expandable to 500mm

The native bed handles items up to 220mm square, and an optional auto conveyor extends the Y-axis to 500mm for batch production. The 16MP smart camera maintains HD photo engraving detail across the full field. Cutting capacity reaches 15mm wood and 12mm black acrylic with the diode laser. Buyers needing larger single-piece cutting or deeper metal removal will find the bed size limiting.

Besonderheiten

  • Engrave almost any material with dual 20W fiber and diode lasers
  • Achieve 10000mm/s engraving speed for rapid batch production
  • Create detailed 3D embossing and deep engraving on metal and wood
  • Work on large 220x220mm area expandable to 220x500mm with conveyor
  • Cut up to 15mm wood and 12mm black acrylic with diode laser

Technische Daten

BrandxTool
ModelP5010341

Fragen zu diesem Artikel

What are the dimensions of the working area on the xTool F1 Ultra?

The working area measures 220mm by 220mm as standard, and expands to 220mm by 500mm when the auto conveyor is used.

How do I set up the dual-laser system and what step is commonly missed?

Connect the engraver to power and the control software, then run the built-in focus calibration for both the 20W fiber and 20W diode lasers; the step often missed is calibrating each laser separately because they have different focal lengths.

What consumable or maintenance items will the xTool F1 Ultra need over time?

The laser modules are solid-state and rated for long life, but the protective lens covers, exhaust filters and any rotary or conveyor accessories will need periodic cleaning or replacement.
