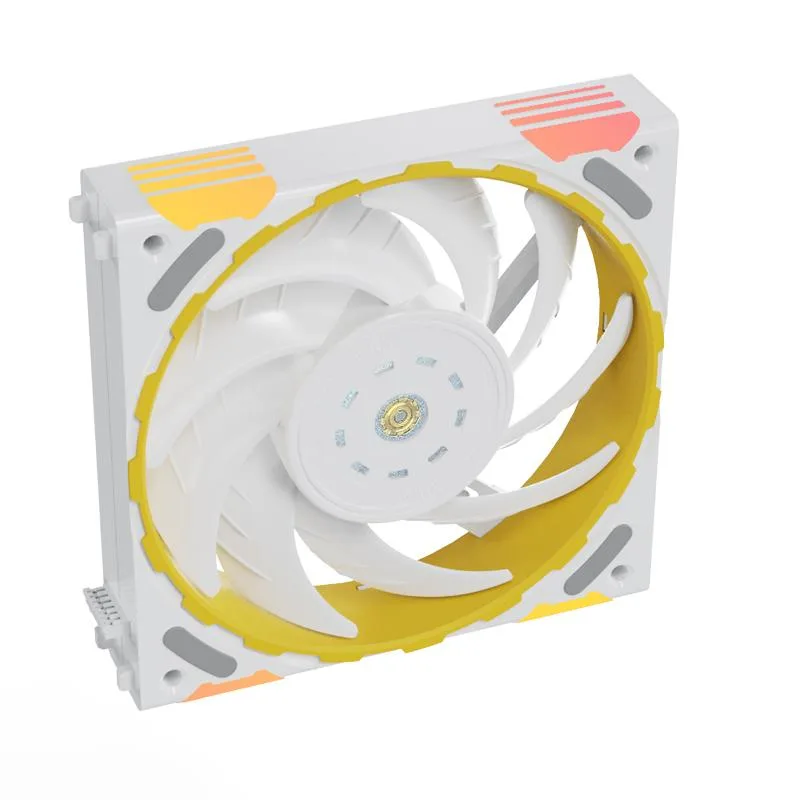

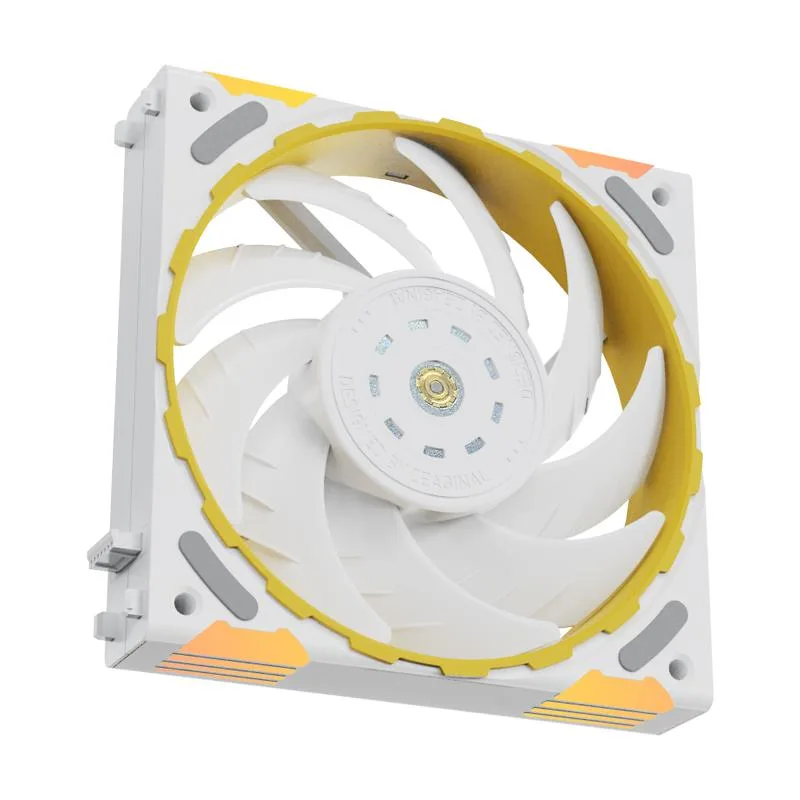

White 120mm case fan with ARGB lighting and 4-pin connector

YESTON

YESTON Zeaginal ZC-ZS-TI White LED 120mm Case Fan Quiet Edition

SKU CH-YEPB-YBCMW

A 120 mm white ARGB case fan with fluid-dynamic bearing, PWM control from 900 to 2200 RPM, 76 CFM airflow and 30 dBA noise

  • Fan Counts1 Fan
  • TypeCase Fan
  • Fan Thickness25mm
  • Bearing TypeFluid Dynamic
  • RPM900~2200RPM±10%
  • Air Flow76CFM
  • High airflow with 76 CFM for effective cooling
  • Quiet operation at 30 dBA noise level
  • Durable Fluid Dynamic Bearing for long lifespan
  • PWM speed control from 900 to 2200 RPM
  • ARGB lighting compatible with AURA SYNC

White ARGB 120mm Case Fan

The Yeston Zeaginal ZC-ZS-TI is a single 120mm case fan with white frame and addressable RGB lighting. It uses a fluid dynamic bearing and a four-pin PWM connector for automatic speed control. The fan targets builders who want quiet operation with synchronised lighting effects.

PWM Range and Airflow Limits

Speed adjusts between 900 and 2200 RPM with a tolerance of ten percent. At maximum speed the fan moves 76 CFM of air and develops 3.24 mmH2O of static pressure. Noise reaches 30 dBA at full load. The 25mm thickness fits standard mounting points.

Upgrade From Fixed-Speed or Non-RGB Fans

This unit replaces three-pin fixed-speed fans or older LED models that lack PWM control and addressable lighting. The jump is worth it when the motherboard supports four-pin headers and 5V ARGB sync software. It does not suit builds that require higher static pressure for dense radiators or dust filters.

Besonderheiten

  • High airflow with 76 CFM for effective cooling
  • Quiet operation at 30 dBA noise level
  • Durable Fluid Dynamic Bearing for long lifespan
  • PWM speed control from 900 to 2200 RPM
  • ARGB lighting compatible with AURA SYNC

Technische Daten

BrandYeston
SeriesZeaginal ZC-ZS-TI
Fan Counts1 Fan
TypeCase Fan
Fan Thickness25mm
Bearing TypeFluid Dynamic
RPM900~2200RPM±10%
Air Flow76CFM
Air Pressure3.24mmH20
Noise Level30dBA
Power Connector4 Pin
ColorWhite
LEDARGB
Dimensions120x120x25mm

Fragen zu diesem Artikel

Is the 120mm size the right choice for my case or should I look at a different diameter?

The fan measures 120x120x25mm, the standard 120mm square footprint that fits most mid-tower and full-tower cases with 120mm mounts.

What does the 76CFM airflow rating actually deliver inside a built PC?

At up to 2200RPM the fan moves 76CFM, providing strong airflow through mesh panels or across a radiator while the FDB bearing keeps noise near 30dBA.

Will the 4-pin PWM connector work with my motherboard fan header and what control does it give?

The 4-pin PWM plug connects to any standard motherboard fan header, allowing the board to vary speed automatically between 900 and 2200RPM based on temperature.
