Zyvpee AS0412UB565BA2 40×56 mm 12 V 4-pin case fan
A 40 × 56 mm 12 V dual-ball-bearing fan with a 4-pin 2510 connector runs at 17 500–22 000 rpm and delivers 71.5 dBA for compact server cooling
- TypeCase Fan
- CompatibilityCase
- Bearing Type2 Ball
- Power Connector4 Pin
- ColorBlack
- LEDNon-LED
- Dual-speed 17500 or 22000 RPM for strong airflow
- 2 ball bearing design extends operating life
- 12 V 1.92 A delivers 4-pin PWM control
- Compact 40×56 mm frame fits tight server bays
- Low-profile black non-LED housing keeps builds clean
Compact 40×56 mm 12 V case fan

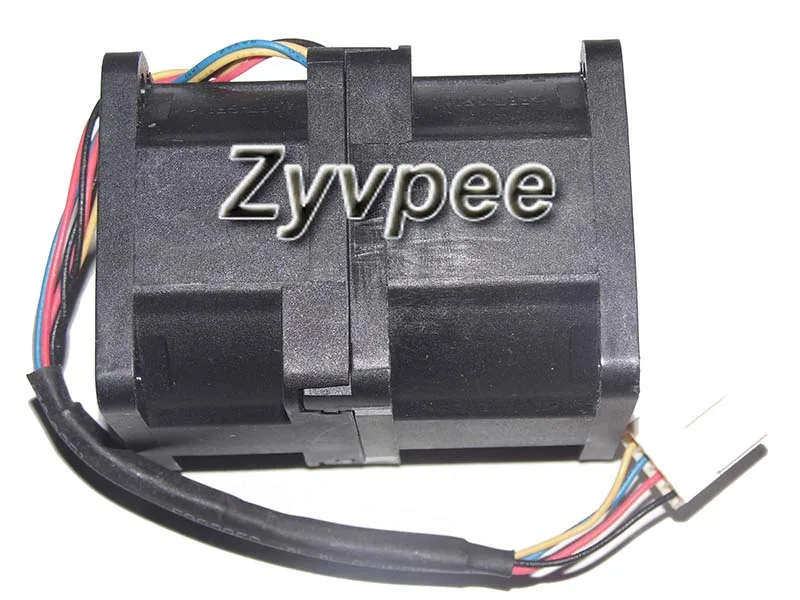

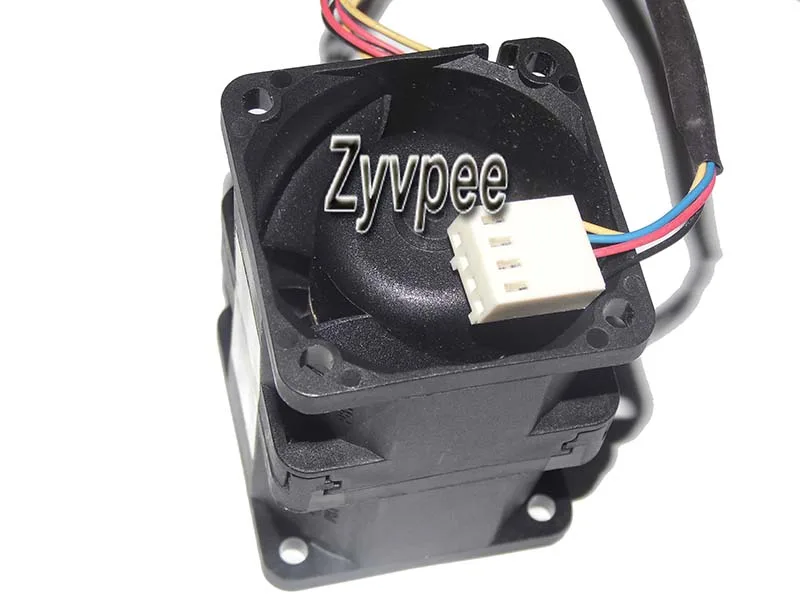

The Zyvpee AS0412UB565BA2 is a 40 by 56 millimetre case fan built around a 2-ball bearing and a 4-pin 2510 power connector. It runs on 12 volts at 1.92 amperes and is finished in black without any LED lighting.
Suits tight server or industrial chassis needing
Builders fitting the fan into compact server enclosures or specialised industrial cases will benefit from the dual-speed range of 17500 and 22000 RPM. The 71.5 dBA noise level makes it unsuitable for quiet home or office systems where low acoustic output is a priority.
Dual-speed specification decides fit
The fan offers two operating speeds of 17500 and 22000 RPM with a tolerance of plus or minus five percent, so the single specification that determines compatibility is whether the target chassis can accommodate that airflow and the resulting 71.5 dBA sound pressure.
Besonderheiten
- Dual-speed 17500 or 22000 RPM for strong airflow
- 2 ball bearing design extends operating life
- 12 V 1.92 A delivers 4-pin PWM control
- Compact 40×56 mm frame fits tight server bays
- Low-profile black non-LED housing keeps builds clean
Technische Daten
| Brand | 3ccooler.com |
|---|---|
| Series | AS04012UB565BA2 |
| Model | AS04012UB565BA2 |
| Type | Case Fan |
| Compatibility | Case |
| Bearing Type | 2 Ball |
| Power Connector | 4 Pin |
| Color | Black |
| LED | Non-LED |
| Features | Power Cooling |
| Dimensions | 40*56mm |
Fragen zu diesem Artikel
Will the 40×56 mm frame with 2510 4-pin connector fit my server chassis?
The fan measures 40 mm square by 56 mm thick and uses a 2510 4-pin plug, so it fits any 40 mm mounting pattern that accepts a 56 mm depth and a 2510 header.
How do I install the 4-pin 2510 connector without bending the pins?
Align the keyed 2510 housing with the header, press straight in until the latch clicks, and route the wires clear of the 17500–22000 RPM blades.
When should I plan to replace the dual-ball bearing fan running at 71.5 dBA?
Dual-ball bearings typically last 50 000+ hours at 12 V; monitor for rising noise or speed drop below 17500 RPM as replacement indicators.
