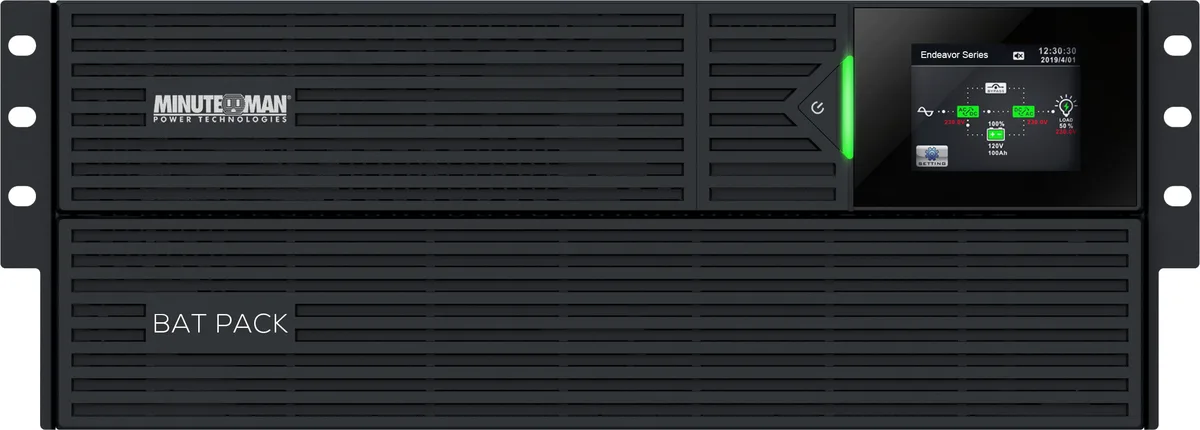

Rectangular black metal 4U rack tower unit with touchscreen LCD panel and multiple rear outlets

MINUTEMAN

MINUTEMAN ED5KRT UPS 5000VA 4500W 4U Rack/Tower

SKU CH-H3V0-FHBG9 MPN ED5KRT

Online double-conversion UPS delivering 5000VA/4500W in a 4U rack/tower with hot-swappable batteries and five output receptacles

  • International Version208 (Default), 220, 230, 240VAC
  • Input Voltage Range156-280VAC
  • Input Frequency40 to 70Hz at Full Load
  • Input ConnectionHardwire w/optional NEMA L6-30P (6-ft.)
  • VA Rating5000VA
  • Watts4500W

Model ED5KRT

Näytä 16 muuta kokoonpanoa

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • Online double-conversion topology delivers clean 4500 W power
  • Touchscreen LCD enables instant status checks and configuration
  • Hot-swappable BM0097 batteries allow replacement without downtime
  • 3140 J surge rating protects connected equipment from transients
  • cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2 approvals confirm compliance

5000VA Online UPS for Critical Loads

The Minuteman ED5KRT is a 5000VA, 4500W double-conversion UPS designed for servers and network equipment needing clean 208-240VAC power. It fits a 4U rack or tower footprint and provides extended runtime capability for environments where uptime is essential.

Verify Hardwire Input and 208-240V Output

Before ordering, confirm your facility can supply 156-280VAC at 40-70Hz to the hardwire input terminals. The unit defaults to 208VAC output but supports 220, 230 and 240VAC; ensure connected equipment matches the selected voltage. Three L6-30R, two L6-20R and one terminal block outlet require matching plugs or wiring.

Hot-Swap Batteries and DB-9 Monitoring

Hot-swappable BM0097 battery modules allow replacement without shutting down the load, while independent chargers support unlimited runtime extensions. A multi-colour touchscreen LCD gives immediate status and configuration access, and the DB-9 port enables basic serial monitoring or shutdown scripts. Surge protection is rated at 3140 joules.

Kohokohdat

  • Online double-conversion topology delivers clean 4500 W power
  • Touchscreen LCD enables instant status checks and configuration
  • Hot-swappable BM0097 batteries allow replacement without downtime
  • 3140 J surge rating protects connected equipment from transients
  • cUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2 approvals confirm compliance

Tekniset tiedot

BrandMINUTEMAN
SeriesENDEAVOR
ModelED5KRT
International Version208 (Default), 220, 230, 240VAC
Input Voltage Range156-280VAC
Input Frequency40 to 70Hz at Full Load
Input ConnectionHardwire w/optional NEMA L6-30P (6-ft.)
VA Rating5000VA
Watts4500W
Output Voltage208 (Default), 220, 230, 240VAC
Output Frequency50/60Hz, auto selecting, +/-3Hz (unless synchronized to utility)
Outlets5
Outlet Type(3) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block
Battery Run TimeHalf Load: 11 min
Full Load: 3 min
Battery ReplaceableBM0097
Interface PortDB-9
ApprovalscUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2
Surge Energy Rating3140 Joules
TemperatureOperating Temperature: +32° to +104°F (0° to +40°C)
Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity0 to 95%, non-condensing
Dimensions6.81" x 17.24" x 23.27"
Weight122.32 lbs.
Lähetyspaino55.47 kg
Pakkauksen mitat592 × 437 × 173 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

What comes in the box with the Minuteman ED5KRT and what must be purchased separately?

The UPS ships with a DB-9 interface port for monitoring; input connection is hardwired with an optional NEMA L6-30P cord available separately. Replacement battery packs use part number BM0097 and are also sold separately.

Which output voltage setting should I select for the ED5KRT — 208, 220, 230 or 240 VAC?

The unit defaults to 208 VAC and can be configured for 220, 230 or 240 VAC to match your local supply; choose the setting that equals your building voltage.

What does the 5000 VA / 4500 W rating mean for actual runtime on this UPS?

At half load the battery lasts 11 minutes; at full 4500 W load it provides 3 minutes, giving time for orderly shutdown or generator start.
