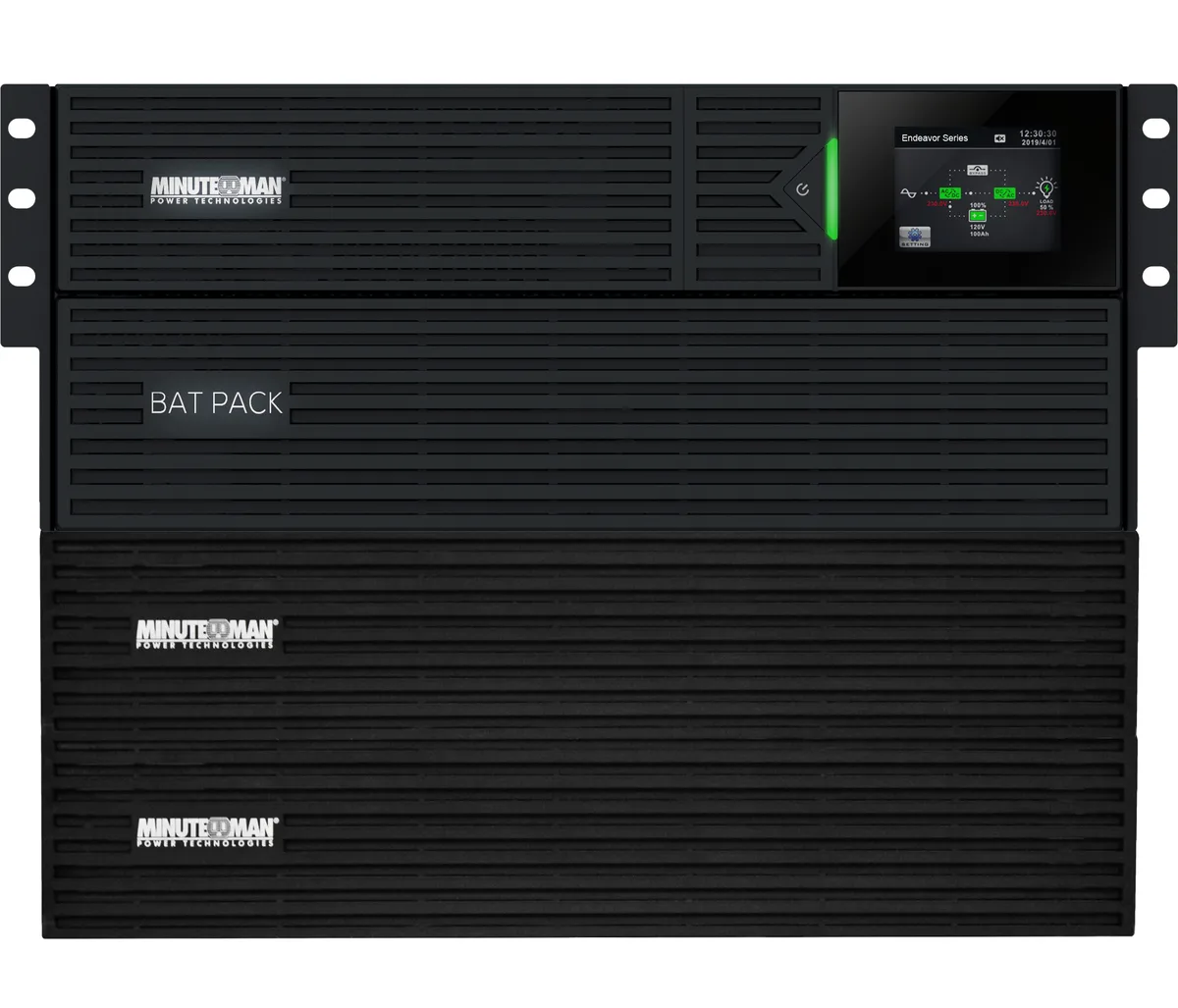

Large black rack tower UPS with touchscreen LCD panel and multiple outlet types

MINUTEMAN

MINUTEMAN ED8KRT-8KTF2 UPS 8000VA 6840W 208-240V 120V Rack/Tower

SKU CH-BQ1Q-2EYV2 MPN ED8KRT-8KTF2

Online double-conversion UPS delivering 8,000VA and 6,840W with selectable 208-240V or 120V outputs, hot-swappable batteries, and 11 minutes half-load runtime

  • International Version208 (Default), 220, 230, 240VAC
  • Input Voltage Range180-280VAC
  • Input Frequency40 to 70Hz at Full Load
  • Input ConnectionHardwire only
  • VA Rating8,000VA
  • Watts6840W

Model ED8KRT-8KTF2

Näytä 16 muuta kokoonpanoa

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • 8 kVA capacity supports heavy server loads
  • 6840 W output powers dense rack equipment
  • Online double-conversion topology delivers clean sine-wave power
  • Hot-swappable battery modules enable zero-downtime replacement
  • Touchscreen LCD panel simplifies configuration and monitoring

8 kVA Online UPS for Rack or Tower Use

The Minuteman Endeavor ED8KRT-8KTF2 is a double-conversion UPS rated at 8,000 VA and 6,840 W. It accepts a hardwired input between 180 and 280 VAC at 40 to 70 Hz and delivers selectable output at 208, 220, 230 or 240 VAC. Five outlet groups include L6-30R, L6-20R, L5-30R, 5-15/20R and terminal blocks for both 208-240 VAC and 120 VAC loads. The unit suits server rooms and network closets that need continuous, conditioned power.

Battery Runtime and Hardwired Installation Limits

At full load the internal batteries provide three minutes of runtime; at half load they provide eleven minutes. Extended runtime requires additional battery modules connected to the independent chargers. The UPS must be hardwired on the input side, so it cannot be plugged into a standard receptacle. Operating temperature range is 32 to 104 °F with humidity up to 95 % non-condensing. Surge protection is rated at 3,140 joules.

Front-Panel Battery Access and DB-9 Monitoring

Batteries are hot-swappable and replaced through the front panel without tools, using the BM0098 kit. A multi-colour touchscreen LCD gives immediate status and configuration access. Remote monitoring uses a DB-9 serial port; no network card is included. The chassis measures 15.36 by 17.24 by 28.74 inches and weighs 380.19 lbs, so two-person handling or a lift is necessary for rack mounting.

Kohokohdat

  • 8 kVA capacity supports heavy server loads
  • 6840 W output powers dense rack equipment
  • Online double-conversion topology delivers clean sine-wave power
  • Hot-swappable battery modules enable zero-downtime replacement
  • Touchscreen LCD panel simplifies configuration and monitoring

Tekniset tiedot

BrandMINUTEMAN
SeriesENDEAVOR
ModelED8KRT-8KTF2
International Version208 (Default), 220, 230, 240VAC
Input Voltage Range180-280VAC
Input Frequency40 to 70Hz at Full Load
Input ConnectionHardwire only
VA Rating8,000VA
Watts6840W
Output Voltage208 (Default), 220, 230, 240VAC
Output Frequency50/60Hz, +/-0.1Hz
Outlets5
Outlet Type(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC)
(12) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block (120VAC)
Battery Run TimeHalf Load: 11 min
Full Load: 3 min
Battery ReplaceableBM0098
Interface PortDB-9
ApprovalscUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2
Surge Energy Rating3140 Joules
TemperatureOperating Temperature: +32° to +104°F (0° to +40°C)
Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity0 to 95%, non-condensing
Dimensions15.36" x 17.24" x 28.74"
Weight380.19 lbs.
Lähetyspaino172.46 kg
Pakkauksen mitat729 × 437 × 391 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

How do I select the right output-voltage setting for the Endeavor ED8KRT-8KTF2?

The unit ships with 208 VAC as the default and can be configured for 220, 230 or 240 VAC to match your facility voltage.

What does the 6840 W rating mean when the UPS is powering live equipment?

It is the maximum real power the inverter can supply continuously; loads above that level will trigger overload protection.

What monitoring does the DB-9 port actually provide on this model?

The DB-9 serial port carries status, alarm and configuration data for direct connection to management software or a local console.
