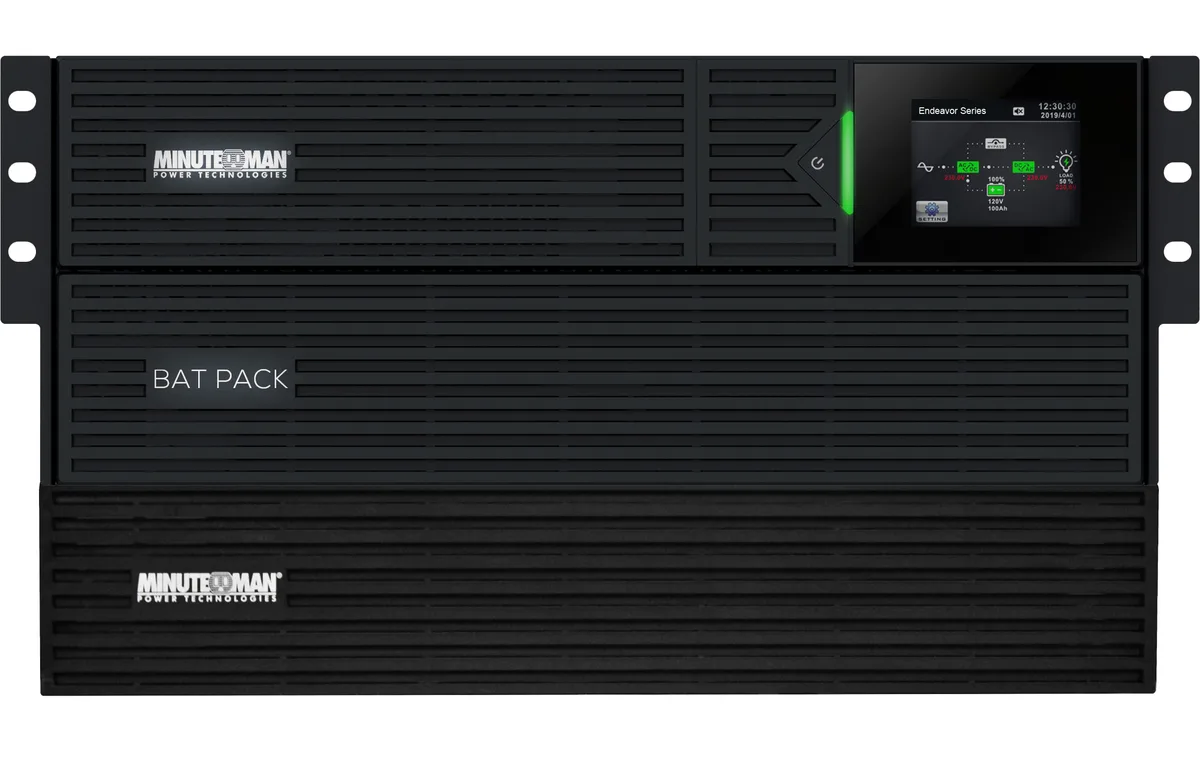

Rectangular black metal rack-tower UPS with touchscreen LCD panel and multiple outlet types

MINUTEMAN

MINUTEMAN ED6KRT-5KTF UPS 6000VA 5175W 208-240V Rack/Tower

SKU CH-S1CA-D53DT MPN ED6KRT-5KTF

Online double-conversion UPS delivering 6000VA and 5175W with selectable 208-240V output, hot-swappable batteries and a touchscreen LCD panel

  • International Version208 (Default), 220, 230, 240VAC
  • Input Voltage Range156-280VAC
  • Input Frequency40 to 70Hz at Full Load
  • Input ConnectionHardwire w/optional NEMA L6-30P (6-ft.)
  • VA Rating6000VA
  • Watts5175W

Model ED6KRT-5KTF

Näytä 16 muuta kokoonpanoa

Yliviivatut versiot ovat olemassa, mutta niitä ei ole varastossa täällä.

  • Online double-conversion topology protects sensitive loads
  • 6000VA / 5175W capacity supports dense rack deployments
  • Hot-swappable BM0097 batteries enable runtime extension without downtime
  • Touchscreen LCD simplifies configuration and real-time monitoring
  • 3140-joule surge rating shields connected equipment from transients

Minuteman Endeavor 6000VA Online UPS

The Minuteman Endeavor ED6KRT-5KTF is a double-conversion online UPS rated at 6000VA and 5175W, designed for 208 to 240VAC environments. It protects critical servers, network infrastructure and industrial equipment that require continuous, clean sine-wave power. The unit operates in a rack or tower orientation and ships new with a multi-colour touchscreen LCD for local configuration and monitoring.

Hardwire input and limited runtime envelope

The UPS accepts a hardwired input with an optional NEMA L6-30P cord and tolerates an input window of 156 to 280VAC at 40 to 70Hz. Battery runtime is 7 minutes at half load and 2 minutes at full load, so extended outages require external battery packs or a generator. Output frequency locks to 50 or 60Hz within +/-3Hz unless synchronised to the utility, and surge protection is rated at 3140 joules.

4U rack footprint with hot-swappable batteries

The chassis occupies 4U of rack space measuring 10.22 by 17.24 by 23.82 inches and weighs 243.54 lbs, requiring two-person handling or a lift. Batteries are user-replaceable via a tool-less front panel using BM0097 modules and support hot-swap operation for continuous uptime. Management relies on a DB-9 serial port; network cards or USB are not included, so remote monitoring needs an optional accessory.

Kohokohdat

  • Online double-conversion topology protects sensitive loads
  • 6000VA / 5175W capacity supports dense rack deployments
  • Hot-swappable BM0097 batteries enable runtime extension without downtime
  • Touchscreen LCD simplifies configuration and real-time monitoring
  • 3140-joule surge rating shields connected equipment from transients

Tekniset tiedot

BrandMINUTEMAN
SeriesENDEAVOR
ModelED6KRT-5KTF
International Version208 (Default), 220, 230, 240VAC
Input Voltage Range156-280VAC
Input Frequency40 to 70Hz at Full Load
Input ConnectionHardwire w/optional NEMA L6-30P (6-ft.)
VA Rating6000VA
Watts5175W
Output Voltage208 (Default), 220, 230, 240VAC
Output Frequency50/60Hz, auto selecting, +/-3Hz (unless synchronized to utility)
Outlets5
Outlet Type(2) L6-30R / (2) L6-20R / (1) 3-wire Terminal Block (208-240VAC)
(4) 5-15/20R / (2) L5-30R / (1) 3-wire Terminal Block (120VAC)
Battery Run TimeHalf Load: 7 min
Full Load: 2 min
Battery ReplaceableBM0097
Interface PortDB-9
ApprovalscUL, CE, UL1778, FCC Class B, Energy Star 2.0, RoHS2
Surge Energy Rating3140 Joules
TemperatureOperating Temperature: +32° to +104°F (0° to +40°C)
Storage Temperature: +5° to +131°F (-15° to +55°C)
Humidity0 to 95%, non-condensing
Dimensions10.22" x 17.24" x 23.82"
Weight243.54 lbs.
Lähetyspaino110.45 kg
Pakkauksen mitat605 × 437 × 259 mm

Tämän mallin muut versiot

5 lisää samasta mallistosta

Sama tuoteperhe, eri muisti, jäähdytin tai kellotaajuus — vertaile ennen päätöstä.

Kysymyksiä tästä tuotteesta

Should I choose the 208 V or 240 V output version for my rack?

The unit defaults to 208 VAC but can be set to 220, 230 or 240 VAC to match your facility voltage

What does the 5175 W rating mean when the UPS is fully loaded?

At full load the battery provides about 2 minutes of runtime while delivering 5175 watts continuously

How does the DB-9 port limit remote monitoring?

The DB-9 interface supports serial communication only; network management requires an optional card not included
