1ST PC CORP. FFB1212EH-PWM 120mm 25mm 4000 RPM 150.33 CFM 56.4 dBA 4-pin PWM case fan
A 120 mm case fan spinning at 4000 RPM delivers 150.33 CFM airflow through dual ball bearings with 4-pin PWM control
- TypeCase Fan
- CompatibilityCase
- Fan Thickness25mm
- Bearing Type2 Ball
- RPM4000 RPM
- Air Flow150.33 CFM
- High airflow moves 150.33 CFM through your case
- Dual ball bearing rated for 70000 hours at 40°C
- PWM control adjusts speed up to 4000 RPM
- High static pressure 12.43 mmH2O for dense radiators
- 4-pin connector supports automatic motherboard fan curves
High-speed 120 mm PWM case fan

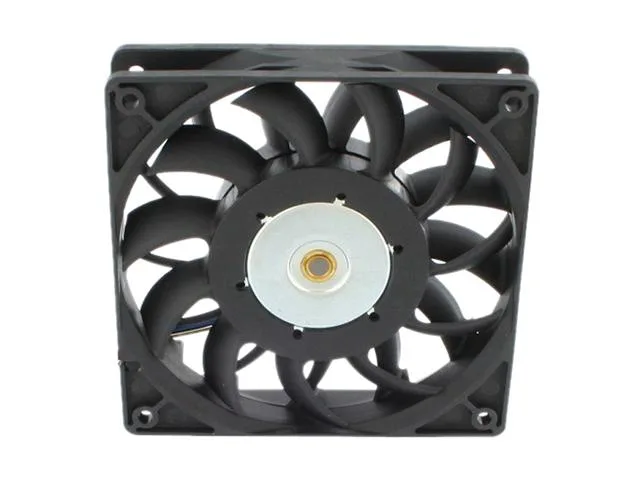

The Delta FFB1212EH-PWM is a 120 mm case fan with a 25 mm thickness and a dual ball bearing. It runs at 4000 RPM and delivers 150.33 CFM of airflow at a rated 56.4 dBA. The 4-pin PWM connector allows automatic speed control from the motherboard.
4000 RPM airflow and static pressure
The single specification that decides fit is the 4000 RPM speed combined with 12.43 mmH2O maximum static pressure. This pairing moves 150.33 CFM through restrictive radiators or dense mesh, but it also produces the quoted 56.4 dBA noise level. Builders who need that pressure headroom accept the sound; those who do not will find the fan louder than necessary.
Suited for high-restriction cooling.
This fan suits water-cooling radiators, heatsinks with tight fin stacks, or chassis with restricted intake paths where static pressure matters more than quiet operation. It is not for builders who prioritise low noise in open-air cases, nor for systems that cannot supply the 12 VDC rail current the motor draws at full speed.
Points forts
- High airflow moves 150.33 CFM through your case
- Dual ball bearing rated for 70000 hours at 40°C
- PWM control adjusts speed up to 4000 RPM
- High static pressure 12.43 mmH2O for dense radiators
- 4-pin connector supports automatic motherboard fan curves
Caractéristiques
| Brand | Delta |
|---|---|
| Model | FFB1212EH-PWM |
| Type | Case Fan |
| Compatibility | Case |
| Fan Thickness | 25mm |
| Bearing Type | 2 Ball |
| RPM | 4000 RPM |
| Air Flow | 150.33 CFM |
| Noise Level | 56.4 dBA |
| Power Connector | 4-pin PWM |
| Features | Rated Voltage: 12 VDC Operating Voltage Range: 7 - 13.2 VDC Input Current: 1.45 Amp (1.74A maximum) Input Power: 17.4W (20.88W maximum) Maximum Air Pressure: 12.43 mmH2O or 0.489 inchH2O The Delta FFB1212EH-PWM is a high speed, high air flow cooling fan at 120 x 120 x 25mm. It has both PWM and speed monitor output wire. There is 190 CFM of air flow on tap when you need it, or 5.38 cubic meter per minute. A very important feature is directional fin design which forces air to flow exactly where it's needed and achieve minimum noise under high airflow and strong air pressure. Life expec |
| Dimensions | 120 x 120 x 25mm |
| Poids d’expédition | 0.26 kg |
| Dimensions du colis | 211 × 170 × 53 mm |
Questions sur cet article
How much airflow does the 150.33 CFM rating actually deliver inside a case?
The fan moves up to 150.33 CFM at 4000 RPM, with a peak of 190 CFM available when the PWM curve demands maximum cooling.
What does the 4-pin PWM connector control and what voltage range does it operate on?
The 4-pin PWM connector provides speed control and monitoring; the fan runs on 12 VDC with an operating range of 7 to 13.2 VDC.
Will the 25 mm thickness fit standard 120 mm mounting points in my chassis?
Yes, the frame measures 120 x 120 x 25 mm, matching the common 120 mm mounting pattern used in most cases.
