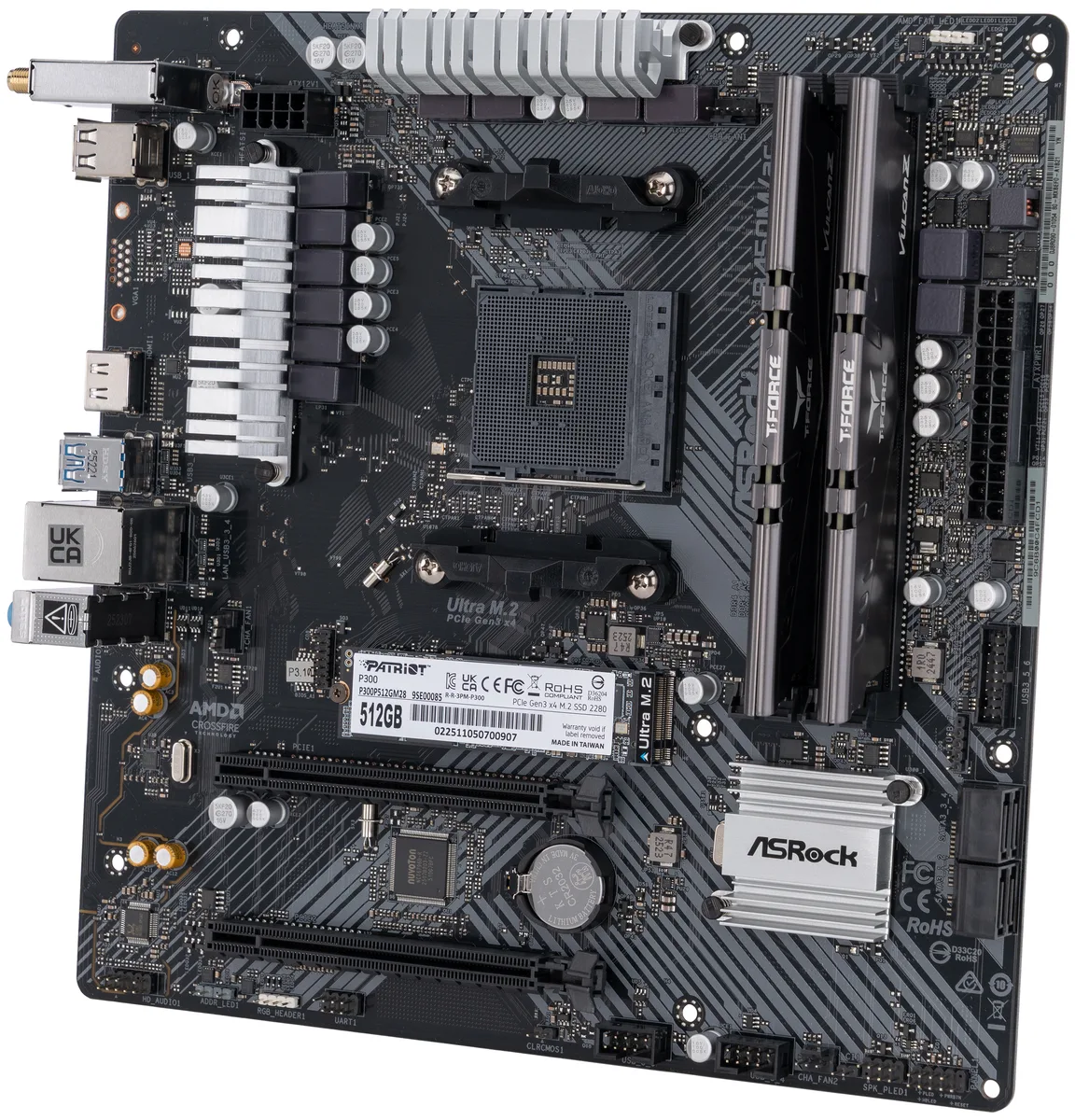

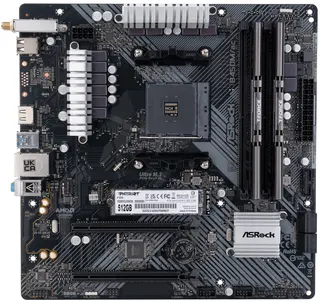

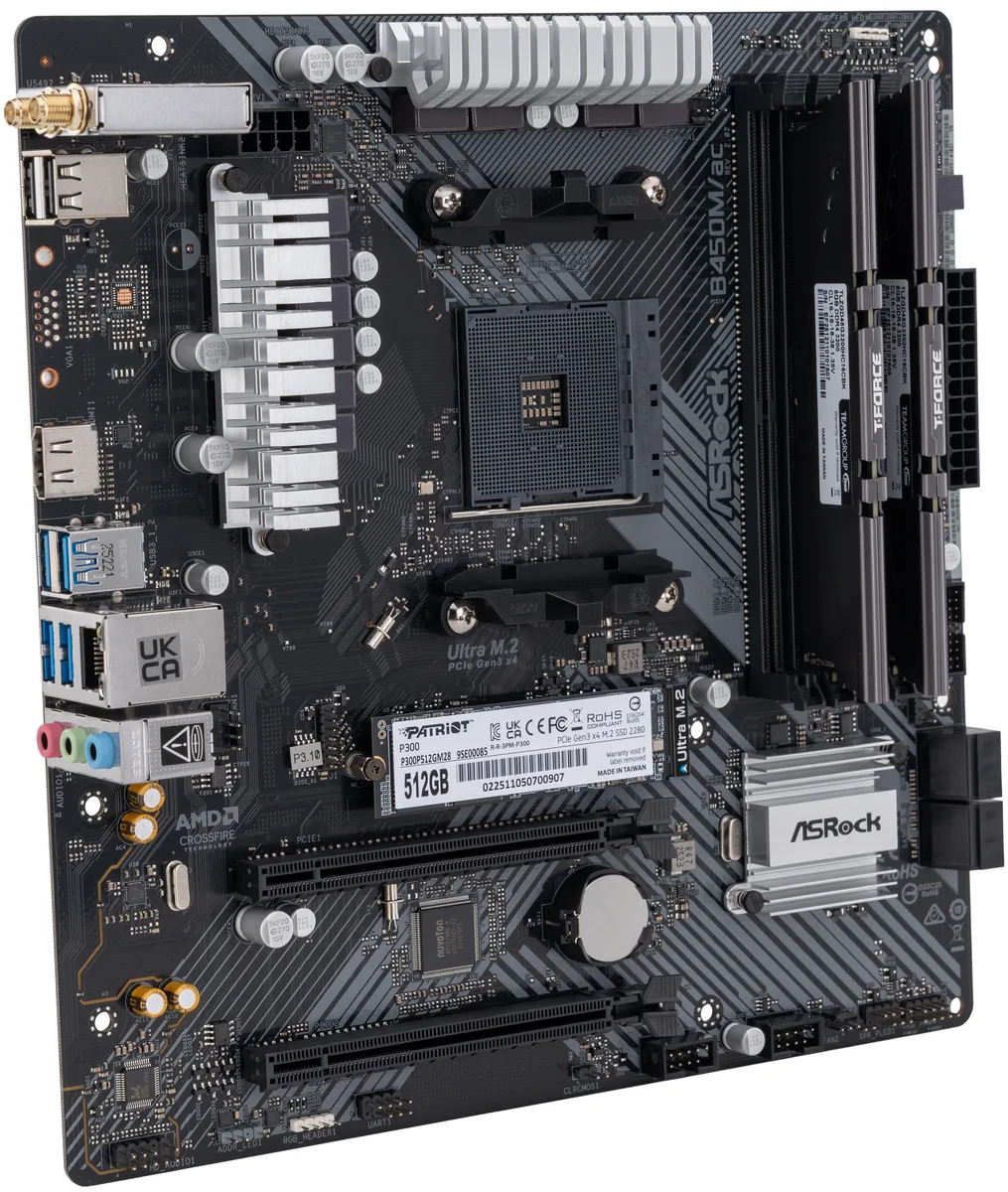

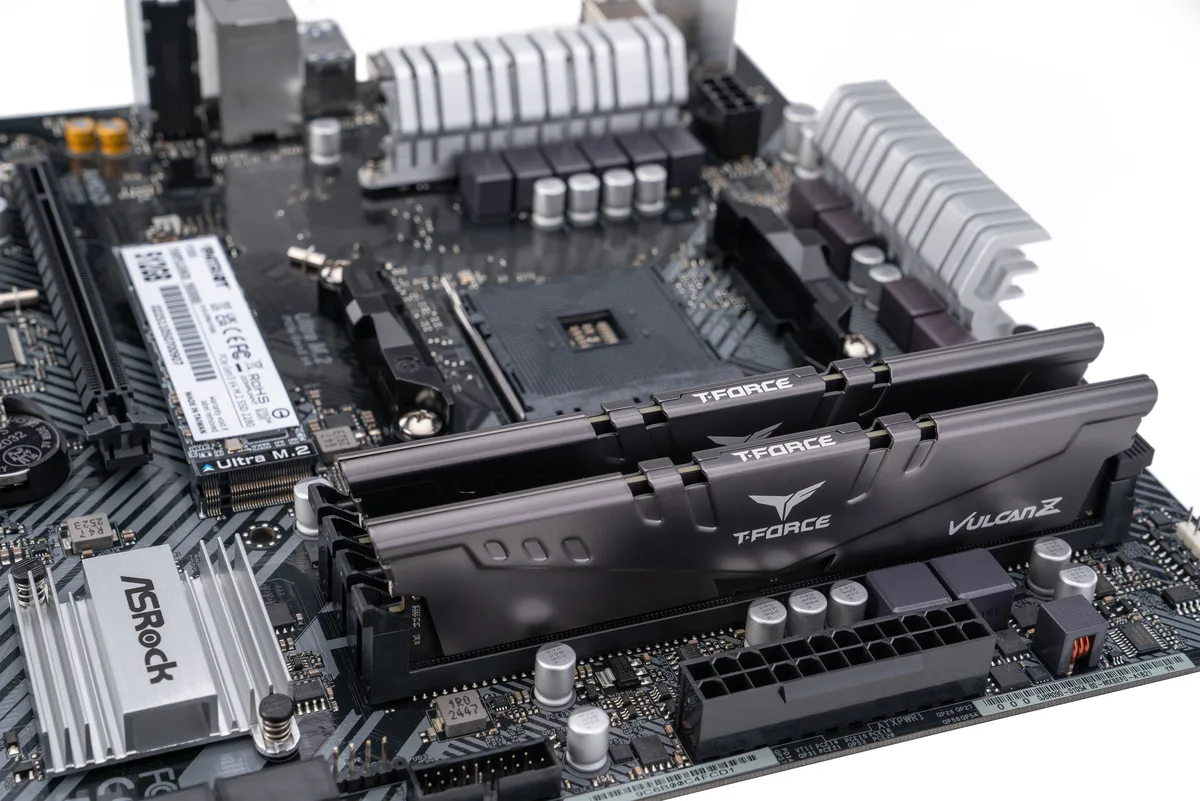

Micro ATX motherboard with two silver-grey memory sticks and a small M.2 SSD installed

ABS

ABS MOBO MEMORY SSD 003 embedded solution B450M/AC R2.0 16GB DDR4 512GB NVMe

SKU CH-8B7T-8SKN8 MPN MOBO MEMORY SSD 003

Pre-installed 16GB DDR4-3200 memory and 512GB NVMe SSD on an ASRock B450M/AC R2.0 motherboard for faster AMD Ryzen builds

  • Combo TypeMotherboard / Memory / Storage Combo
  • MotherboardASRock B450M/AC R2.0
  • MemoryTeam T-FORCE VULCAN Z 16GB (2 x 8GB) DDR4 3200
  • StoragePatriot P300 M.2 2280 512GB PCIe Gen3 x4 SSD
  • CPU Socket TypeAM4
  • CPU TypeSupports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 500

Option ASRock B450M/AC R2.0 · Team T-Force 16GB DDR4 · Patriot M.2 SSD

  • Ready for AMD Ryzen builds with B450 chipset
  • Pre-installed 16GB DDR4-3200 memory saves assembly time
  • 512GB NVMe SSD delivers fast boot and app loading
  • Micro ATX board fits compact cases with Wi-Fi included
  • Four DDR4 slots support up to 128GB total memory

Ready-to-build AM4 starter kit

This bundle combines an ASRock B450M/AC R2.0 Micro ATX motherboard with pre-installed Team T-FORCE VULCAN Z 16GB DDR4-3200 memory and a Patriot P300 512GB NVMe M.2 SSD. The memory and storage are already fitted to the board, reducing assembly steps for a new PC. It targets builders who want a verified AM4 foundation without selecting separate components.

Suits first-time builders and budget Ryzen systems

The kit works with Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series desktop processors in the AM4 socket. Four DDR4 slots support up to 128GB total capacity for future upgrades. Builders who need more than 512GB of fast storage or who prefer a larger ATX form factor should consider other options.

Pre-installed 512GB PCIe Gen3 x4 NVMe SSD

The Patriot P300 M.2 2280 drive occupies the board's Ultra M.2 socket and delivers Gen3 x4 speeds for quick boot and application loads. This capacity and interface define the storage baseline of the kit. Buyers requiring greater capacity or Gen4 performance will need to add or replace the drive.

Points forts

  • Ready for AMD Ryzen builds with B450 chipset
  • Pre-installed 16GB DDR4-3200 memory saves assembly time
  • 512GB NVMe SSD delivers fast boot and app loading
  • Micro ATX board fits compact cases with Wi-Fi included
  • Four DDR4 slots support up to 128GB total memory

Caractéristiques

BrandABS
ModelStart Kit
Combo TypeMotherboard / Memory / Storage Combo
MotherboardASRock B450M/AC R2.0
MemoryTeam T-FORCE VULCAN Z 16GB (2 x 8GB) DDR4 3200
StoragePatriot P300 M.2 2280 512GB PCIe Gen3 x4 SSD
CPU Socket TypeAM4
CPU TypeSupports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
North BridgeAMD B450
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2133 / DDR4 2400 / DDR4 2667 / DDR4 2933 / DDR4 3200
Maximum Memory Supported128GB
Memory Performance ProfileIntel XMP
Channel SupportedDual Channel
PCI Express x16AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)
*Supports NVMe SSD as boot disks
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
SATA4 x SATA 6.0Gb/s
SATA RAID0/1/10
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Other Connectors1 x Chassis Intrusion Header
1 x Power LED and Speaker Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x AMD Fan LED Header***
1 x CPU Fan Connector (4-pin)****
1 x Chassis Fan Connector (3-pin)*****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)******
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*Supports in total up to 12V/
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.09 kg
Dimensions du colis279 × 274 × 61 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Should I pick this 16GB DDR4-3200 kit or add more modules later?

The board has four DDR4 slots and supports up to 128GB total. The pre-installed 16GB (2x8GB) runs at 3200 with CL16-18-18-38 timings, leaving two slots free for future expansion.

What does the DDR4-3200 rating deliver in an actual Ryzen build?

With a Ryzen 5000 or 5000 G-Series CPU the memory runs at its rated 3200 MT/s in dual-channel mode, giving noticeably smoother multitasking and gaming frame pacing versus the base 2133/2400 speeds.

Does the M.2 slot run at full PCIe Gen3 x4 speed with a Ryzen 5000 processor?

Yes. The Ultra M.2 socket (M2_1) supports PCIe Gen3 x4 (32 Gb/s) with Vermeer, Matisse, Cezanne and Renoir CPUs, so the Patriot P300 512GB NVMe drive operates at its full sequential read/write potential.
