Adamant Custom SolidWorks Workstation Ryzen 9 9900X3D 128GB DDR5 8TB NVMe 10TB HDD RTX PRO 2000 Blackwell

Workstation for SolidWorks modelling

This business desktop is configured for SolidWorks CAD, CAM and CAE workflows. A twelve-core Ryzen 9 9900X3D processor and 128GB of DDR5 memory provide the compute headroom for large assemblies and simulation tasks. The Nvidia RTX PRO 2000 Blackwell graphics card with 16GB of video memory is certified for professional 3D applications. Windows 11 Pro 64-bit is pre-installed.

Liquid-cooled chassis with front I/O

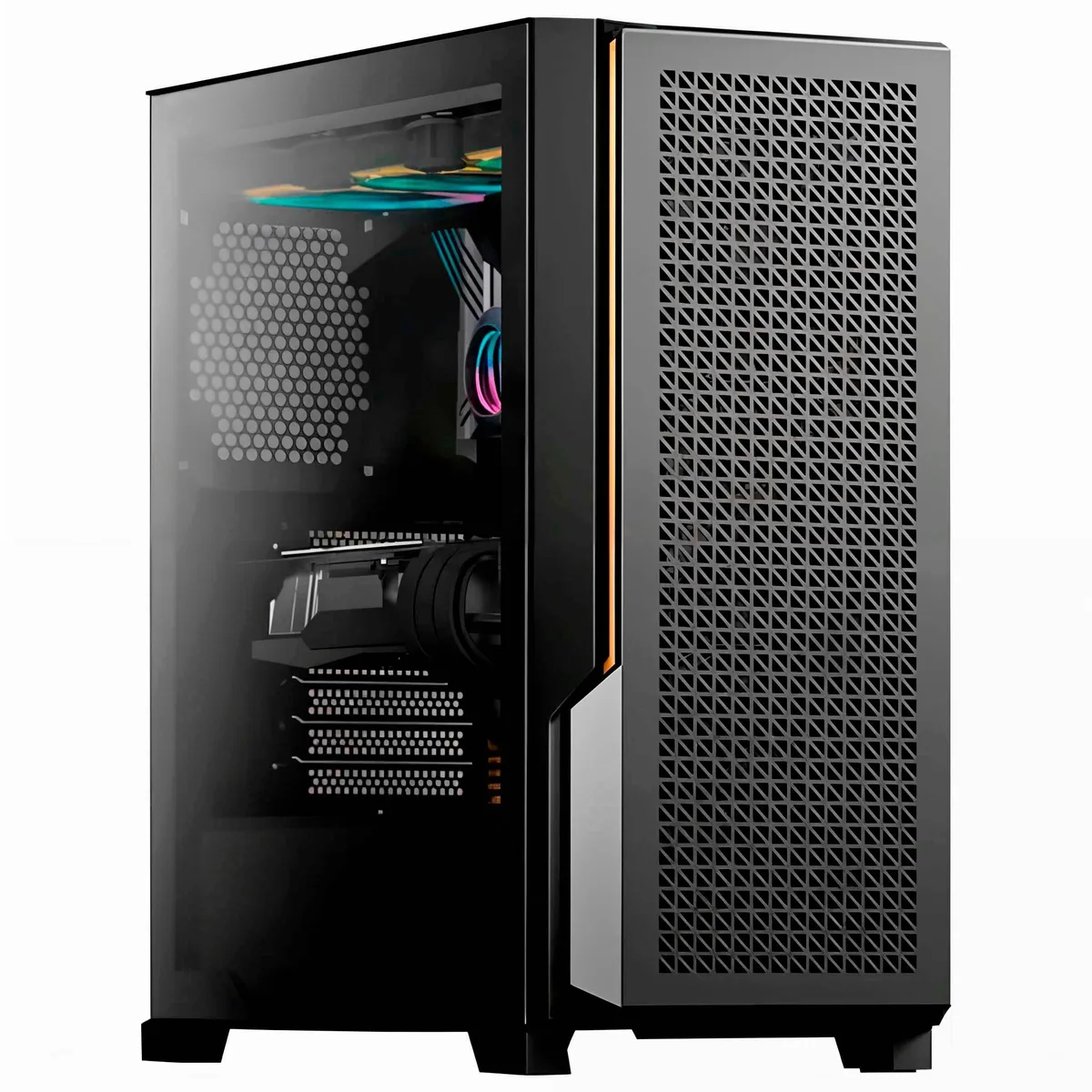

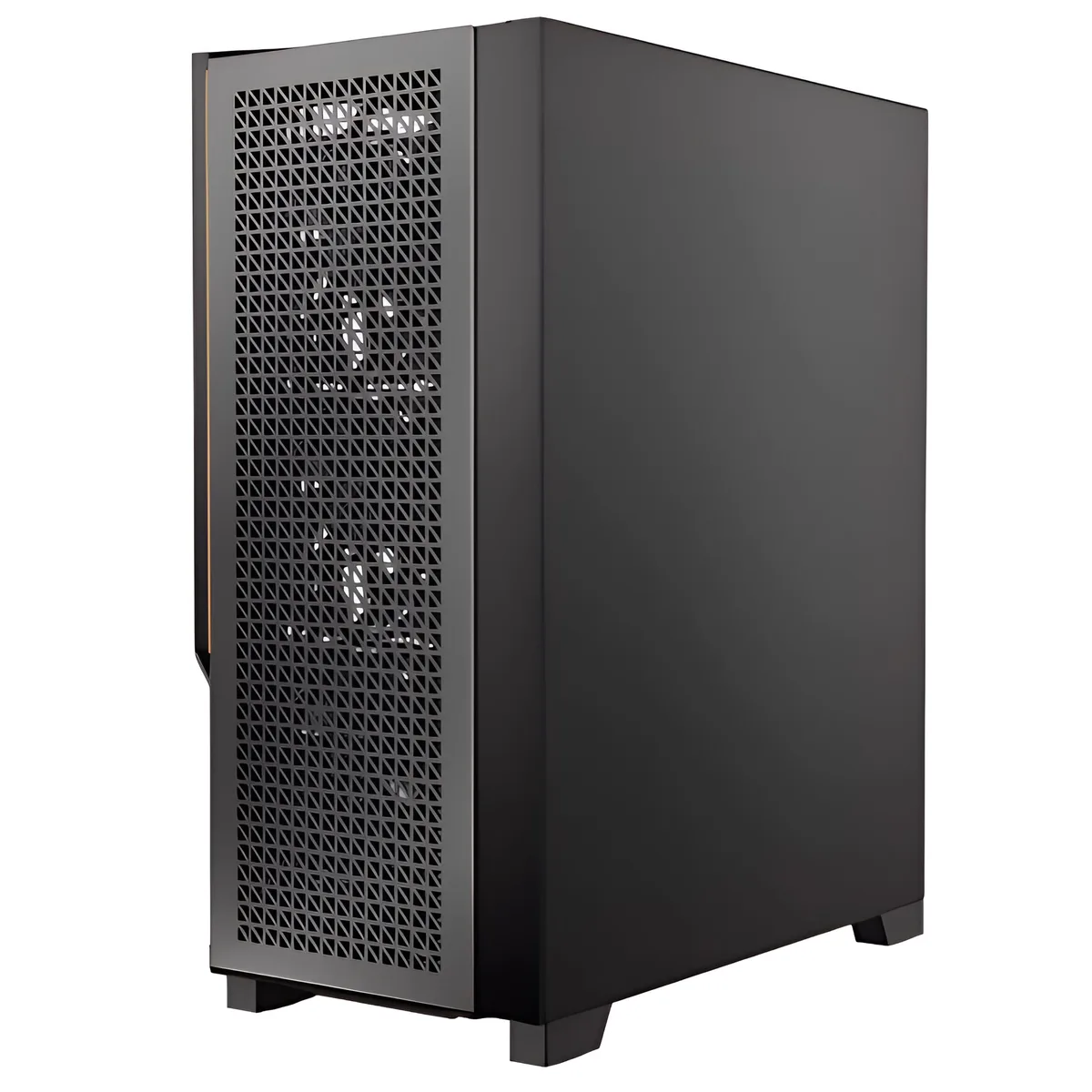

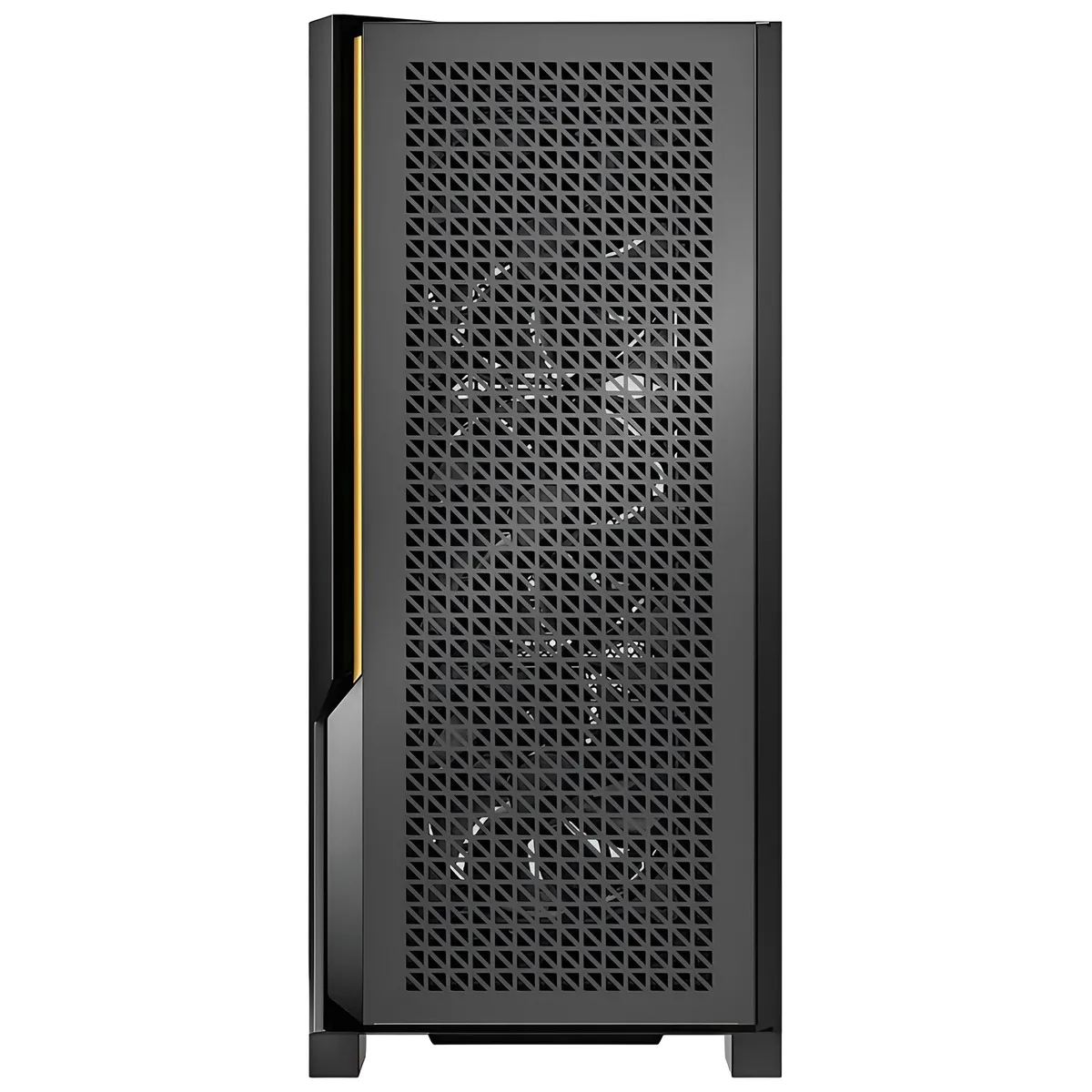

A 240mm liquid cooler keeps the CPU at stable temperatures during extended render jobs. The Antec P20 mid-tower case includes three 120mm front fans and dust filters on the bottom, front and top panels. Front-panel connectivity offers two USB 3.0 ports, one USB 3.2 Gen 2 Type-C port and two audio jacks. Rear I/O on the PRIME X870-P motherboard adds two USB4 40Gbps Type-C ports, one USB 10Gbps port, three USB 5Gbps ports and four USB 2.0 ports. Wired networking uses Intel 2.5Gb Ethernet and Wi-Fi 7 2x2 is also present.

128GB DDR5 memory capacity

The system ships with 128GB of DDR5 installed across the motherboard's four M.2 slots. Maximum supported memory is 192GB, so further upgrades are possible if workloads grow beyond the current configuration. Storage combines two 4TB Samsung 990 PRO NVMe drives for fast project access with a 10TB hard drive for bulk data retention. The 850W 80 PLUS Bronze power supply delivers protected power to all components.
