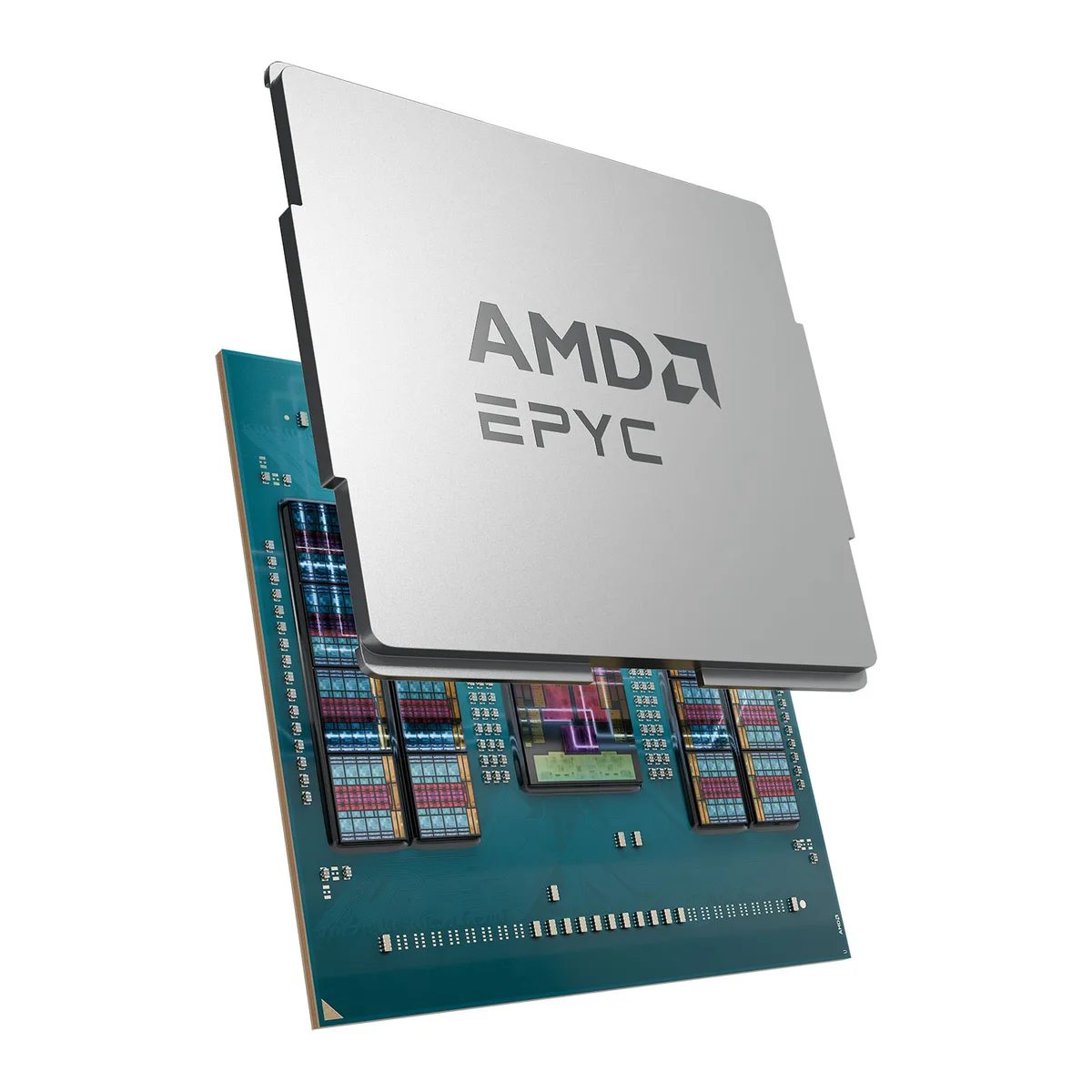

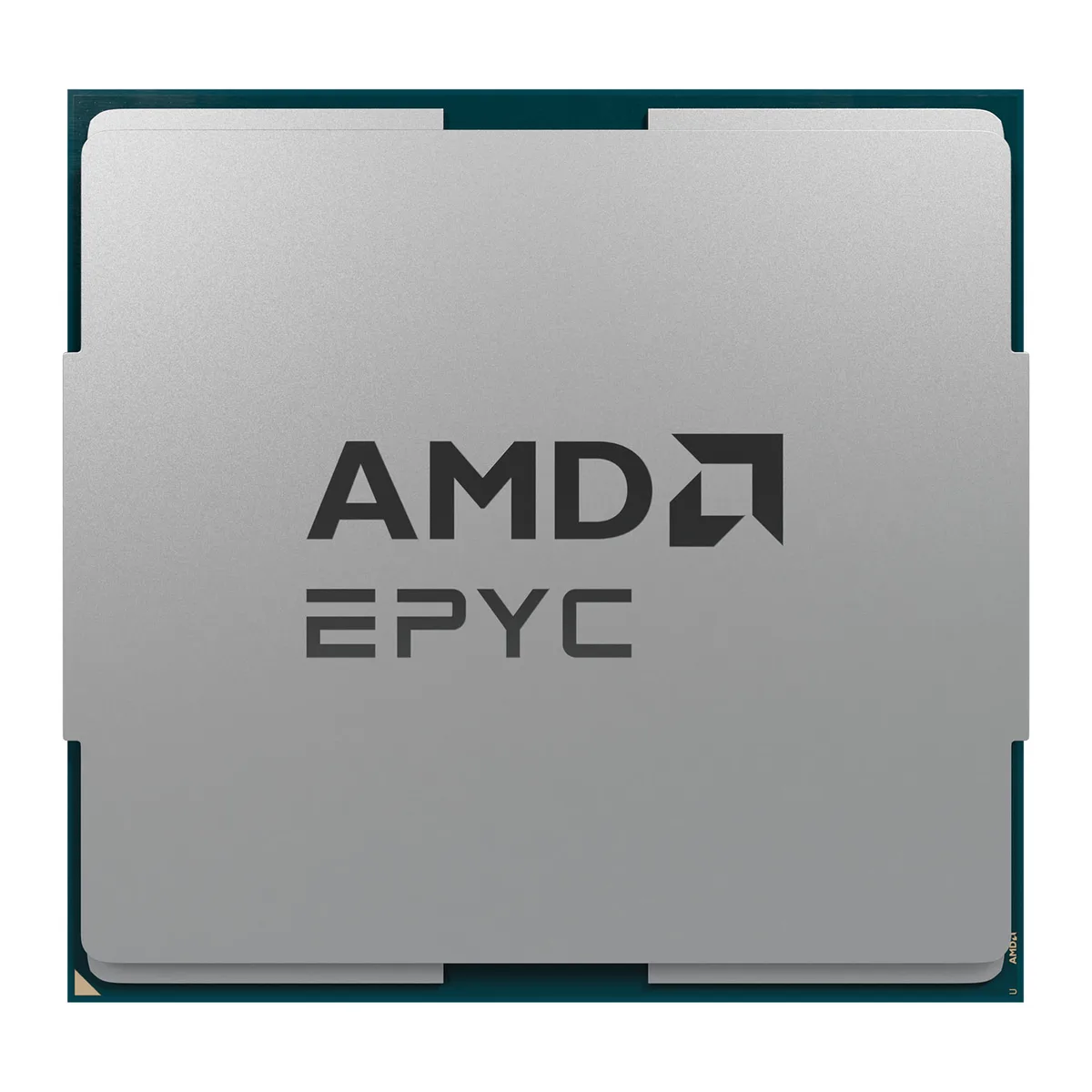

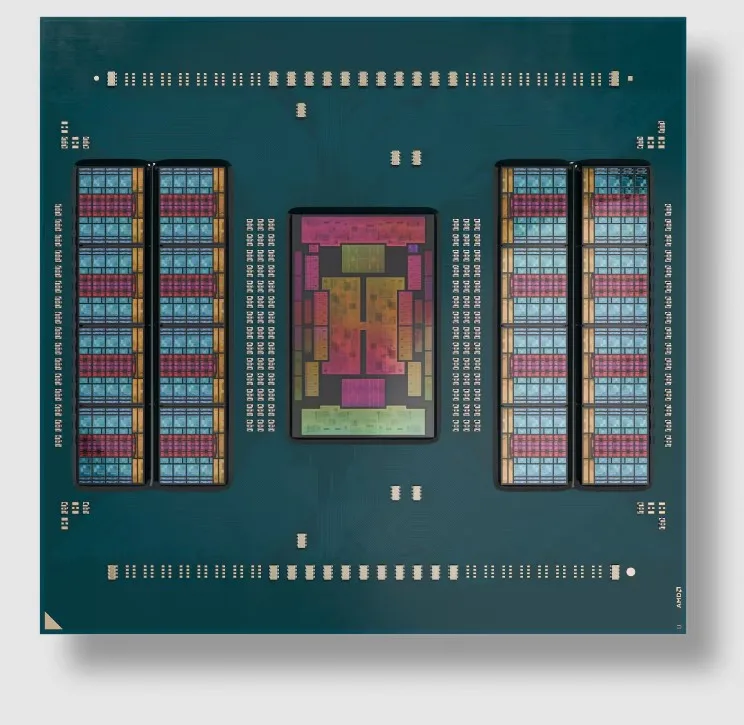

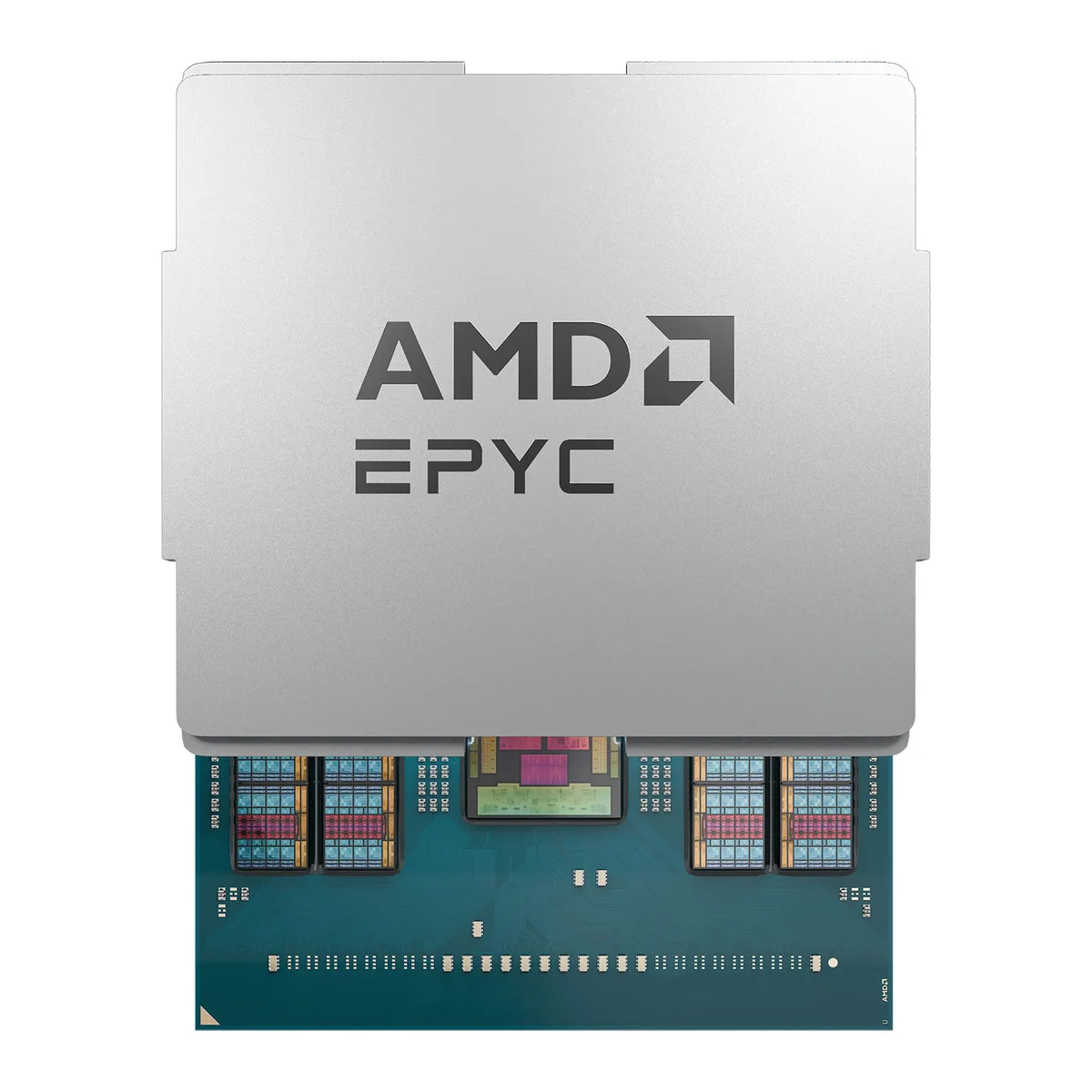

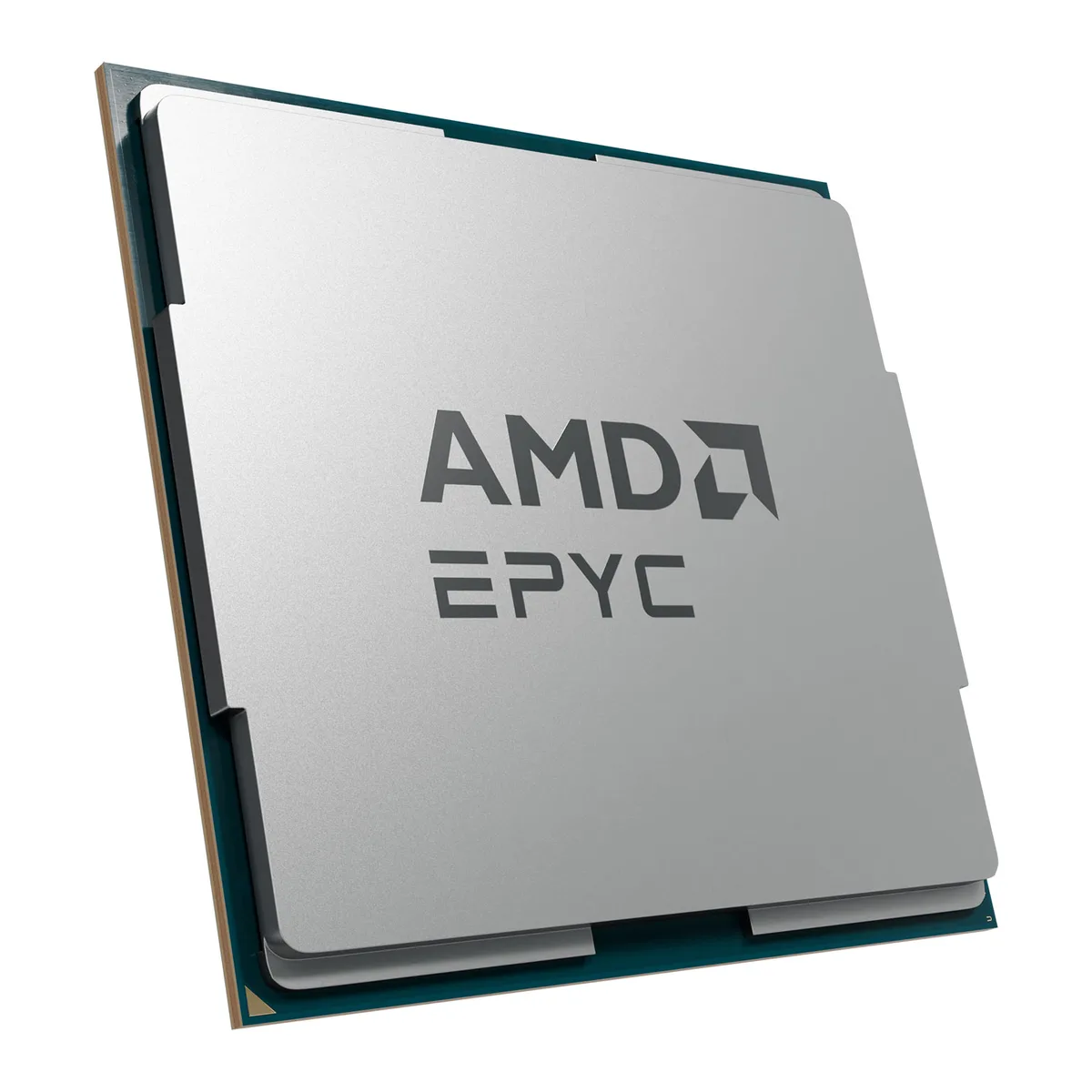

AMD EPYC 9135 SP5 server processor, green PCB with gold contacts, silver metal heat spreader

AMD

AMD EPYC 9135 16-Core 3.65 GHz SP5 64MB 200W 100-000001150 server processor

SKU CH-9CKF-VAS4A MPN 100-000001150

Sixteen-core server processor running at 3.65 GHz with 32 threads, 64 MB L3 cache, 12-channel DDR5 6400 support and 128 PCIe 5.0 lanes in a 200 W SP5 package

  • NameEPYC 9135
  • CPU Socket TypeSocket SP5
  • # of Cores16-Core
  • # of Threads32
  • Operating Frequency3.65 GHz
  • Max Turbo Frequency4.3 GHz

Option EPYC 9135

Voir les 15 autres configurations
  • 16 cores and 32 threads for heavy multi-threaded workloads
  • 65 GHz base clock with 4.3 GHz max turbo for responsive performance
  • 64 MB L3 cache reduces latency on large data sets
  • 12-channel DDR5 6400 memory controller maximises bandwidth
  • 128 PCIe 5.0 lanes enable high-density I/O configurations

16-Core EPYC 9135 for Dense Server Workloads

The AMD EPYC 9135 is a 16-core, 32-thread server processor built on the 9005 series architecture for SP5 platforms. It targets data-centre operators who need high per-core frequency and 128 PCIe 5.0 lanes in a 200 W envelope. Twelve DDR5-6400 memory channels feed memory-intensive workloads such as virtualisation, database serving and AI inference.

Replaces Older SP5 CPUs When Core Count Must Stay

Upgrading from a prior-generation 16-core EPYC on SP5 is worthwhile when workloads benefit from the higher 3.65 GHz base clock and 4.3 GHz max turbo frequency. The 64 MB L3 cache and 128 lanes of PCIe 5.0 also lift I/O-bound tasks without increasing socket count or thermal budget beyond the existing 200 W design point.

Verify SP5 Platform and DDR5-6400 Memory Before

This processor requires a motherboard with the SP5 socket and a BIOS that supports the 9005 series. You must populate DDR5 modules rated for 6400 MT/s across up to twelve channels to reach rated memory-controller speed. A cooling solution rated for at least 200 W TDP is not included and must be sourced separately.

Points forts

  • 16 cores and 32 threads for heavy multi-threaded workloads
  • 65 GHz base clock with 4.3 GHz max turbo for responsive performance
  • 64 MB L3 cache reduces latency on large data sets
  • 12-channel DDR5 6400 memory controller maximises bandwidth
  • 128 PCIe 5.0 lanes enable high-density I/O configurations

Caractéristiques

BrandAMD
SeriesAMD EPYC 9005
NameEPYC 9135
Model100-000001150
CPU Socket TypeSocket SP5
# of Cores16-Core
# of Threads32
Operating Frequency3.65 GHz
Max Turbo Frequency4.3 GHz
L3 Cache64MB
64-Bit SupportYes
Integrated Memory Controller SpeedDDR5 6400
Memory Channel12 Channel
PCI Express Revision5.0
Max # of PCI Express Lanes128
Thermal Design Power200W
Cooling DeviceCooling device not included - Processor Only
Poids d’expédition0.27 kg
Dimensions du colis193 × 152 × 71 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What socket and thermal design power does the EPYC 9135 require for mounting?

The processor uses Socket SP5 and has a thermal design power of 200W, so the motherboard must support SP5 and the cooler must handle 200W dissipation.

How is the EPYC 9135 installed, and what step is often missed?

Align the processor triangle with the socket key, lower it evenly without forcing, then secure the retention mechanism; the step often missed is applying thermal paste before mounting the cooler, which is not included.

What memory specification must be matched when upgrading the EPYC 9135 later?

The integrated memory controller runs DDR5 at 6400 MT/s across 12 channels, so any replacement or additional modules must be DDR5 rated for 6400 to maintain full bandwidth.
