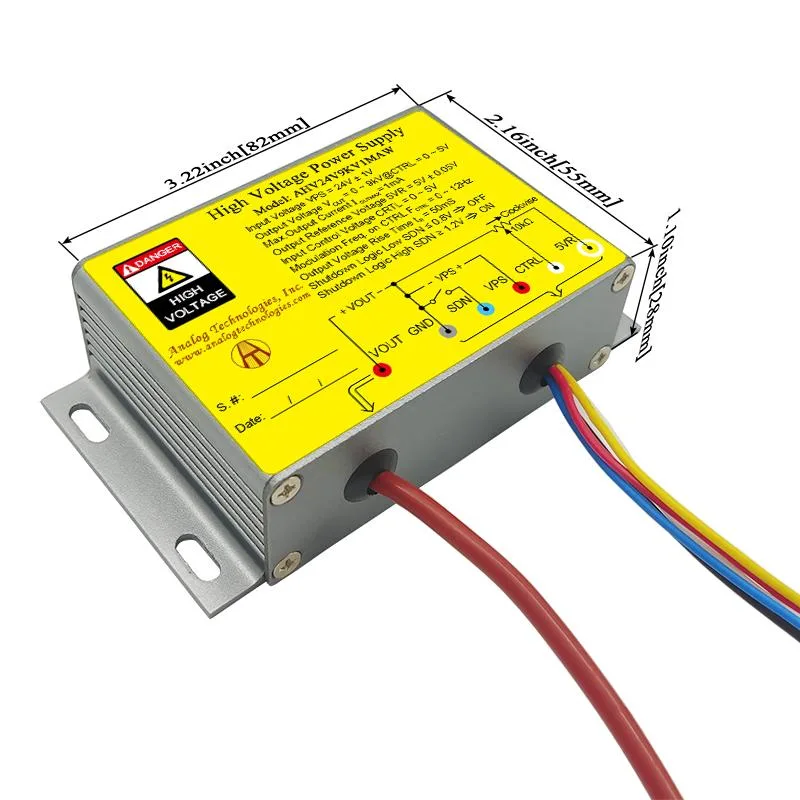

Compact silver metal box with screw terminals and label

Analog Technologies

Analog Technologies High Voltage Power Supply 9kV 1mA 24V Input AHV24V9KV1MAW

SKU CH-BDZ9-TFSY0

Compact DC-DC module converts 24 V input to adjustable 0–9 kV output at 1 mA with 0–5 V control and electronic shutdown

  • TypeHigh Voltage Power Supply
  • 0 to 9 kV adjustable output controlled by 0–5 V signal
  • 1 mA maximum output current for precise low-current applications
  • 24 V ± 1 V input voltage fits standard industrial rails
  • Electronic shutdown control enables fast output disable
  • 5 V ± 0.05 V reference voltage supports stable regulation

Compact High-Voltage DC-DC Converter

This module accepts a 24V DC input and delivers an adjustable 0 to 9kV output at up to 1mA. It is intended for engineers and researchers who need a compact high-voltage source for scientific equipment or test rigs.

Verify Input and Control Compatibility

Your system must supply 24V ± 1V and handle an input current between 225mA and 1.1A. The control interface requires a 0 to 5V signal for voltage adjustment and uses a 5V ± 0.05V reference; ensure your controller can drive these levels.

Suits Low-Current High-Voltage Applications

It fits projects such as X-ray sources, electrophoresis or electrospinning where current demand stays below 1mA. Builders needing higher output current or a different input voltage range should look at alternative power modules.

Points forts

  • 0 to 9 kV adjustable output controlled by 0–5 V signal
  • 1 mA maximum output current for precise low-current applications
  • 24 V ± 1 V input voltage fits standard industrial rails
  • Electronic shutdown control enables fast output disable
  • 5 V ± 0.05 V reference voltage supports stable regulation

Caractéristiques

TypeHigh Voltage Power Supply

Questions sur cet article

What does the module ship with and what must I source separately?

The unit is supplied as a standalone DC-DC converter; you must provide a 24 V ± 1 V power source capable of 225 mA to 1.1 A and a 0–5 V control signal for voltage adjustment.

Which output rating should I select for my application?

This model delivers 0–9 kV at up to 1 mA; choose it when your load requires up to 9 kV and draws no more than 1 mA.

How does the 0–5 V control input translate to actual output voltage?

The control voltage scales linearly across the full span, so 0 V yields 0 kV and 5 V yields 9 kV at the output terminals.
