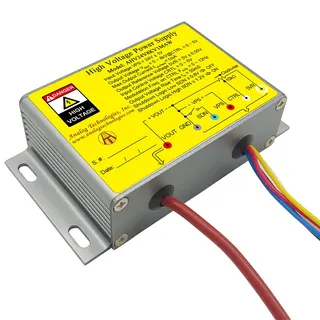

Analog Technologies High Voltage Power Supply AHV24V8KV1MAW 24V 8kV 1mA

SKU CH-DJXG-RKWM0

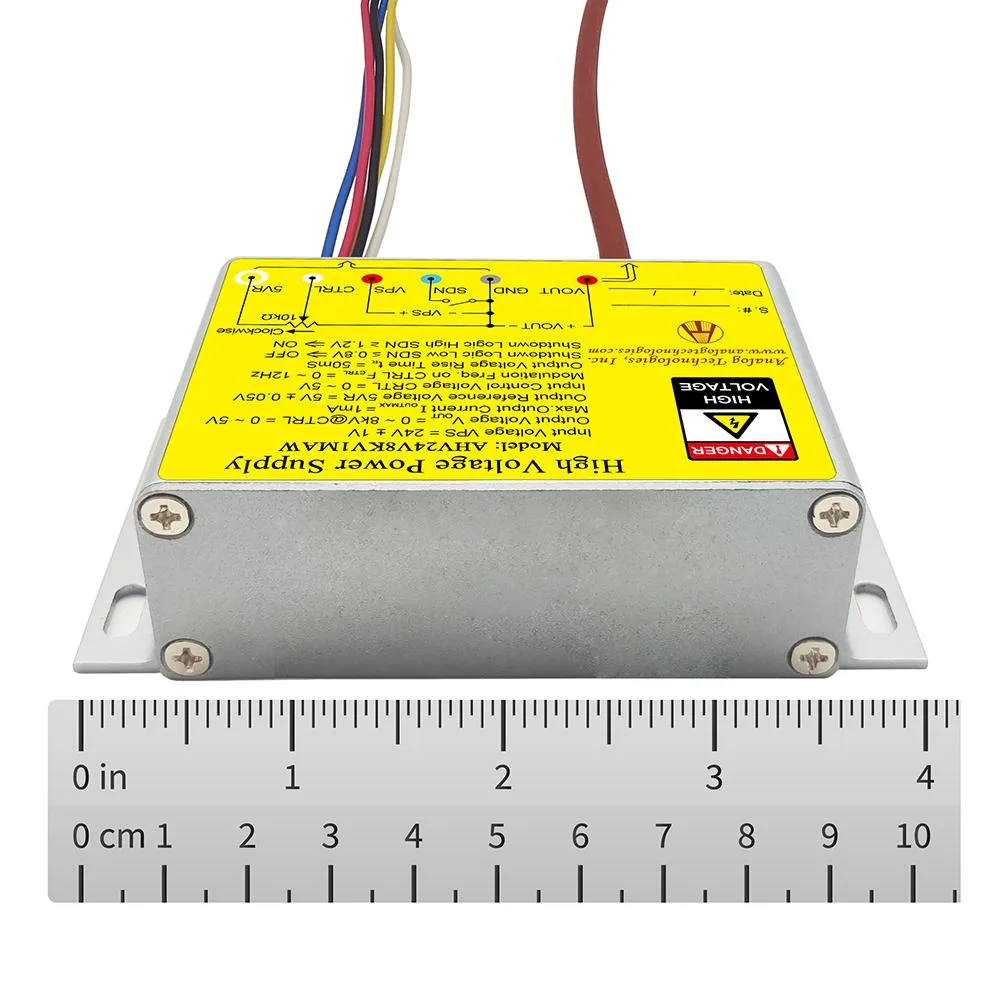

Compact high-voltage DC-DC module converts 24 V input to an adjustable 0–8 kV output at up to 1 mA with 0–5 V control and electronic shutdown

  • TypeHigh Voltage Power Supply
  • Precise 0–8 kV output controlled by a 0–5 V signal
  • Stable 5 V ± 0.05 V reference simplifies control-loop design
  • Wide 110–480 mA input range suits variable 24 V sources
  • 0–1.5 V monitor voltage enables real-time output verification
  • Electronic shutdown control allows instant high-voltage disable

Compact High-Voltage DC-DC Module

This Analog Technologies module converts a 24 V DC input into an adjustable 0 to 8 kV output with a maximum current of 1 mA. It accepts a 0 to 5 V control signal for full-span voltage modulation and includes an electronic shutdown function for safety.

Integration Requirements

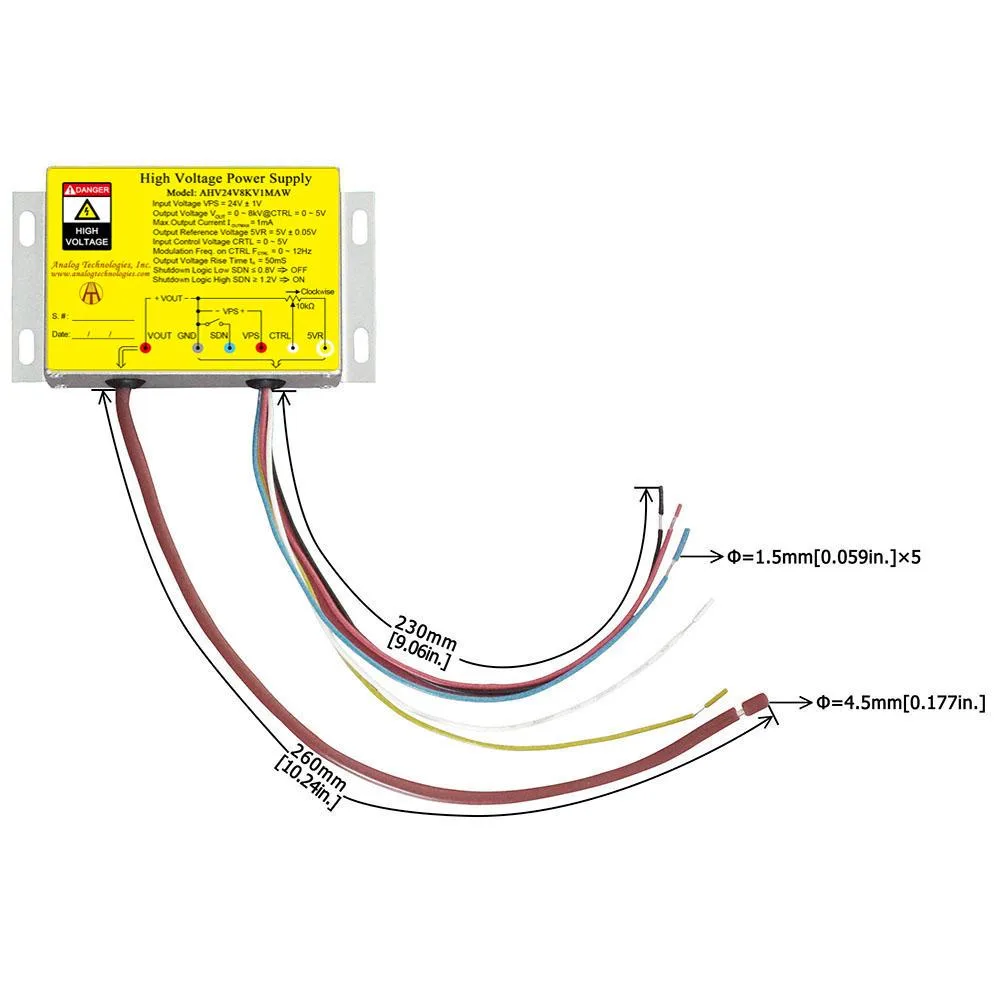

The unit operates from a 24 V ± 1 V source drawing 110 to 481 mA depending on load. A 5 V ± 0.05 V reference and a 0 to 5 V control voltage must be provided externally, while a 0 to 1.5 V monitor output allows real-time feedback of the high-voltage level.

Target Users and Limits

Suited for engineers building X-ray, spectroscopy, electrospinning or semiconductor test equipment that need a compact, controllable high-voltage source. Not suitable for applications requiring more than 1 mA output current or for systems that cannot supply the necessary 24 V input and 0 to 5 V control signals.

Points forts

  • Precise 0–8 kV output controlled by a 0–5 V signal
  • Stable 5 V ± 0.05 V reference simplifies control-loop design
  • Wide 110–480 mA input range suits variable 24 V sources
  • 0–1.5 V monitor voltage enables real-time output verification
  • Electronic shutdown control allows instant high-voltage disable

Caractéristiques

TypeHigh Voltage Power Supply

Questions sur cet article

What is the maximum output voltage this 24 V input supply can reach?

The unit delivers 0 to 8 kV at the output when the control voltage is swept from 0 to 5 V.

How much input current does the module draw at full load?

The input current ranges from 110 mA to 481 mA depending on the output loading conditions.

What control signal is required to adjust the high-voltage output?

A 0 to 5 V control voltage provides full-span modulation of the 0 to 8 kV output.
