Compact silver aluminium power-supply tester with LCD screen and multiple connector cables

And 1

And 1 Power Supply Tester LCD Display 24 Pin ATX 20 Pin SATA 8 Pin 4 Pin PCI-E 6 Pin 3.3V 12V +5VSB +5V -12V

SKU CH-DC6Q-XSH8J

Tests ATX, BTX and ITX power supplies via 24, 20, SATA, 8, 4 and 6-pin connectors with LCD voltage read-out and audible fault alarm

  • TypeAT
  • LCD display shows voltage status for quick checks
  • Tests ATX, BTX and ITX compatible power supplies
  • Monitors 3.3V, 5V, 12V and standby rails
  • Battery-free design connects to 20 and 24 pin connectors
  • Helps avoid damage to expensive computer equipment

PC Power Supply Tester

This power supply tester is designed for PC builders and technicians who need to verify ATX, BTX and ITX compatible units before installation. The LCD display shows voltage status for quick checks. It helps avoid damage to expensive computer equipment by confirming output levels first. The rugged aluminium alloy construction suits regular workshop use.

Voltage Monitoring and Limits

The tester monitors 3.3V, +5V, +12V, -12V and +5VSB rails through dedicated leads. It connects to 24 pin and 20 pin ATX interfaces along with SATA, 8 pin, 4 pin and PCI-E 6 pin connectors. The device is battery free and draws power directly from the supply under test. It cannot measure current or load capacity, only voltage presence and level.

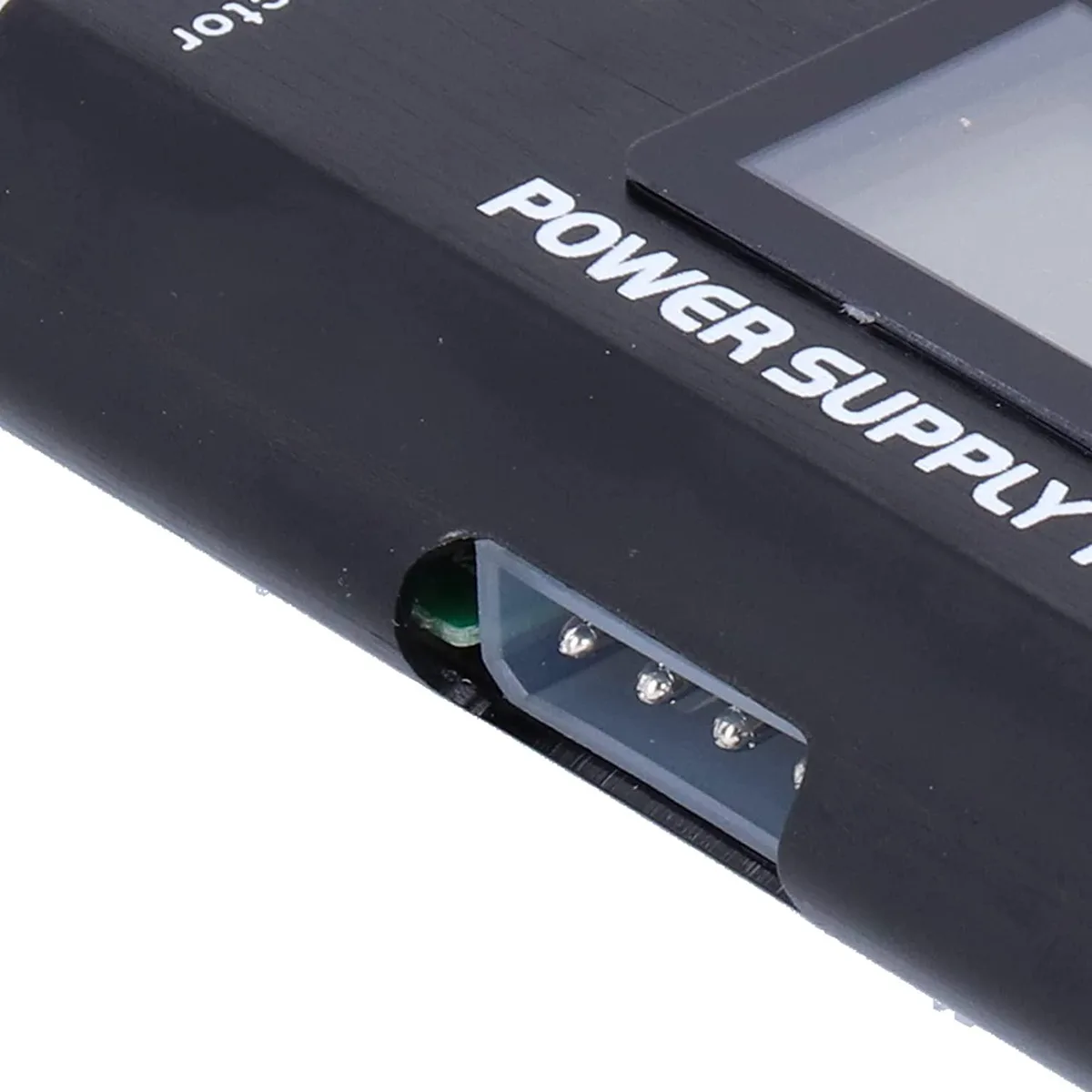

Connectors and Daily Use

Aluminium alloy housing provides a rugged feel for repeated bench testing. The 24 pin, 20 pin, SATA, 8 pin, 4 pin and PCI-E 6 pin jacks cover common desktop power supply interfaces. A buzzer sounds when a voltage signal is missing or exceeds normal range. No battery replacement is needed because the unit powers itself from the supply being tested.

Points forts

  • LCD display shows voltage status for quick checks
  • Tests ATX, BTX and ITX compatible power supplies
  • Monitors 3.3V, 5V, 12V and standby rails
  • Battery-free design connects to 20 and 24 pin connectors
  • Helps avoid damage to expensive computer equipment

Caractéristiques

TypeAT

Questions sur cet article

Will the 24-pin ATX connector on this tester mate with the 20-pin header on my older motherboard?

Yes, the tester supports both 24-pin and 20-pin ATX interfaces, so it connects directly to older 20-pin motherboards.

How do I know the 3.3 V rail is within spec after I plug the unit in?

The LCD shows real-time voltage for 3.3 V and other rails; a steady reading means the output is normal, while a continuous buzzer flags an out-of-range value.

Does the package include the SATA power lead needed to test a SATA drive connector?

The tester has a built-in SATA interface jack, so no separate lead is required for SATA power testing.
