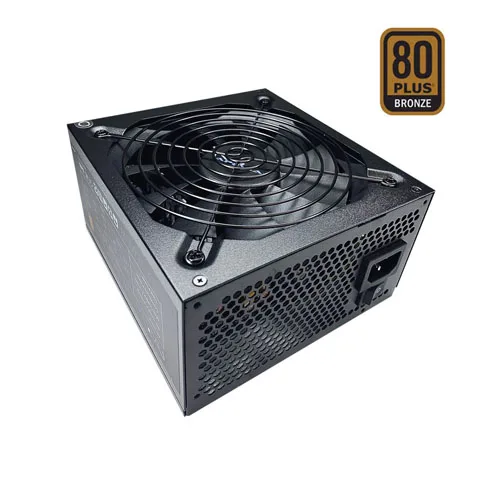

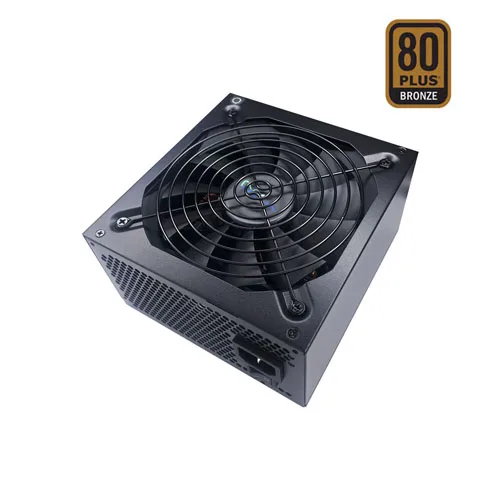

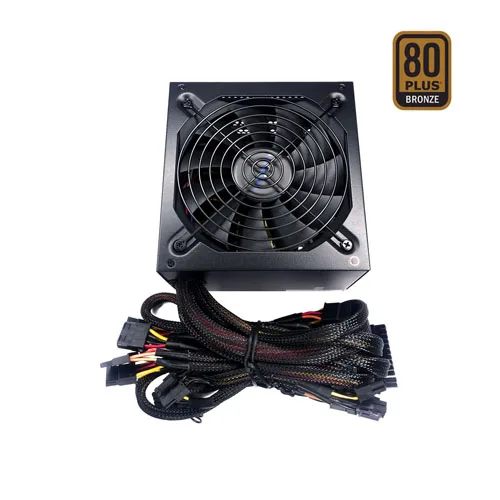

Rectangular metal power supply unit with large 135mm fan grille and modular cable connectors visible

APEVIA CORP.

APEVIA CORP. ATX-JP600W 600 W power supply

SKU CH-E53Y-10FXD MPN ATX-JP600W

Delivers 600 W via a single +12 V rail with 80 PLUS Bronze efficiency and a 135 mm fan

  • TypeATX12V
  • Maximum Power600 W
  • FansForced Air Ventilation by 1 x 135mm fan
  • Main Connector1 x 20/24pin Main Power
  • +12V RailsSingle
  • PCI-Express Connector2 x 6+2-Pin
  • 80 PLUS Bronze certification delivers at least 82% efficiency across 20% to 100% load
  • Single +12V rail supplies 44 A for stable multi-core CPU and GPU power
  • Two 6+2-pin PCIe connectors enable SLI and CrossFire multi-GPU configurations
  • 135 mm thermally-controlled fan adjusts speed to remove heat quietly
  • 160 mm depth fits standard ATX cases for straightforward installation

Jupiter Series 600 W ATX power supply

The APEVIA Jupiter Series ATX-JP600W is a 600 W ATX12V power supply built for desktop builds and system upgrades. Its single +12V rail delivers up to 44 A to feed multi-core CPUs and graphics cards. 80 PLUS Bronze certification guarantees at least 82 % efficiency from 20 % to 100 % load. A thermally-controlled 135 mm fan handles forced-air cooling.

Check your build before ordering

Verify that the case can accept a unit up to 160 mm long and that the mains supply matches the 115 V to 230 V input range. The main connector is a 20/24-pin plug, and two 6+2-pin PCI-Express leads are provided for graphics cards. Four SATA power connectors are included for drives. Hold-up time is rated at 17 ms at full load.

Integration and headroom

The single-rail design simplifies cable routing because all +12V current comes from one source. SLI and CrossFire support means the supply can run dual-GPU configurations without extra adapters. Haswell compatibility ensures the low-power sleep states are supported. Output rails are held within 5 % tolerance on +3.3 V, +5 V and +12 V for stable operation.

Points forts

  • 80 PLUS Bronze certification delivers at least 82% efficiency across 20% to 100% load
  • Single +12V rail supplies 44 A for stable multi-core CPU and GPU power
  • Two 6+2-pin PCIe connectors enable SLI and CrossFire multi-GPU configurations
  • 135 mm thermally-controlled fan adjusts speed to remove heat quietly
  • 160 mm depth fits standard ATX cases for straightforward installation

Caractéristiques

BrandAPEVIA
SeriesJupiter Series
ModelATX-JP600W
TypeATX12V
Maximum Power600 W
FansForced Air Ventilation by 1 x 135mm fan
Main Connector1 x 20/24pin Main Power
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector4
SLIYes
Haswell SupportYes
CrossFireYes
Max PSU Length160 mm
Hold-up Time17ms at Full Load normal Line Input Voltage
Energy-Efficient80 PLUS BRONZE Certified
Input Voltage115V - 230V
Input Frequency Range50/60 Hz
Input Current8A @ 115V, 4A @ 230V
Output+3.3V@20A, +5V@20A, +12V@44A, [email protected] , [email protected]
Connectors1 x 20/24pin Main Power
1 x 4/8 pin + 12V and EPS
4 x SATA
4 x Peripheral
1 x Floppy
2 x 6+2pin PCI Express
Features600W Power with 13.5cm black fan
80+ Bronze certified
High stability with 5% tolerance of 5V, 3.3V & 12V output
High quality components and housing
Low noise auto-thermally control 135mm fan
Supports single 12v output for higher power usage
Universal AC input by active PFC (99%PF Typical)
Supports SLI, Crossfire & Haswell
20 + 4 pin main connector can be used for 20 pin or 24 pin
4/8 Pin ATX 12V connector
2 x 6+2 Pin PCI - Express
4 x SATA connector
4 x 4 pin peripheral connector
1 x floppy connector

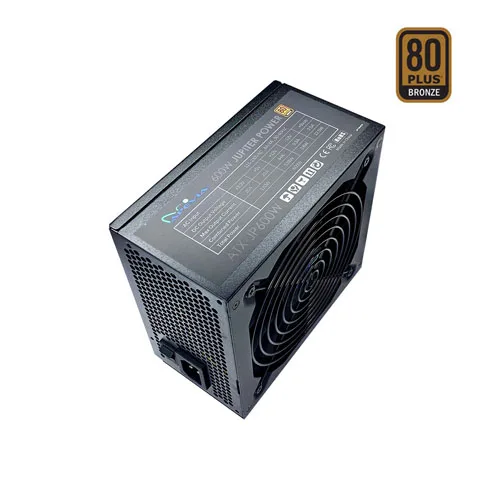

Look at the label
Dimensions3.40" x 5.90" x 6.30"
Weight5.00 lbs.
Poids d’expédition1.93 kg
Dimensions du colis246 × 188 × 104 mm

Questions sur cet article

Will the 160 mm length fit a mid-tower case with limited clearance?

The unit measures 160 mm long, so it fits most mid-tower cases that accept standard ATX power supplies.

Can this supply run a graphics card that needs two 8-pin connectors?

It includes two 6+2-pin PCIe connectors, each able to serve as an 8-pin plug for modern GPUs.

Does the 80 PLUS Bronze rating mean lower heat and noise in daily use?

At least 82 % efficiency between 20 % and 100 % load reduces waste heat, letting the 135 mm fan run quieter.
