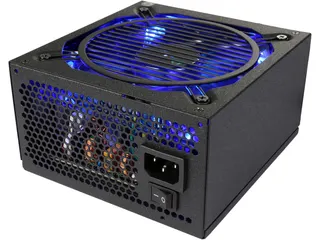

Black ATX power supply with blue LED fan visible through grille

APEVIA CORP.

APEVIA CORP. ATX-SN900W 900 W power supply

SKU CH-NHZK-7PSZD MPN ATX-SN900W

900 W ATX12V 2.3 unit with 80 PLUS Bronze efficiency, Active PFC, single +12 V rail at 66 A, four 6+2-pin PCIe connectors, four SATA power plugs and a 135 mm blue LED fan

  • TypeATX12V v2.3
  • Maximum Power900 W
  • Fans1 x 135mm Blue LED Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • 900 W output powers demanding multi-GPU builds
  • 80 PLUS Bronze certification reduces wasted energy
  • Active PFC with 99 % factor correction improves efficiency

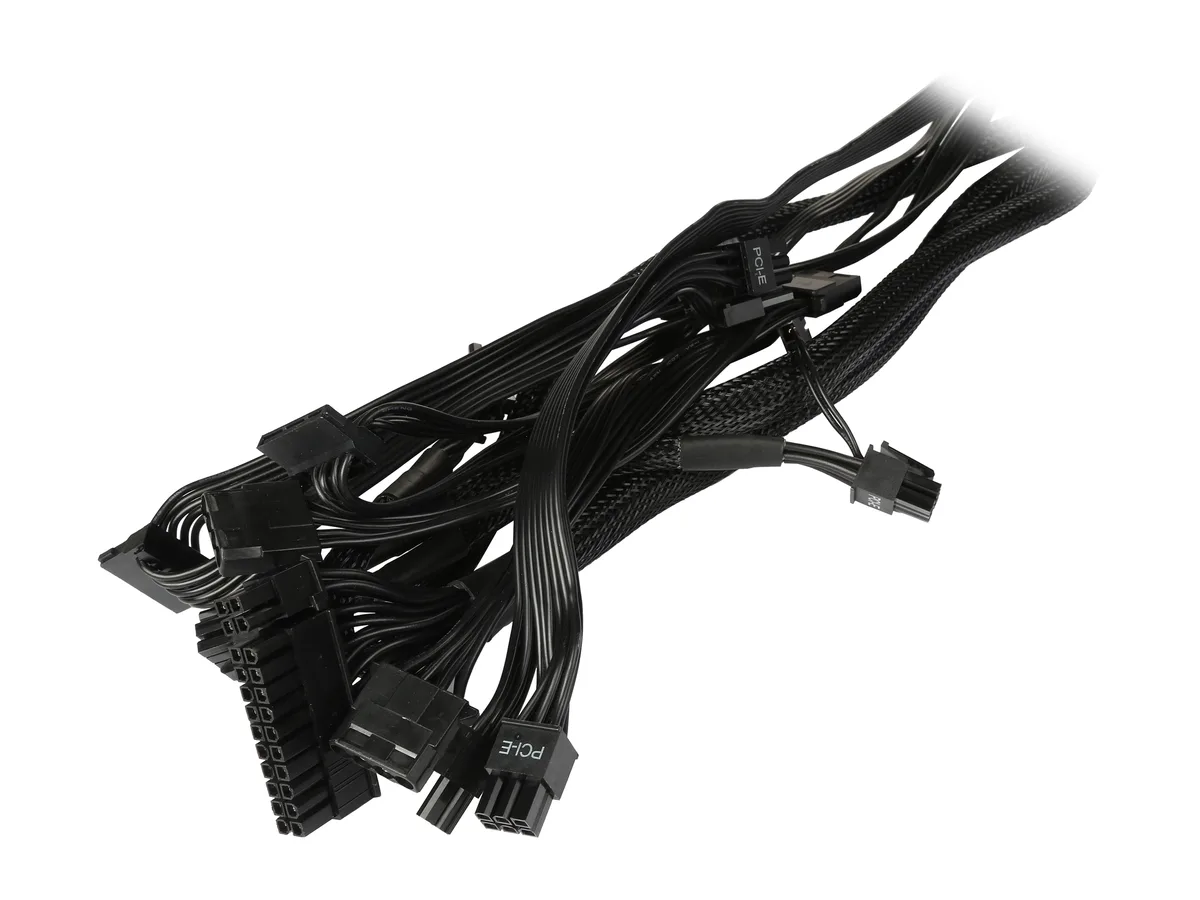

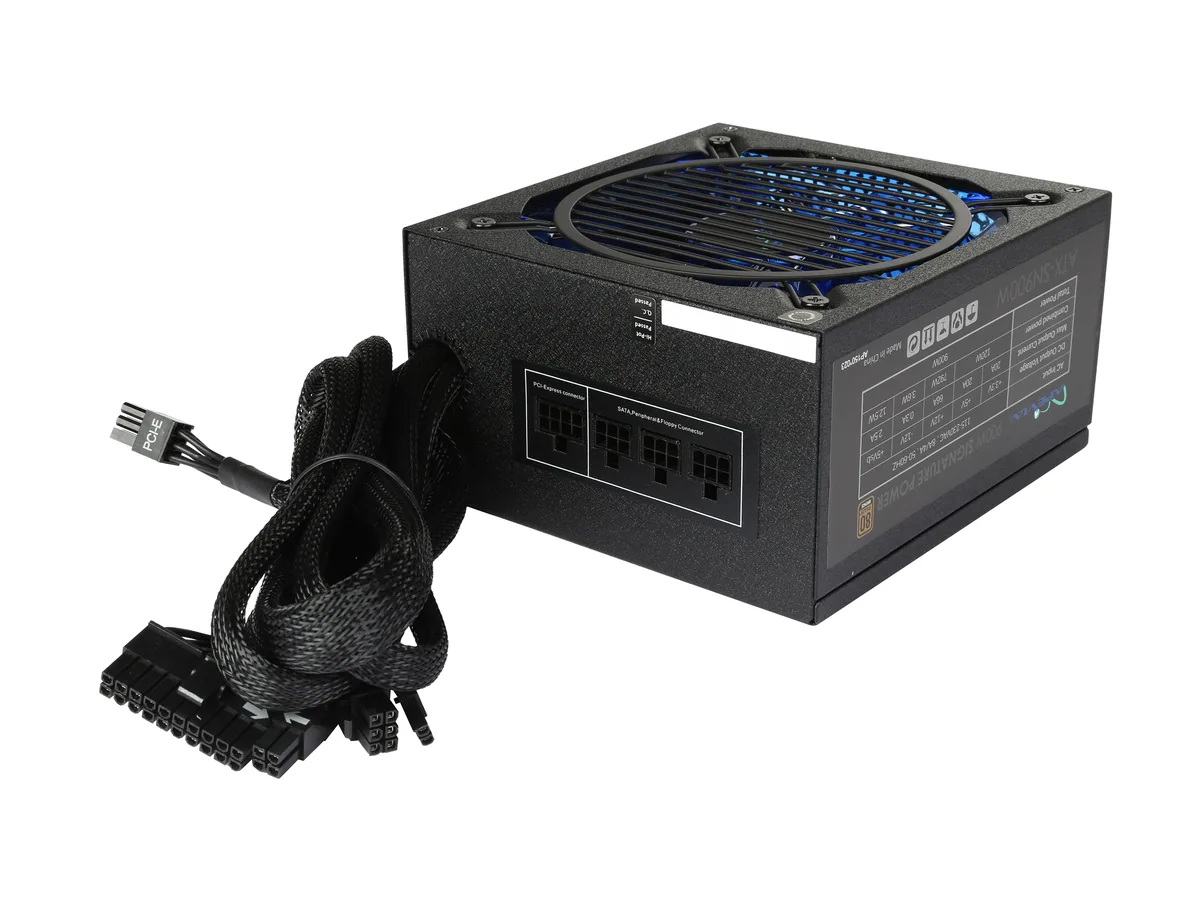

  • Hybrid modular cables keep the interior tidy

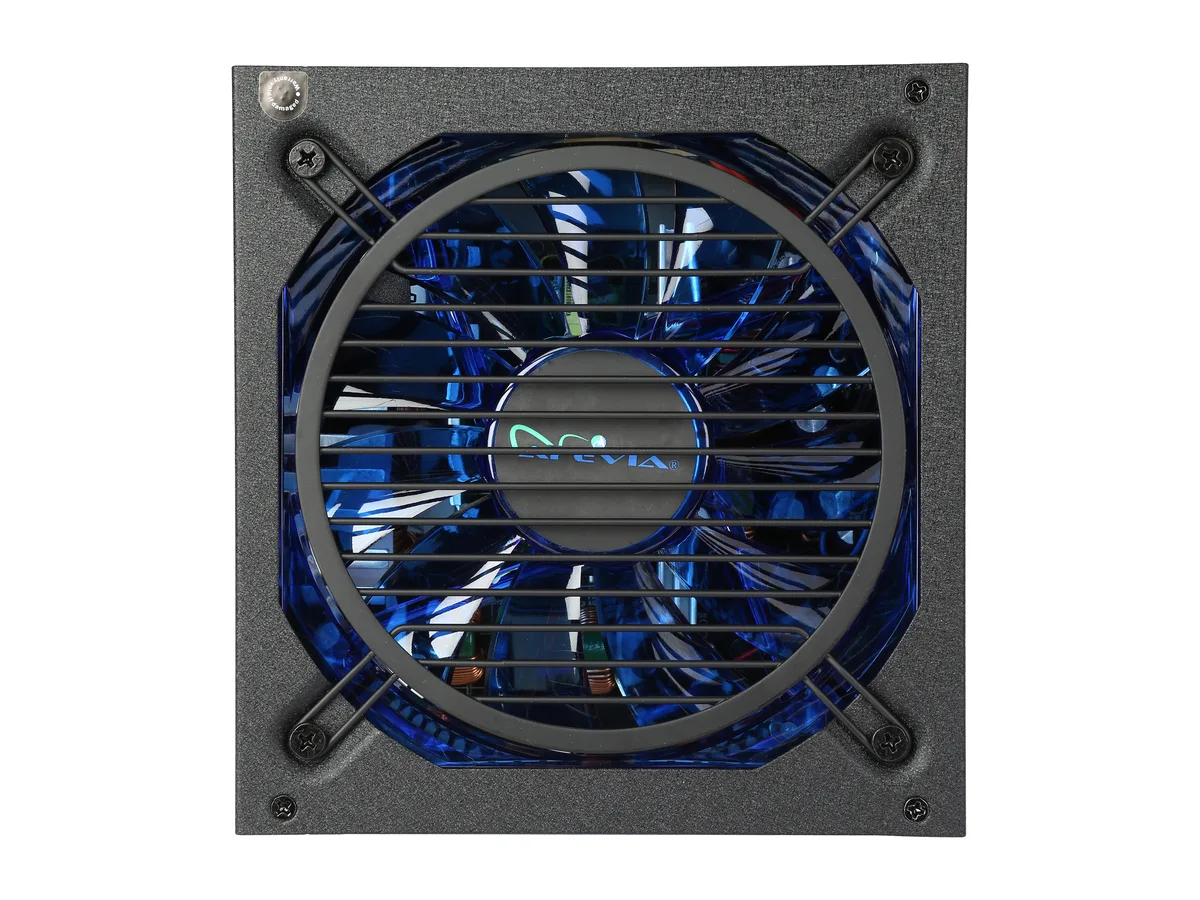

  • 135 mm blue LED fan adds visible cooling style

900 W ATX power supply with hybrid modular cables

This ATX12V v2.3 unit delivers 900 W from a single +12 V rail rated at 66 A. The hybrid modular design lets builders connect only the cables required for their build. A 135 mm blue LED fan provides cooling and a subtle case accent.

Practical limits of the ATX12V v2.3 standard

The supply follows the ATX12V v2.3 specification and carries 80 PLUS Bronze certification for typical efficiency. Active PFC with a 99 % correction factor handles 115 V or 230 V input automatically at 50 Hz or 60 Hz. Protection circuits guard against over-voltage and overload conditions.

Check your build before ordering

Verify that your case can accommodate a standard ATX power supply and that the 20+4 pin main connector matches your motherboard. Ensure the four 6+2 pin PCIe connectors and four SATA power plugs cover your graphics cards and drives. Confirm the single +12 V rail design suits your multi-GPU SLI or CrossFire configuration.

Points forts

  • 900 W output powers demanding multi-GPU builds
  • 80 PLUS Bronze certification reduces wasted energy
  • Active PFC with 99 % factor correction improves efficiency
  • Hybrid modular cables keep the interior tidy
  • 135 mm blue LED fan adds visible cooling style

Caractéristiques

BrandAPEVIA
ModelATX-SN900W
TypeATX12V v2.3
Maximum Power900 W
Fans1 x 135mm Blue LED Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector4
SLIYes
Haswell SupportYes
CrossFireYes
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage115 / 230 V
Input Frequency Range50/60 Hz
Input Current8A - 4A

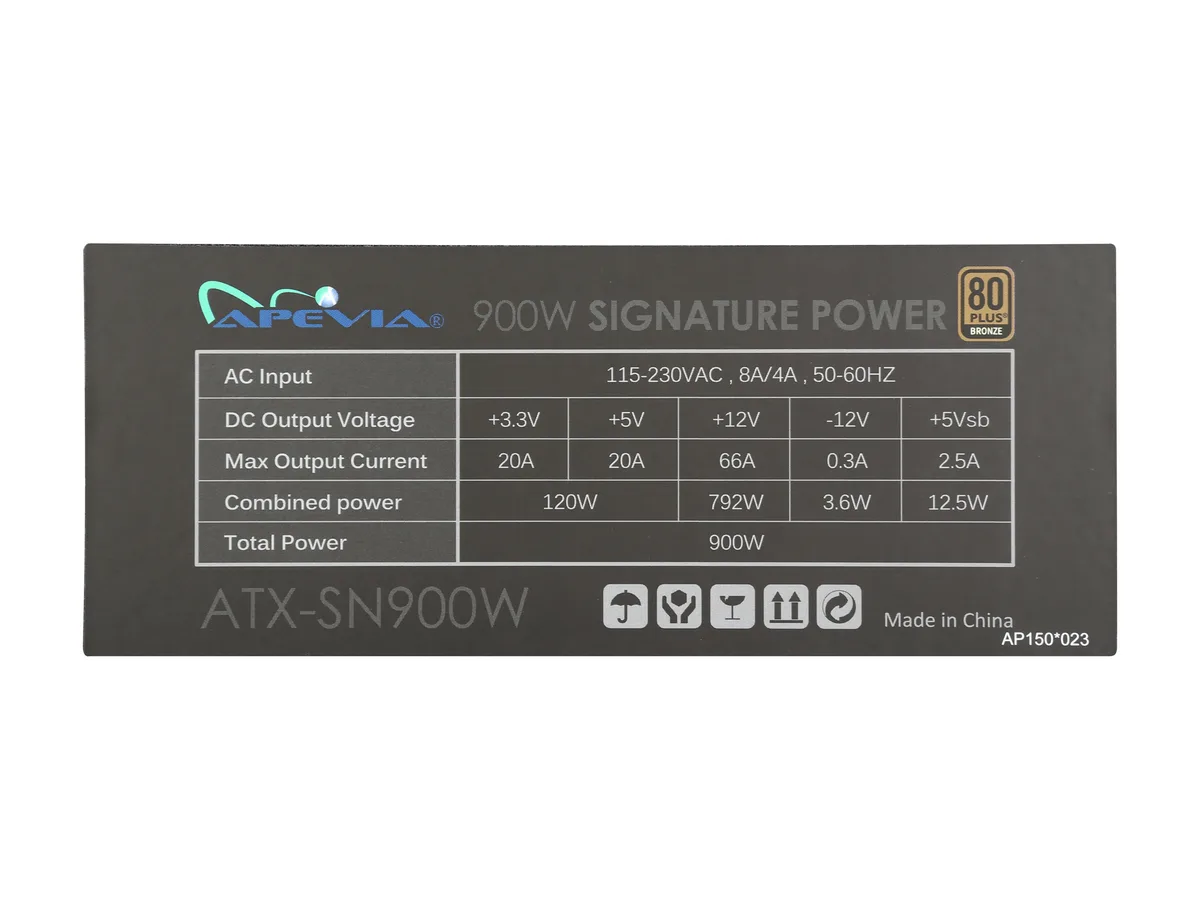

Output+3.3V@20A, +5V@20A, +12V@66A, [email protected] , [email protected]
Connectors1 x 20/24pin Main Power
4 x 8(6+2)Pin PCI Express
1 x P8(4+4P) ESP 12V
4 x 4Pin Peripheral
4 x Serial ATA
1 x Floppy
Features80 Plus Bronze Certified
Hybrid Modular Flat Cable Design
Universal AC Input by Active PFC (99% PF Typical)
Cosmic Black Casing
Supports Single 12V Output for Higher Power Usage
Supports ATX 12V 2.3 Version
Supports Dual/Quad Core CPUs
Supports SLI/Crossfire/Haswell
Automatic Thermally Controlled 135mm Blue LED Fan
Low Noise
All Cables are Sleeved
Heavy Duty Protections Including OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection) and SCP (Short Circuit Protection)
Double Forward Converter Design
Dimensions6.20" x 5.90" x 3.40"
Weight4.50 lbs.
Poids d’expédition2.14 kg
Dimensions du colis249 × 193 × 97 mm

Questions sur cet article

Will the hybrid modular cables fit a standard ATX case and motherboard?

Yes, the unit follows the ATX12V v2.3 form factor, includes a 20+4 pin main connector and uses standard SATA power plugs, so it fits typical ATX cases and motherboards.

Can it power a dual-GPU SLI or CrossFire build?

The supply provides four 6+2 pin PCI-Express connectors on a single +12V rail rated at 66A and carries both SLI and CrossFire certification, making it suitable for multi-GPU configurations.

Does the 135 mm blue LED fan require a separate controller?

No, the fan is built into the power supply and runs automatically; no external controller or extra wiring is needed for its operation.
