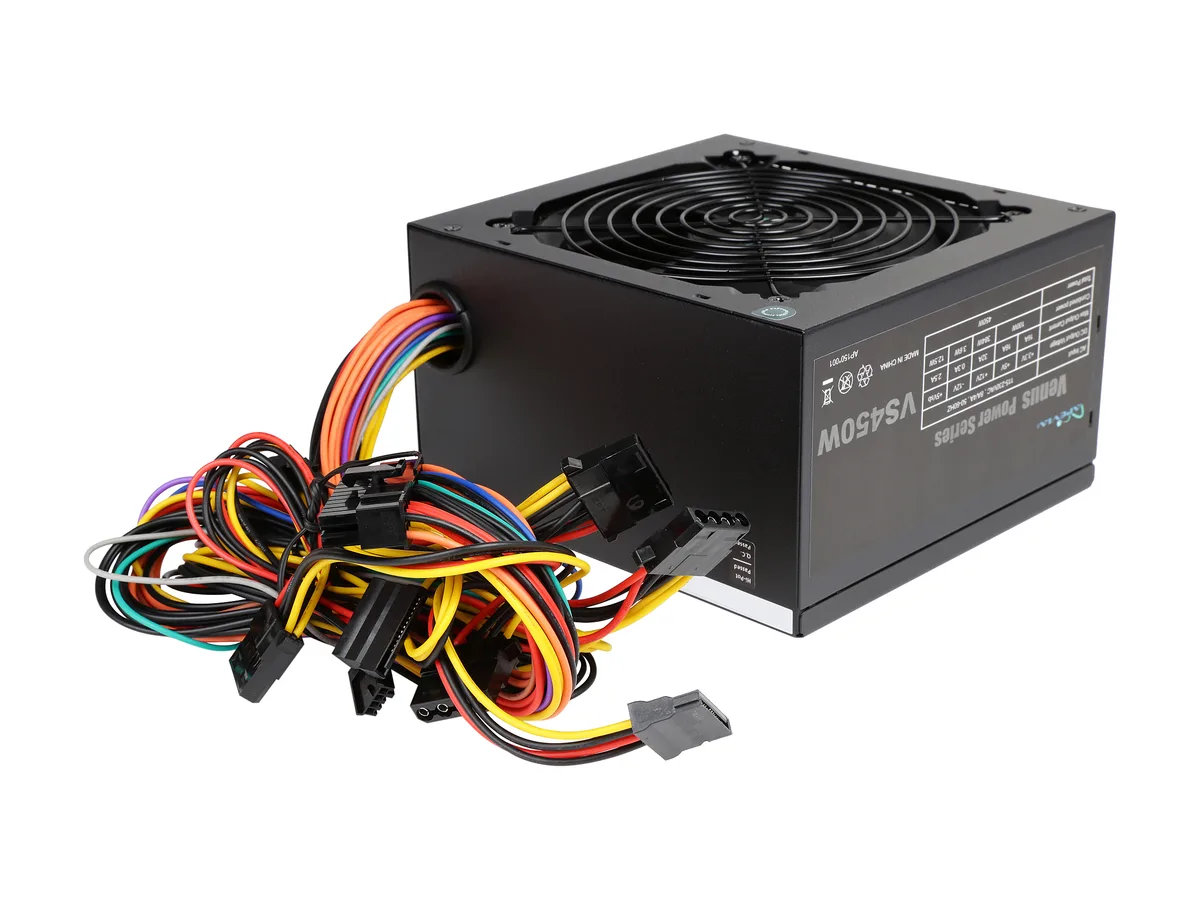

Rectangular black sandblasted metal PSU with 120mm fan and voltage selector switch

APEVIA CORP.

APEVIA CORP. ATX-VS450W 450 W power supply

SKU CH-F5K2-B390X MPN ATX-VS450W

Delivers 450 W via a single 12 V rail with a thermally controlled 120 mm fan and 115/230 V input

  • TypeATX12V
  • Maximum Power450 W
  • FansForced air ventilation by 1 x 120mm black fan
  • Main Connector20+4Pin
  • +12V RailsSingle
  • SATA Power Connector3
  • Delivers 450 W maximum power for mainstream systems
  • Single +12 V rail supplies 32 A to multi-core CPUs

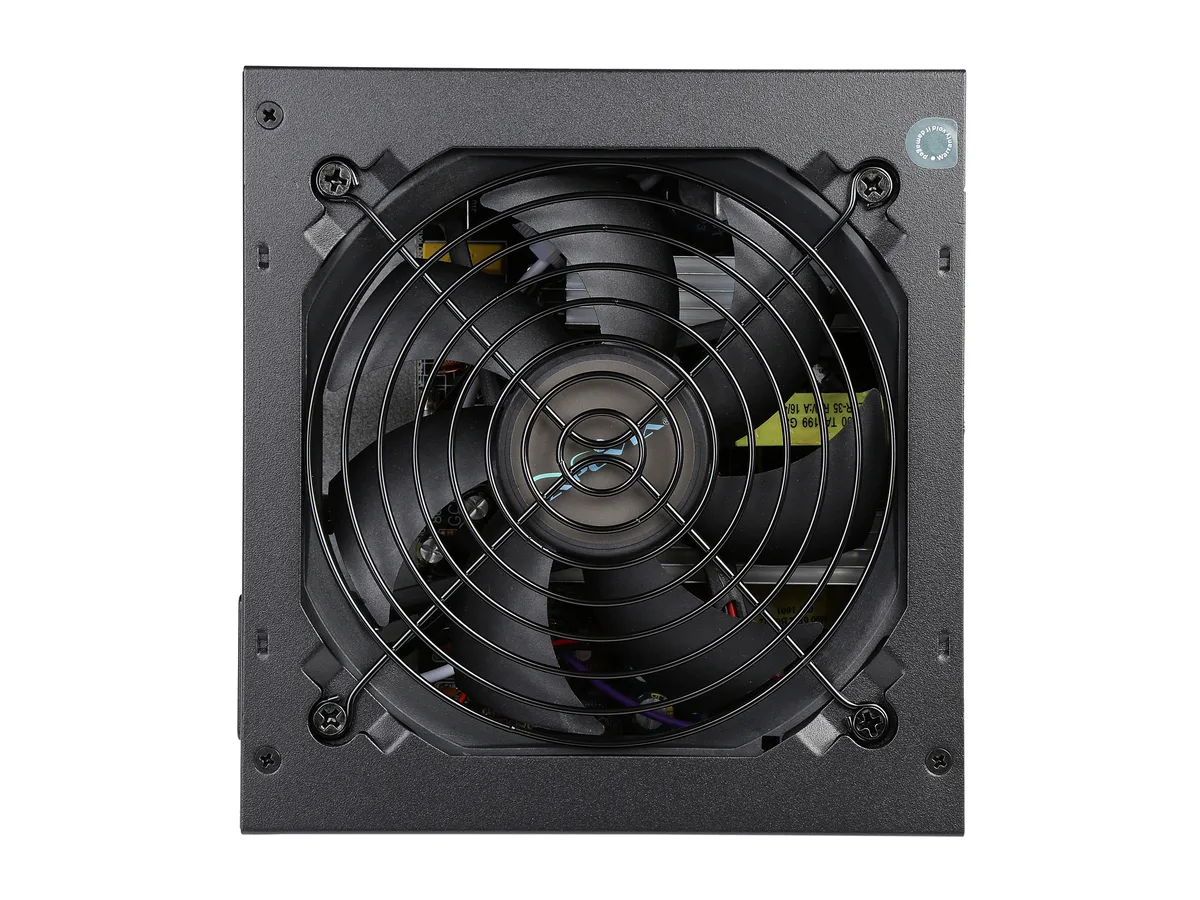

  • 120 mm thermally controlled fan removes heat quietly
  • Voltage selector switch supports 115 V and 230 V input
  • Compact 140 mm depth fits tight chassis spaces

APEVIA 450 W ATX power supply

The APEVIA ATX-VS450W is a 450 W ATX12V unit built for mainstream desktop builds that need reliable power without premium cost. Its single +12 V rail rated at 32 A supplies multi-core processors and mid-range graphics cards. Black sandblasted housing and a 120 mm thermally controlled fan keep noise low during typical workloads.

Standard ATX fit with manual voltage selector

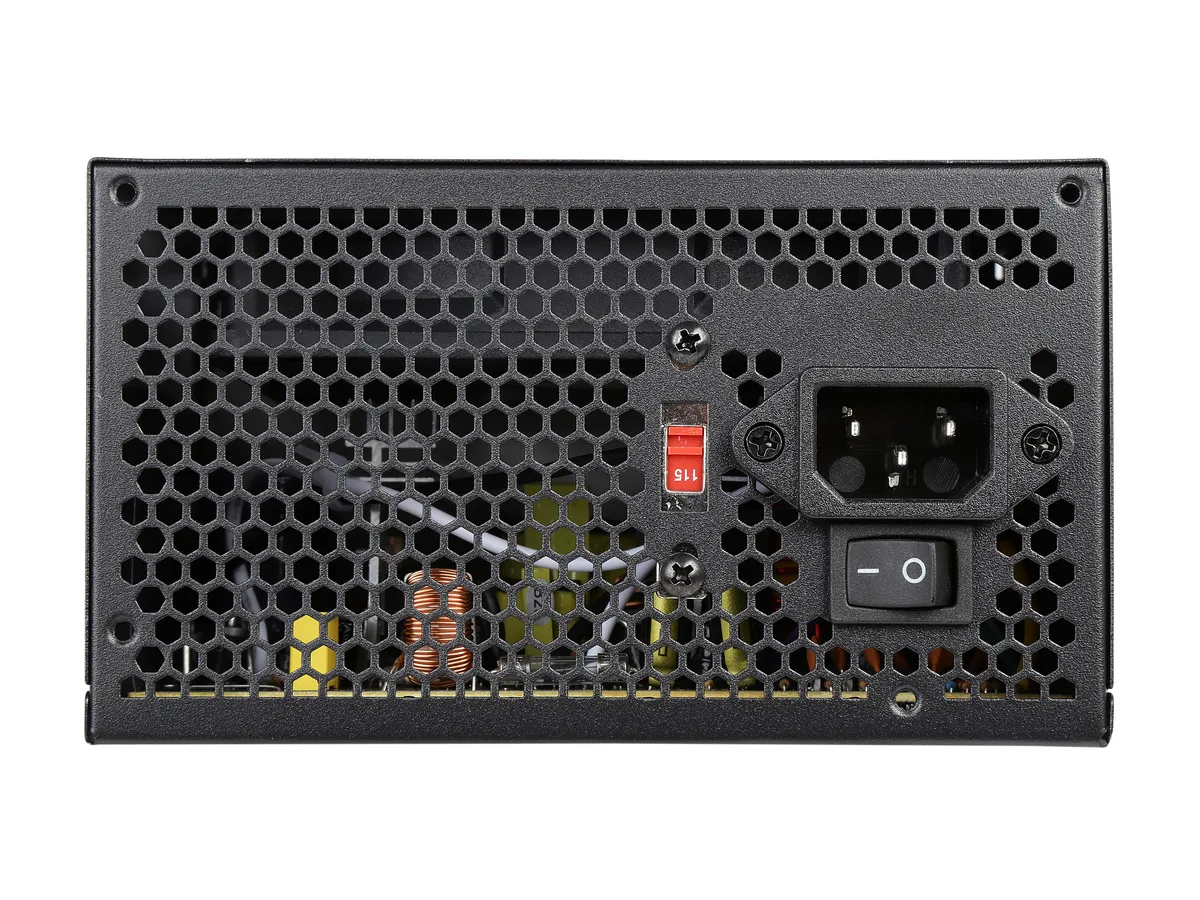

The 140 mm depth fits most ATX cases using the included 20+4 pin main connector, 4-pin CPU plug, three SATA leads, three peripheral plugs and one floppy connector. Installation is straightforward but the red 115/230 V selector switch on the rear must match local mains voltage before first power-on; forgetting this step is the most common cause of immediate failure.

450 W maximum output on a single +12 V rail

The 32 A +12 V rail determines whether this unit can sustain your CPU and GPU combination under load. If your build demands more than 450 W total or more than 32 A on the +12 V line, this power supply will not meet the requirement.

Points forts

  • Delivers 450 W maximum power for mainstream systems
  • Single +12 V rail supplies 32 A to multi-core CPUs
  • 120 mm thermally controlled fan removes heat quietly
  • Voltage selector switch supports 115 V and 230 V input
  • Compact 140 mm depth fits tight chassis spaces

Caractéristiques

BrandAPEVIA
ModelATX-VS450W
TypeATX12V
Maximum Power450 W
FansForced air ventilation by 1 x 120mm black fan
Main Connector20+4Pin
+12V RailsSingle
SATA Power Connector3
Max PSU Length140 mm
Input Voltage115 / 230 V
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 5A @ 230V

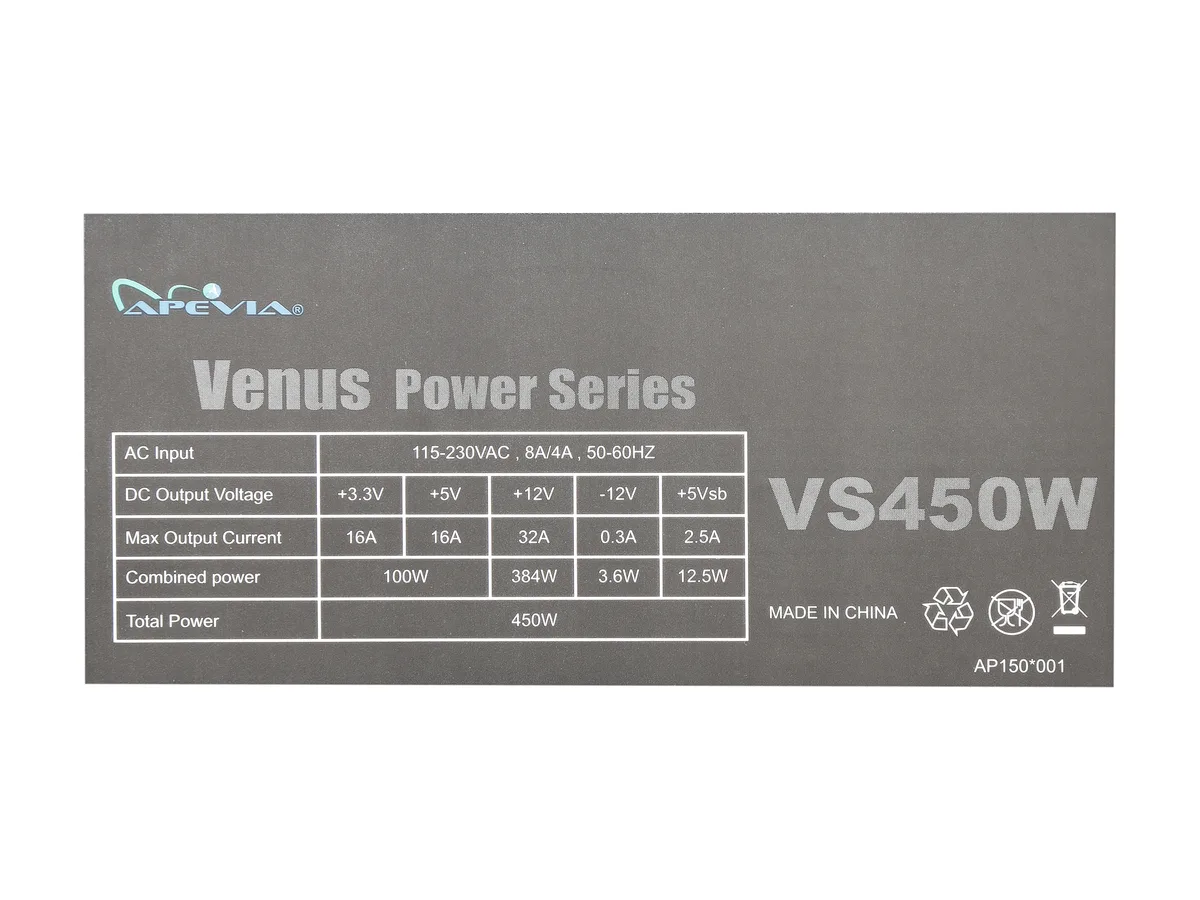

Output+3.3V@16A, +5V@16A, +12V@32A, [email protected] , [email protected]

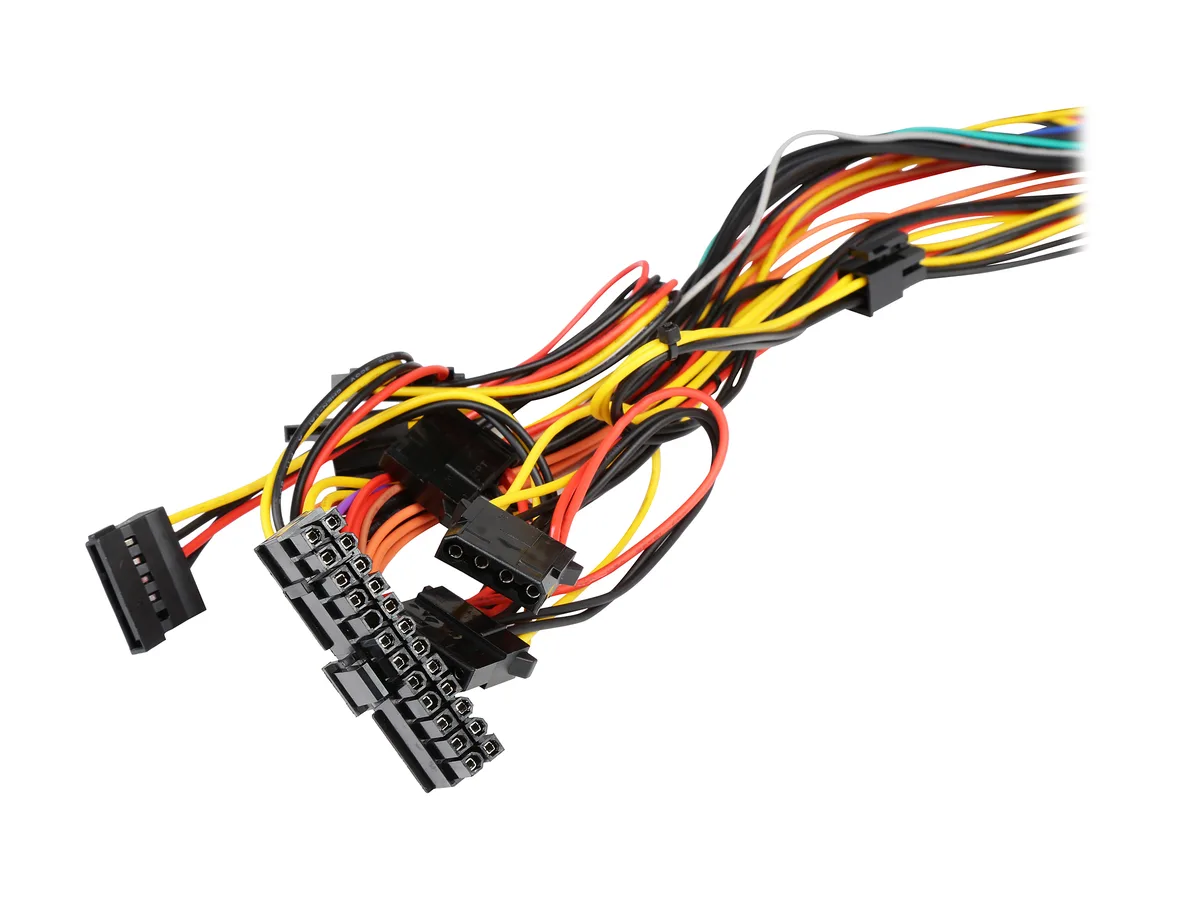

Connectors1 x 20/24pin Main Power
1 x 4pin P4
3 x SATA
3 x Peripheral
1 x Floppy
FeaturesBlack sandblasting coated case
Metal Material
Additional power rocker switch 115/230 Volt selector switch
450W Power with 12cm black fan
High stability with 5% tolerance of 5V, 3.3V & 12V output
High quality components and housing
Low noise auto-thermally control 120mm fan
Power cord
Retail box
20 + 4 pin main connector can be used for 20 pin or 24 pin
1 x ATX12V 4pin connector
2 x SATA connector
4 x 4 pin peripheral connector
1 x floppy connector
Dimensions3.40" x 5.90" x 5.50"
Weight3.00 lbs.
Poids d’expédition1.18 kg
Dimensions du colis241 × 185 × 99 mm

Questions sur cet article

How do I confirm the 450 W unit is delivering stable voltages after installation?

Use a multimeter or motherboard monitoring software to verify the +12 V rail stays near 12 V under load and the 5 V and 3.3 V rails remain within 5 % of their nominal values.

Which cables and connectors come with the ATX-VS450W?

The box includes a 20+4 pin main connector, one 4-pin P4 connector, three SATA power connectors, three peripheral connectors and one floppy connector.

The specs list a single +12 V rail rated at 32 A — is that the only capacity choice?

Yes, this model provides one +12 V rail at 32 A alongside 16 A on both +5 V and +3.3 V, giving 450 W total.
