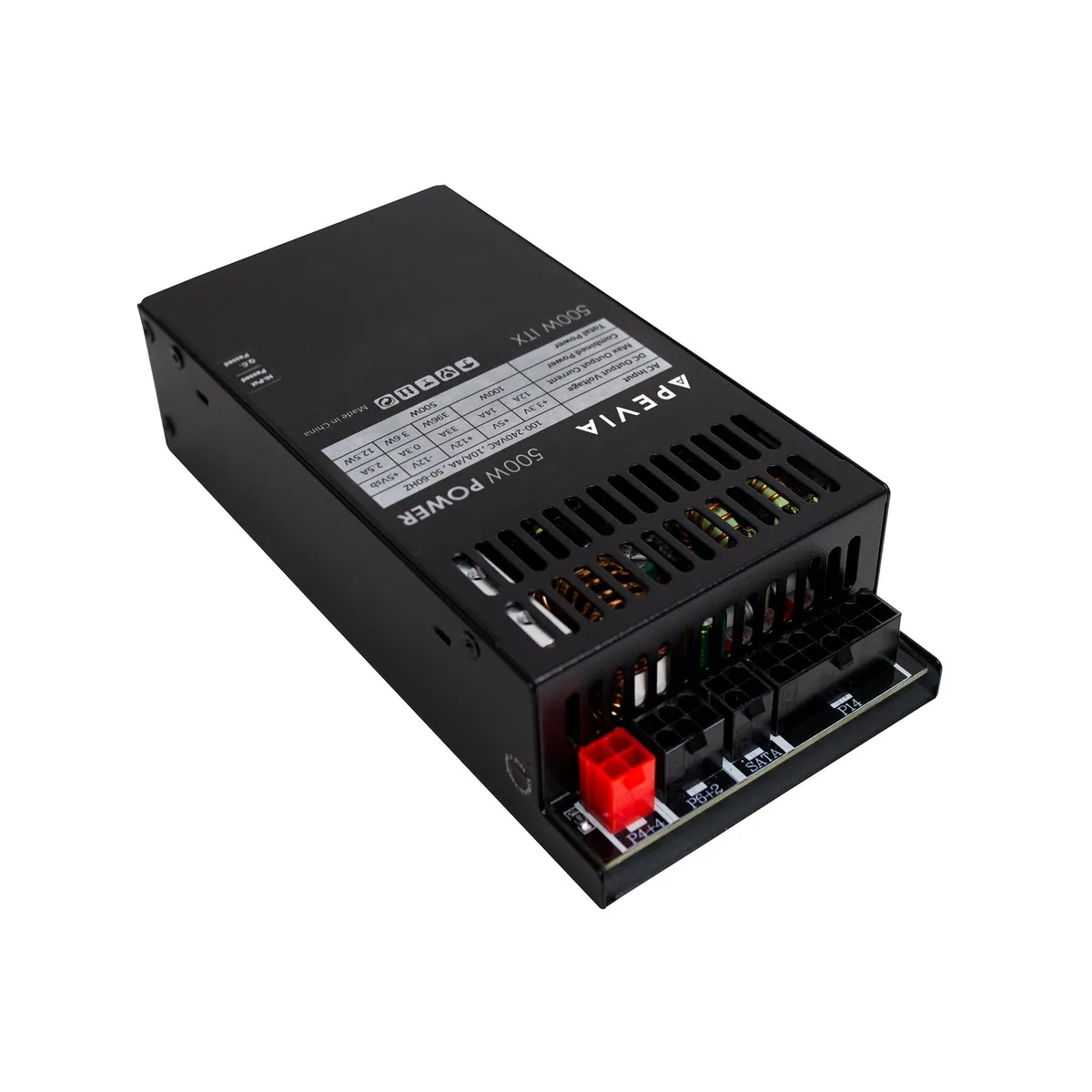

Black compact metal power supply unit with modular cable sockets and a small rear fan grille

APEVIA CORP.

APEVIA CORP. ITX-PFC500W 500W Fully Modular Mini ITX Power Supply

SKU CH-JYGA-1NNGA

A 500W fully modular Mini ITX power supply with active PFC, multiple protections and a 40mm double ball bearing fan

  • TypeMini ITX
  • Fully modular design simplifies cable routing in compact builds
  • 500 W maximum output supports mid-range GPUs and CPUs
  • Active PFC accepts 90–264 V input for worldwide use
  • 40 mm double ball-bearing fan delivers forced-air cooling

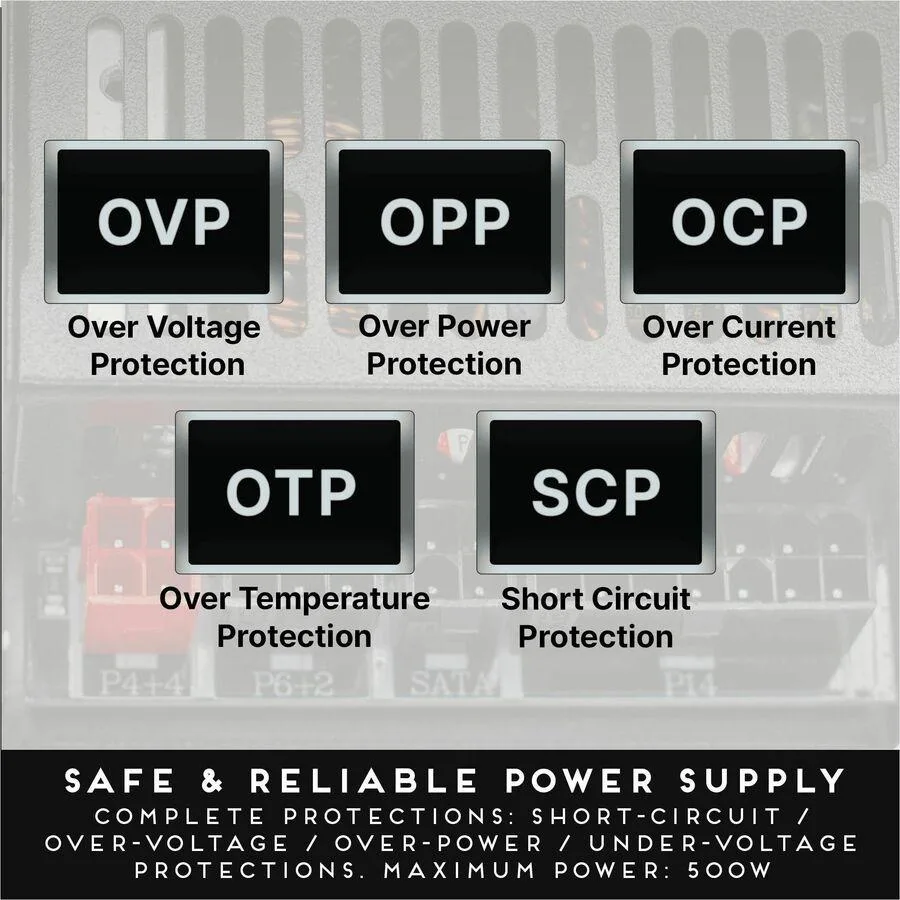

  • Five protection circuits guard against overvoltage, overload, overcurrent, overheating and short circuits

ITX 500 W Fully Modular PSU

The APEVIA ITX-PFC500W delivers 500 W from a Mini ITX form factor with full-range active PFC rated 90-264 V. Its fully modular cable set lets builders connect only the leads their small-form-factor system requires. Designed for compact desktop, POS, AIO or server chassis where standard ATX units will not fit.

Check Clearance and Connector Needs

Verify that your case accepts a Mini ITX power supply and that the 40 mm double ball-bearing fan has an unobstructed airflow path. Ensure the motherboard uses a 20-pin or 24-pin main connector and a 4-pin or 8-pin 12 V CPU connector. The unit provides two 6+2-pin PCIe leads, two SATA plugs and two 4-pin peripheral plugs — confirm those match your drives and graphics card.

Modular Cables and Protections Included

The box contains a power cord and the full modular cable kit: 20+4-pin main, 8-pin (4+4) CPU, two 6+2-pin PCIe, two SATA and two 4-pin peripheral cables. Built-in protections cover overvoltage, overload, overcurrent, overheating and short circuit. Voltage regulation stays within 5 % on the 3.3 V, 5 V and 12 V rails.

Points forts

  • Fully modular design simplifies cable routing in compact builds
  • 500 W maximum output supports mid-range GPUs and CPUs
  • Active PFC accepts 90–264 V input for worldwide use
  • 40 mm double ball-bearing fan delivers forced-air cooling
  • Five protection circuits guard against overvoltage, overload, overcurrent, overheating and short circuits

Caractéristiques

TypeMini ITX

Questions sur cet article

Does the retail box include all cables for a small-form-factor build, or must any be purchased separately?

The box contains the unit, a power cord, one 20+4 pin main connector, one 8-pin 12V (P4+4) connector, two 6+2 PCIe connectors, two SATA connectors and two 4-pin peripheral connectors. Every listed cable is included.

How do I decide between the single 500 W model and a different capacity?

Only the 500 W version is offered. It delivers +12 V at 33 A, +5 V at 14 A and +3.3 V at 12 A. Choose it if those rails meet your component power budget.

What does the 500 W rating mean once the PSU is installed in a Mini-ITX case?

The 500 W figure is the maximum combined output across all rails. The +12 V rail supplies up to 33 A for CPU and graphics, while the 5 % voltage tolerance keeps output stable under load in a compact chassis.
