ASRock

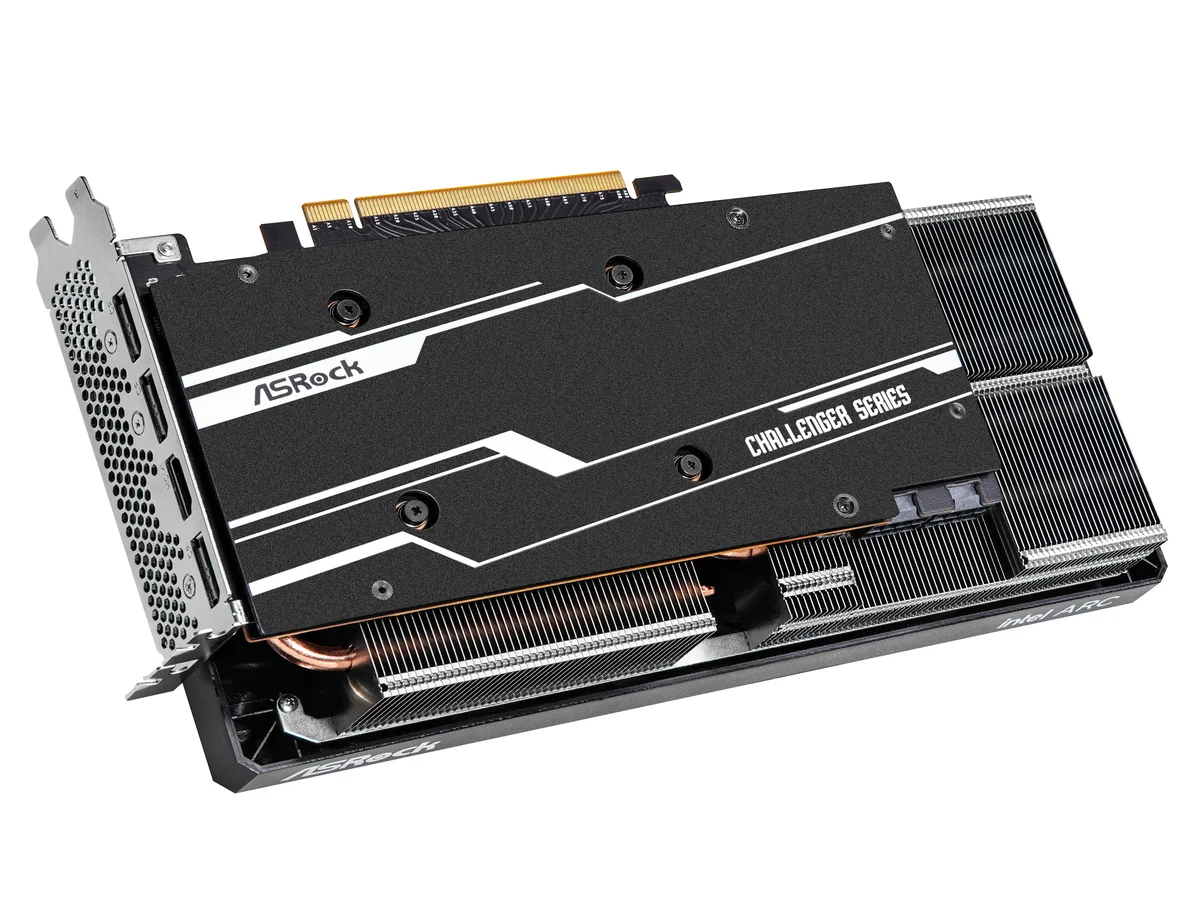

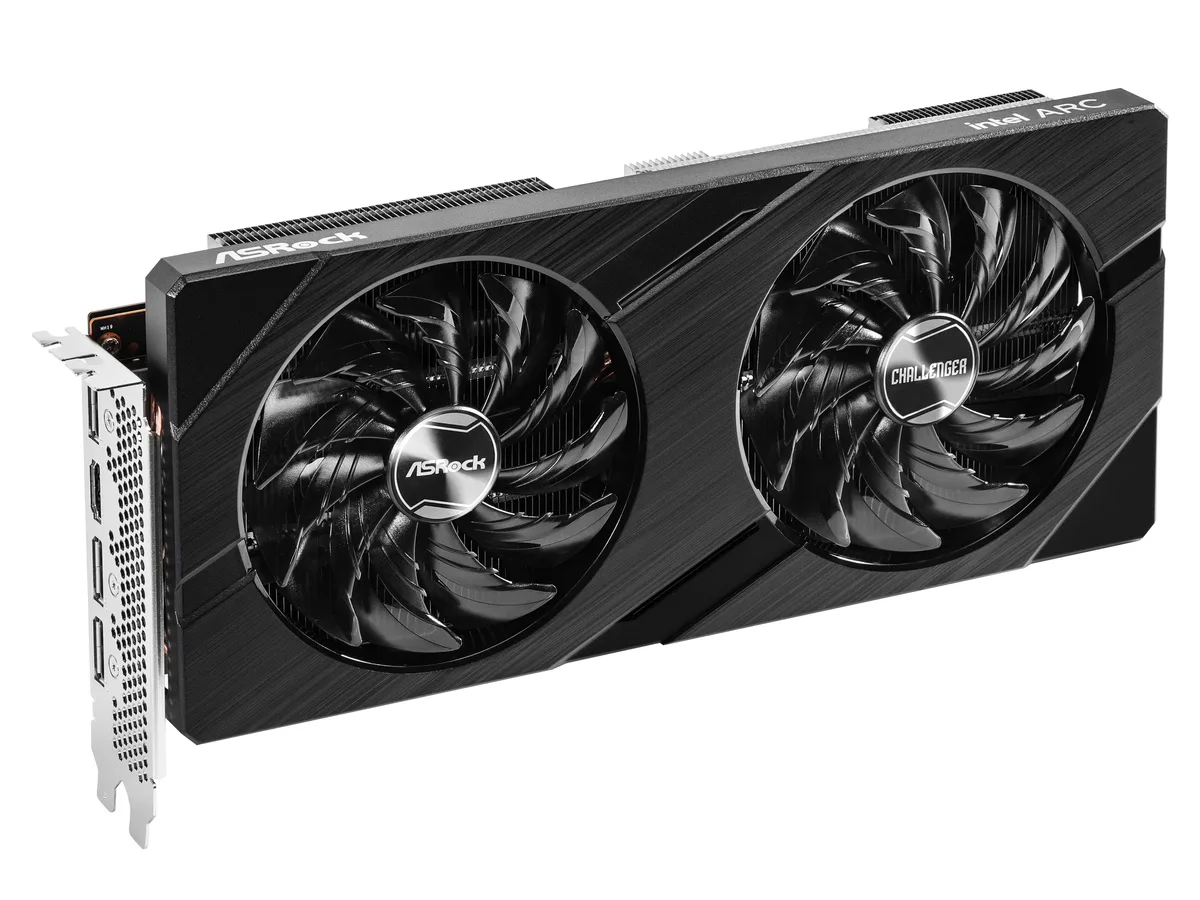

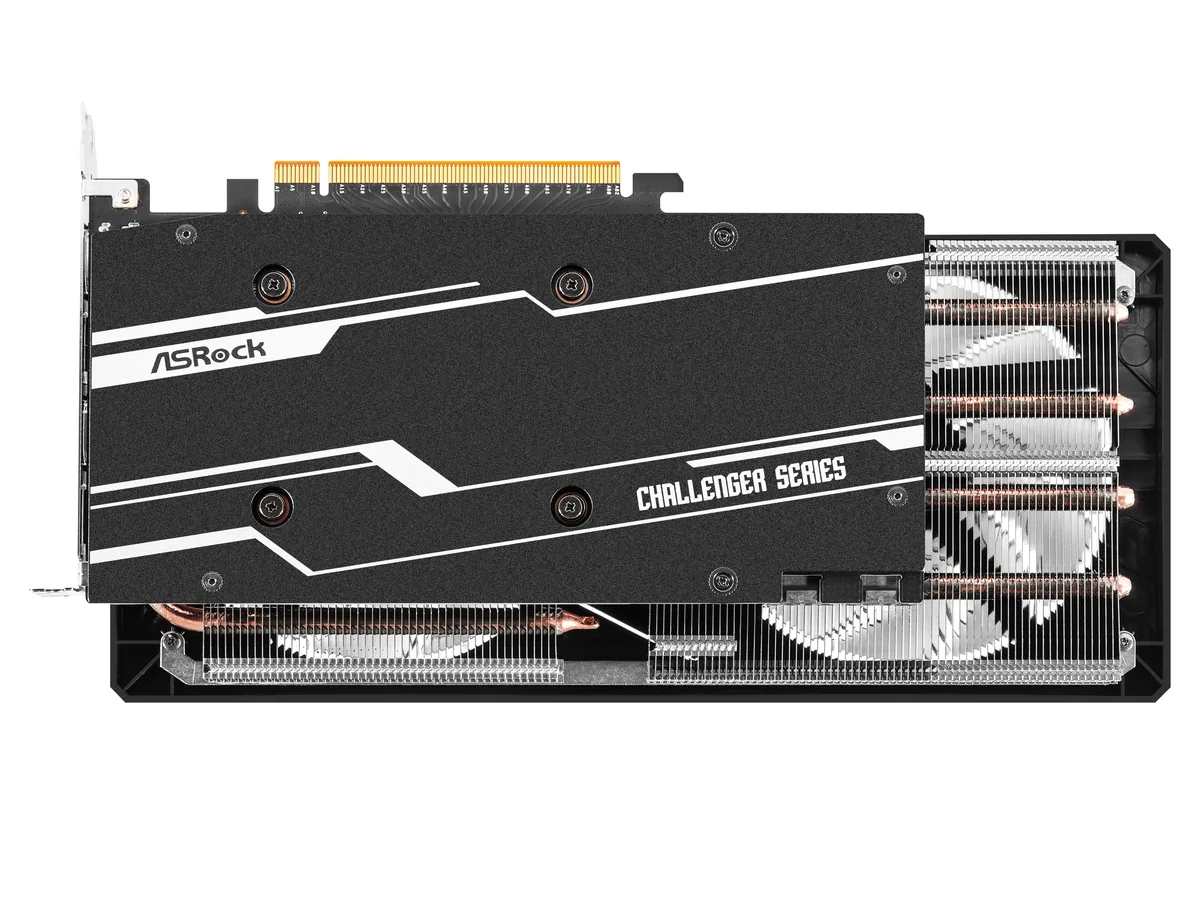

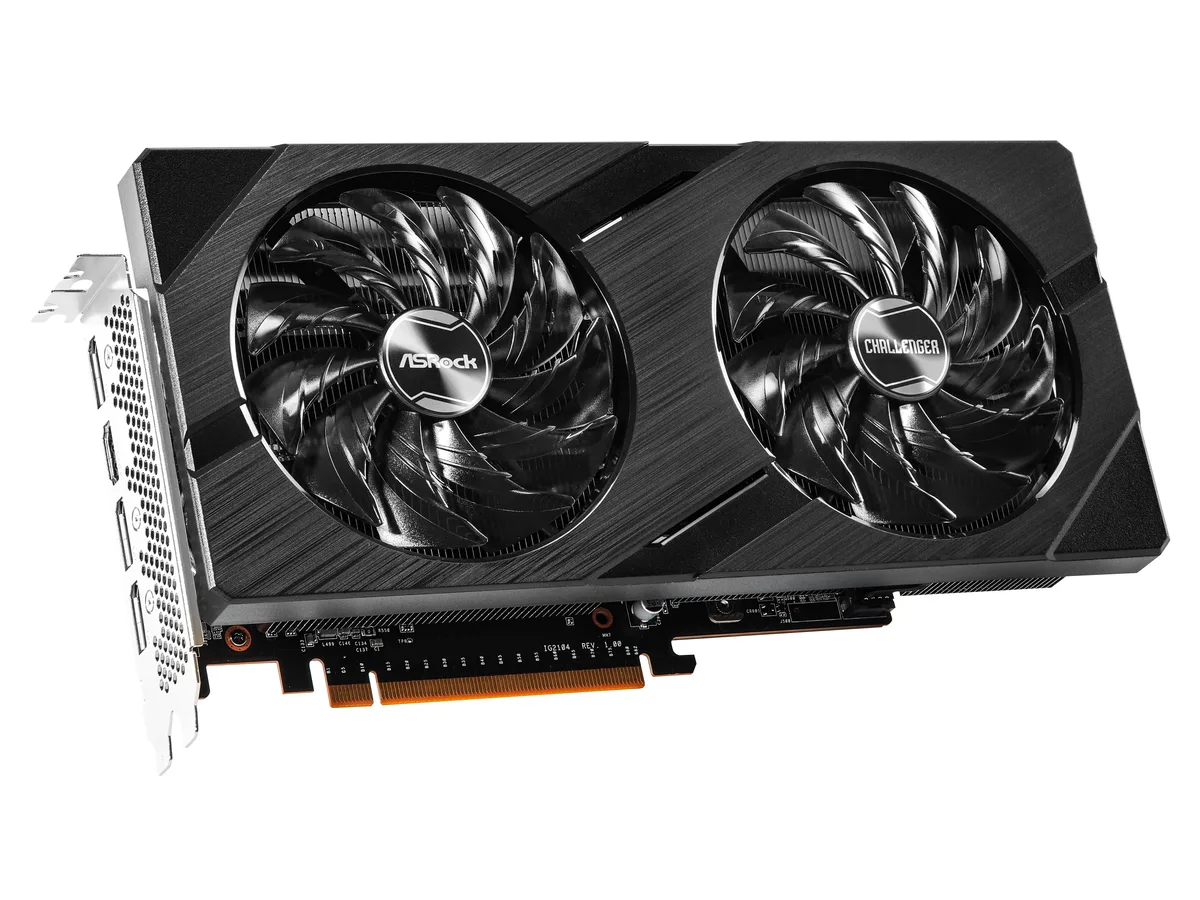

ASRock Challenger Arc A580 CL 8GO graphics card
Delivers 2000 MHz core clock on 8 GB GDDR6 across a 256-bit bus with HDMI 2.1, three DisplayPort 2.0 outputs and dual-fan cooling
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerIntel
- GPU SeriesIntel Arc A-Series
- GPUArc A580
- Core Clock2000 MHz
- Memory Size8GB
- 8 GB GDDR6 on a 256-bit bus gives high memory bandwidth
- Core clock reaches 2000 MHz for responsive gaming performance
- HDMI 2.1 and three DisplayPort 2.0 outputs drive up to four 7680 x 4320 displays
- PCI Express 4.0 x16 interface provides full host bandwidth
- Dual-fan cooler with 0 dB stop keeps the card quiet at low load
Intel Arc A580 8GB graphics card
The ASRock Challenger Arc A580 CL 8GO is a discrete GPU built on the Intel Arc A-Series architecture. It connects through a PCI Express 4.0 x16 interface and targets 1440p gaming and content-creation workloads. The card ships with a factory overclock that lifts the core clock to 2000 MHz out of the box.
8GB 256-Bit GDDR6 memory capacity
Eight gigabytes of GDDR6 memory on a 256-Bit bus provide enough frame-buffer headroom for modern titles at high settings and for moderate 3D rendering tasks. The 175W thermal design power and 650W recommended PSU wattage indicate where sustained load begins to stress a typical mid-range power supply. DirectX 12 Ultimate and OpenGL 4.6 support ensure compatibility with current APIs.

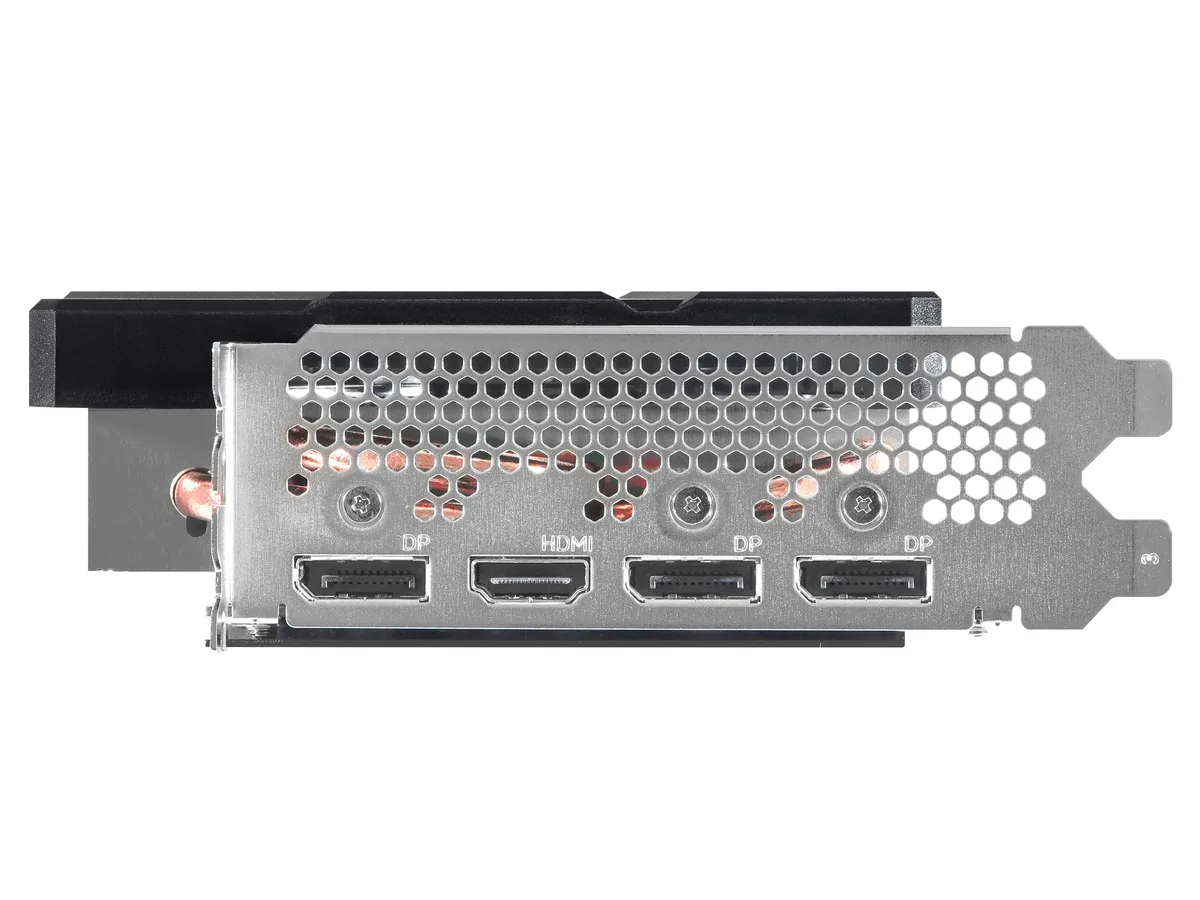

Triple DisplayPort 2.0 and HDMI 2.1 outputs
One HDMI 2.1 port and three DisplayPort 2.0 connectors drive up to four displays at a maximum resolution of 7680 x 4320. A dual-fan cooler with a metal backplate and heatpipe contact keeps thermals in check while the 0dB fan-stop feature silences the card at idle. The two-slot form factor fits standard ATX cases without special brackets.
Points forts
- 8 GB GDDR6 on a 256-bit bus gives high memory bandwidth
- Core clock reaches 2000 MHz for responsive gaming performance
- HDMI 2.1 and three DisplayPort 2.0 outputs drive up to four 7680 x 4320 displays
- PCI Express 4.0 x16 interface provides full host bandwidth
- Dual-fan cooler with 0 dB stop keeps the card quiet at low load
Caractéristiques
| Brand | ASRock |
|---|---|
| Series | Challenger |
| Model | A580 CL 8GO |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | Intel |
| GPU Series | Intel Arc A-Series |
| GPU | Arc A580 |
| Core Clock | 2000 MHz |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.0 |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 175W |
| Recommended PSU Wattage | 650W |
| Power Connector | 2 x 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 271 mm |
| Slot Width | 2.4 Slots |
| Poids d’expédition | 1.20 kg |
| Dimensions du colis | 360 × 217 × 64 mm |
Questions sur cet article
Will this card fit in my PCI Express 4.0 x16 slot?
Yes, the card uses a PCI Express 4.0 x16 interface and will work in any compatible x16 slot.
What power supply do I need for the 175W board?
The manufacturer recommends a 650W PSU to support the 175W thermal design power.
Can I drive four 7680 x 4320 displays at once?
The card supports up to four monitors via one HDMI 2.1 and three DisplayPort 2.0 outputs, with a maximum resolution of 7680 x 4320.
