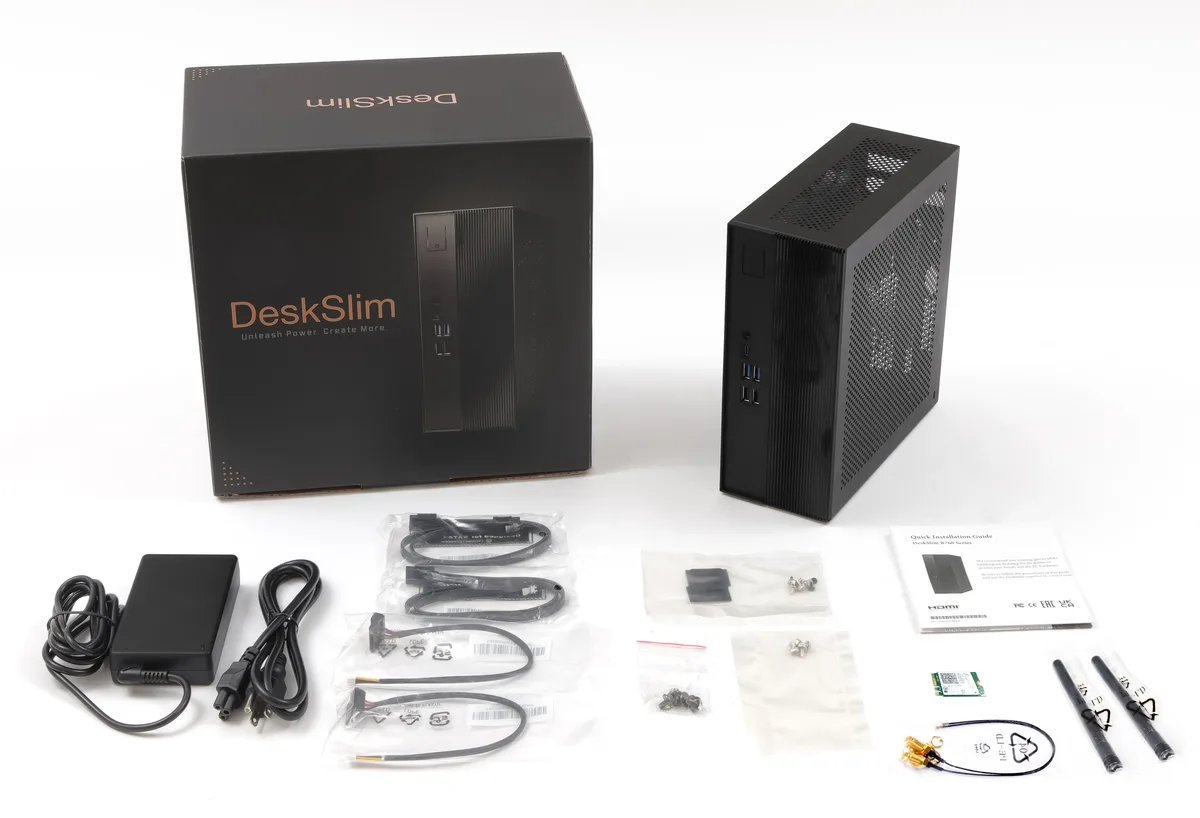

Black compact barebone mini PC chassis, front USB-C and Type-A ports visible

ASRock

ASRock DESKSLIM B760W barebone mini PC 240W 256GB DDR5

SKU CH-PA9B-TQMWW MPN DESKSLIM B760W

Barebone mini PC with Intel B760 chipset accepting 12th to 14th Gen Core CPUs up to 125W, four DDR5 5600 slots for 256GB, two M.2 2280 bays, 2.5Gbps LAN and 240W power supply

  • ColorBlack
  • CPU TypeSupports 14th/13th/12th Gen Intel Core Processors, up to 125
  • North BridgeIntel B760
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Memory Type SupportedDDR5 5600
  • Supports 12th/13th/14th Gen Intel Core CPUs up to 125W
  • Four DDR5 5600 DIMM slots for up to 256GB memory
  • PCIe 5.0 x16 slot for modern graphics cards
  • Two M.2 2280 slots for SATA or PCIe Gen4 SSDs
  • 5Gbps LAN plus USB 3.2 Gen1 Type-C on front panel

Compact Intel B760 barebone for custom builds

This barebone mini PC uses the Intel B760 chipset and accepts 12th, 13th and 14th generation Intel Core processors up to 125W. It ships without memory or storage so integrators can choose DDR5 5600 modules up to 256GB across four 288-pin DIMM slots and add SATA or PCIe Gen4x4 M.2 2280 drives. The included 240W 19V power adapter handles the platform power budget.

Two M.2 slots and SATA cables expand storage options

One M.2 2280 slot supports both SATA and PCIe Gen4x4 SSDs while a second slot is dedicated to PCIe Gen4x4. Two SATA 6.0Gb/s ports and the supplied SATA data-and-power cables let builders add 2.5-inch drives without extra parts. A PCI Express 5.0 x16 slot is available for a discrete graphics card or other add-in card.

Small steel chassis with front Type-C and dual

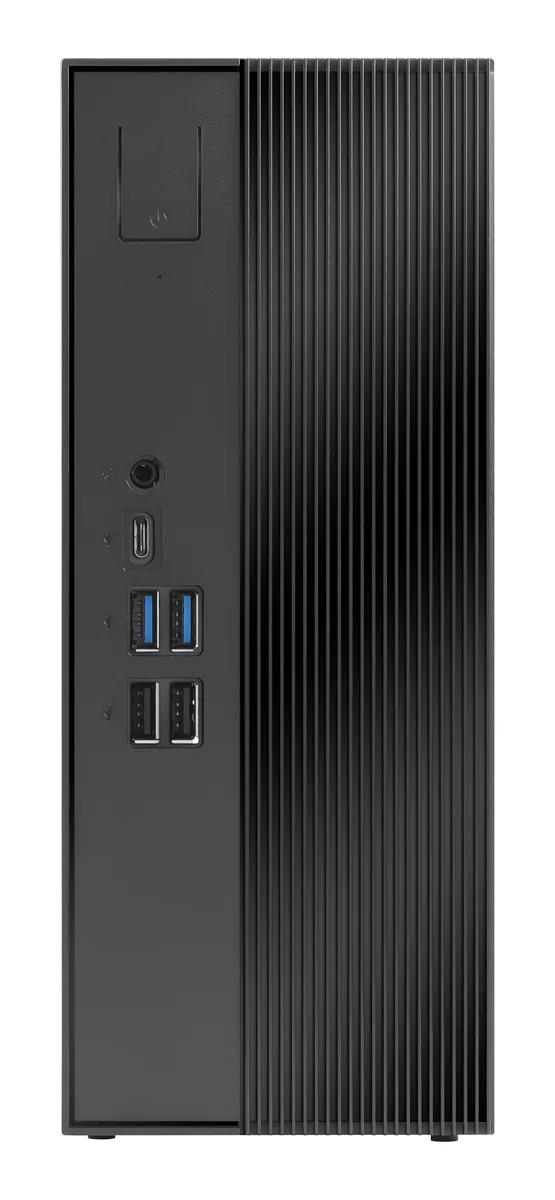

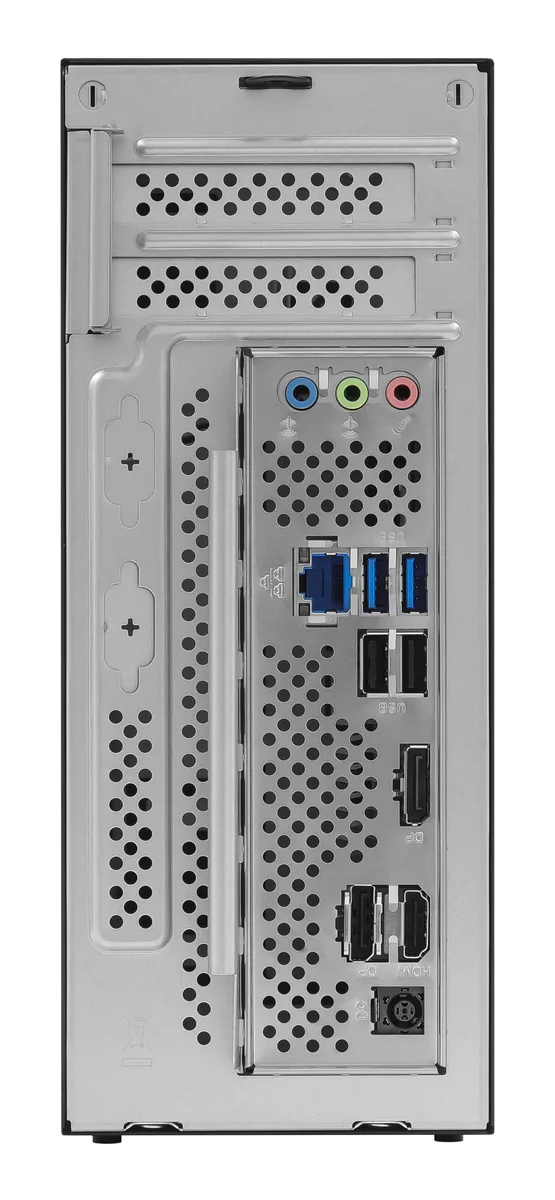

The black enclosure measures 3.74 by 9.25 by 8.66 inches and includes front USB 3.2 Gen1 Type-C, two Type-A ports, two USB 2.0 ports and a single audio jack. Rear I/O provides two DisplayPort outputs, two USB 2.0, two USB 3.2 Gen1 Type-A, 2.5Gbps LAN, three audio jacks and the DC power input. Mounting screws for M.2 devices and a Wi-Fi module are included.

Points forts

  • Supports 12th/13th/14th Gen Intel Core CPUs up to 125W
  • Four DDR5 5600 DIMM slots for up to 256GB memory
  • PCIe 5.0 x16 slot for modern graphics cards
  • Two M.2 2280 slots for SATA or PCIe Gen4 SSDs
  • 5Gbps LAN plus USB 3.2 Gen1 Type-C on front panel

Caractéristiques

BrandASRock
ModelDeskSlim B760W
ColorBlack
CPU TypeSupports 14th/13th/12th Gen Intel Core Processors, up to 125W
North BridgeIntel B760
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
Storage InstalledNo Storage
Serial ATA2 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 Slot for SATA/PCIe Gen4x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
Max LAN Speed2.5Gbps
Front USB1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front Audio Ports1 jacks
DisplayPort2 x DisplayPort
Rear USB2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
RJ451
Rear Audio Ports3 jacks
Other Rear Ports1 x DC Jack (Compatible with the 19V power adapter)
Power Supply240W/19V
Dimensions3.74" x 9.25" x 8.66"
Packaging2 x SATA Cables
2 x SATA Data with Power Cables
2 x Screws for M.2 Sockets
1 x Screw for WiFi Module
4 x VESA Screws
1 x Wi-Fi6 Kit (AW-XB611NF)
Poids d’expédition2.99 kg
Dimensions du colis298 × 286 × 183 mm

Questions sur cet article

How often will the DDR5 5600 memory modules in the 4 DIMM slots need replacement?

DDR5 5600 modules in the four 288-pin slots have no scheduled replacement interval; they are solid-state components rated for the system's service life.

Which limit appears first during sustained loads — the 125W CPU ceiling or the 240W power supply?

The 240W power supply sets the overall power envelope; a 125W CPU plus GPU and drives can approach that limit before the processor hits its own 125W rating.

How loud does the cooling fan get when the 240W supply runs continuously?

The 240W/19V adapter and internal VRM cooling are designed for continuous operation; acoustic output varies with CPU load and installed graphics card.
