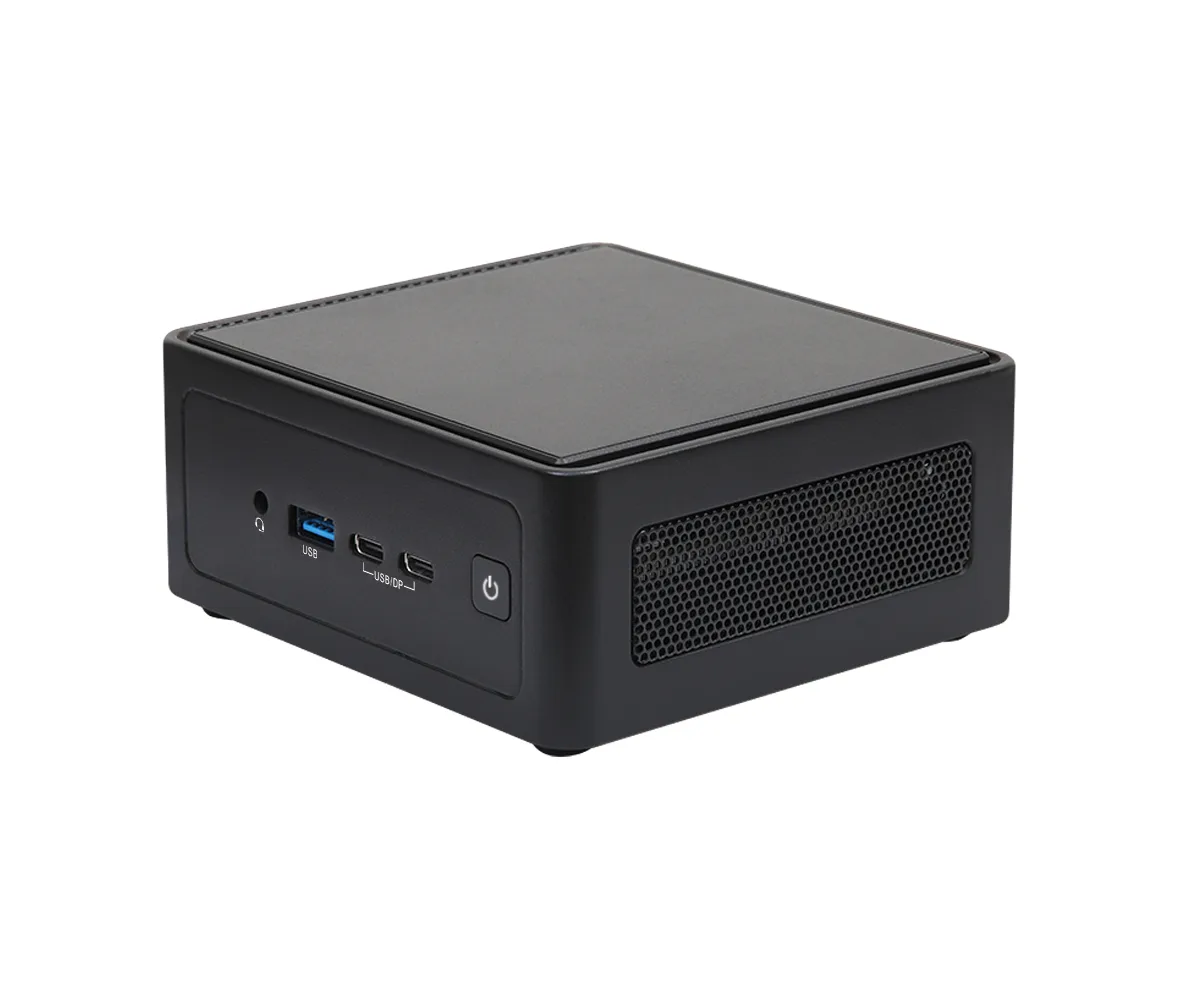

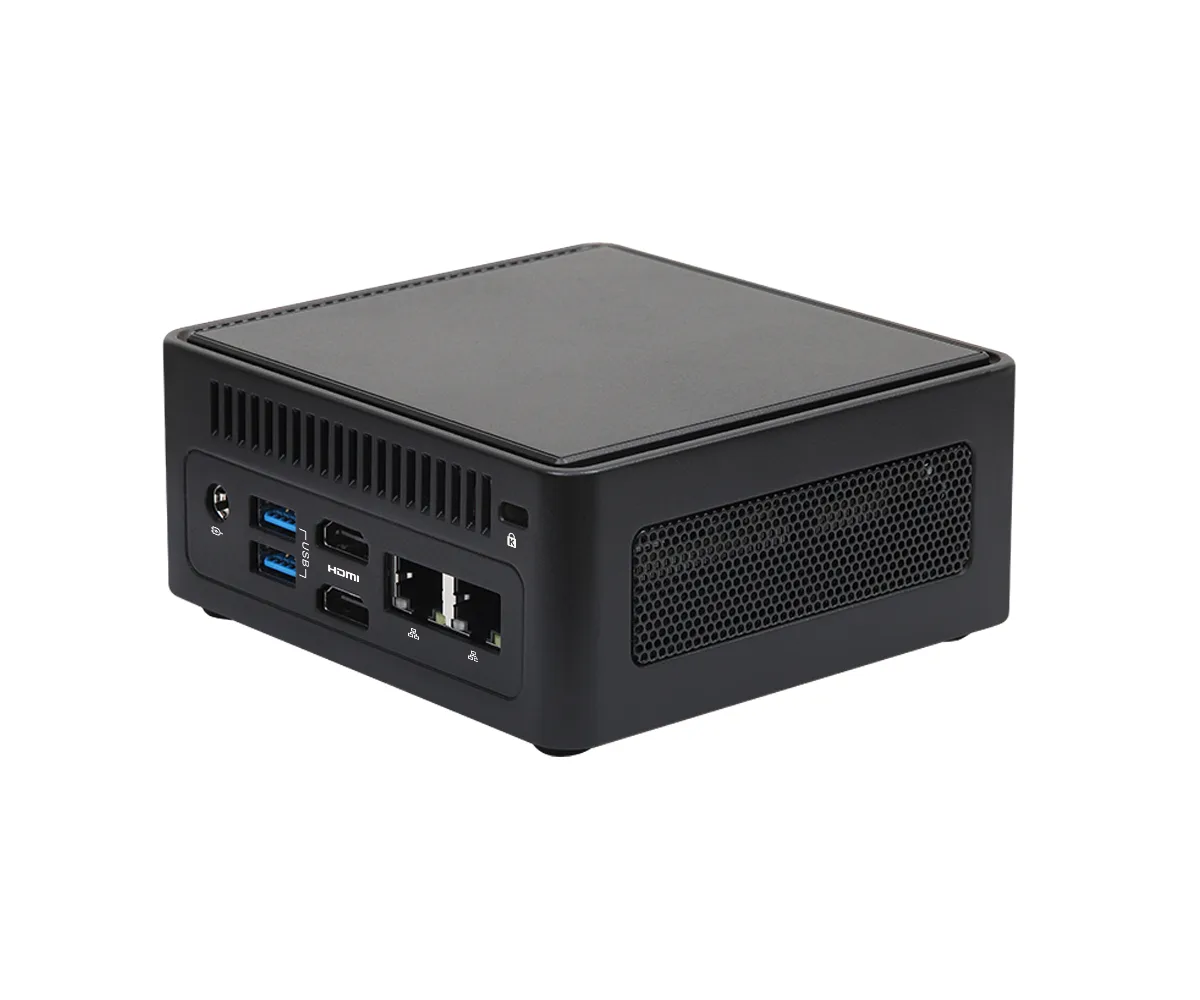

A tall black mini PC barebone with no memory installed

ASRock Industrial

ASRock Industrial NUC BOX-358H barebone mini PC

SKU CH-G52F-HCW4A MPN NUC BOX-358H

Barebone mini PC with a 16-core Intel Core Ultra X7 358H processor, dual-channel DDR5-7200 support up to 128 GB, dual 2.5 GbE LAN, Wi-Fi 7, Bluetooth 6.0 and USB4/Thunderbolt 4 connectivity

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra X7 358H
  • CPU Cores16-Core (4P+8E+4LP)
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM

CPU Intel Core Ultra X7 358H

LAN 2 x 2.5 Gigabit LAN

  • Intel Core Ultra X7 358H processor with 16 cores and integrated NPU for AI workloads
  • Dual-channel DDR5 7200 memory support up to 128 GB across two SO-DIMM slots
  • PCIe Gen5 x4 M.2 2280 and PCIe Gen4 x4 M.2 2242 slots for high-speed storage
  • Dual Intel 2.5 GbE LAN plus Wi-Fi 7 and Bluetooth 6.0 wireless connectivity
  • Quad-display output via two HDMI 2.1 ports and two DisplayPort connections over USB4/Thunderbolt 4 and USB-C

Compact AI barebone for embedded developers

The ASRock Industrial NUC BOX-358H is a tall-form mini PC barebone built around the Intel Core Ultra X7 358H processor with 16 cores and an integrated NPU. It targets developers and integrators deploying local AI inference, edge analytics or multi-display signage in space-constrained enclosures. Memory and storage are not included.

Verify DDR5 SO-DIMM stock and 19 V power budget

Before ordering, confirm you have two 262-pin DDR5 SO-DIMM modules rated for 7200 or 6400 MT/s, up to 64 GB each for a 128 GB ceiling. The unit ships with a 19 V 120 W adapter and requires M.2 2280 and 2242 SSDs for the PCIe Gen5 x4 and Gen4 x4 slots respectively. No operating system is pre-installed.

Convection-oriented cooling with dual 2.5 GbE

The tall chassis relies on internal heatsinks and a single system fan to dissipate heat from the 16-core SoC under sustained AI workloads. Acoustic output remains low in typical office ambient temperatures. Dual Intel I226 2.5 GbE ports, Wi-Fi 7 and Bluetooth 6.0 handle high-throughput networking without adding measurable thermal load.

Points forts

  • Intel Core Ultra X7 358H processor with 16 cores and integrated NPU for AI workloads
  • Dual-channel DDR5 7200 memory support up to 128 GB across two SO-DIMM slots
  • PCIe Gen5 x4 M.2 2280 and PCIe Gen4 x4 M.2 2242 slots for high-speed storage
  • Dual Intel 2.5 GbE LAN plus Wi-Fi 7 and Bluetooth 6.0 wireless connectivity
  • Quad-display output via two HDMI 2.1 ports and two DisplayPort connections over USB4/Thunderbolt 4 and USB-C

Caractéristiques

BrandASRock Industrial
ModelNUC BOX-358H
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra X7 358H
CPU Cores16-Core (4P+8E+4LP)
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 7200
Max Memory Supported128GB
Dual Channel Memory SupportedYes
M.2 Slot1 x M.2 (KEY M, 2280) with PCIe Gen5 x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD
Integrated GraphicsIntel Graphics
Onboard AudioRealtek ALC256
Channel2 Channel
LANLAN1: Intel I226LM with 10/100/1000/2500 Mbps
LAN2: Intel I226V with 10/100/1000/2500 Mbps
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 6.0

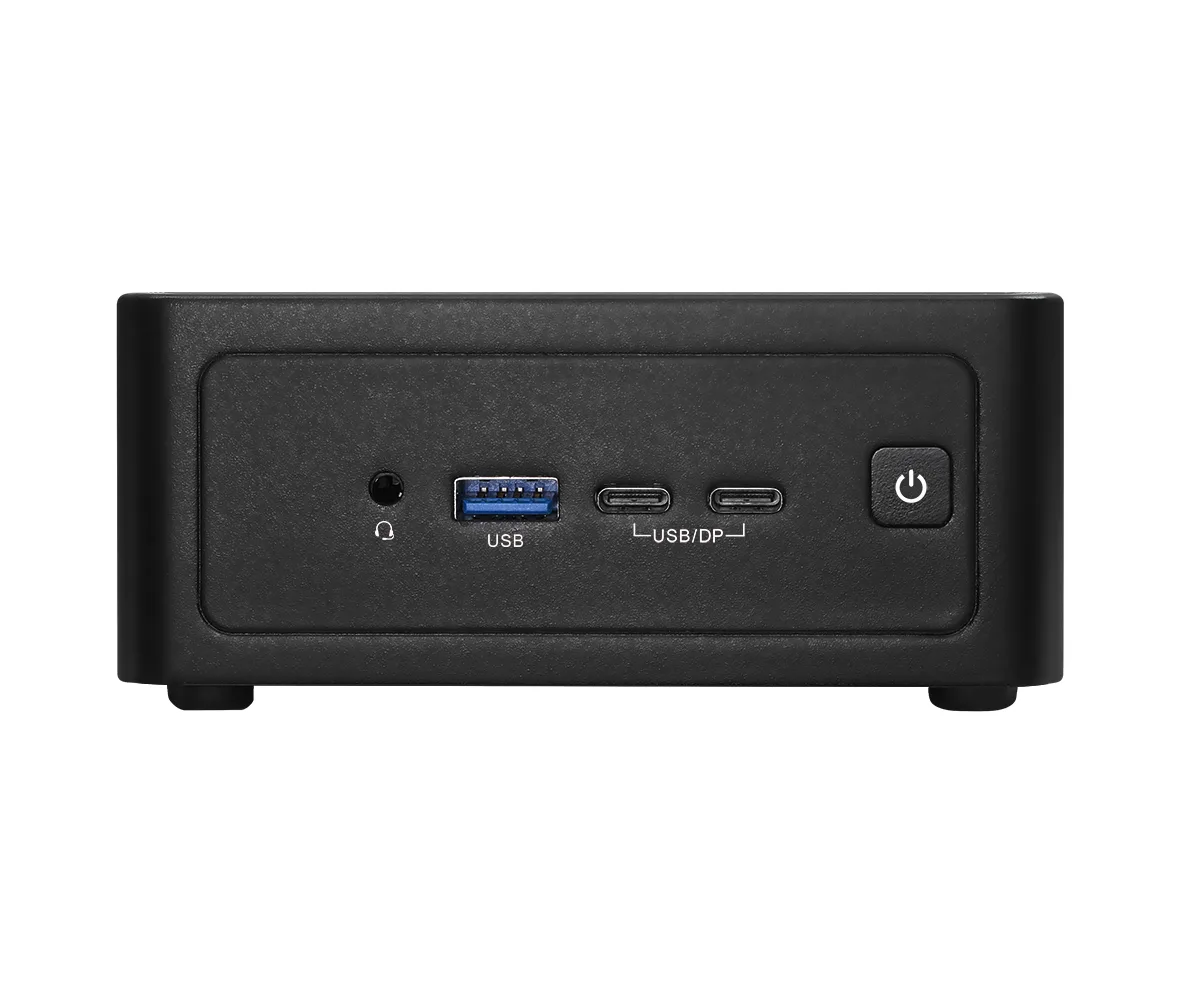

Front USB1 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
Front Audio Ports1 (headphone & microphone jack)

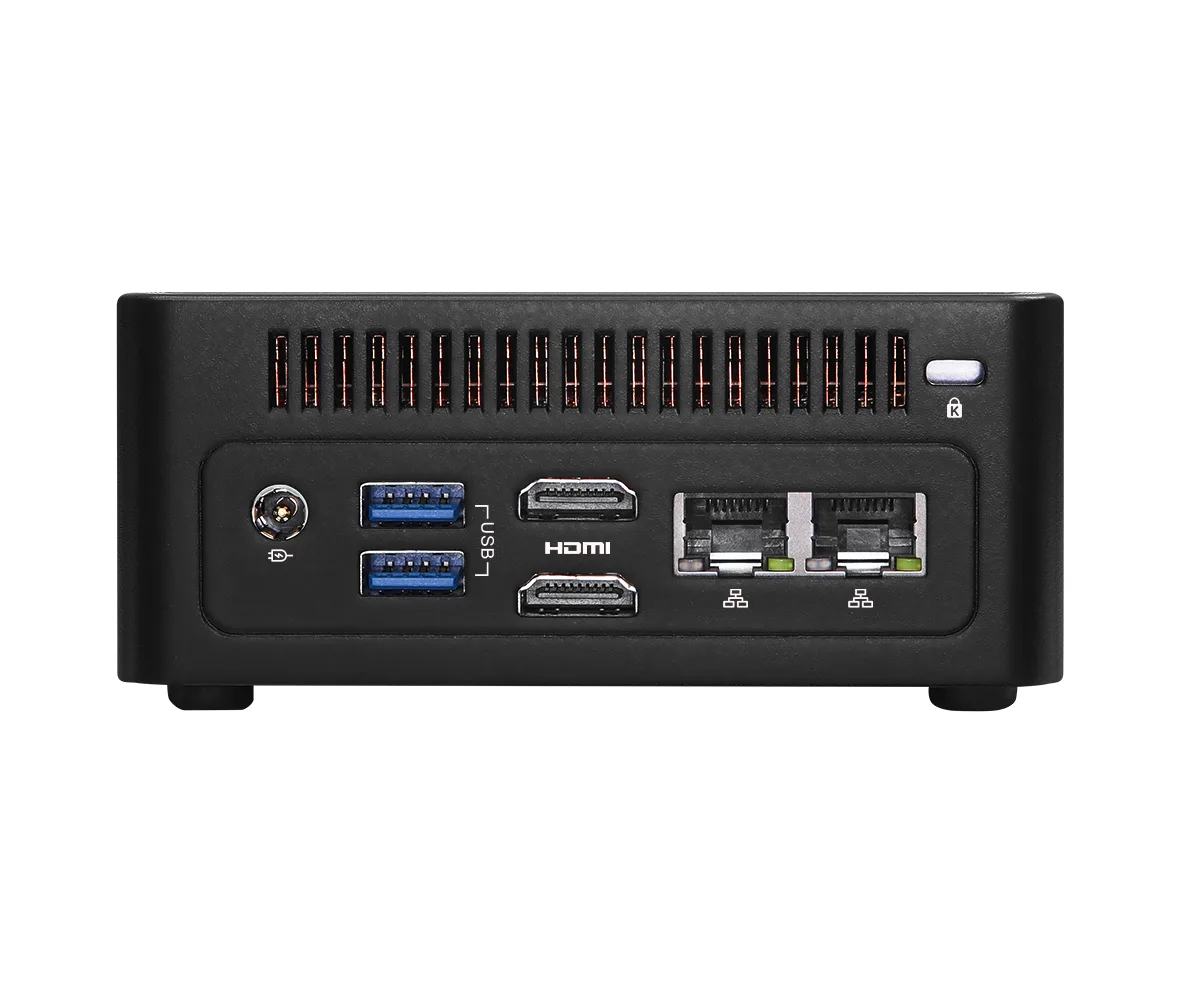

HDMI2 x HDMI 2.1
Rear USB2 x USB 3.2 Gen2 (Type-A)
RJ452 x 2.5 Gigabit LAN
Power Supply12V~24V DC-In Jack
Dimensions117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
Weight1.0Kg
Packaging1 x 19V/120W Power Adapter
1 x VESA mount bracket
Poids d’expédition1.75 kg
Dimensions du colis226 × 147 × 119 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the NUC BOX-358H come with any RAM or SSD pre-installed, or do I need to buy them separately?

The unit ships with no memory and no storage; you must add two DDR5-7200 SO-DIMMs (up to 128 GB total) and one or two M.2 Key-M SSDs (2280 PCIe Gen5 x4 and 2242 PCIe Gen4 x4).

Which DDR5 speed should I choose for the two SO-DIMM slots — 7200 MT/s or 6400 MT/s?

Both speeds are supported; 7200 MT/s modules will run at their rated frequency, while 6400 MT/s modules are a lower-cost alternative that still enables dual-channel operation up to 128 GB.

What does the 16-core (4P+8E+4LP) Intel Core Ultra X7 358H actually deliver in this barebone?

The processor provides 4 performance, 8 efficient and 4 low-power efficient cores with an integrated NPU for AI workloads, driving up to four displays via two HDMI 2.1, one DP 2.1 over USB4 and one DP 1.4a over Type-C.
