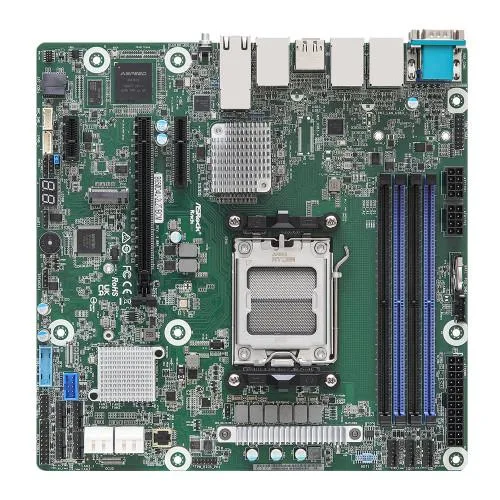

ASRock Rack B650D4U-2L2T/BCM Micro-ATX server motherboard EPYC 4004 Ryzen 9000 8000 7000

Socket AM5 EPYC & Ryzen server board

The ASRock Rack B650D4U-2L2T/BCM is a Micro-ATX server motherboard built for the AM5 platform. It accepts a single AMD EPYC 4004 or Ryzen 9000, 8000 and 7000 series processor in the LGA 1718 socket. The B650E chipset provides PCIe 5.0 lanes to the primary expansion slots and the single M.2 connector. Dual 10 GbE and dual 1 GbE ports are integrated on board.

Suited for dense single-socket builds, not multi-CPU

This board fits builders who need a compact server platform with dual 10 GbE networking and ECC memory support in a 9.6-inch square form factor. It is not for deployments that require two processor sockets, more than four DIMM slots, or additional M.2 sockets beyond the single CPU-attached slot. Buyers needing more SATA ports than the four provided should also look elsewhere.

One M.2 slot wired to the CPU

The board includes a single M-key M.2 connector that operates at PCIe 5.0 x4 and accepts 2280 or 2242 form-factor drives. This lone slot is the only direct high-speed storage interface on the motherboard, so the number of fast drives you can install without add-in cards is limited to one. Plan your storage topology around this single connector.
