Green ATX server motherboard with silver LGA 1151 socket, four black DDR4 slots, multiple PCIe and PCI slots, eight SATA ports

ASRock Rack

ASRock Rack C236 WS LGA 1151 server motherboard

SKU CH-XWVQ-Y60AN MPN C236 WS

ATX server motherboard with LGA 1151 socket, Intel C236 chipset, four DDR4 slots supporting 64 GB ECC memory, two PCIe 3.0 x16 slots, eight SATA 6.0 Gb/s ports with RAID, and dual Intel gigabit LAN

  • CPU TypeSupports Intel Xeon E3-1200 v5 / v6 Series Processors *BIOS
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardSupports DDR4 2400* / 2133 / 1866 / 1600 ECC / non-ECC** UDI
  • Channel SupportedDual Channel
  • ECC SupportedYes
  • Supports Intel Xeon E3-1200 v5/v6 processors
  • Four 288-pin DDR4 slots with ECC capability
  • Dual Intel Gigabit LAN controllers for network redundancy
  • Eight SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Seven PCIe expansion slots including dual x16 configuration

Server motherboard for Xeon E3-1200 v5/v6

The ASRock Rack C236 WS is an ATX server motherboard built around the Intel C236 chipset and the LGA 1151 socket. It supports Intel Xeon E3-1200 v5 and v6 series processors, plus selected Core i7, i5, i3, Pentium and Celeron CPUs from the 6th and 7th generations. Four 288-pin DDR4 slots run in dual-channel mode up to 64 GB with ECC or non-ECC UDIMMs. The board measures 12 inches by 9.6 inches and fits standard ATX server chassis.

Suited for storage-focused builds.

This motherboard suits builders who need eight SATA 6.0 Gb/s ports with hardware RAID 0, 1, 5 and 10 for local storage arrays. Dual Intel gigabit LAN ports (i210 and i219) provide redundant network links. Two full-length PCIe 3.0 x16 slots, one x8 slot and two x1 slots accommodate RAID controllers, NICs or GPU compute cards. Two legacy PCI slots remain for older expansion cards. Buyers who need more than 64 GB of memory or more than two x16 electrical links should look at platforms with higher core-count CPUs and larger DIMM capacities.

LGA 1151 socket decides CPU compatibility

The LGA 1151 socket limits the board to the processors listed in the official support list, including Xeon E3-1200 v5 and v6 chips and specific 6th- and 7th-generation Core, Pentium and Celeron models. BIOS version 2.0 or above is required for certain v4 series Xeons. DDR4 2400 MT/s is only available when a v6 Xeon is installed; otherwise the maximum supported speed is 2133 MT/s. Non-ECC UDIMMs are supported only with client operating systems.

Points forts

  • Supports Intel Xeon E3-1200 v5/v6 processors
  • Four 288-pin DDR4 slots with ECC capability
  • Dual Intel Gigabit LAN controllers for network redundancy
  • Eight SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Seven PCIe expansion slots including dual x16 configuration

Caractéristiques

BrandAsRock Rack
ModelC236 WS
CPU TypeSupports Intel Xeon E3-1200 v5 / v6 Series Processors
*BIOS version 2.0 or above is required for v4 series
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 StandardSupports DDR4 2400* / 2133 / 1866 / 1600 ECC / non-ECC** UDIMM memory
*Only E3-1200 v6 CPUs can support DDR4 2400
*non-ECC UDIMM support Client OS only.
Channel SupportedDual Channel
ECC SupportedYes

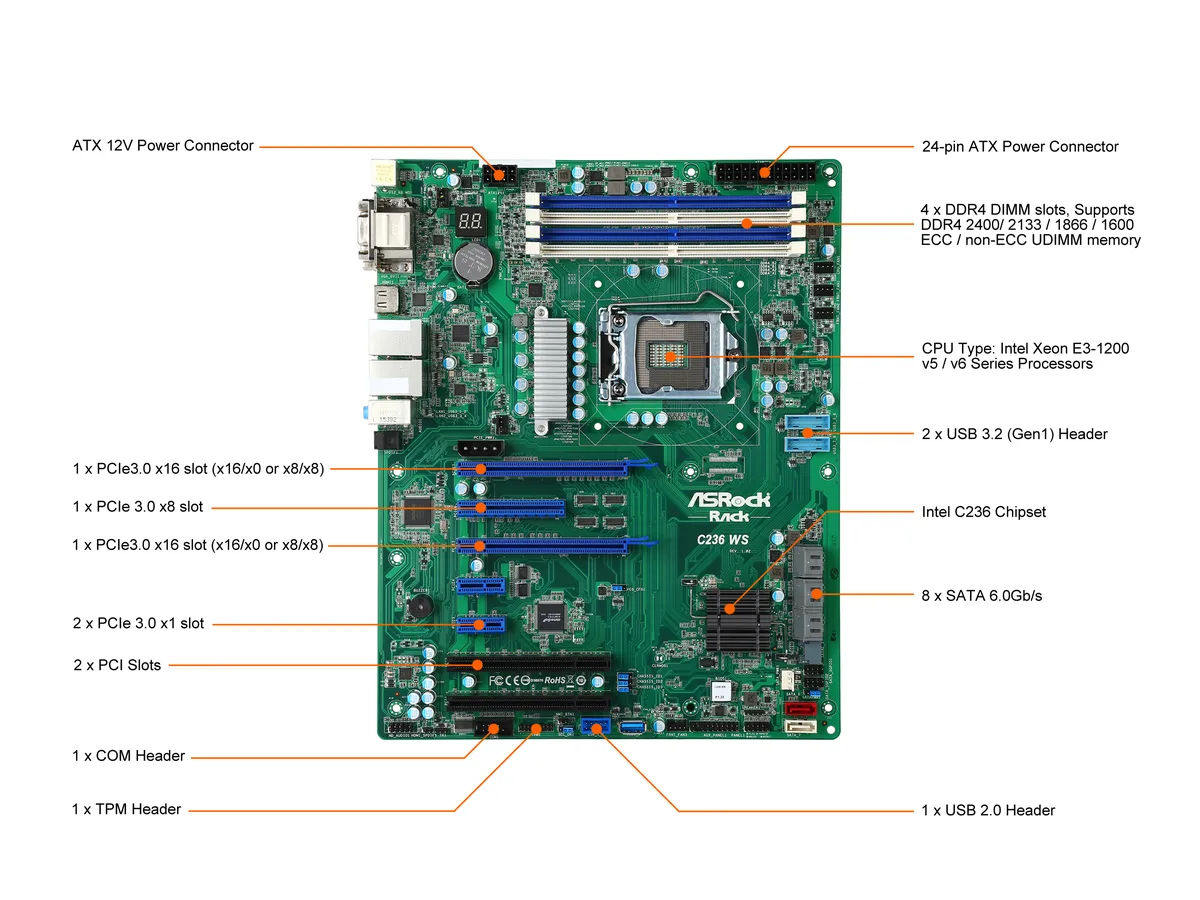

PCI Express 3.0 x16SLOT7: PCIe3.0 x16 (x16/x0 or x8/x8)
SLOT5: PCIe3.0 x16 (x16/x0 or x8/x8)
PCI Express x8SLOT6: PCIe3.0 x8
PCI Express x1SLOT4: PCIe3.0 x1
SLOT3: PCIe3.0 x1
PCI Slots2 x PCI Slots
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1150
Number of LAN2 x RJ45 GLAN by Intel i210+Intel i219
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Second LAN ChipsetIntel I219
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

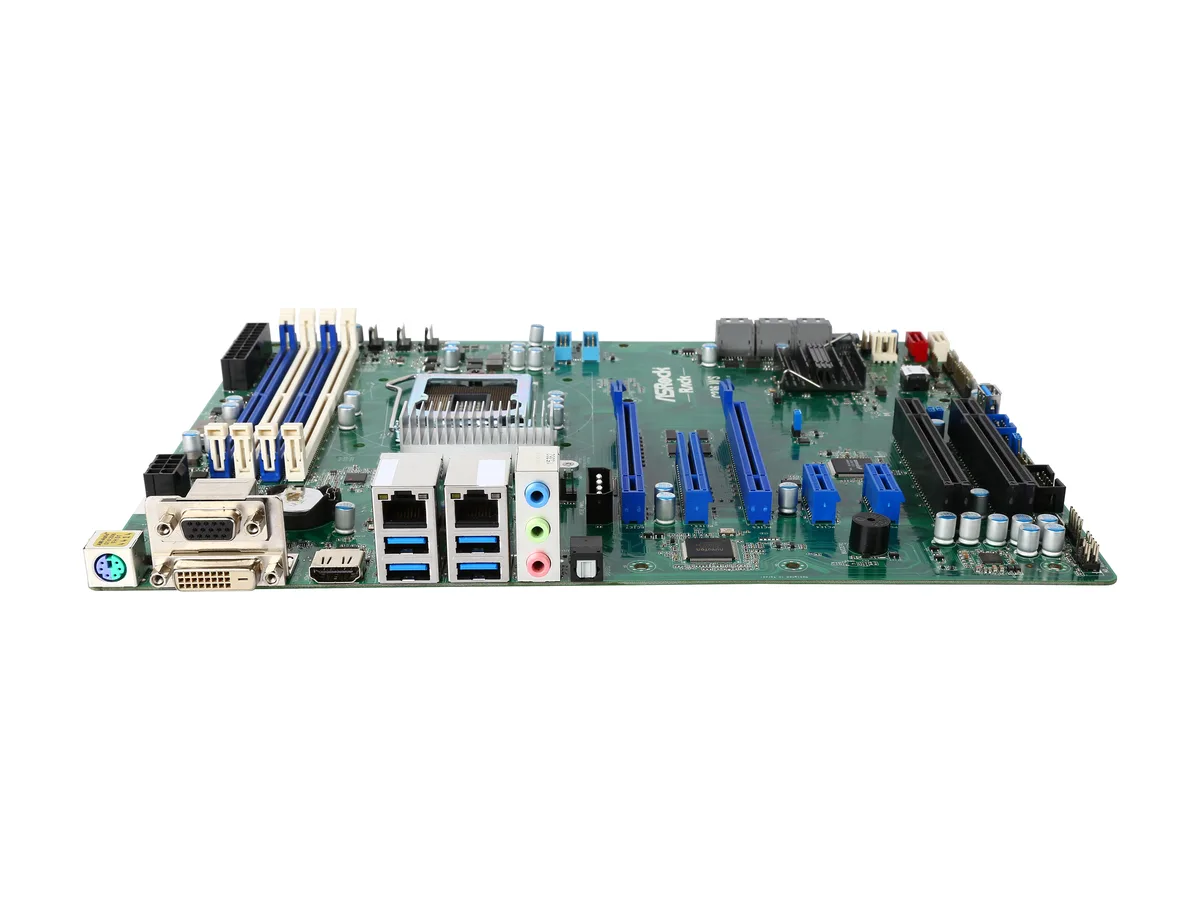

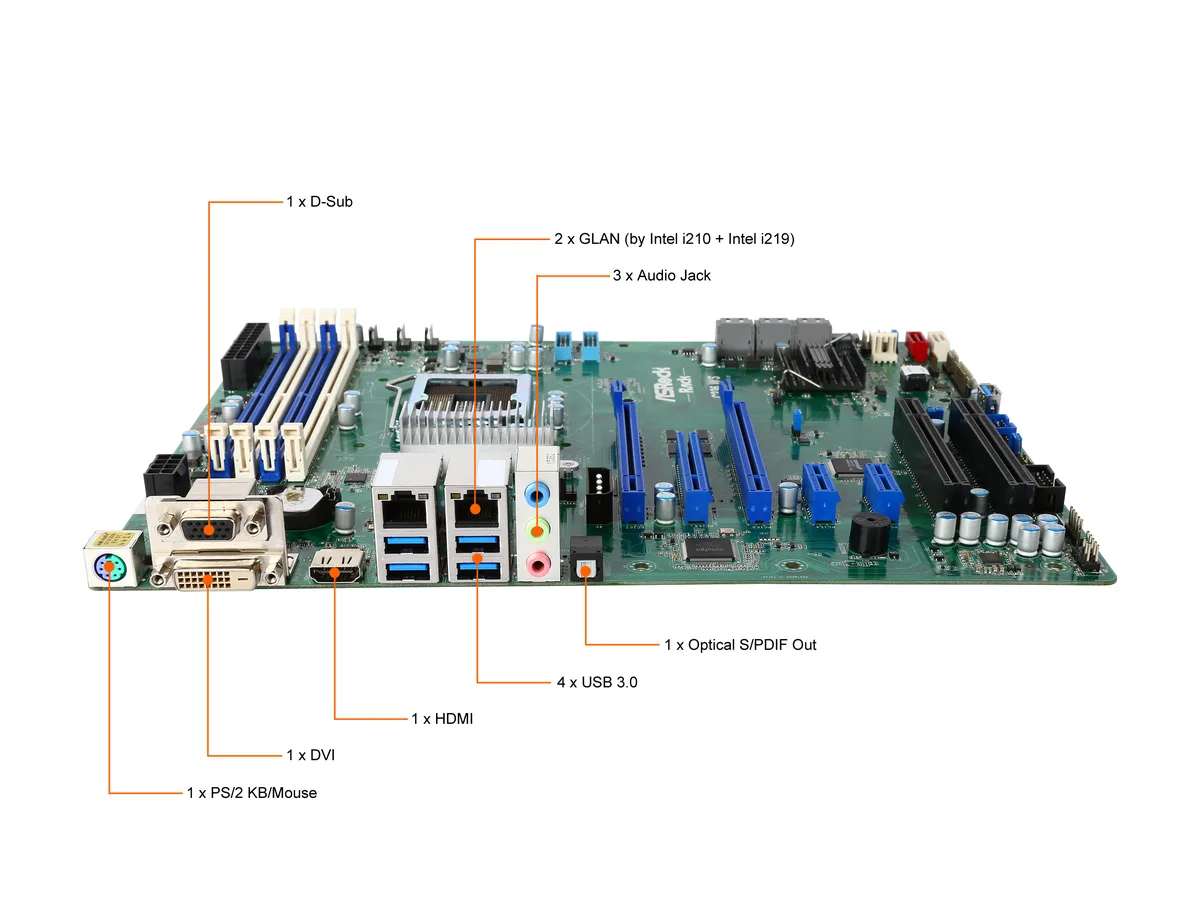

Back I/O PortsVGA Port: 1 x D-Sub, 1 HDMI, 1 DVI
USB 3.2 Gen1 Port: 4
RJ45: RJ45: 2x GLAN(by Intel i210+ Intel i219)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Audio: 3 Jack, 1 SPDIF
Others: 1 Mouse, 1 eSATA port
Onboard USBUSB 3.2 (Gen1) Header: 2 ( support 4 USB3.0)
USB 2.0 Header: 1 ( support 2 USB3.0)
Type A USB 3.2 (Gen1) Port: 1
Other ConnectorsPower Connector: 1x (24-pin) + 1x (8-pin)
Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED)
NMI Button: 1
COM Header: 1
Speaker Header: 1
Buzzer: 1
Fan Header: 6Fans (CPU/3Front/2Rear)
TPM Header: 1
SGPIO Header: 2
IPMB Header: 1
Clear CMOS: 1 (short pin)
SATA DOM: 1
SATA Express: 1
TR1 Header: 1
Front Panel: 1
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Poids d’expédition1.43 kg
Dimensions du colis353 × 305 × 74 mm

Questions sur cet article

How much power does the Intel C236 chipset on this board draw under continuous server load?

The Intel C236 chipset is a low-power platform controller hub; its thermal design power is small compared with the Xeon E3-1200 v5/v6 processors this board supports, so total system draw is dominated by the chosen CPU and memory configuration.

Which processor and memory must I already have to populate the LGA 1151 socket and the four 288-pin DDR4 slots?

You need an Intel Xeon E3-1200 v5 or v6 series CPU (or a listed Core i7/i5/i3, Pentium or Celeron) plus DDR4 2400/2133/1866/1600 ECC or non-ECC UDIMMs up to 64 GB total in dual-channel mode.

Will my existing PCI add-in cards fit the two PCI slots and the PCIe 3.0 x1, x8 and x16 slots on this motherboard?

Yes — the board provides two legacy PCI slots, two PCIe 3.0 x1 slots, one PCIe 3.0 x8 slot and two PCIe 3.0 x16 slots that can run at x16 or x8/x8, so older PCI and PCIe cards install directly.
