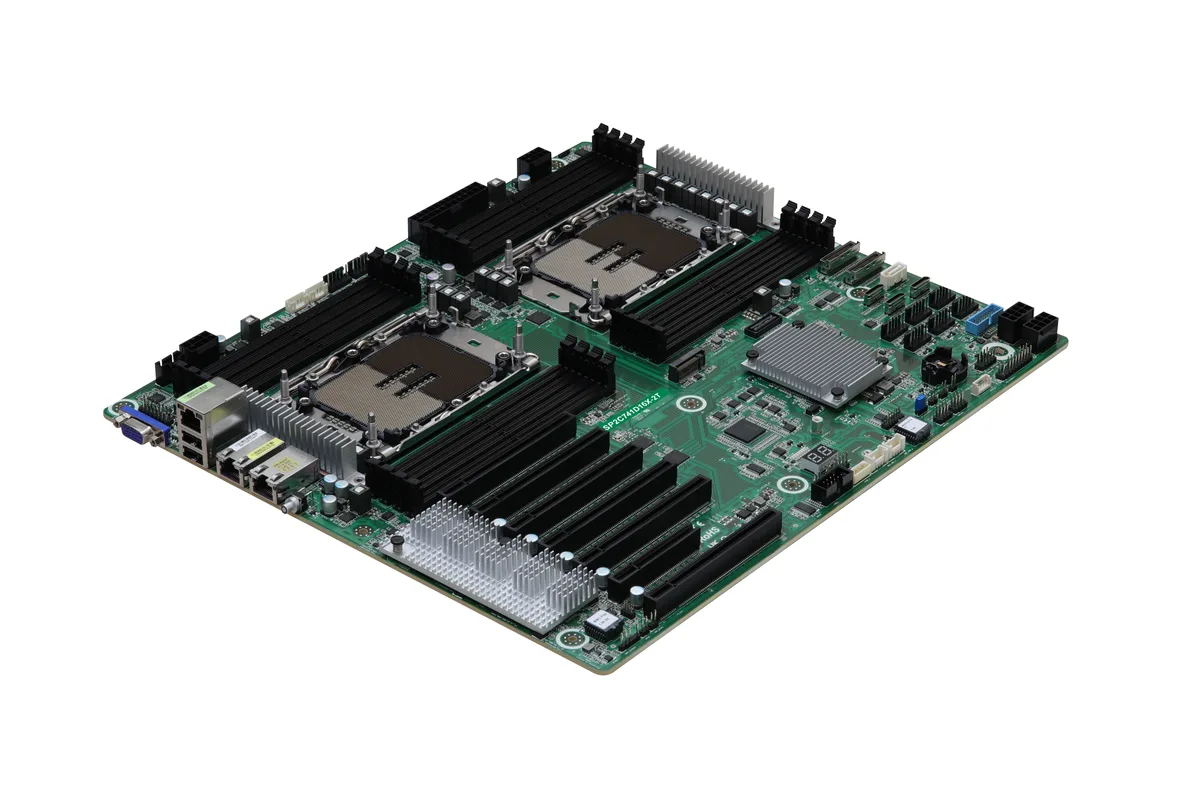

Green EEB server board, dual LGA 4677 sockets, sixteen DDR5 slots, six PCIe 5.0 x16, dual 10G RJ45

ASRock Rack

ASRock Rack SP2C741D16X-2T server motherboard dual LGA 4677 16 DDR5 6 PCIe 5.0 x16 dual 10G LAN

SKU CH-ZP1D-0WJ83 MPN SP2C741D16X-2T

Dual-socket EEB server motherboard with 16 DDR5 slots, six PCIe 5.0 x16 slots and dual 10 GbE LAN

  • CPU Socket Type1+1 Socket E (LGA 4677)
  • CPU TypeSupports 5th and 4th Gen Intel Xeon Scalable processors
  • Number of Processor Support2
  • CPU FeaturesThermal Design Power 350W
  • North BridgeIntel C741
  • Memory Slots8+8 DIMM slots (1DPC) DDR5 288-pin
  • Dual-socket LGA 4677 platform scales to two 350 W Xeon processors
  • Sixteen DDR5 DIMM slots deliver up to 5600 MT/s on 5th Gen Xeon
  • Six PCIe 5.0 x16 slots with CXL 1.1 support high-bandwidth accelerators
  • Dual 10 GbE ports via Intel X710-AT2 provide fast network throughput
  • EEB 12.4 x 14 inch form factor fits dense server chassis

Dual-socket Xeon server board

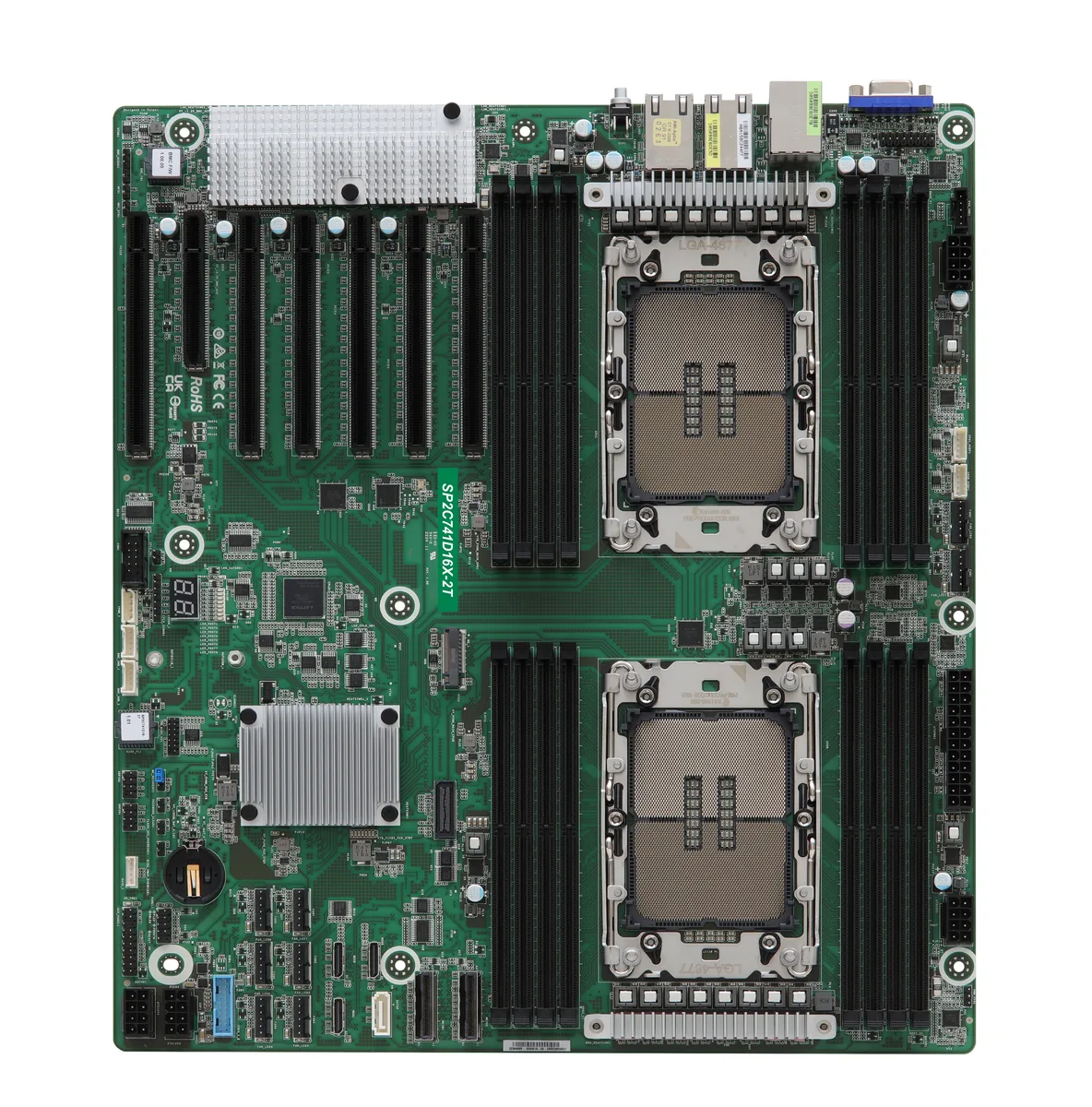

The ASRock Rack SP2C741D16X-2T is an EEB form-factor motherboard built for dual LGA 4677 processors. It supports fourth- and fifth-generation Intel Xeon Scalable CPUs with a thermal design power of 350W each. The Intel C741 chipset manages platform I/O and connectivity. This board targets high-density compute clusters and memory-intensive workloads.

Sixteen DDR5 slots and six PCIe 5.0 x16

Eight DIMM slots per socket accept DDR5 RDIMMs up to 96GB and RDIMM-3DS modules up to 256GB at 5600 MT/s with fifth-generation Xeons or 4800 MT/s with fourth-generation Xeons. Six full-length PCIe 5.0 x16 slots also support CXL 1.1, plus one PCIe 5.0 x8 slot, two MCIO x8 connectors and three OCuLink ports for storage. A single M.2 M-key slot takes 2280 or 22110 drives.

Dual 10GbE and IPMI for rack deployment

Two Intel X710-AT2 ports deliver 10Gbps Ethernet alongside a dedicated IPMI lane driven by an ASPEED AST2600 BMC with iKVM and vMedia. The board fits 12.4-inch by 14-inch EEB chassis and provides VGA, two USB 2.0 ports and a UID button with LED on the rear I/O. Builders needing more than one M.2 slot or onboard SATA beyond the OCuLink options should consider other platforms.

Points forts

  • Dual-socket LGA 4677 platform scales to two 350 W Xeon processors
  • Sixteen DDR5 DIMM slots deliver up to 5600 MT/s on 5th Gen Xeon
  • Six PCIe 5.0 x16 slots with CXL 1.1 support high-bandwidth accelerators
  • Dual 10 GbE ports via Intel X710-AT2 provide fast network throughput
  • EEB 12.4 x 14 inch form factor fits dense server chassis

Caractéristiques

BrandAsRock Rack
ModelSP2C741D16X-2T
CPU Socket Type1+1 Socket E (LGA 4677)
CPU TypeSupports 5th and 4th Gen Intel Xeon Scalable processors
Number of Processor Support2
CPU FeaturesThermal Design Power 350W
North BridgeIntel C741
Memory Slots8+8 DIMM slots (1DPC) DDR5 288-pin
Memory Standard5600 MT/s on 5th Gen Intel Xeon Scalable Processors
4800 MT/s on 4th Gen Intel Xeon Scalable Processors
*Memory speed and capacity support varies by CPU SKU
Maximum Memory SupportedMax. Capacity per DIMM
- RDIMM: 96GB
- RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
RegisteredYes
PCI Express 5.0 x16SLOT6: PCIe5.0 / CXL1.1 x16 [CPU0]
SLOT5: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT4: PCIe5.0 / CXL1.1 x16 [CPU0]
SLOT3: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT2: PCIe5.0 / CXL1.1 x16 [CPU1]
SLOT0: PCIe5.0 / CXL1.1 x16 [CPU1]
PCI Express x8SLOT1: PCIe5.0 x8 [CPU0]
Other Slots2 MCIO (PCIE5.0 x8) [CPU0]
3 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
M.21 M-key (PCIe5.0 x4); support 22110/2280 form factor [CPU0]
Onboard Video ChipsetASPEED AST2600: IPMI2.0 with iKVM and vMedia support
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps
Back I/O PortsUID Button/LED: 1 UID button w/ LED
VGA Port: 1 DB15 (VGA)
USB 2.0 Port: 2 Type-A (UBS2.0)
RJ45: 2 RJ45 (10GbE), 1 dedicated IPMI
Onboard USBUSB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 2 ( 8-pin, ATX 12V)
Other Power Connectors: 2 (8-pin, add-on card power & FAN)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1 (9-pin)
VGA header: 1 (15-pin)
Fan Header: 8 (6-pin)
TPM Header: 1 (13-pin, SPI)
VROC header: 1
SGPIO Header: 2
HSBP: 2
SMBus header: 2
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
NMI Header: 1
Form FactorEEB
Dimensions (W x L)12.4" x 14"
Poids d’expédition1.36 kg
Dimensions du colis356 × 315 × 51 mm

Questions sur cet article

How much heat must the cooling system remove from each 350W Xeon processor under sustained load?

Each supported Intel Xeon Scalable processor has a Thermal Design Power of 350W, so the cooling solution must dissipate that much heat per socket during continuous operation.

What is the noise and thermal impact of running the dual 10GbE LAN ports at full throughput all day?

The onboard Intel X710-AT2 controller drives two 10GbE RJ45 ports; sustained line-rate traffic will increase chipset and VRM temperatures, requiring adequate chassis airflow to keep fan speeds and noise in check.

Which DDR5 memory modules must I already own to populate the 16 DIMM slots?

You need DDR5 288-pin RDIMM or RDIMM-3DS modules — up to 96GB per RDIMM, 128GB for 2H 3DS, or 256GB for 4H 3DS — with speeds of 5600 MT/s on 5th Gen Xeon or 4800 MT/s on 4th Gen Xeon.
