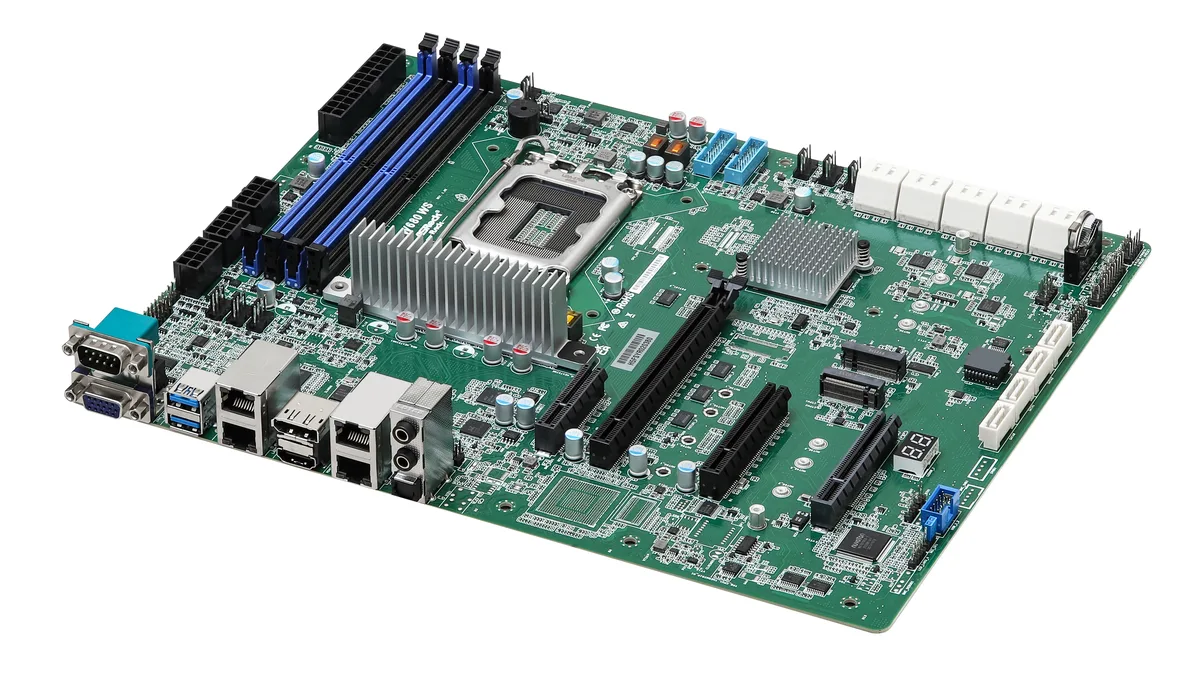

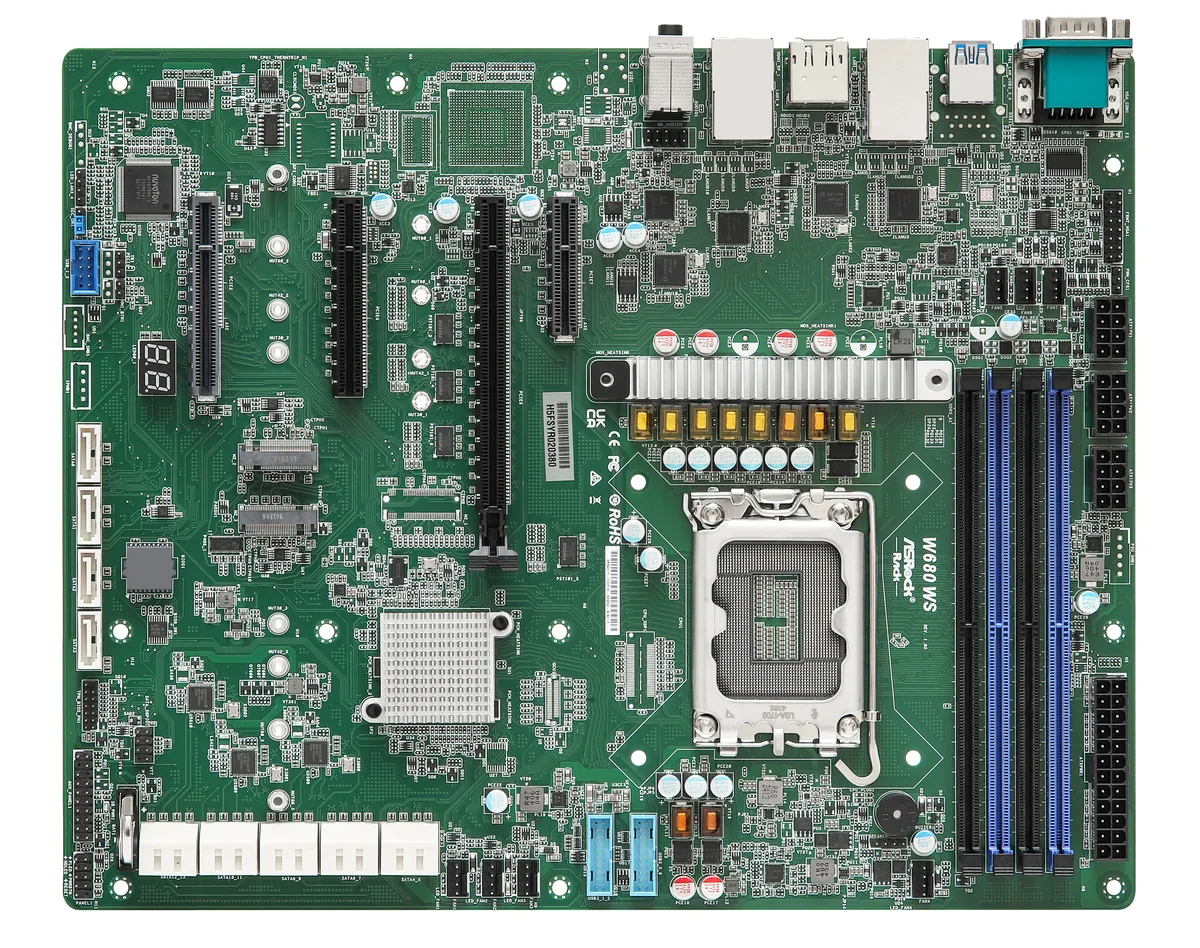

ASRock Rack W680 WS ATX motherboard, black PCB, silver LGA 1700 socket, four DDR5 slots, four RJ45 ports, multiple PCIe slots

ASRock Rack

ASRock Rack W680 WS server motherboard LGA 1700 DDR5 4400 192GB ECC 4x 1GbE

SKU CH-GETY-9P3X7 MPN W680 WS

ATX workstation board for LGA 1700 CPUs with four DDR5 4400 ECC slots up to 192 GB, one PCIe 5.0 x16, one PCIe 5.0 x8, two PCIe 4.0 x4, dual M.2, five SATA 6.0 Gb/s and four 1 GbE ports

  • CPU Socket TypeLGA 1700
  • CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen I
  • Number of Processor Support1
  • CPU FeaturesThermal Design Power 125W
  • North BridgeIntel W680
  • Memory Slots4 x DDR5 288-pin
  • Supports 12th 13th 14th Gen Intel Core processors LGA 1700 socket
  • Four DDR5 288-pin slots up to 192GB ECC memory
  • One PCIe 5.0 x16 one PCIe 5.0 x8 two PCIe 4.0 x4 expansion slots
  • Dual M.2 PCIe 4.0 x4 slots for 2280 2260 2242 2230 drives
  • Four Intel I210 1GbE LAN ports for network redundancy

Intel W680 workstation board for DDR5 ECC builds

The ASRock Rack W680 WS is an ATX server motherboard that accepts 12th, 13th and 14th Gen Intel Core processors in an LGA 1700 socket. Four 288‑pin DDR5 slots run at 4400 MT/s and support up to 192 GB of ECC or non‑ECC UDIMM. The Intel W680 chipset provides the platform foundation for professional workloads.

Expansion layout and connectivity trade‑offs

One PCIe 5.0 x16 slot and one PCIe 5.0 x8 slot share CPU lanes, so the x16 slot drops to x8 when the x8 slot is populated. Two additional PCIe 4.0 x4 slots connect through the CPU and PCH respectively. Dual M.2 M‑key sockets accept 2280, 2260, 2242 and 2230 drives at PCIe 4.0 x4, while five SATA 6.0 Gb/s ports handle traditional storage. Four Intel I210 1 GbE ports, COM, VGA, HDMI, DisplayPort and two USB 3.2 Gen 1 Type‑A ports complete the rear I/O.

Sustained operation with 125 W TDP ceiling

The board is rated for processors with a 125 W thermal design power, setting the cooling target for continuous load. Memory runs at the specified 4400 MT/s without overclock headroom, and ECC correction operates continuously to maintain data integrity. Four 1 GbE links provide steady network throughput without the burst variability of higher‑speed interfaces. The shared PCIe lane arrangement means sustained GPU and add‑in card bandwidth divides predictably when both primary slots are occupied.

Points forts

  • Supports 12th 13th 14th Gen Intel Core processors LGA 1700 socket
  • Four DDR5 288-pin slots up to 192GB ECC memory
  • One PCIe 5.0 x16 one PCIe 5.0 x8 two PCIe 4.0 x4 expansion slots
  • Dual M.2 PCIe 4.0 x4 slots for 2280 2260 2242 2230 drives
  • Four Intel I210 1GbE LAN ports for network redundancy

Caractéristiques

BrandAsRock Rack
ModelW680 WS
CPU Socket TypeLGA 1700
CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9
Number of Processor Support1
CPU FeaturesThermal Design Power 125W
North BridgeIntel W680
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported192GB
ECC SupportedYes
PCI Express 5.0 x16SLOT6: PCIe5.0 x16* [CPU]
*SLOT6 share lanes with SLOT4. SLOT6 will switch to x8 when SLOT4 is populated
PCI Express x8SLOT4: PCIe5.0 x8* [CPU]
PCI Express x4SLOT7: PCIe4.0 x4 [CPU]
SLOT2: PCIe4.0 x4 [PCH]
SATA5 x SATA 6.0Gb/s
M.21 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Max LAN Speed4 x 1Gbps

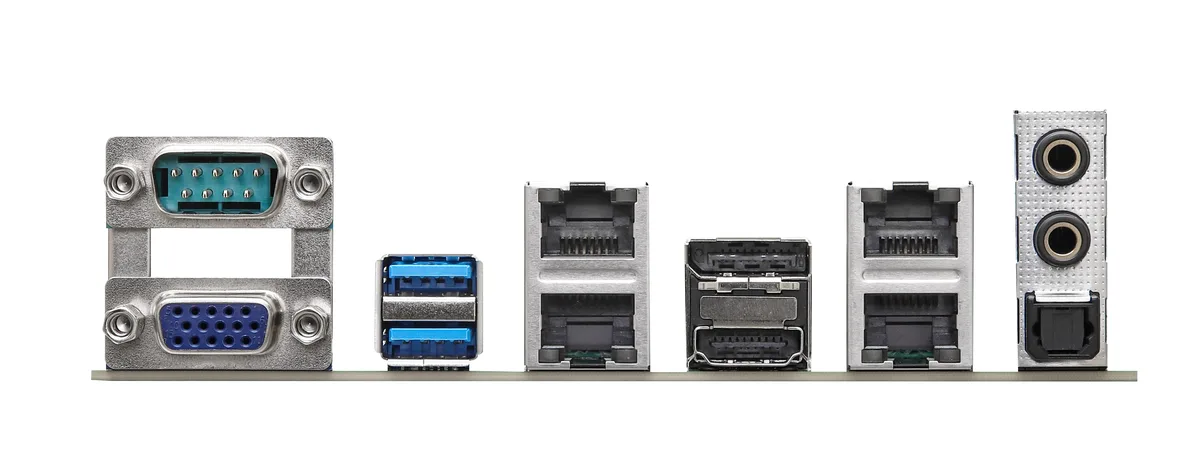

Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 1 x DisplayPort / 1 x HDMI / 2 x USB 3.2 Gen 1 Type-A / 3 x Audio Jacks / 4 x LAN (RJ45)
Onboard USBUSB 3.2 (Gen1) Header: 2 header (19-pin, 4 USB3.2 Gen1)
USB 2.0 Header: 1 header (9-pin, 2 USB2.0)
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 3 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header: 1
Speaker Header: 1 (4-pin)
Buzzer: 1
Fan Header: 7 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
Clear CMOS: 1 (contact pads)
Front Lan LED Connector: 1
NMI Header: 1
BIOS FeatureAMI 256Mb SPI Flash ROM
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Poids d’expédition1.16 kg
Dimensions du colis349 × 298 × 70 mm

Questions sur cet article

What is the maximum memory capacity the W680 WS can reach under sustained workloads?

The board supports up to 192GB of DDR5 4400 across its four 288-pin slots with ECC capability.

How much heat does the CPU socket allow when the system runs all day?

The LGA 1700 socket is rated for processors with a 125W thermal design power.

Which processor generations must already be on hand to populate the LGA 1700 socket?

Compatible CPUs include 12th, 13th and 14th Gen Intel Core i3, i5, i7 and i9 models listed in the support table.
