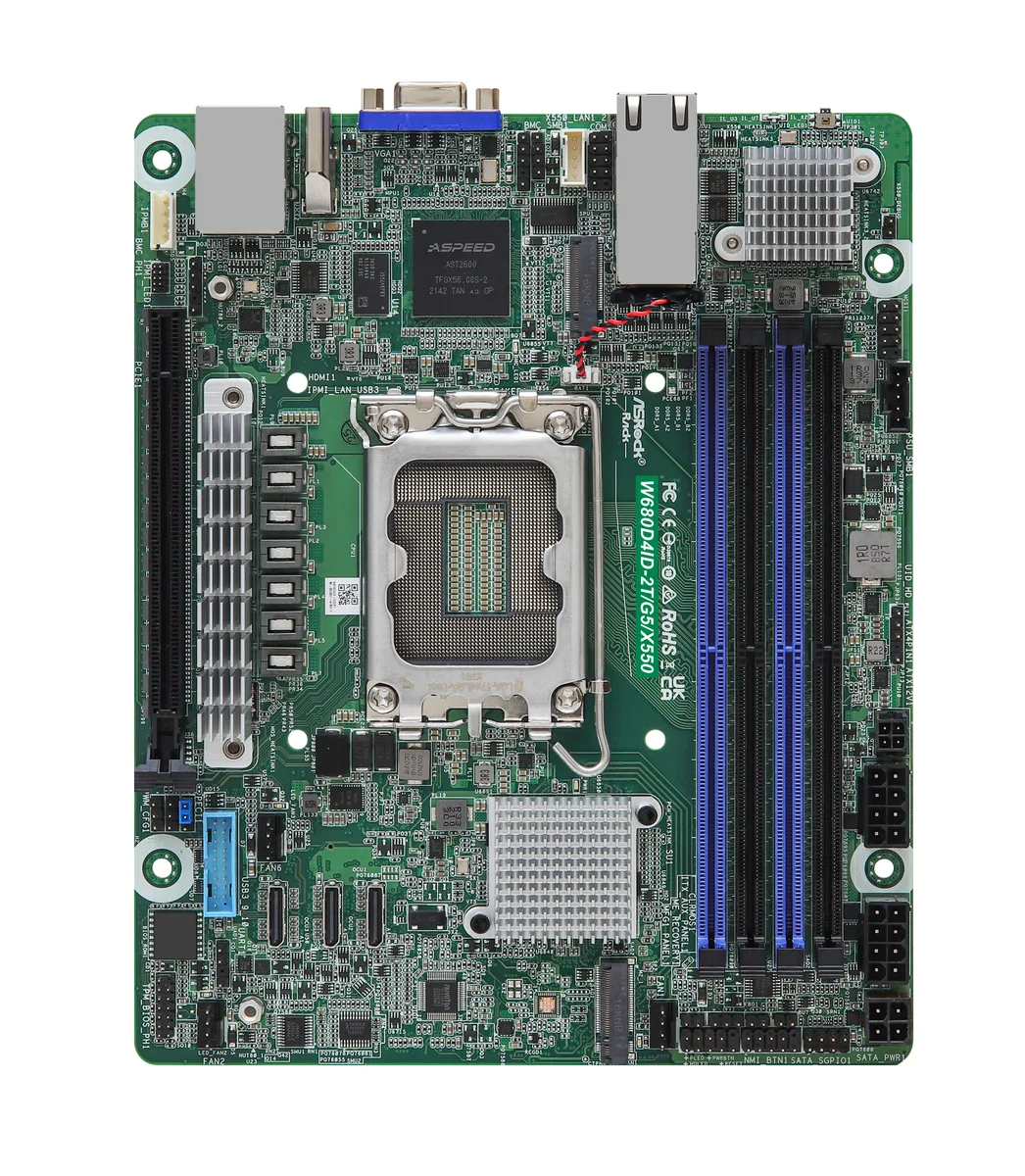

Green server motherboard, deep mini-ITX, dual 10GbE ports, PCIe 5.0 slot, four DDR5 slots, M.2 sockets, SATA connectors

ASRock Rack

ASRock Rack W680D4ID-2T/G5/X550 server motherboard 10GbE PCIe 5.0

SKU CH-CKC3-P32S6 MPN W680D4ID-2T/G5/X550

Deep mini-ITX server board with LGA 1700 socket, DDR5 ECC memory up to 192 GB, PCIe 5.0 x16, dual 10 GbE LAN and eight SATA ports

  • CPU Socket TypeLGA 1700
  • CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen I
  • North BridgeIntel W680
  • Memory Slots4 x DDR5 288-pin
  • Memory StandardDDR5 4400
  • Maximum Memory Supported192GB
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual 10GbE LAN ports driven by Intel X550 controller
  • Four DDR5 DIMM slots with ECC support up to 192GB capacity
  • PCIe 5.0 x16 slot plus three OCuLink connectors for flexible expansion
  • Deep mini-ITX form factor measuring 6.7 by 8.2 inches

Deep Mini-ITX server board for 12th to 14th Gen

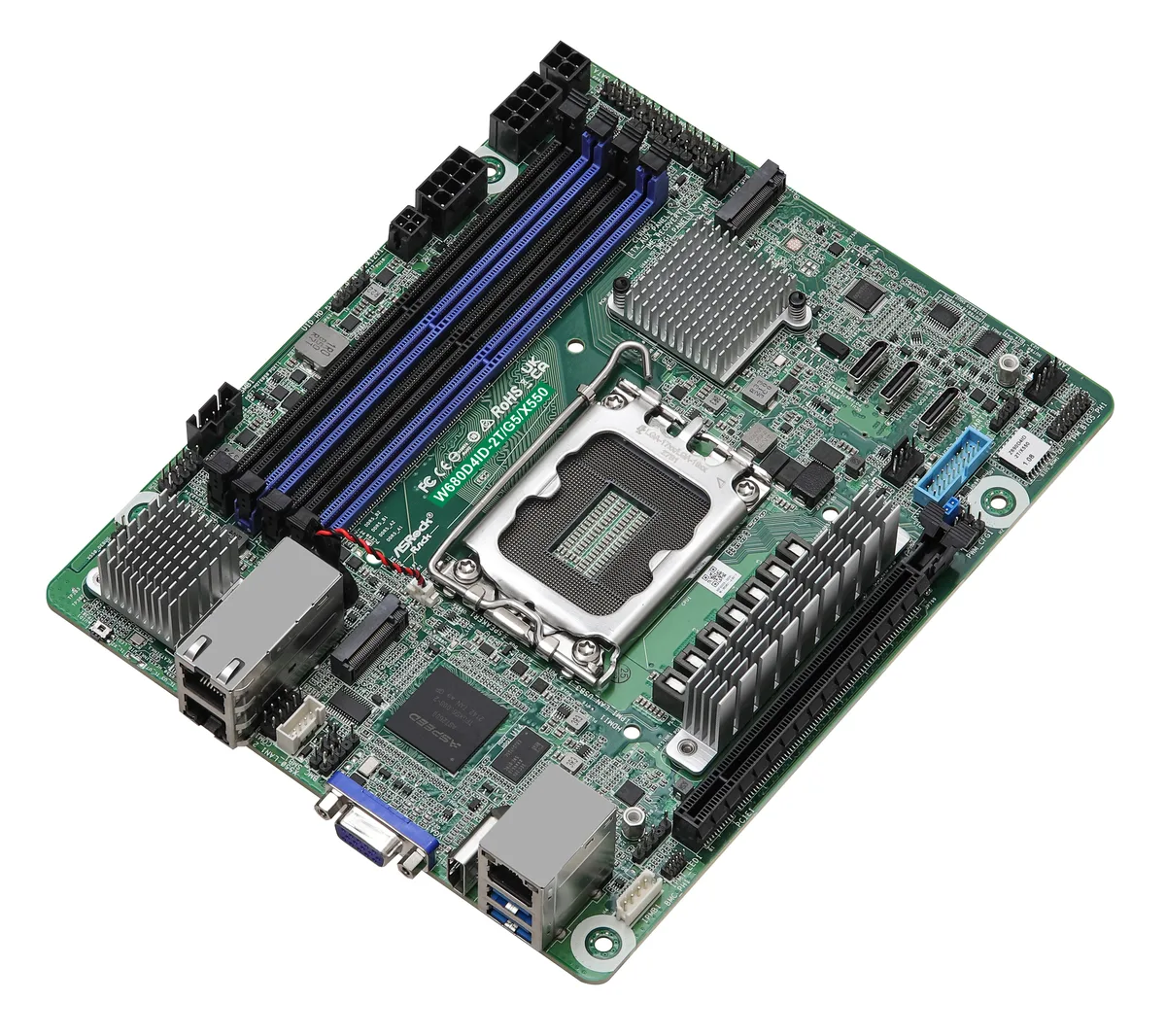

The ASRock Rack W680D4ID-2T/G5/X550 is a deep mini-ITX motherboard built on the Intel W680 chipset with an LGA 1700 socket. It accepts 12th, 13th and 14th Generation Intel Core i3, i5, i7 and i9 processors. The board targets compact servers and workstations that need dual 10GbE networking and PCIe 5.0 expansion in a 6.7 by 8.2 inch form factor.

Suits builders needing ECC memory

Four DDR5 288-pin slots support up to 192GB of ECC or non-ECC UDIMM at 4400 MT/s. Dual RJ45 ports driven by an Intel X550 controller provide two 10Gbps links. A single PCIe 5.0 x16 slot, three OCuLink connectors and two M.2 slots give storage and add-in card flexibility. Not for systems requiring more than four DIMM slots, more than one full-length PCIe 5.0 x16 slot, or integrated Wi-Fi.

Memory tops out at 192GB across four slots

The board handles 192GB of DDR5 comfortably for virtualization, storage caching and database workloads. Eight SATA 6.0Gb/s ports plus the OCuLink and M.2 interfaces allow large drive counts. Headroom ends when a build needs more than 192GB RAM, more than two 10GbE ports, or a second PCIe 5.0 x16 slot for dual GPU or accelerator configurations.

Points forts

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual 10GbE LAN ports driven by Intel X550 controller
  • Four DDR5 DIMM slots with ECC support up to 192GB capacity
  • PCIe 5.0 x16 slot plus three OCuLink connectors for flexible expansion
  • Deep mini-ITX form factor measuring 6.7 by 8.2 inches

Caractéristiques

BrandAsRock Rack
ModelW680D4ID-2T/G5/X550
CPU Socket TypeLGA 1700
CPU Type12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9 / Intel Celeron / Intel Pentium
North BridgeIntel W680
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 4400
Maximum Memory Supported192GB
ECC SupportedYes
PCI Express 5.0 x16SLOT7: PCIe5.0 x16 [CPU]
Other Slots1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
1 OCuLink (PCIe4.0 x4) [PCH]
SATA8 x SATA 6.0Gb/s
M.21 M-key (PCIe4.0 x4); support 2280 form factor [CPU]
1 M-key (PCIe4.0 x4); support 2280 form factor [PCH]
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X550
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

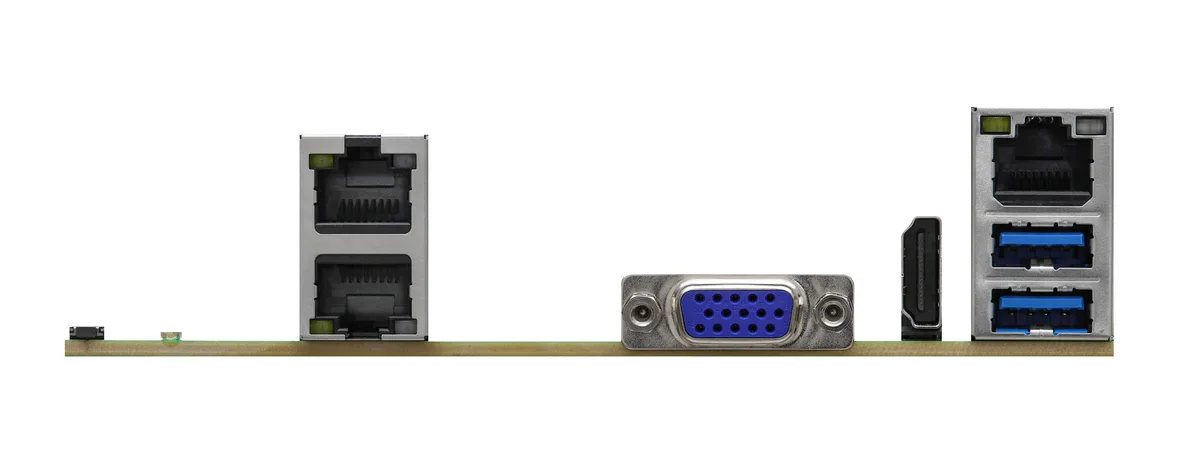

Back I/O Ports1 x D-Sub / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
Other ConnectorsPower Connector: 1 (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors: 1 (4-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1
Speaker Header: 1
Fan Header: 3 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (2-pin)
NMI Header: 1
BIOS FeatureAMI 256Mb SPI Flash ROM
Plug and Play(PnP), ACPI 6.4 and above compliance wake up events, SMBIOS 3.6.0 and above, ASRock Rack instant flash
Form FactorDeep mini-ITX
Dimensions (W x L)6.7" x 8.2"
Poids d’expédition2.20 kg
Dimensions du colis208 × 170 × 58 mm

Questions sur cet article

Do I need DDR5 ECC UDIMM modules to use the four 288-pin slots?

The board accepts DDR5 4400 ECC and non-ECC UDIMMs up to 192 GB across four slots.

Will my older PCIe 3.0 add-in card work in the PCIe 5.0 x16 slot?

The PCIe 5.0 x16 slot is backward compatible, so a PCIe 3.0 card will operate at its native speed.

How can I confirm the dual 10 GbE ports are active after assembly?

Link LEDs on the two RJ-45 ports and the Intel X550 controller shown in BIOS or OS network settings indicate operation.
