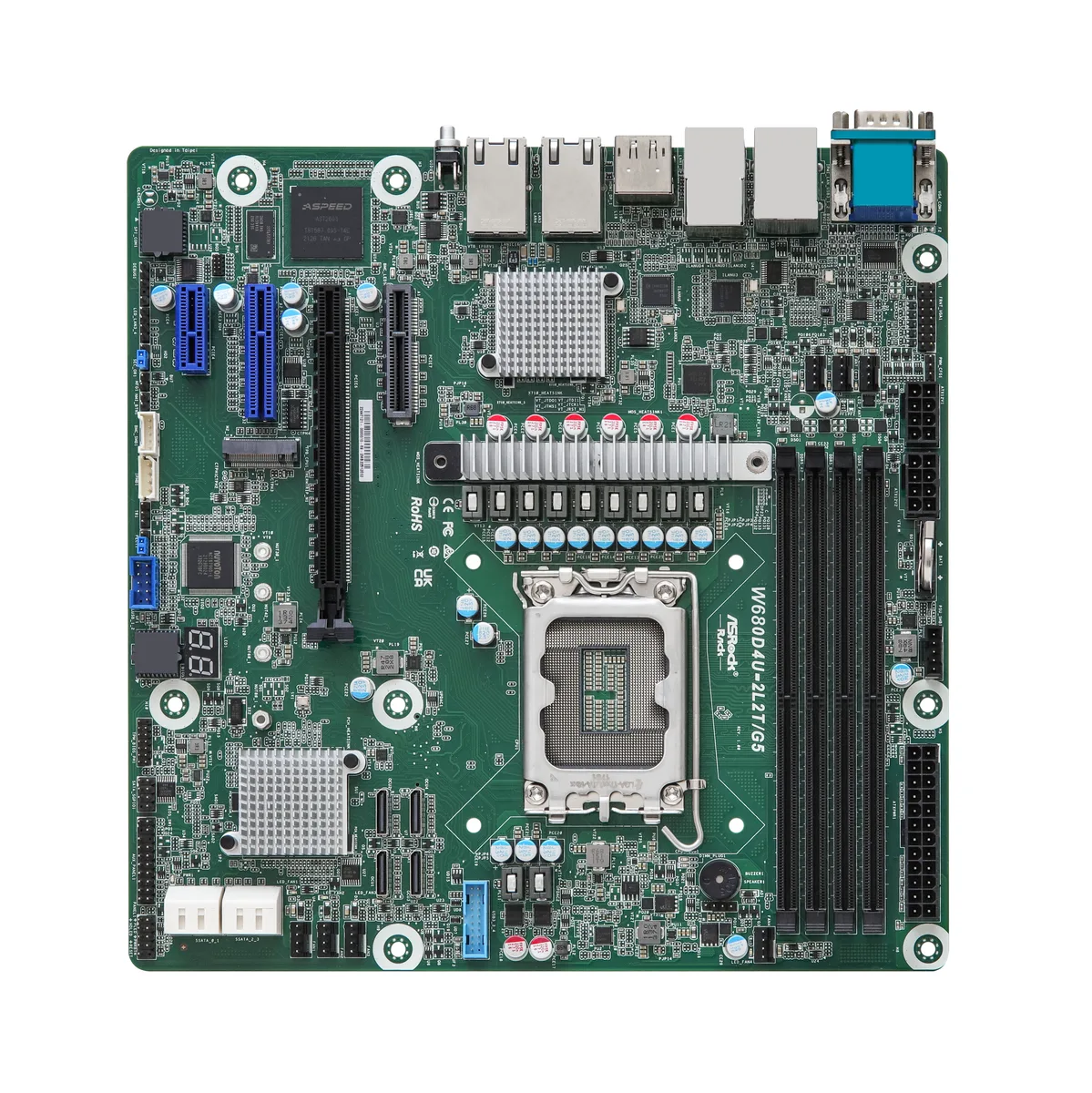

Micro-ATX server motherboard, dark PCB, silver sockets, dual 10GbE RJ45 ports, multiple PCIe slots

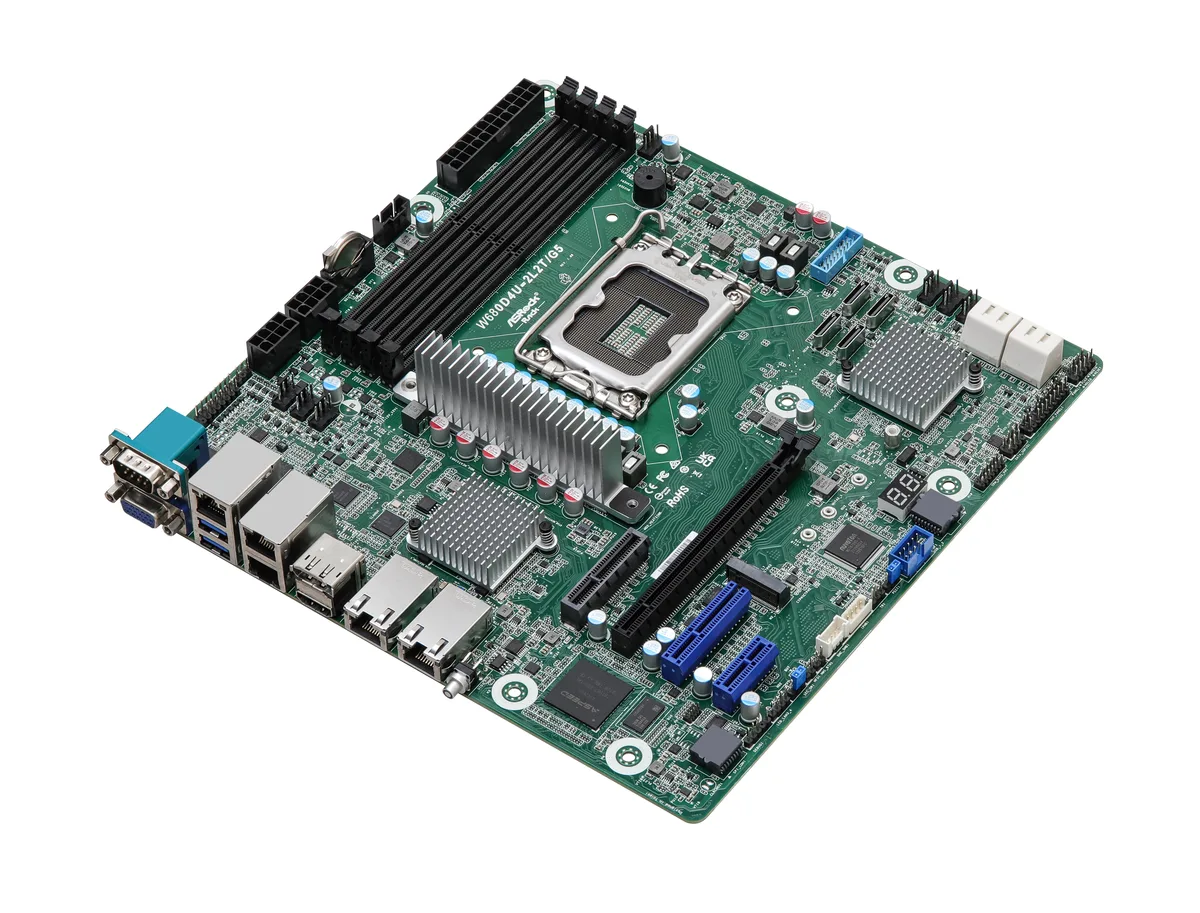

ASRock Rack

ASRock Rack W680D4U-2L2T/G5 server motherboard

SKU CH-P8FJ-7WA72 MPN W680D4U-2L2T/G5

Micro-ATX server board for 12th, 13th and 14th Gen Intel Core processors with DDR5 ECC memory, dual 10 GbE and PCIe 5.0 x16

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports Intel Core 14th Gen, 13th & 12th Gen Intel Core ser
  • Number of Processor Support1
  • CPU FeaturesThermal Design Power 125W
  • North BridgeIntel W680
  • Memory Slots4 DIMM slots (2DPC) DDR5 288-pin
  • Micro-ATX form factor fits 9.6" chassis
  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700
  • Four DDR5 DIMM slots with ECC support up to 32 GB each
  • Dual 10 GbE RJ45 ports via Intel X710 controller
  • PCIe 5.0 x16 slot plus three PCIe 4.0 x4 OCuLink connectors

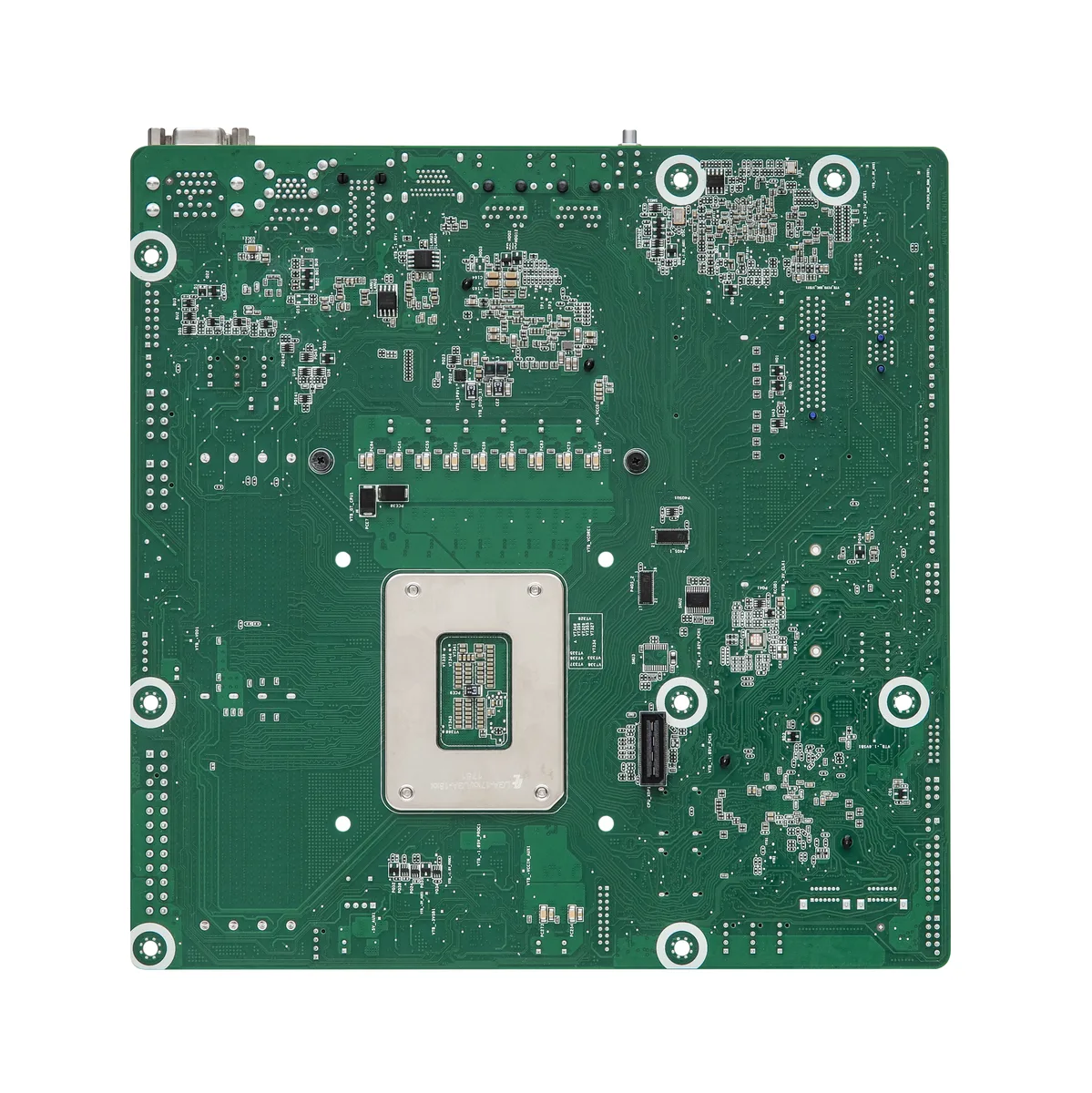

Micro-ATX Server Motherboard with Dual 10GbE

The ASRock Rack W680D4U-2L2T/G5 is a Micro-ATX server motherboard built on the Intel W680 chipset. It supports a single LGA 1700 socket for 12th, 13th and 14th Gen Intel Core series processors with a thermal design power of 125W. Four DDR5 DIMM slots provide ECC and non-ECC UDIMM support. Dual 10GbE LAN ports are driven by an Intel X710 controller alongside two 1GbE ports from an Intel i210 controller.

Expansion Layout and Lane Sharing

This board suits builders who need a compact server platform with high-speed networking and flexible storage connectivity. It offers one PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot and one PCIe 3.0 x1 slot. Three OCuLink connectors deliver PCIe 4.0 x4 links and one additional OCuLink can switch to four SATA 6Gb/s ports. Builders who require more than one PCIe 5.0 x16 slot or more than four DDR5 DIMM slots should look at larger form-factor server boards.

DDR5 Memory Speed Limits

The single specification that decides fit is the DDR5 memory speed ceiling tied to population. With one DIMM per channel the board runs at 5600MT/s; filling both channels with single-rank modules drops the limit to 4000MT/s and with dual-rank modules to 3600MT/s. Each slot accepts up to 32GB. Buyers planning to populate all four slots with high-capacity dual-rank DIMMs must accept the lower 3600MT/s operating speed.

Points forts

  • Micro-ATX form factor fits 9.6" chassis
  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700
  • Four DDR5 DIMM slots with ECC support up to 32 GB each
  • Dual 10 GbE RJ45 ports via Intel X710 controller
  • PCIe 5.0 x16 slot plus three PCIe 4.0 x4 OCuLink connectors

Caractéristiques

BrandAsRock Rack
ModelW680D4U-2L2T/G5
CPU Socket TypeLGA 1700
CPU TypeSupports Intel Core 14th Gen, 13th & 12th Gen Intel Core series processors
Number of Processor Support1
CPU FeaturesThermal Design Power 125W
North BridgeIntel W680
Memory Slots4 DIMM slots (2DPC) DDR5 288-pin
Memory Standard5600MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Maximum Memory SupportedMax. Capacity per DIMM: 32GB
ECC SupportedYes
PCI Express 5.0 x16SLOT6: PCIe5.0 x16 [CPU]
PCI Express x4SLOT7: PCIe4.0 x4 [CPU]
PCI Express x1SLOT4: PCIe3.0 x1 [PCH]
Other Slots1 OCuLink (PCIe4.0 x4)* [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
2 OCuLink (PCIe4.0 x4) [PCH]
*OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated.
SATA4 SATA 7-pin, 1 OCuLink for SATA
M.21 x M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X710
LAN Speed10Gbps
Second LAN ChipsetIntel I210
Second LAN Speed10/100/1000Mbps
Max LAN Speed10Gbps

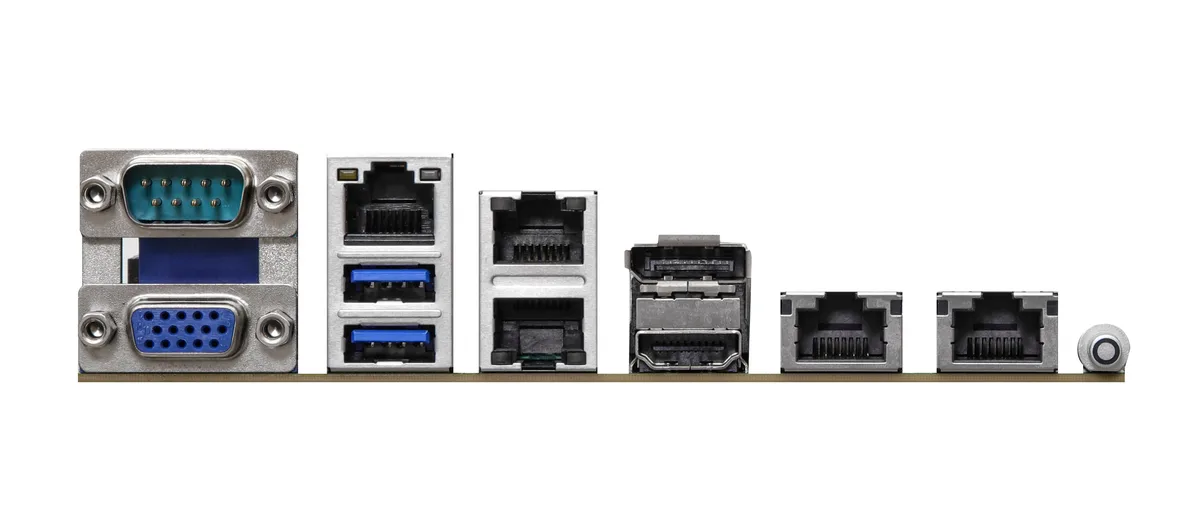

Back I/O PortsUID Button/LED: 1 button w/ LED
VGA Port: 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port: 1 DB9 (COM)
USB 3.2 Gen1 Port: 2 Type A (USB3.2 Gen1)
RJ45: 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
Onboard USBUSB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header: 1 (9-pin, 2 USB2.0)
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header: 1
Speaker Header: 1 (4-pin)
Buzzer: 1
Fan Header: 7 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
Others: 1 (4-pin, LAN3/LAN4 LED)
ME/SPS Recovery: 1
NMI Header: 1
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.10 kg
Dimensions du colis244 × 244 × 74 mm

Questions sur cet article

What are the Micro-ATX dimensions and CPU socket type for the W680D4U-2L2T/G5?

The board measures 9.6" x 9.6" and uses an LGA 1700 socket for 12th, 13th and 14th Gen Intel Core processors with up to 125W TDP.

How is the OCuLink4 port affected when installing a card in SLOT7?

OCuLink4 shares lanes with SLOT7; populating SLOT7 with a PCIe 4.0 x4 device disables the OCuLink4 connector, so plan your storage or expansion layout before mounting the board.

Which memory speeds are supported with one or two DIMMs per channel?

DDR5 runs at 5600 MT/s with one DIMM per channel, 4000 MT/s with two single-rank DIMMs per channel, and 3600 MT/s with two dual-rank DIMMs per channel; maximum capacity is 32 GB per DIMM.
