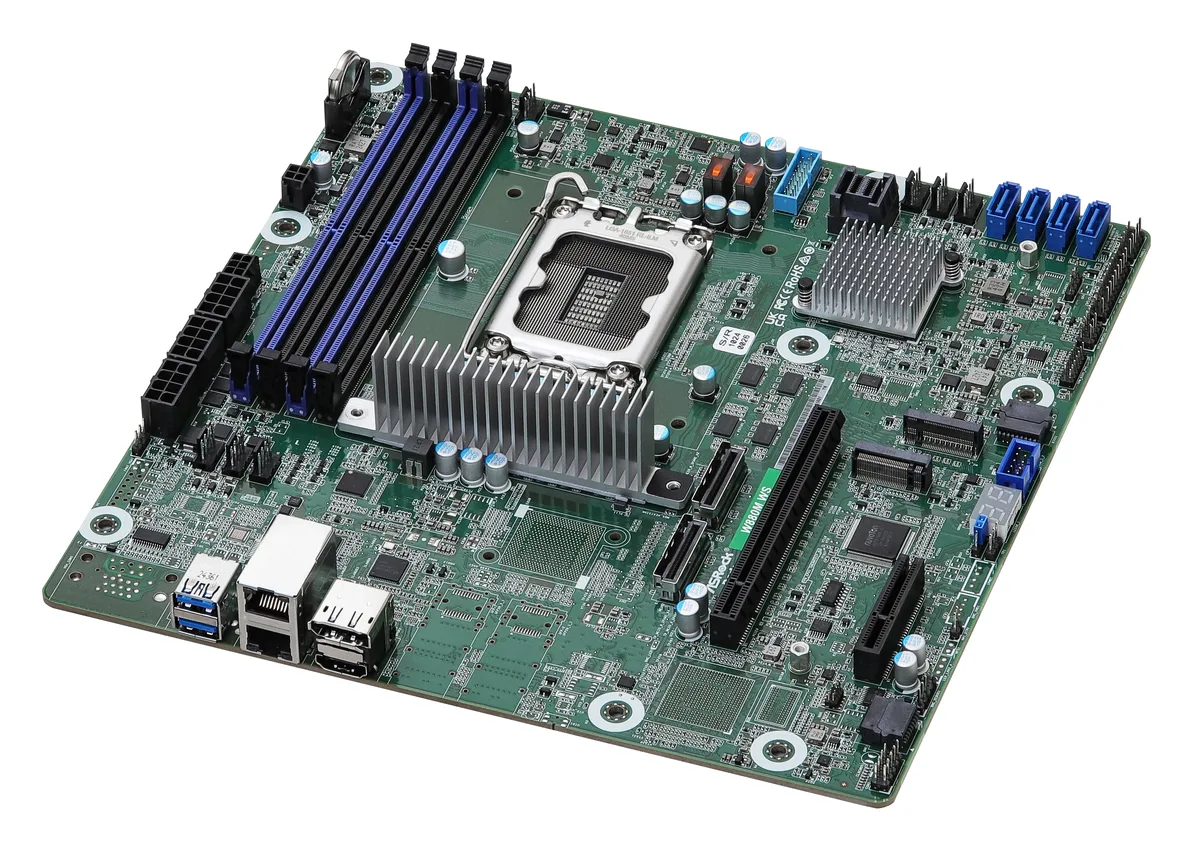

Green Micro-ATX server motherboard with silver CPU socket and four black DDR5 slots

ASRock Rack

ASRock Rack W880M WS server motherboard LGA 1851 DDR5 48GB

SKU CH-8NZE-59YAR MPN W880M WS

Micro-ATX server board for Intel Core Ultra Series 2 with four DDR5 ECC slots, PCIe 5.0 expansion and eight SATA ports

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • Number of Processor Support1
  • North BridgeIntel W880
  • Memory Slots4 x DDR5 288-pin
  • Memory StandardDDR5 5600
  • ECC memory protects data integrity with DDR5 5600 support
  • Dual 1 GbE ports from Intel I210 give reliable wired networking
  • PCIe 5.0 x16 plus x4 slots enable high-bandwidth add-in cards
  • Two M.2 2280 slots at PCIe 4.0 x4 provide fast local storage
  • Micro-ATX 9.6" form factor fits compact server chassis

Micro-ATX server board for Intel Core Ultra Series 2

The ASRock Rack W880M WS is a Micro-ATX server motherboard built around the Intel W880 chipset and the LGA 1851 socket. It accepts a single Intel Core Ultra Desktop Processor (Series 2) and provides four DDR5 288-pin slots running at 5600 MT/s with ECC support. Maximum memory capacity is 48GB.

Suits compact servers needing ECC memory

This board fits builders who want a small-form-factor server with error-correcting memory, eight SATA 6.0Gb/s ports supporting RAID 0/1/5/10, and two M.2 2280 slots wired for PCIe 4.0 x4. It is not for deployments that require more than 48GB of system memory, dual-socket scaling, or 10GbE networking.

Maximum memory capacity is 48GB

The four DIMM slots top out at 48GB of DDR5 5600 ECC or non-ECC UDIMM. If your application dataset exceeds that limit you will need a platform with a higher supported capacity.

Points forts

  • ECC memory protects data integrity with DDR5 5600 support
  • Dual 1 GbE ports from Intel I210 give reliable wired networking
  • PCIe 5.0 x16 plus x4 slots enable high-bandwidth add-in cards
  • Two M.2 2280 slots at PCIe 4.0 x4 provide fast local storage
  • Micro-ATX 9.6" form factor fits compact server chassis

Caractéristiques

BrandASRock
ModelW880M WS
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
Number of Processor Support1
North BridgeIntel W880
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 5600
Maximum Memory Supported48GB
ECC SupportedYes
PCI Express 5.0 x16SLOT6: PCIe5.0 x16 [CPU]*
*MCIO1 shared lanes x8 with SLOT6. To enable MCIO1, BIOS settings are required.
PCI Express x4SLOT4: PCIe5.0 x4 [CPU]
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.21 M-key (PCIe4.0 x4), supports 2280 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280 form factor [PCH]
LAN ChipsetIntel I210
LAN Speed10/100/1000Mbps
Max LAN Speed1Gbps
Back I/O Ports1 x DisplayPort / 1 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
Onboard USBUSB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1)
USB 2.0 Header: 1 header (9-pin, 2 USB2.0)
Other ConnectorsPower Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8-pin, ATX 12V) support 12V DC-in
Other Power Connectors: 1 (6-pin) for HDD power when using 12V DC-in power source
Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header: 1 (9-pin)
Speaker Header: 1
Fan Header: 7 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
Clear CMOS: 1 (2-pin)
NMI Header: 1
BIOS FeatureAMI 256Mb SPI Flash ROM
Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.3 and above, ASRock Rack Instant Flash
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.23 kg
Dimensions du colis305 × 287 × 71 mm
