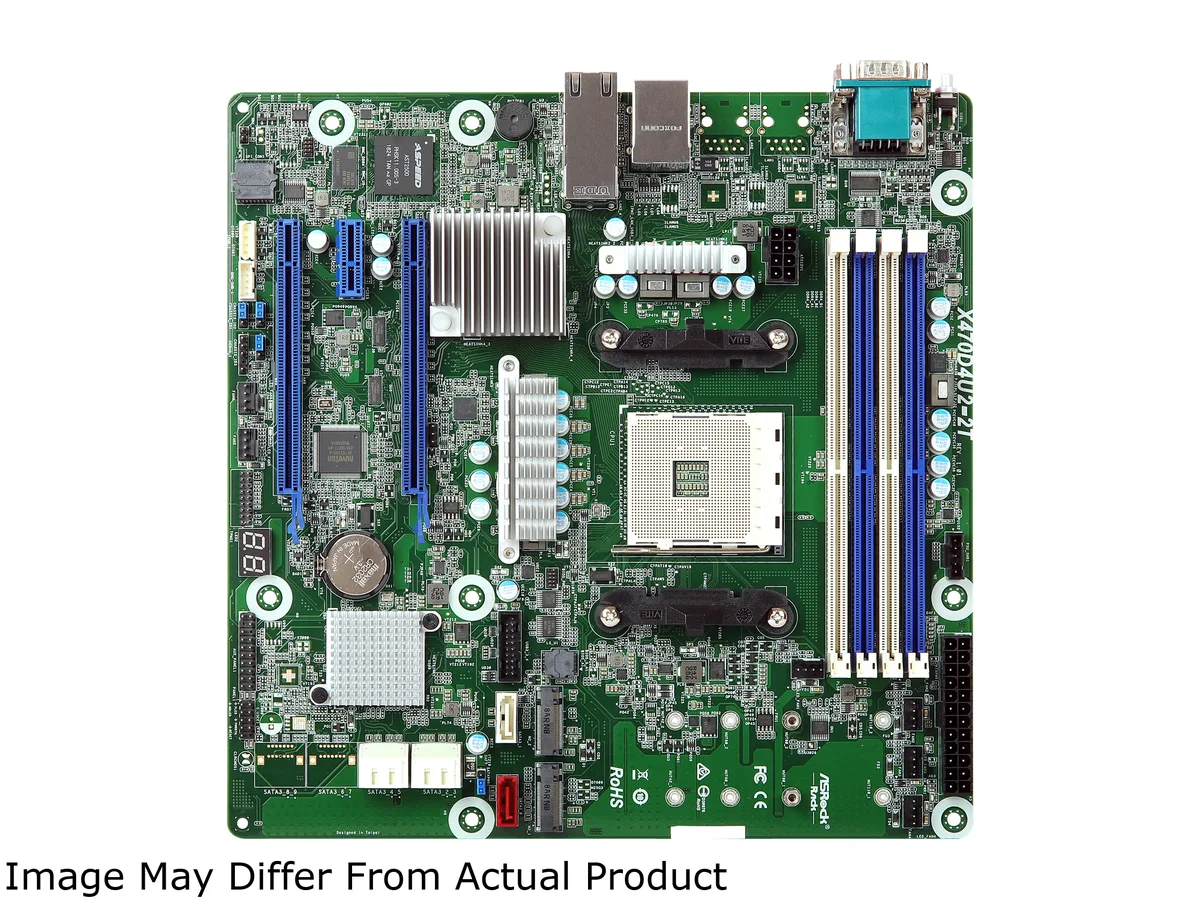

Green micro-ATX server board with dual 10G RJ45 ports and four DDR4 slots

ASRock Rack

ASRock Rack X470D4U2-2T server motherboard AM4 dual 10G LAN

SKU CH-CKEN-ZZBEB MPN X470D4U2-2T

Micro-ATX server board for AMD Ryzen CPUs with dual 10-gigabit Ethernet, IPMI, and four DDR4 slots supporting 128 GB ECC memory

  • CPU Socket TypeSocket AM4
  • CPU TypeSupports: AMD Ryzen 5000, 4000, 3000, and 2000 G-Series Desk
  • North BridgeAMD X470
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2666 / 2400 / 2133 MHz
  • Maximum Memory SupportedSupport up to 128GB DDR4 ECC / UDIMM
  • Supports AMD Ryzen 5000, 4000, 3000 and 2000 series CPUs on AM4 socket
  • Dual 10 Gigabit Ethernet ports driven by Intel X550-AT2 controller
  • Up to 128 GB DDR4 ECC UDIMM across four 288-pin slots
  • Six SATA3 6.0 Gb/s ports including one SATA DOM plus two M.2 slots
  • IPMI 2.0 with KVM over dedicated RTL8211E LAN and Aspeed AST2500 video

Socket AM4 server board for Ryzen CPUs

The ASRock Rack X470D4U2-2T is a micro-ATX server motherboard built around the AMD X470 chipset and Socket AM4. It accepts Ryzen 5000, 4000, 3000 and 2000 series desktop processors, including G-Series models with Radeon graphics and PRO variants. Four DDR4 slots support up to 128 GB of ECC or non-ECC UDIMM in dual-channel mode. The board provides dual 10 GbE ports via an Intel X550-AT2 controller plus a dedicated IPMI LAN port for remote management.

Suits dense 1U or 2U builds needing 10 GbE and IPMI

This board fits administrators deploying web hosting or cloud nodes that require two 10 GbE links and out-of-band KVM over a dedicated management port. The splittable PCIe 3.0 x16 slot and a second x8 slot allow GPU, storage or networking add-in cards. Builders who need more than six SATA ports, integrated Wi-Fi, or a larger ATX form factor should look elsewhere.

Dual 10 GbE via Intel X550-AT2 decides fit

The pair of RJ45 10G base-T ports driven by the Intel X550-AT2 is the defining connectivity feature. If the deployment can use dual 10 GbE copper uplinks, this board matches the requirement; if only 1 GbE or fibre uplinks are available, a different platform is appropriate.

Points forts

  • Supports AMD Ryzen 5000, 4000, 3000 and 2000 series CPUs on AM4 socket
  • Dual 10 Gigabit Ethernet ports driven by Intel X550-AT2 controller
  • Up to 128 GB DDR4 ECC UDIMM across four 288-pin slots
  • Six SATA3 6.0 Gb/s ports including one SATA DOM plus two M.2 slots
  • IPMI 2.0 with KVM over dedicated RTL8211E LAN and Aspeed AST2500 video

Caractéristiques

BrandAsRock Rack
ModelX470D4U2-2T
CPU Socket TypeSocket AM4
CPU TypeSupports:
AMD Ryzen 5000, 4000, 3000, and 2000 G-Series Desktop Processors with Radeon Graphics
AMD Ryzen 5000, 3000, and 2000 Series Desktop Processors
AMD Ryzen PRO 5000, 4000, 3000, and 2000 Series Desktop Processors
North BridgeAMD X470
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2666 / 2400 / 2133 MHz
Maximum Memory SupportedSupport up to 128GB DDR4 ECC / UDIMM
Channel SupportedDual Channel
PCI Express 3.0 x16PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.
PCIE4: Gen3 x8 link
Other SlotsPCIE5: Gen2 x1 link
SATA6 x SATA3 6.0 Gb/s (1 x SATA DOM port)
SATA RAID0/1/10
Onboard Video ChipsetAspeed AST2500
Number of LAN2 x RJ45 10G base-T by Intel X550-AT2
1 x RJ45 Dedicated IPMI LAN port by RTL8211E
COM1
Video Ports1 x D-Sub
RJ452 x RJ45 10 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
LAN Ports with LED (ACT / LINK LED and SPEED LED)
USB 3.12 x USB 3.1
FeaturesSupports AMD AM4 Socket Ryzen Series CPUs
Supports 4 x DDR4 ECC and non-ECC UDIMM, max. 64 GB
Supports up to 6 x SATA3 6.0Gb/s (inculded 1 x SATA DOM), 2 x M.2
Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
Supports 2 x RJ45 10G base-T by Intel X550-AT2
Supports 2 x PCIe 3.0 x16, 1 x PCIE 2.0 x1
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.07 kg
Dimensions du colis305 × 290 × 74 mm

Questions sur cet article

Does the board include a CPU cooler or do I need to buy one separately?

The motherboard is sold without a CPU cooler; you must supply a Socket AM4 compatible cooler yourself.

Which memory capacity should I choose if I want the maximum supported?

The board supports up to 128 GB across four DDR4 ECC or non-ECC UDIMM slots in dual-channel mode.

What does the dual 10G LAN spec mean for actual network throughput?

Two Intel X550-AT2 ports provide two 10 Gigabit Ethernet connections over RJ45, each capable of 10 Gb/s line rate.
