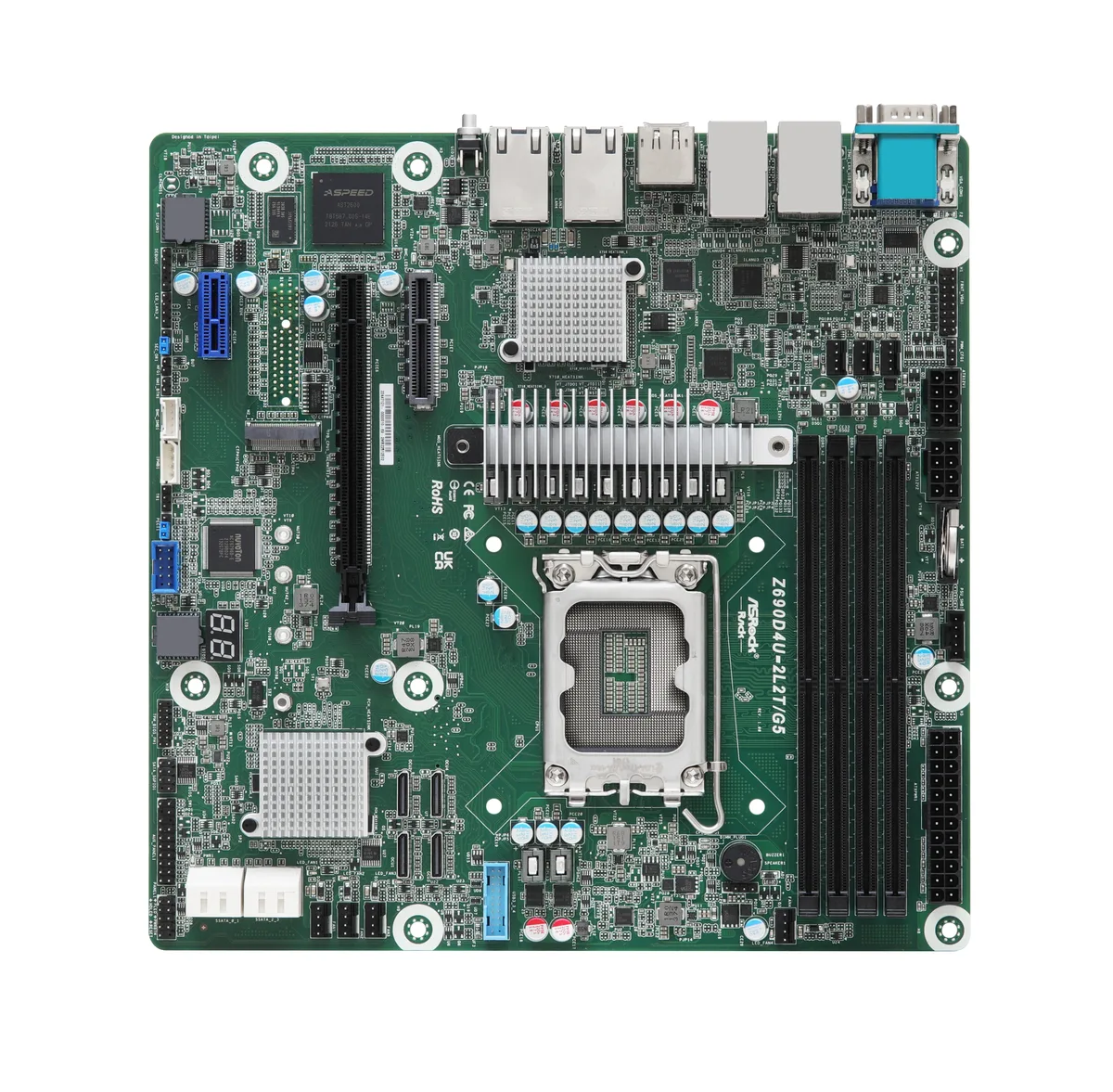

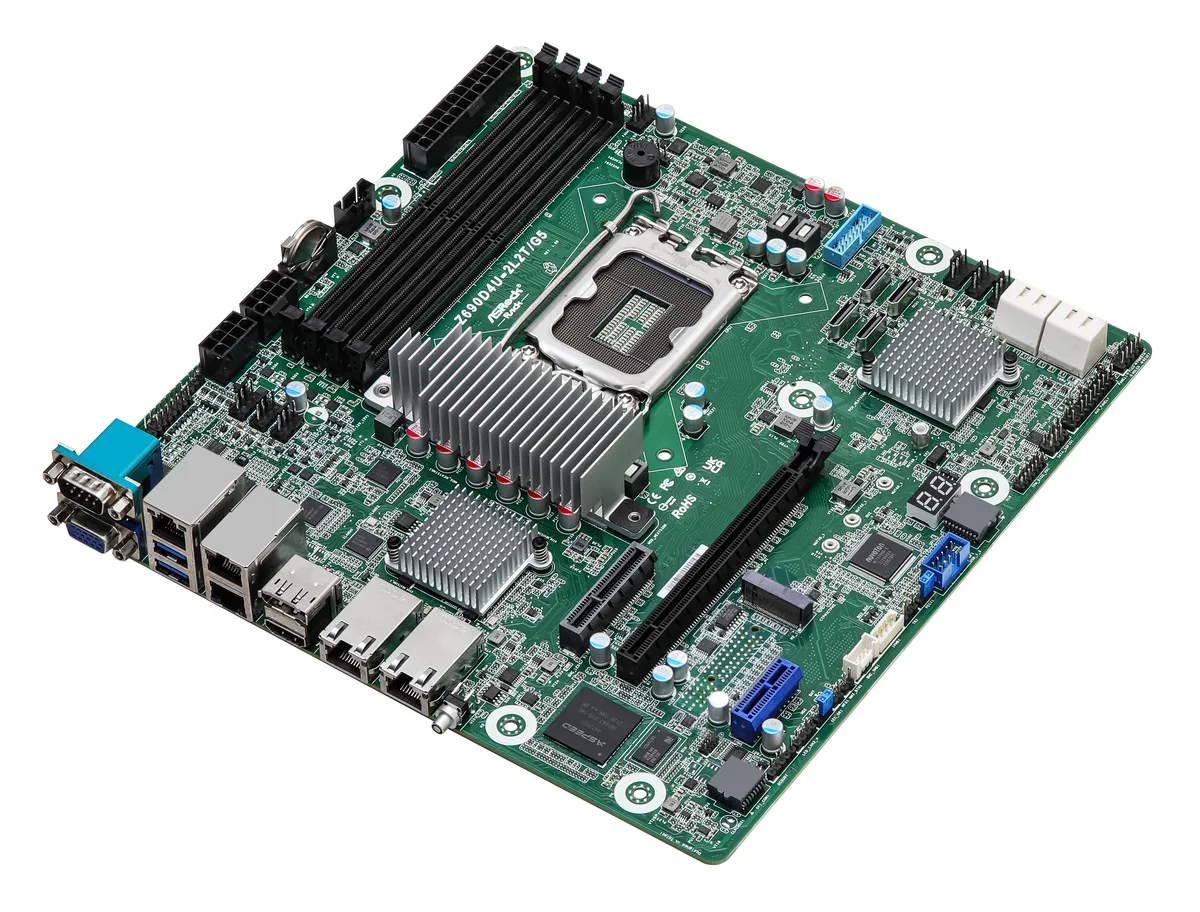

Green Micro-ATX server motherboard with dual 10GbE RJ45 ports, LGA 1700 socket and four DDR5 DIMM slots

ASRock Rack

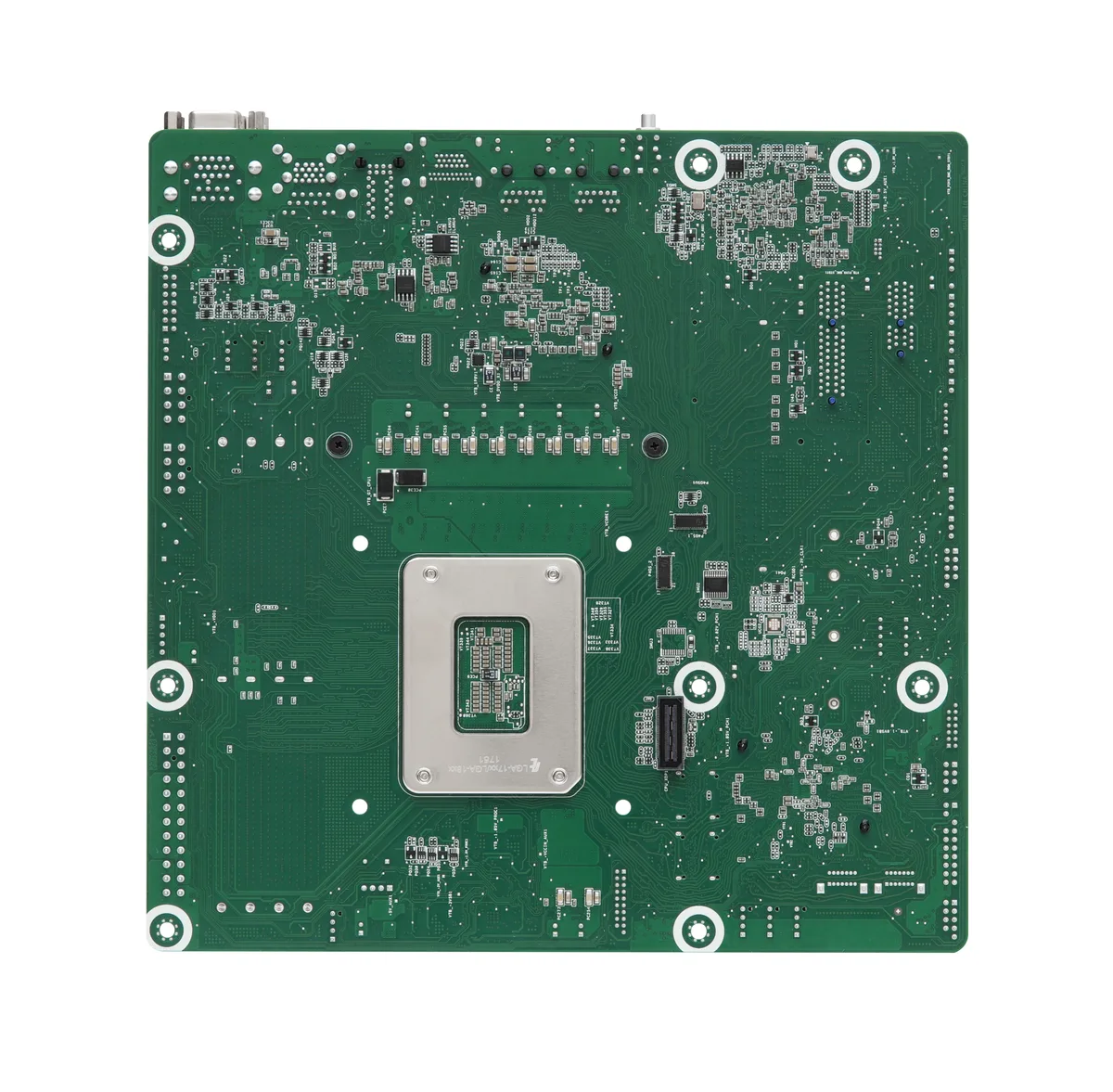

ASRock Rack Z690D4U-2L2T/G5 server motherboard LGA 1700 DDR5 dual 10GbE

SKU CH-CA7N-EHSPY MPN Z690D4U-2L2T/G5

Micro-ATX server board with LGA 1700 socket, four DDR5 DIMM slots, dual 10 GbE and dual 1 GbE LAN, plus PCIe 5.0 x16 and multiple OCuLink connectors

  • CPU Socket TypeSingle Socket LGA 1700
  • CPU TypeSupports Intel Core 14th Gen, 13th & 12th Gen Intel Core, Pe
  • Number of Processor Support1
  • North BridgeIntel Z690
  • Memory Slots4 DIMM slots (2DPC), DDR5 288-pin non-ECC UDIMM
  • Memory StandardDDR5 5600MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600
  • Supports 12th, 13th and 14th Gen Intel Core, Pentium and Celeron processors
  • Dual 10 GbE Intel X710 LAN ports for high-speed networking
  • Four DDR5 UDIMM slots up to 32 GB per DIMM
  • PCIe 5.0 x16 slot plus PCIe 4.0 x4 and PCIe 3.0 x1 expansion
  • Three OCuLink PCIe 4.0 x4 ports and one shared OCuLink or four SATA 6 Gb/s

Target platform

The ASRock Rack Z690D4U-2L2T/G5 is a Micro-ATX server motherboard built for single-socket LGA 1700 processors. It supports Intel Core, Pentium and Celeron series CPUs from the 12th, 13th and 14th generations. The board is aimed at builders who need dual 10GbE networking and flexible storage expansion in a compact form factor.

Memory specification

Four DDR5 288-pin DIMM slots accept non-ECC UDIMM modules up to 32GB each. Speeds scale with population: 5600MT/s with one DIMM per channel, 4000MT/s with two single-rank DIMMs per channel and 3600MT/s with two dual-rank DIMMs per channel. ECC memory is not supported.

Expansion and connectivity

One PCIe 5.0 x16 slot, one PCIe 4.0 x4 slot and one PCIe 3.0 x1 slot provide add-in card options. Three OCuLink connectors deliver PCIe 4.0 x4 links and a fourth OCuLink can alternatively provide four SATA 6Gb/s ports. A single M.2 M-key slot supports 2230, 2242, 2260 and 2280 drives on a PCIe 3.0 x4 interface. Dual 10GbE and dual 1GbE RJ45 ports are driven by Intel X710 and i210 controllers respectively, while an Aspeed AST2600 chip handles onboard video.

Points forts

  • Supports 12th, 13th and 14th Gen Intel Core, Pentium and Celeron processors
  • Dual 10 GbE Intel X710 LAN ports for high-speed networking
  • Four DDR5 UDIMM slots up to 32 GB per DIMM
  • PCIe 5.0 x16 slot plus PCIe 4.0 x4 and PCIe 3.0 x1 expansion
  • Three OCuLink PCIe 4.0 x4 ports and one shared OCuLink or four SATA 6 Gb/s

Caractéristiques

BrandAsRock Rack
ModelZ690D4U-2L2T/G5
CPU Socket TypeSingle Socket LGA 1700
CPU TypeSupports Intel Core 14th Gen, 13th & 12th Gen Intel Core, Pentium and Celeron series processors
Number of Processor Support1
North BridgeIntel Z690
Memory Slots4 DIMM slots (2DPC), DDR5 288-pin non-ECC UDIMM
Memory StandardDDR5 5600MT/s (2DPC-1DIMM) / 4000MT/s (2DPC-2DIMM 1R) / 3600MT/s (2DPC-2DIMM 2R)
Maximum Memory SupportedMax. Capacity per DIMM: 32GB
ECC SupportedNon-ECC
PCI Express 5.0 x16SLOT6: PCIe5.0 x16 [CPU]
PCI Express x4SLOT7: PCIe4.0 x4 [CPU]
PCI Express x1SLOT4: PCIe3.0 x1 [PCH]
Other Slots1 OCuLink (PCIe4.0 x4)* [CPU]
1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
2 OCuLink (PCIe4.0 x4) [PCH]
*OCulink4 shares lanes with SLOT7 and will be disabled when SLOT7 is populated.
M.21 M-key (PCIe3.0 x4) [PCH]; support 2280/2260/2242/2230 form factor
Onboard Video ChipsetAspeed AST2600
LAN Chipset2 RJ45 (10GbE) by Intel X710
LAN Speed10Gbps
Second LAN Chipset2 RJ45 (1GbE) by Intel i210
Second LAN Speed10/100/1000Mbps
Max LAN Speed10Gbps

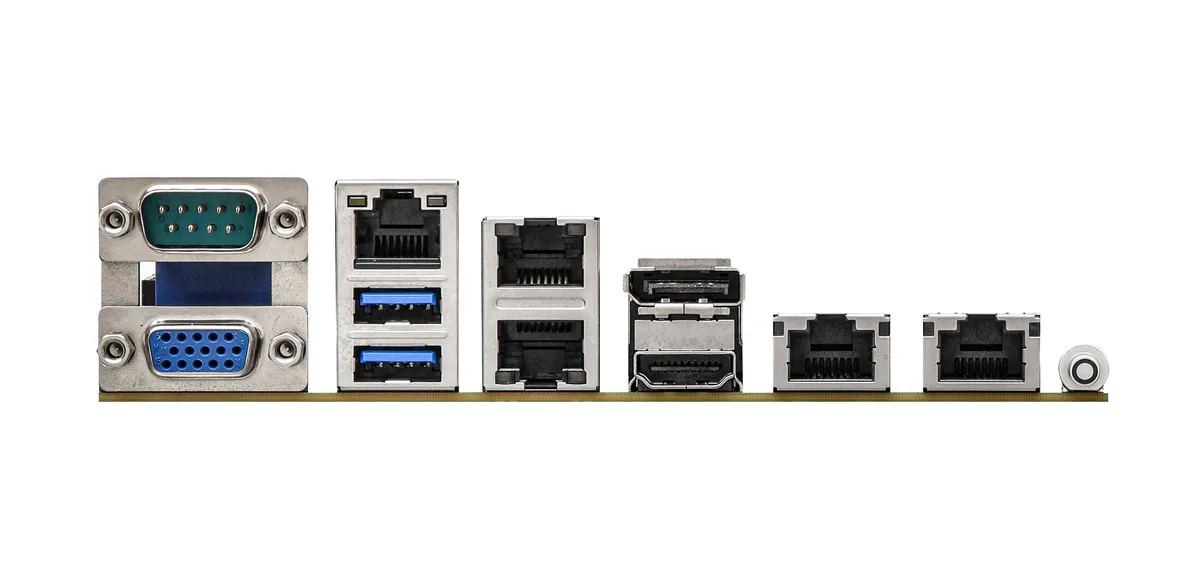

Back I/O PortsUID Button/LED: 1 button w/ LED
VGA Port: 1 DB15 (VGA), 1 HDMI, 1 DisplayPort
Serial Port: 1 DB9 (COM)
USB 3.2 Gen1 Port: 2 Type A (USB3.2 Gen1)
RJ45: 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
Other ConnectorsPower Connector: 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header: 1
Speaker Header: 1 (4-pin)
Buzzer: 1
Fan Header: 7 (4-pin)
Thermal Sensor Header: 1
TPM Header: 1 (13-pin, SPI)
SGPIO Header: 1
SMBus header: 1
PMBus header: 1
IPMB Header: 1
Clear CMOS: 1 (contact pads)
Others: 1 (4-pin, LAN3/LAN4 LED)
ME/SPS Recovery: 1
USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
USB 2.0 H
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.81 kg
Dimensions du colis305 × 305 × 102 mm

Questions sur cet article

Will the 5600 MT/s DDR5 speed hold with all four slots populated?

With two DIMMs per channel the board runs DDR5 at 3600 MT/s for dual-rank modules and 4000 MT/s for single-rank modules.

What happens to the second OCuLink port when a card is installed in the PCIe 4.0 x4 slot?

The OCuLink4 connector shares lanes with that slot and is automatically disabled when the slot is populated.

Does the Micro-ATX 9.6-inch square layout fit a standard rack-mount chassis?

The board measures 9.6 by 9.6 inches and uses the Micro-ATX mounting pattern, which matches common 1U and 2U server cases.
