Black triple-fan graphics card with silver accents, 290mm long, 123mm tall, 51mm thick

ASRock

ASRock RX9070 CL 16G graphics card

SKU CH-YHZF-NZC2C MPN RX9070 CL 16G

Radeon RX 9070 GPU with 16 GB GDDR6, 256-bit bus, 2520 MHz boost clock, triple-fan cooler, PCIe 5.0 x16, one HDMI 2.1b and three DisplayPort 2.1a outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Game Clock2070 MHz

Option Challenger

Les versions barrées existent, mais ne sont pas disponibles ici.

Edition RX 9070

Les versions barrées existent, mais ne sont pas disponibles ici.

  • 16 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • Boost clock up to 2520 MHz lifts frame rates in demanding titles
  • RDNA 4 architecture with 3584 stream processors powers modern rendering workloads
  • PCI Express 5.0 x16 interface delivers full bandwidth to the GPU

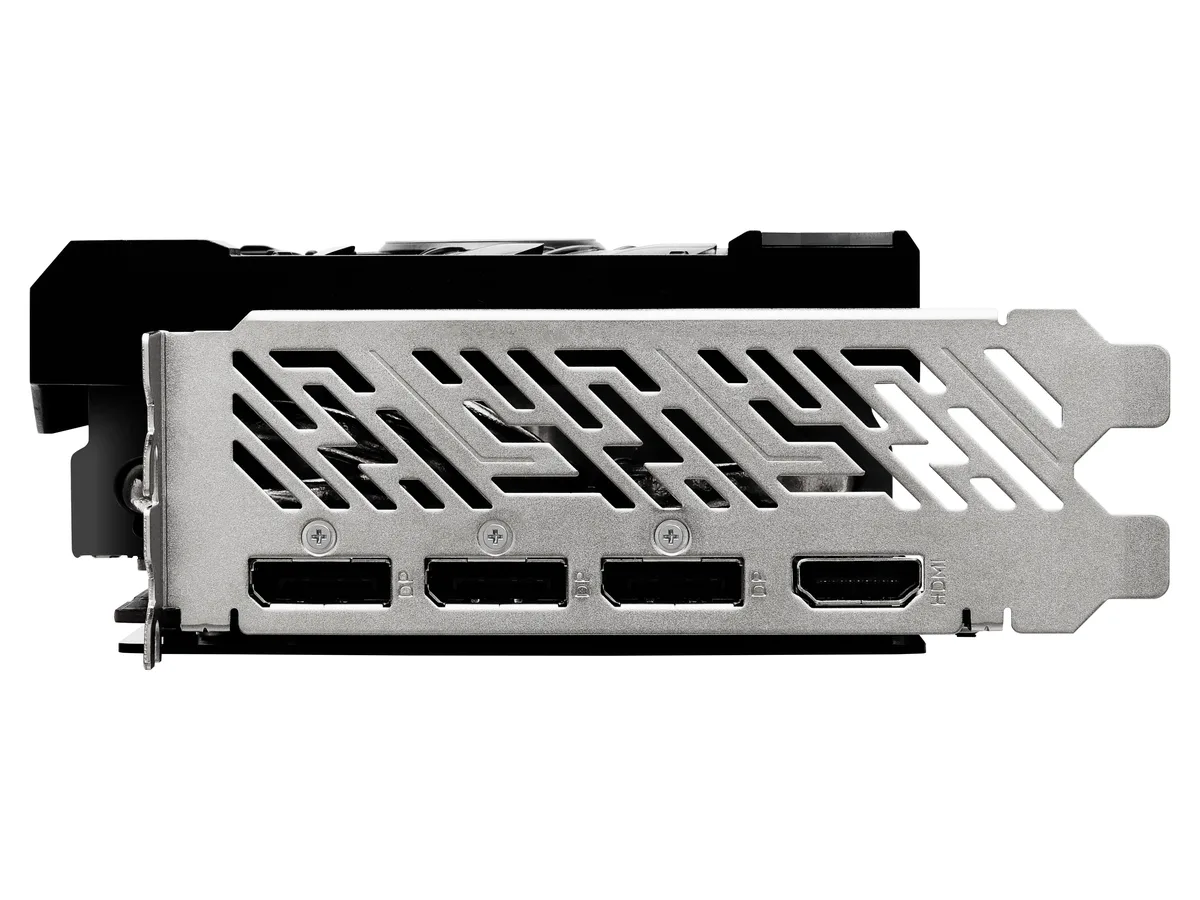

  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays

16 GB GDDR6 RDNA 4 GPU

The ASRock Challenger RX9070 CL 16G is a PCI Express 5.0 x16 graphics card built on AMD RDNA 4 architecture. It carries 16 GB of GDDR6 memory across a 256-bit bus running at 20 Gbps. The board targets 1440p and 4K gaming with a game clock of 2070 MHz and a boost clock up to 2520 MHz. Four display outputs include one HDMI 2.1b and three DisplayPort 2.1a connectors.

Sustained 220 W compute profile

The card draws up to 220 W under load and is fed by two 8-pin power connectors. A 700 W power supply is recommended to maintain stable voltage during extended sessions. With 3584 stream processors clocked at the game frequency the GPU delivers consistent throughput for long rendering or gaming workloads. DirectX 12 Ultimate and OpenGL 4.6 support keep modern APIs fully available.

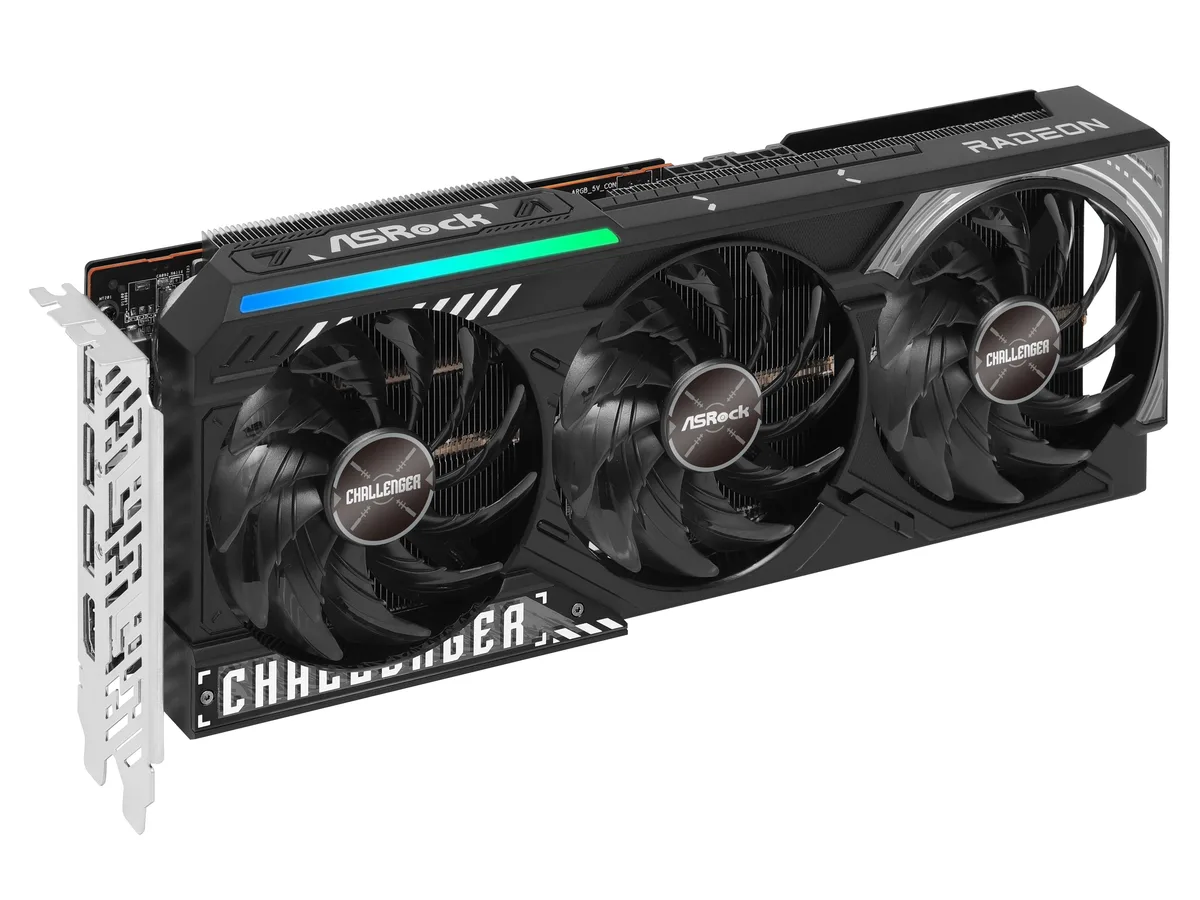

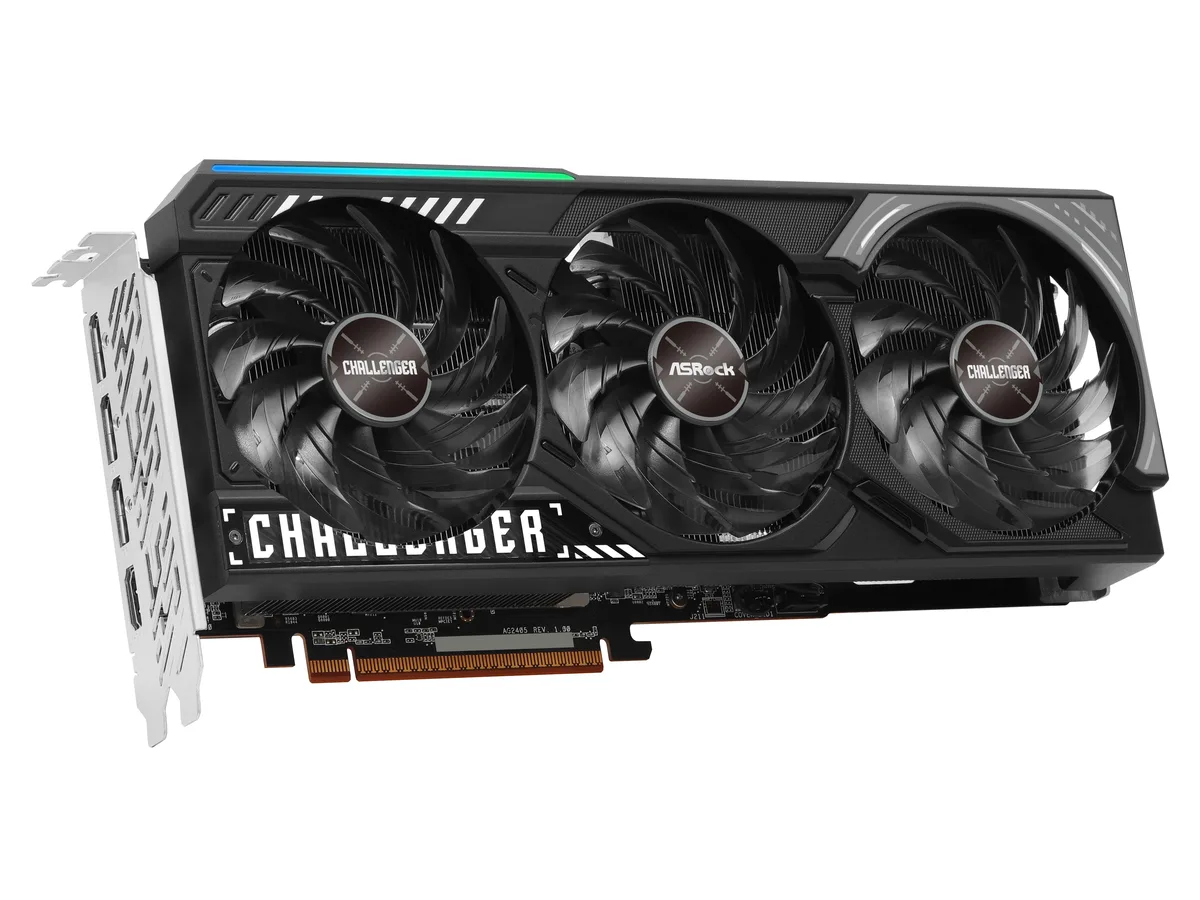

Triple-fan thermal solution

Three axial fans move air through a full-length heatsink that spans the 290 mm board length. The 51 mm thick ATX form factor fits standard mid-tower cases while keeping GPU temperatures in check during typical gaming loads. Idle fan-stop behaviour reduces noise when the system is at the desktop. Maximum digital resolution reaches 7680 x 4320 for multi-monitor or VR setups.

Points forts

  • 16 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • Boost clock up to 2520 MHz lifts frame rates in demanding titles
  • RDNA 4 architecture with 3584 stream processors powers modern rendering workloads
  • PCI Express 5.0 x16 interface delivers full bandwidth to the GPU
  • HDMI 2.1b plus three DisplayPort 2.1a outputs drive four 8K displays

Caractéristiques

BrandASRock
SeriesChallenger
ModelRX9070 CL 16G
Part NumberRX9070 CL 16G
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Game Clock2070 MHz
Boost ClockUp to 2520 MHz
Stream Processors3584
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power220W
Recommended PSU Wattage700W
Power Connector2 x 8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length290 mm
Card Dimensions (L x H)290 x 123 x 51 mm
Package Contents- 1x Quick Installation Guide
Poids d’expédition1.36 kg
Dimensions du colis394 × 216 × 97 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud and hot does the triple-fan cooler get when the Radeon RX 9070 runs at its 220 W thermal design power all day?

The card uses a triple-fan design rated for a 220 W thermal design power; actual noise and temperature depend on case airflow and fan-curve settings.

My power supply only has a single 8-pin PCIe cable — will the RX9070 CL 16G work with that?

The board requires two 8-pin PCIe power connectors and a 700 W supply is recommended; a single cable is not sufficient.

Will the PCI Express 5.0 x16 interface on this Radeon RX 9070 run at full speed in my older PCIe 4.0 motherboard slot?

The interface is backward compatible; it will operate at PCIe 4.0 x16 speeds in a 4.0 slot with negligible gaming impact.
