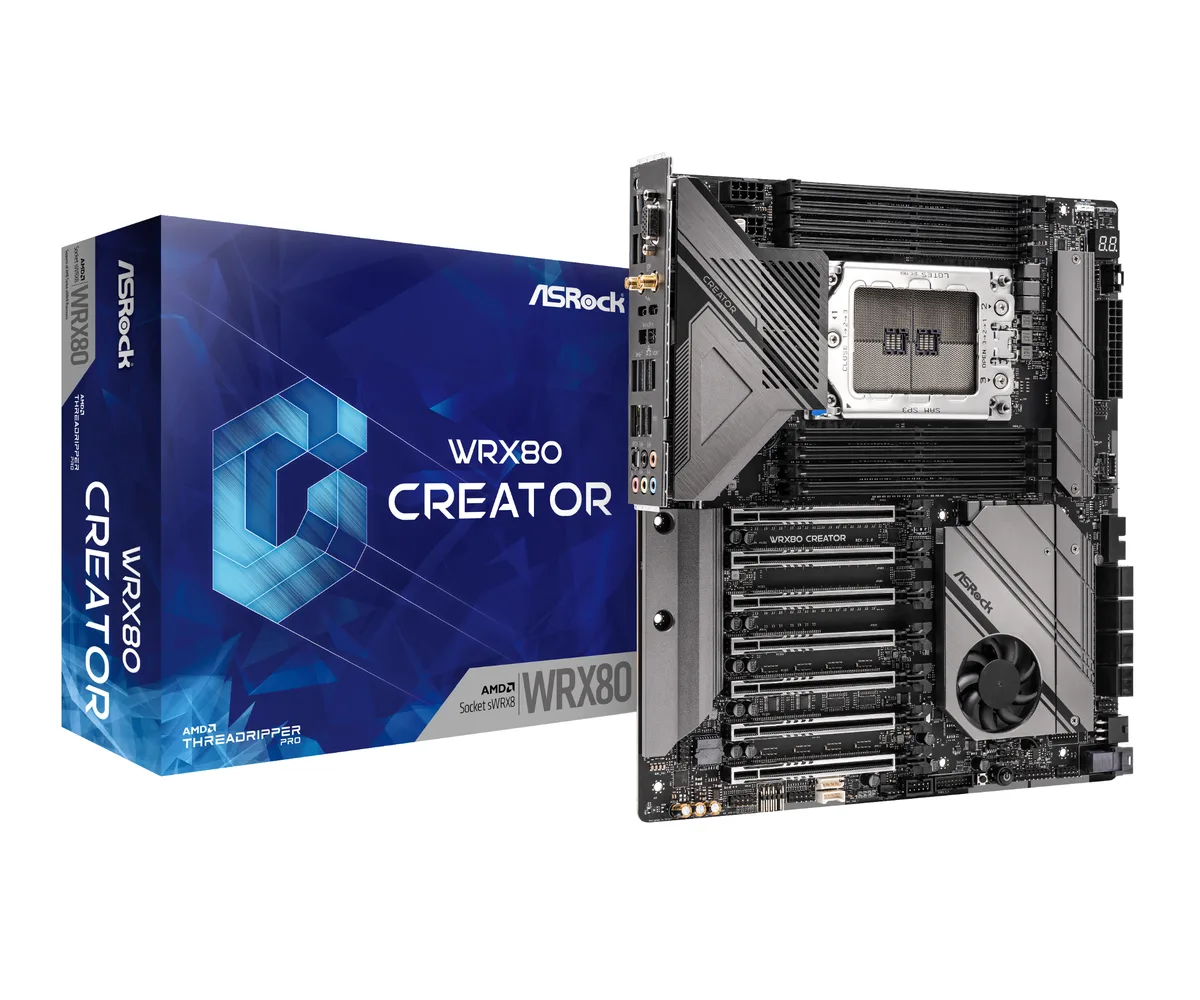

Large extended ATX server motherboard with eight DDR4 slots, seven full-length PCIe slots, dual 10GbE ports and a silver heatsink array

ASRock

ASRock WRX80 CREATOR R2.0 server motherboard

SKU CH-KREY-HCYJP MPN WRX80 CREATOR R2.0

Extended ATX server motherboard for AMD Ryzen Threadripper PRO 3000 and 5000 series with eight-channel DDR4 3200 ECC memory up to 2TB, seven PCIe 4.0 x16 slots, dual 10GbE LAN, dedicated IPMI.

  • CPU Socket TypeSocket sWRX8
  • CPU TypeAMD Ryzen Threadripper PRO 3000 Series / AMD Ryzen Threadrip
  • North BridgeAMD WRX80
  • Number of DDR4 Slots8 x 288-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported2TB
  • Supports AMD Ryzen Threadripper PRO 3000 and 5000 series processors for workstation performance
  • Eight-channel DDR4 3200 memory up to 2 TB with ECC for data integrity
  • Seven PCIe 4.0 x16 slots provide massive GPU and accelerator bandwidth
  • Dual 10 Gigabit LAN plus dedicated IPMI for remote server management
  • Two Thunderbolt 4 Type-C ports deliver 40 Gb/s external connectivity

Threadripper PRO workstation board

The ASRock WRX80 CREATOR R2.0 is an Extended ATX server motherboard built for AMD Ryzen Threadripper PRO 3000 and 5000 WX series processors in the sWRX8 socket. It targets professionals who need eight-channel DDR4 memory and seven full-length PCIe 4.0 x16 slots for GPU compute or high-speed expansion cards.

Dual 10 GbE and IPMI change daily workflow

Two Marvell AQC113CS 10 Gigabit LAN ports and a dedicated ASPEED AST2500 IPMI interface with iKVM and vMedia let administrators manage the system remotely even when the OS is down. The onboard 7.1-channel Realtek ALC4050H/ALC1220 audio with NE5532 headphone amplifier supports 600 Ohm headsets for critical listening tasks.

Install in deep EATX chassis with care

The 14-layer server-grade PCB and XXL aluminium heatsink assembly add weight and height; verify case clearance before mounting. Eight 288-pin DDR4 slots require matched registered ECC modules to reach the 2 TB limit, and M.2 NVMe RAID 5 needs extra expansion cards not included. Builders who need more than seven x16 slots or a different socket should look elsewhere.

Points forts

  • Supports AMD Ryzen Threadripper PRO 3000 and 5000 series processors for workstation performance
  • Eight-channel DDR4 3200 memory up to 2 TB with ECC for data integrity
  • Seven PCIe 4.0 x16 slots provide massive GPU and accelerator bandwidth
  • Dual 10 Gigabit LAN plus dedicated IPMI for remote server management
  • Two Thunderbolt 4 Type-C ports deliver 40 Gb/s external connectivity

Caractéristiques

BrandASRock
ModelWRX80 CREATOR R2.0
CPU Socket TypeSocket sWRX8
CPU TypeAMD Ryzen Threadripper PRO 3000 Series / AMD Ryzen Threadripper PRO 5000 Series
North BridgeAMD WRX80
Number of DDR4 Slots8 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported2TB
Channel SupportedEight Channel
ECC SupportedYes
RegisteredYes
PCI Express 4.0 x16CPU:
- 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)
Other Slots1 x U.2 Connector
SATA8 x SATA 6.0Gb/s
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
*Requires additional M.2 NVMe expansion cards to support RAID 5
M.21 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
2 x Hyper M.2 Sockets (Key M)
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
Onboard Video ChipsetAspeed AST2500 BMC Controller
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Audio Chipset7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
Premium Blu-ray Audio support
Supports Surge Protection
NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
Pure Power-In
Direct Drive Technology
PCB Isolate Shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15µ Gold Audio Connector
Nahimic Audio
Audio Channels7.1 Channels
LAN Chipset2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS)
- Support Wake-On-LAN
- Support PXE
1 x Dedicated IPMI (ASPEED AST2500)
- Supports iKVM and vMedia
Max LAN Speed2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s
Wireless LAN802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth + High speed class II
Supports MU-MIMO
* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
* A 6GHz compatible router is required for 6E functionality.
BluetoothYes

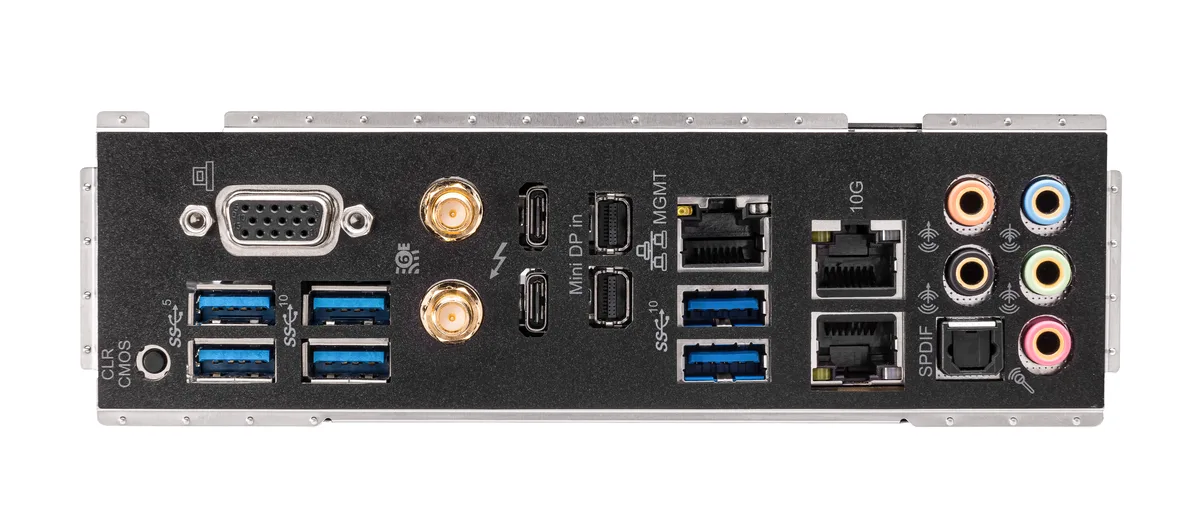

Back I/O Ports2 x Antenna Ports
1 x D-Sub Port
1 x Optical SPDIF Out Port
2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
2 x Mini DisplayPort Input Ports**(For Thunderbolt)
4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)***
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Au
Other Connectors1 x SPI TPM Header
1 x COM Port Header
1 x Intelligent Platform Management Bus Header
1 x PSU SMBus Header
1 x BMC SMBus Header
1 x Auxiliary Panel Header
1 x Power LED and Speaker Header
1 x RGB LED Header
- Supports in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
- Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
- The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3
FeaturesASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Power Choke
- 105A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 14 Layer PCB
- 2oz Copper PCB
Server-Grade Low-Loss PCB
Dual Marvell (Aquantia) 10GbE LAN
802.11ax Wi-Fi 6E
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
BIOS Feature
256Mb AMI UEFI Le
Form FactorExtended ATX
- 14 Layer PCB
- 2oz Copper PCB
Dimensions (W x L)12.0" x 10.7"
Poids d’expédition2.45 kg
Dimensions du colis354 × 318 × 83 mm

Questions sur cet article

Will the eight DDR4 slots require registered ECC modules for full 2 TB capacity?

Yes, the board supports up to 2 TB using eight-channel registered ECC DDR4-3200 modules.

Which PCIe slot drops to x8 bandwidth when all seven are populated?

PCIE4 and PCIE6 operate at x8 while PCIE1/2/3/5/7 run at x16.

How hot do the VRM and chipset heatsinks get under continuous load?

The XXL aluminium alloy heatsink with heatpipe and 14-layer PCB are designed to dissipate heat from the 8-phase 105 A SPS power design during sustained workloads.
