Black slim mini PC barebone, no memory or storage installed

ASUS

ASUS 90AR0031-M00020 NUC 13 Pro barebone mini PC i3-1315U DDR4 64GB max

SKU CH-12YH-FR0H0 MPN 90AR0031-M00020

Barebone mini PC with a 13th Gen Intel Core i3-1315U, two DDR4-3200 SO-DIMM slots supporting 64 GB, one M.2 2280 PCIe Gen4 slot, 2.5 GbE LAN, Wi-Fi 6E, and dual Thunderbolt 4 ports

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core i3-1315U
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • 13th Gen Intel Core i3-1315U processor powers everyday workloads
  • Dual SO-DIMM slots accept DDR4 3200 up to 64GB
  • M.2 2280 PCIe Gen4x4 slot supports NVMe SSD from 128GB to 8TB
  • 5Gbps Ethernet, Wi-Fi 6E and Bluetooth deliver fast wired and wireless links
  • Dual HDMI 2.1 plus dual Thunderbolt 4 ports drive up to four 4K@60Hz displays

Slim barebone for custom builds

The ASUS NUC 13 Pro barebone kit arrives as a compact black chassis with an Intel Core i3-1315U processor already installed. It targets system integrators and enthusiasts who want to choose their own DDR4 memory, NVMe storage and operating system rather than buying a pre-configured unit.

Sustained operation with integrated graphics

The 13th Gen Core i3-1315U pairs with integrated Intel UHD Graphics to handle everyday workloads and multi-monitor output through dual HDMI 2.1 and dual DisplayPort via Thunderbolt 4. A 2.5Gbps Ethernet port, Wi-Fi 6E and Bluetooth provide consistent network throughput during long sessions.

User-installable memory and storage

Two 260-pin SO-DIMM slots accept DDR4 3200 modules up to 64 GB total, while a single M.2 2280 PCIe Gen4x4 slot supports NVMe SSDs from 128 GB to 8 TB. The slim form factor leaves little room for error; builders must verify module height and drive thickness before assembly.

Points forts

  • 13th Gen Intel Core i3-1315U processor powers everyday workloads
  • Dual SO-DIMM slots accept DDR4 3200 up to 64GB
  • M.2 2280 PCIe Gen4x4 slot supports NVMe SSD from 128GB to 8TB
  • 5Gbps Ethernet, Wi-Fi 6E and Bluetooth deliver fast wired and wireless links
  • Dual HDMI 2.1 plus dual Thunderbolt 4 ports drive up to four 4K@60Hz displays

Caractéristiques

BrandASUS
SeriesNUC 13 PRO
ModelRNUC13ANKI30000UI
Part Number90AR0031-M00020
ColorBlack
Form FactorSlim
CPU TypeIntel Core i3-1315U
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Other1 x Kensington Lock Slot
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMe SSD
Integrated GraphicsIntegrated Intel UHD Graphics
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothYes

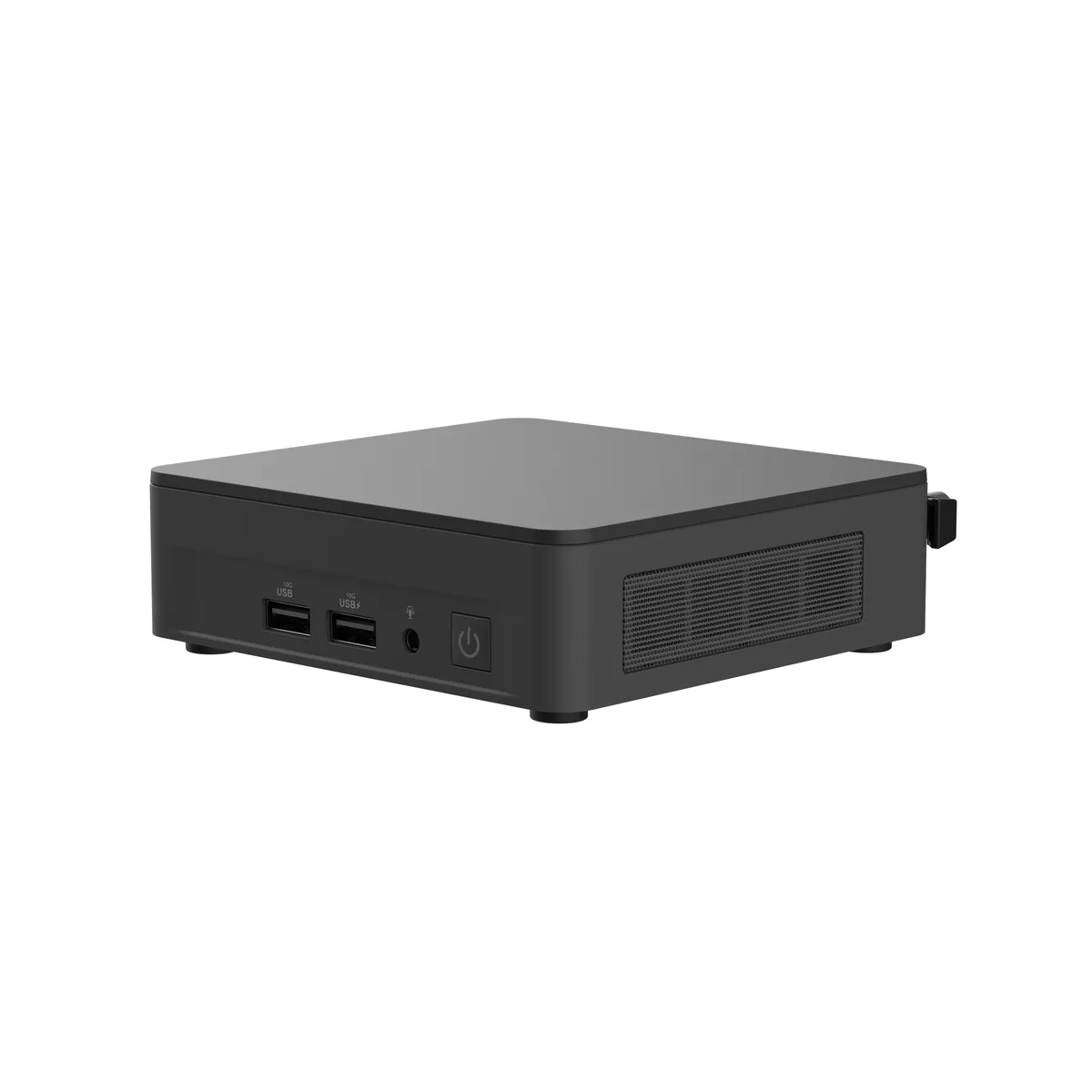

Front USB2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort2 x DisplayPort
Thunderbolt2 x Thunderbolt 4

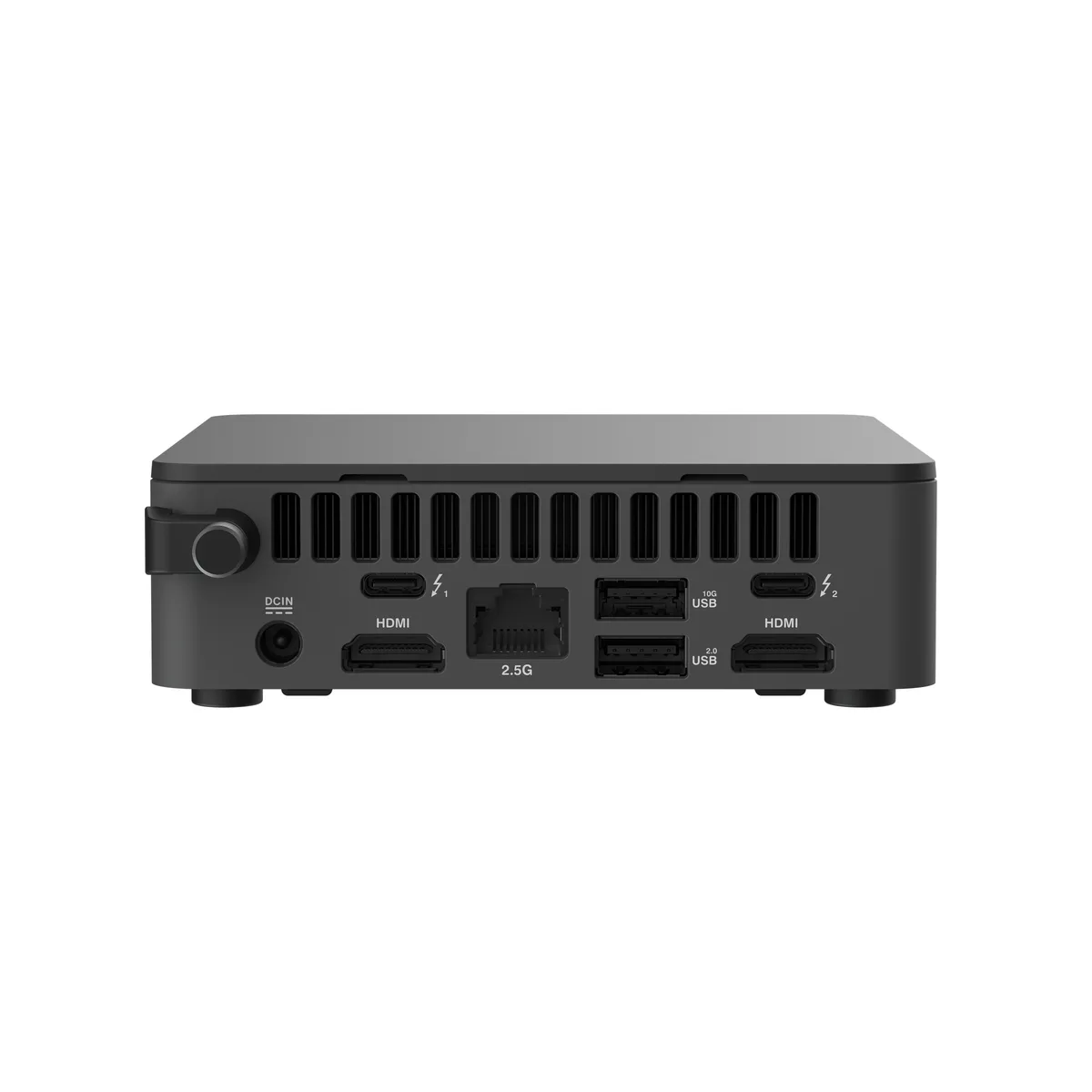

Rear USB2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel i226-V LAN, 2.5GbE (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply90W
Dimensions4.61" x 4.41" x 1.45"
Weight1.07 lbs.
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord
Poids d’expédition1.45 kg
Dimensions du colis191 × 165 × 102 mm

Questions sur cet article

How loud or hot does the Core i3-1315U get when the NUC runs continuously?

The 13th Gen Intel Core i3-1315U is a 15 W processor; the slim chassis uses an active fan that spins up under sustained load but stays quiet during typical office work.

Which memory and storage parts must I buy separately to complete this barebone kit?

You need two DDR4 3200 SO-DIMMs up to 64 GB total and one M.2 2280 PCIe Gen4x4 NVMe SSD between 128 GB and 8 TB.

Can I keep using my older USB 2.0 and USB 3.2 Gen1 peripherals with the rear ports?

Yes — the rear includes one USB 2.0 Type-A at 480 Mbps and one USB 3.2 Gen2 Type-A at 10 Gbps, both backward compatible with earlier USB devices.
