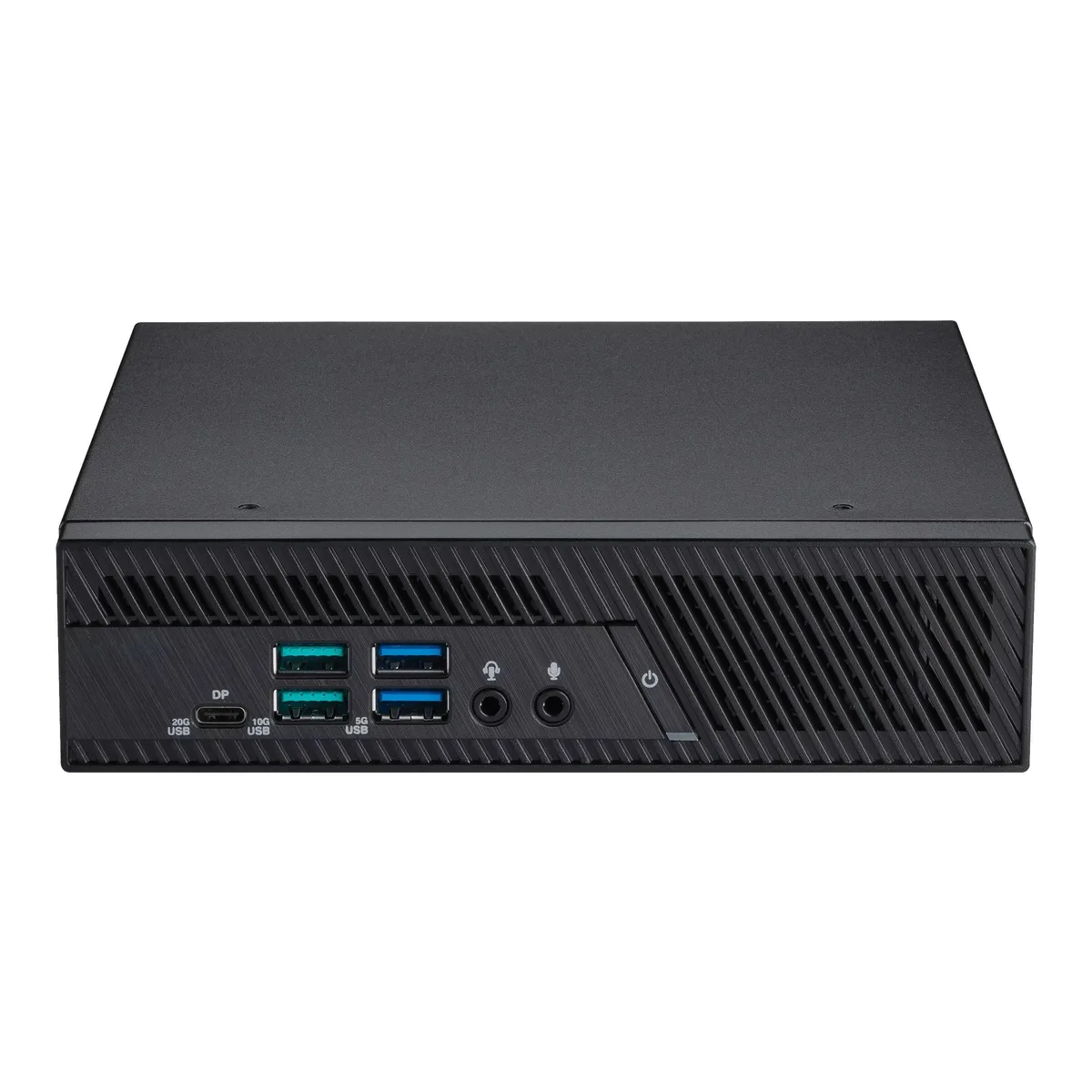

Compact black mini PC barebone, 1.35L chassis, tool-less access, front USB-C and audio, rear DisplayPorts and USB-C PD 100W

ASUS

ASUS ExpertCenter PB64 90MR01C1-M001E0 barebone mini PC Intel Core Ultra 7 265

SKU CH-59DT-CZBPV MPN 90MR01C1-M001E0

Barebone mini PC with Intel Core Ultra 7 265, tool-less 1.35 L chassis, dual M.2 2280 slots, 2.5 GbE, Wi-Fi 7 and four 4K display outputs

  • ColorBlack
  • CPU TypeIntel Core Ultra 7 265
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • Desktop-grade performance from Intel Core Ultra 7 265 processor
  • WiFi 7 and Bluetooth 5.4 for stable wireless connectivity
  • Hardware dTPM 2.0 protects data with encryption
  • Tool-less 1.35L chassis enables quick upgrades
  • Four 4K displays via dual DisplayPort 1.4 and USB 4.0

What this barebone is

The ASUS ExpertCenter PB64 90MR01C1-M001E0 is a new 1.35L mini-PC barebone built around the Intel Core Ultra 7 265 processor with integrated Intel Graphics. It ships without memory or storage, leaving two DDR5 SO-DIMM slots ready for up to 64GB dual-channel RAM and dual M.2 2280 PCIe Gen4x4 slots plus a 2.5 inch SATA bay for local drives. WiFi 7 and Bluetooth 5.4 provide modern wireless connectivity.

Who should buy this and who should not

System integrators and IT teams wanting a compact, VESA-mountable desktop with tool-less chassis access for quick deployment will fit this unit. Buyers who need discrete graphics, additional PCIe expansion slots, or a system pre-populated with RAM and an operating system should look at a larger workstation or a configured mini-PC instead.

Memory and storage capacity you must supply

You must add two DDR5 SO-DIMMs for up to 64GB total and at least one M.2 2280 NVMe SSD or 2.5 inch SATA drive because the barebone arrives with zero memory and zero storage installed. The board supports dual-channel DDR5 at 262Pin and PCIe Gen4x4 on each M.2 slot, so capacity and speed depend entirely on the modules you choose.

Points forts

  • Desktop-grade performance from Intel Core Ultra 7 265 processor
  • WiFi 7 and Bluetooth 5.4 for stable wireless connectivity
  • Hardware dTPM 2.0 protects data with encryption
  • Tool-less 1.35L chassis enables quick upgrades
  • Four 4K displays via dual DisplayPort 1.4 and USB 4.0

Caractéristiques

BrandASUS
Model90MR01C1-M001E0
ColorBlack
CPU TypeIntel Core Ultra 7 265
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
Serial ATA1 x 2.5" SATA 6Gb/s, Support 1TB~2TB 7200rpm 7mm HDD
M.2 Slot2 x M.2 2280 PCIe Gen4x4, Support 256GB~2TB NVMe™ SSD
Integrated GraphicsIntel Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 4.0 Type-C (with DP2.1, 5V/3A, 20Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
2 x USB 3.2 Gen1 Type-A (5V/0.9A, 5Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
DisplayPort2 x DisplayPort 1.4
Rear USB1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (PD 100W)
1 x USB 2.0
RJ451
Input19Vdc, 6.32A
Power Supply120W Power adapter
Dimensions175 x 175 x 44.2 mm
Weight1.2kg
PackagingVESA Mount & Screws / Power Adapter / US Power Cord

Questions sur cet article

What DDR5 SO-DIMM modules do I need to install before this barebone will boot?

You must add two 262-pin DDR5 SO-DIMMs, up to 64 GB total, to fill the dual-channel memory slots.

Can I keep my existing 2.5-inch SATA hard drive and M.2 NVMe SSD when moving to this unit?

Yes, the chassis provides one 2.5-inch SATA 6 Gb/s bay for 7 mm drives and two M.2 2280 PCIe Gen4 x4 slots for NVMe SSDs.

How can I verify the system is using both memory channels after I install the RAM?

Enter the BIOS or use a system-information tool; it will report dual-channel mode when two matched modules are detected in the two SO-DIMM slots.
