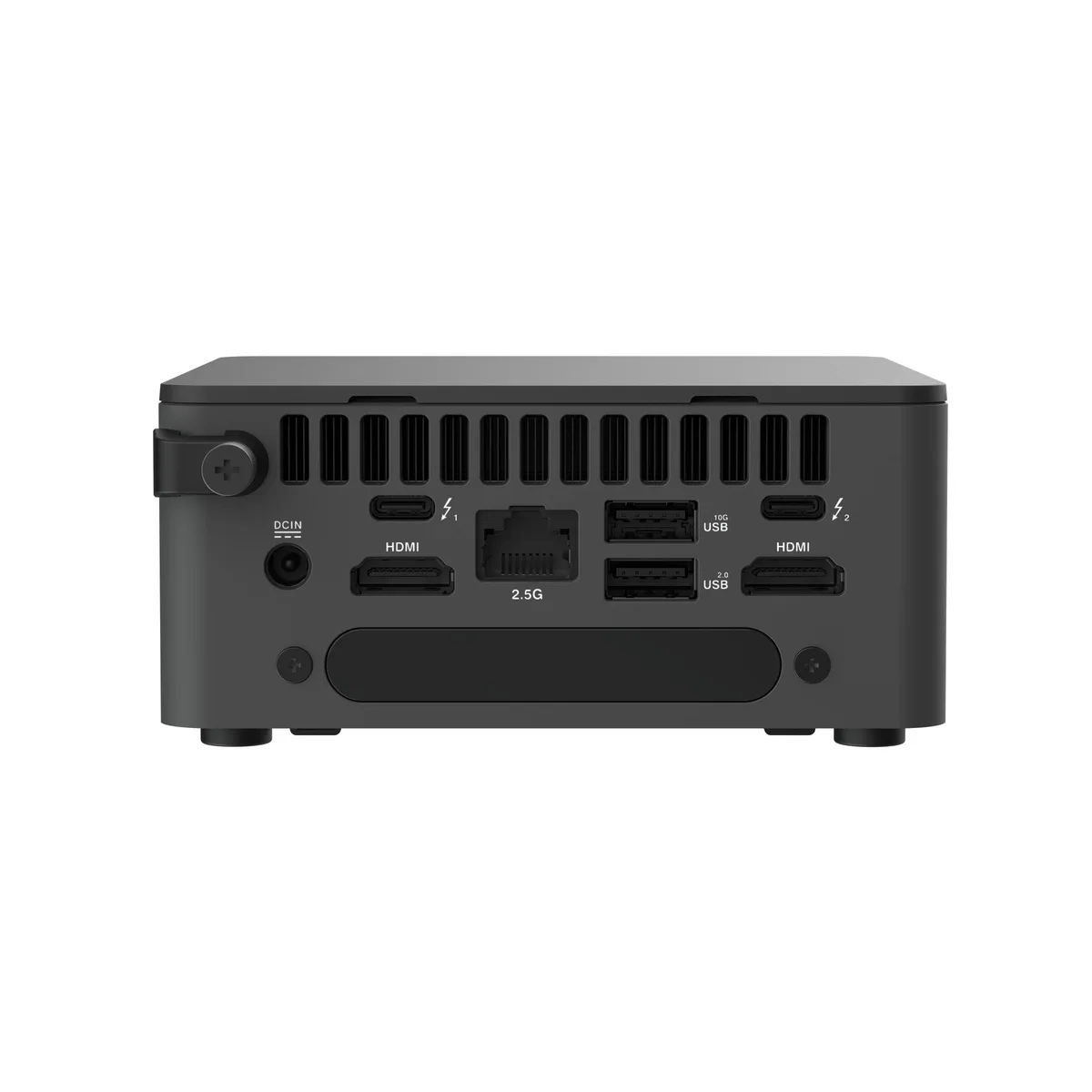

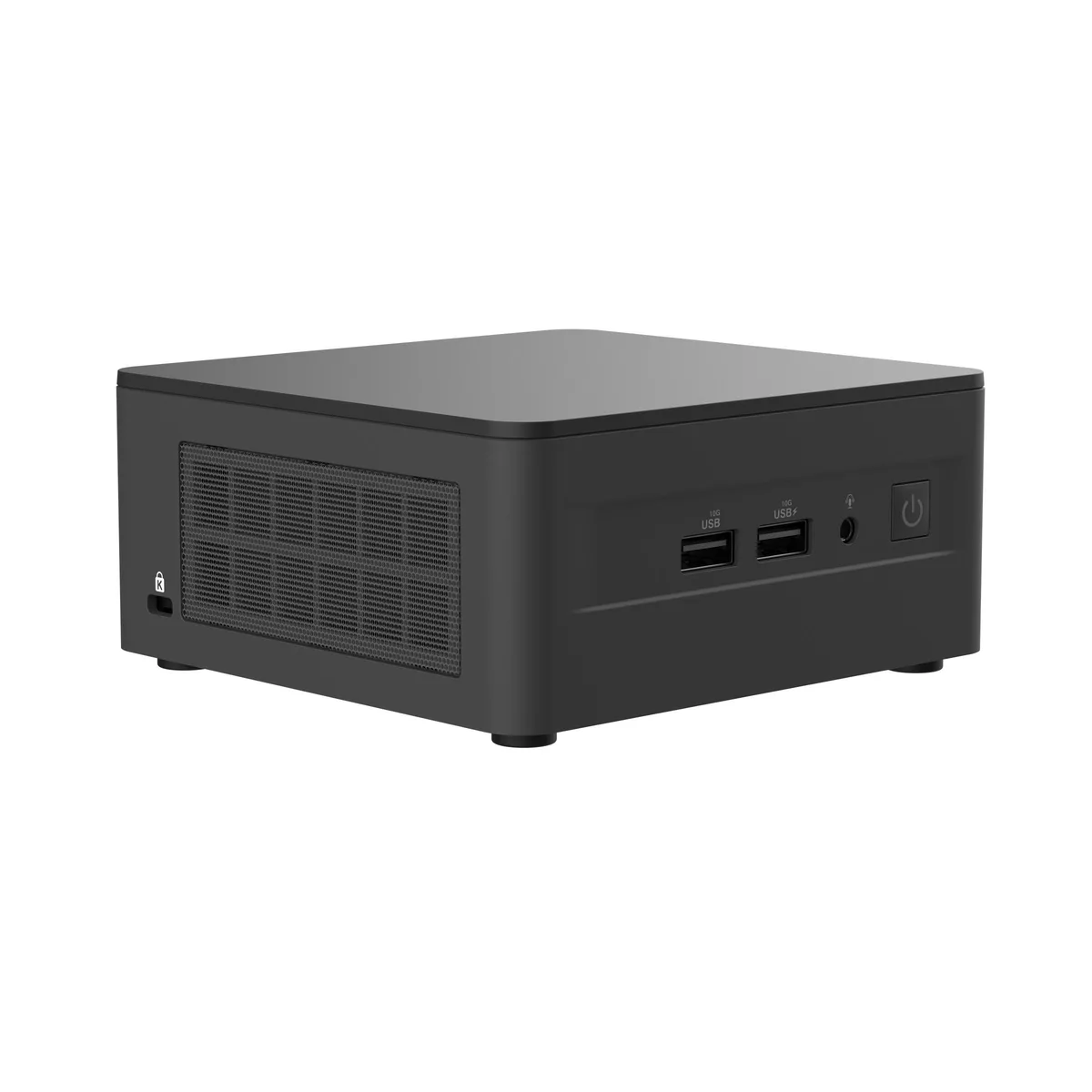

Small square mini PC, tall matte black chassis

ASUS

ASUS NUC 13 Pro RNUC13ANHi5000U Core i5-1340P barebone mini PC

SKU CH-9FZA-D1E7V MPN RNUC13ANHi5000U

Barebone mini PC with a 13th Gen Intel Core i5-1340P, dual DDR4-3200 SO-DIMM slots supporting 64 GB, M.2 NVMe and SATA drive bays, Intel Iris Xe graphics, 2.5 GbE, Wi-Fi 6E AX211, Bluetooth 5.3.

  • Form FactorTall
  • CPU TypeIntel Core i5 13th Gen 1340P (P-core 4.60 GHz, E-core 3.40 G
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • 12 MB cache speeds up heavy workloads
  • 60 GHz max turbo handles demanding apps
  • 64 GB DDR4-3200 capacity future-proofs memory
  • 5 Gbps LAN plus Wi-Fi 6E keeps data moving
  • Thunderbolt 4 and dual HDMI 2.1 drive four displays

Business-ready barebone

The ASUS NUC 13 Pro RNUC13ANHi5000U is a tall mini PC barebone built around an Intel Core i5-1340P processor with 12 MB cache and peak clocks of 4.60 GHz on performance cores and 3.40 GHz on efficient cores. It targets businesses and integrators who want a compact, vPro-capable platform they can finish with their own memory, storage and operating system.

Upgrade from older NUC kits

This kit replaces earlier 4x4 barebones by adding 13th Gen Intel Core architecture, dual-channel DDR4-3200 SO-DIMM slots supporting up to 64 GB at 1.2 V, and three internal drive bays: one M.2 2280 PCIe Gen4x4 slot, one M.2 2242 PCIe Gen3 slot and one SATA 6.0 Gb/s connector. The jump is worthwhile when you need Thunderbolt 4, Wi-Fi 6E AX211 and 2.5 Gbps Ethernet in the same small footprint.

Sustained workload behaviour

The tall chassis provides extra internal volume for airflow, helping the i5-1340P maintain higher clocks during extended compile, render or virtualisation sessions. Dual HDMI 2.1 and dual DisplayPort 1.4a over USB-C drive up to four displays continuously, while Intel Iris Xe graphics handle hardware-accelerated encode and decode without throttling the CPU package.

Points forts

  • 12 MB cache speeds up heavy workloads
  • 60 GHz max turbo handles demanding apps
  • 64 GB DDR4-3200 capacity future-proofs memory
  • 5 Gbps LAN plus Wi-Fi 6E keeps data moving
  • Thunderbolt 4 and dual HDMI 2.1 drive four displays

Caractéristiques

BrandASUS
SeriesNUC 13 Pro
ModelRNUC13ANHi5000U
Form FactorTall
CPU TypeIntel Core i5 13th Gen 1340P (P-core 4.60 GHz, E-core 3.40 GHz)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 TMDS
DisplayPort2 x DisplayPort 1.4a via Type C
Rear USB2 x USB 4 (type C)
1 x USB 3.2
1 x USB 2.0
RJ451x RJ45 (2.5Gb Ethernet)
Internal Connectors1 x USB 3.2 on m.2 22x42 (pins), 2 x USB 2.0 (headers)
Dimensions4.61" x 4.41" x 2.13"

Questions sur cet article

What size SO-DIMM slots does the 260-pin layout accept?

The board has two 260-pin SO-DIMM slots for DDR4 3200 laptop memory up to 64 GB total.

How do I add the first NVMe drive to the M.2 2280 slot?

Insert the 2280 NVMe SSD into the key-M slot, press it flat, and secure it with the retention screw.

Which drive will I likely replace first as capacity needs grow?

The single M.2 2280 NVMe SSD is the primary boot drive and the first candidate for a larger replacement.
