Black tall mini PC barebone with front USB-C and Type-A ports

ASUS

ASUS NUC 15 Pro RNUC15CRHV50000U barebone mini PC Core Ultra 5 235H 96 GB DDR5

SKU CH-BMDR-VTRPJ MPN RNUC15CRHV50000U

Barebone mini PC with Intel Core Ultra 5 235H, supporting up to 96 GB DDR5, dual M.2 NVMe slots, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gb Ethernet

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core Ultra 5 235H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
  • Intel Core Ultra 5 235H processor powers demanding workloads
  • DDR5-5600 MHz memory support up to 96 GB total capacity
  • Dual M.2 slots ready for NVMe storage expansion
  • Wi-Fi 7 and Bluetooth 5.4 deliver modern wireless connectivity
  • 5 Gigabit Ethernet port provides high-speed wired networking

ASUS NUC 15 Pro Barebone for Compact Builds

This ASUS NUC 15 Pro barebone mini PC arrives with an Intel Core Ultra 5 235H processor and integrated Intel Arc 140T graphics in a tall black chassis. It targets builders who want a small-footprint system for productivity or light creative work and who prefer to choose their own memory and storage. The platform supports Windows 11 Pro, Ubuntu 24.04 LTS x64 and Red Hat Enterprise Linux x64.

Check Memory Type and M.2 Sizes Before Ordering

The unit ships without RAM or drives. It provides two 262-pin SO-DIMM slots accepting DDR5-5600 or CSO-DIMM DDR5-6400 modules up to a total of 96 GB. Storage uses one M.2 2280 slot and one M.2 2242 slot, both PCIe Gen4x4 and PCIe Gen 5 ready. Verify your selected modules match these exact form factors and speeds.

Sustained Operation with 90 W Processor

The Core Ultra 5 235H runs at a 90 W base power level while the included 120 W power supply feeds the system. This headroom lets the CPU and Arc graphics maintain performance during extended workloads without hitting a strict power ceiling. Thermal design in the 4.61 by 4.41 by 2.13 inch enclosure manages heat over long sessions.

Points forts

  • Intel Core Ultra 5 235H processor powers demanding workloads
  • DDR5-5600 MHz memory support up to 96 GB total capacity
  • Dual M.2 slots ready for NVMe storage expansion
  • Wi-Fi 7 and Bluetooth 5.4 deliver modern wireless connectivity
  • 5 Gigabit Ethernet port provides high-speed wired networking

Caractéristiques

BrandASUS
SeriesNUC 15 Pro
ModelRNUC15CRHV50000U
Part Number90AR00Q2-M001W0
ColorBlack
Form FactorTall
CPU TypeIntel Core Ultra 5 235H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD* (empty)
1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty)
*PCIe Gen 5 ready
Integrated GraphicsIntel Arc 140T Graphics
LANIntel i226-LM
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4

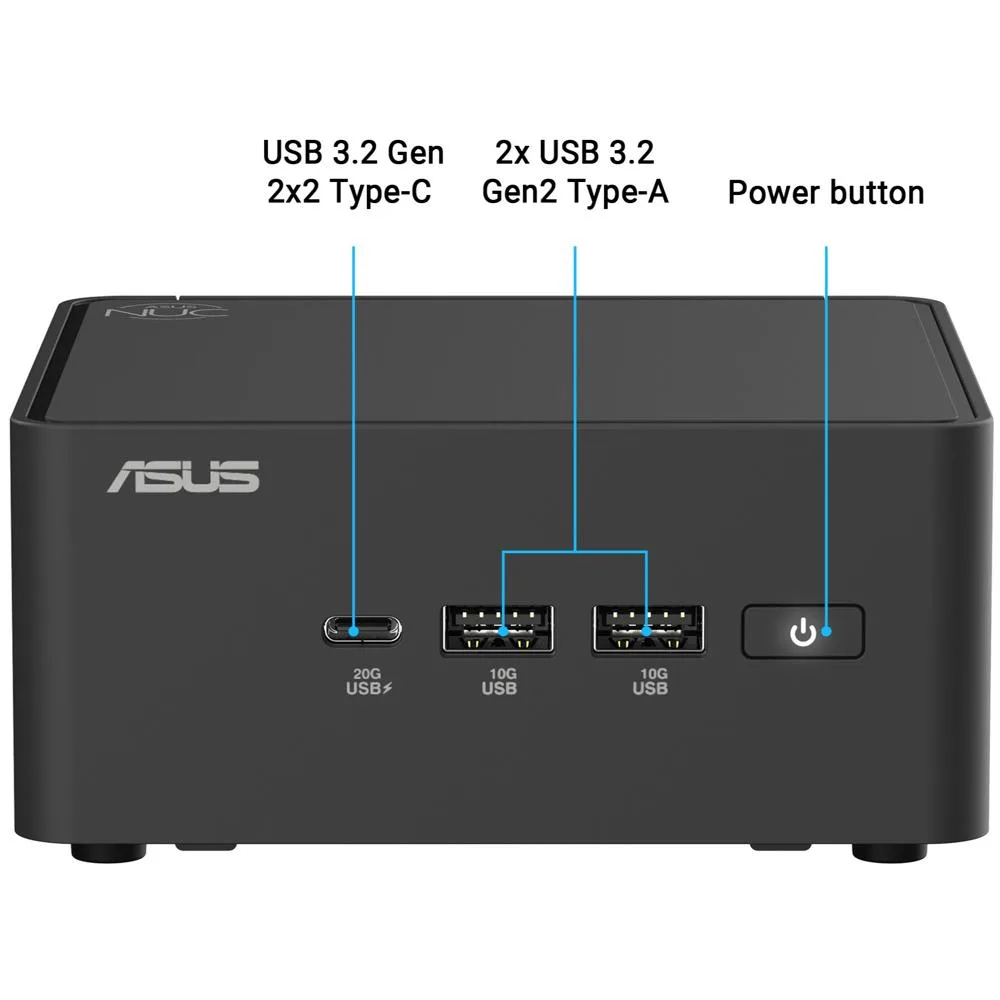

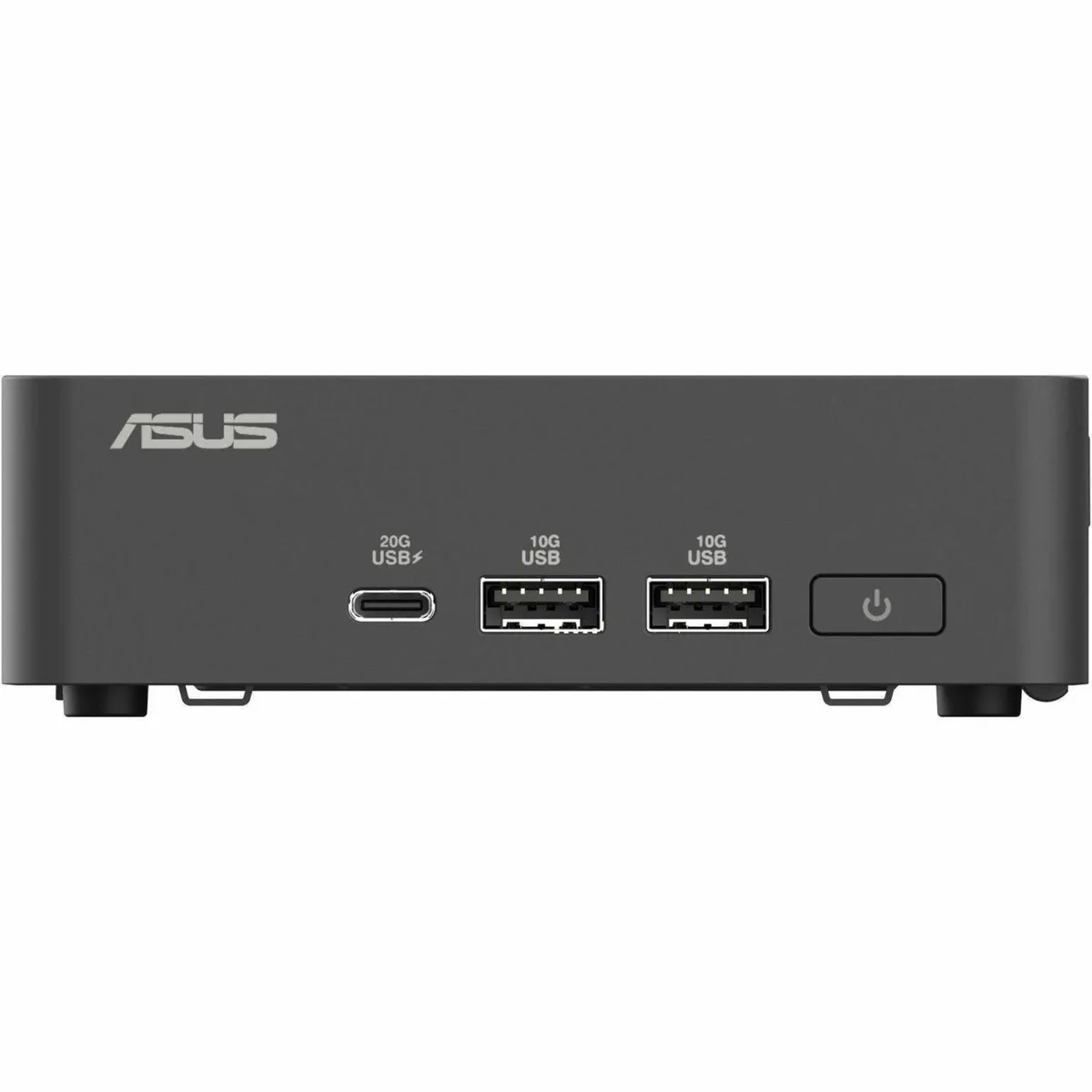

Front USB1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)

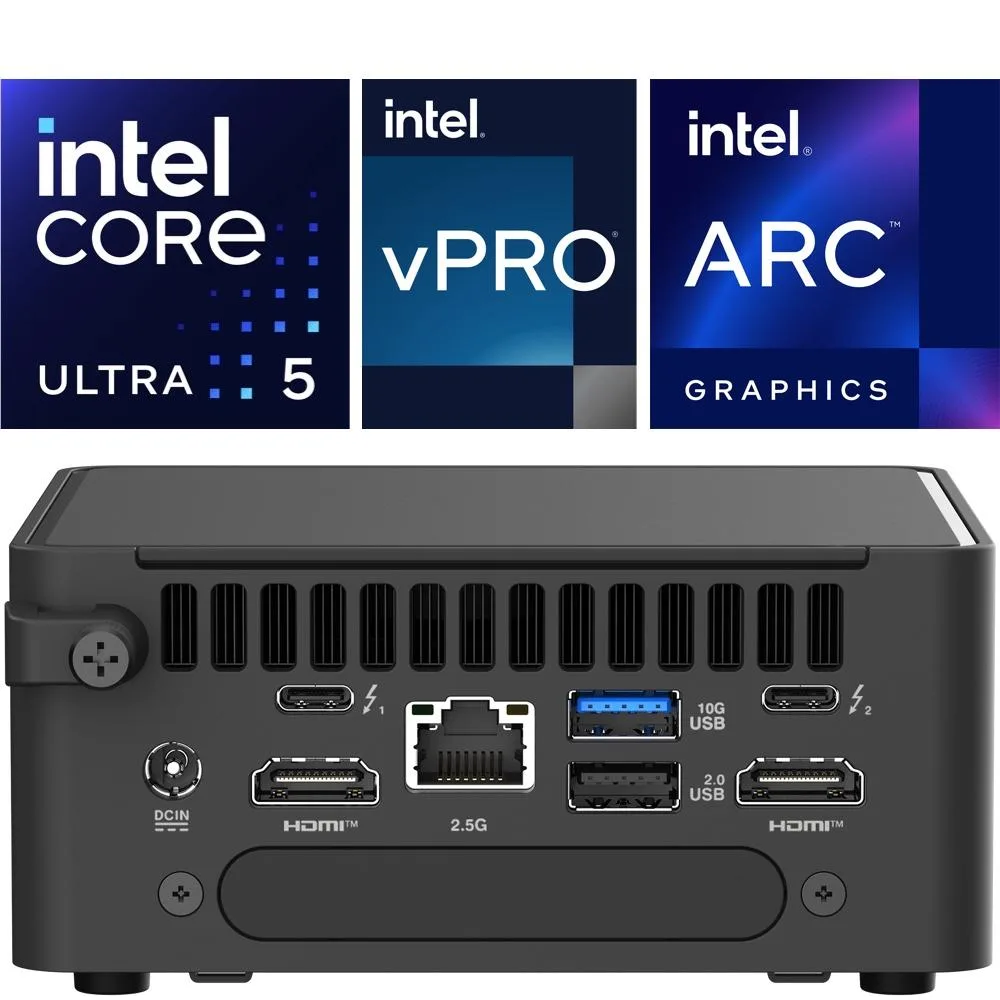

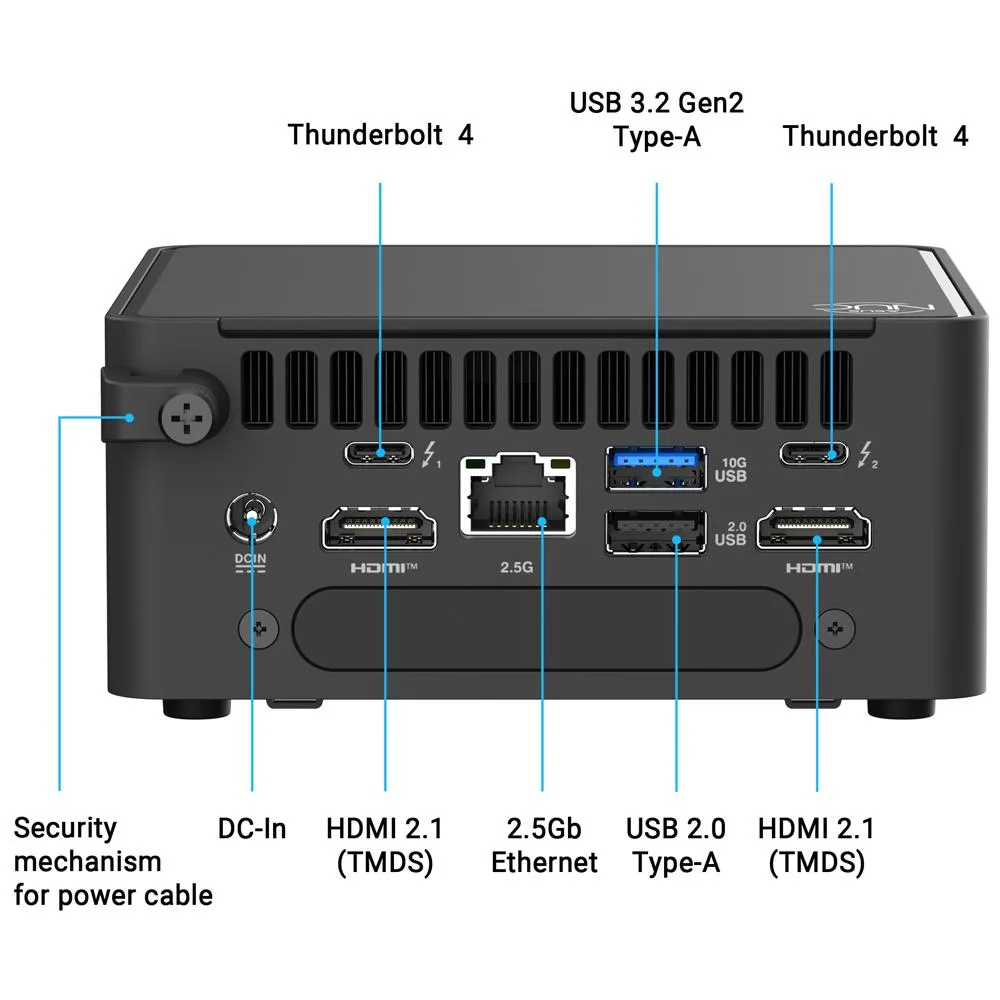

Thunderbolt2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451
Power Supply120W
Dimensions4.61" x 4.41" x 2.13"
Weight0.8 lb.
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Poids d’expédition1.38 kg
Dimensions du colis183 × 151 × 127 mm

Questions sur cet article

Does the barebone come with RAM or an SSD, and what must I add?

The unit ships with no memory and no storage installed. You need to add up to 96 GB of DDR5-5600 SO-DIMM or DDR5-6400 CSO-DIMM across the two 262-pin slots, plus one M.2 2280 NVMe drive and one M.2 2242 NVMe drive.

Which DDR5 modules should I choose for the two slots to reach the 96 GB limit?

Install two 48 GB modules of SO-DIMM DDR5-5600 or CSO-DIMM DDR5-6400 to hit the 96 GB maximum supported by the Core Ultra 5 235H.

What does the Arc 140T graphics label mean for display output on this NUC?

The integrated Arc 140T GPU drives two HDMI 2.1 ports at up to 4K 60 Hz and two Thunderbolt 4 ports with DisplayPort 2.1, supporting up to four simultaneous displays.
