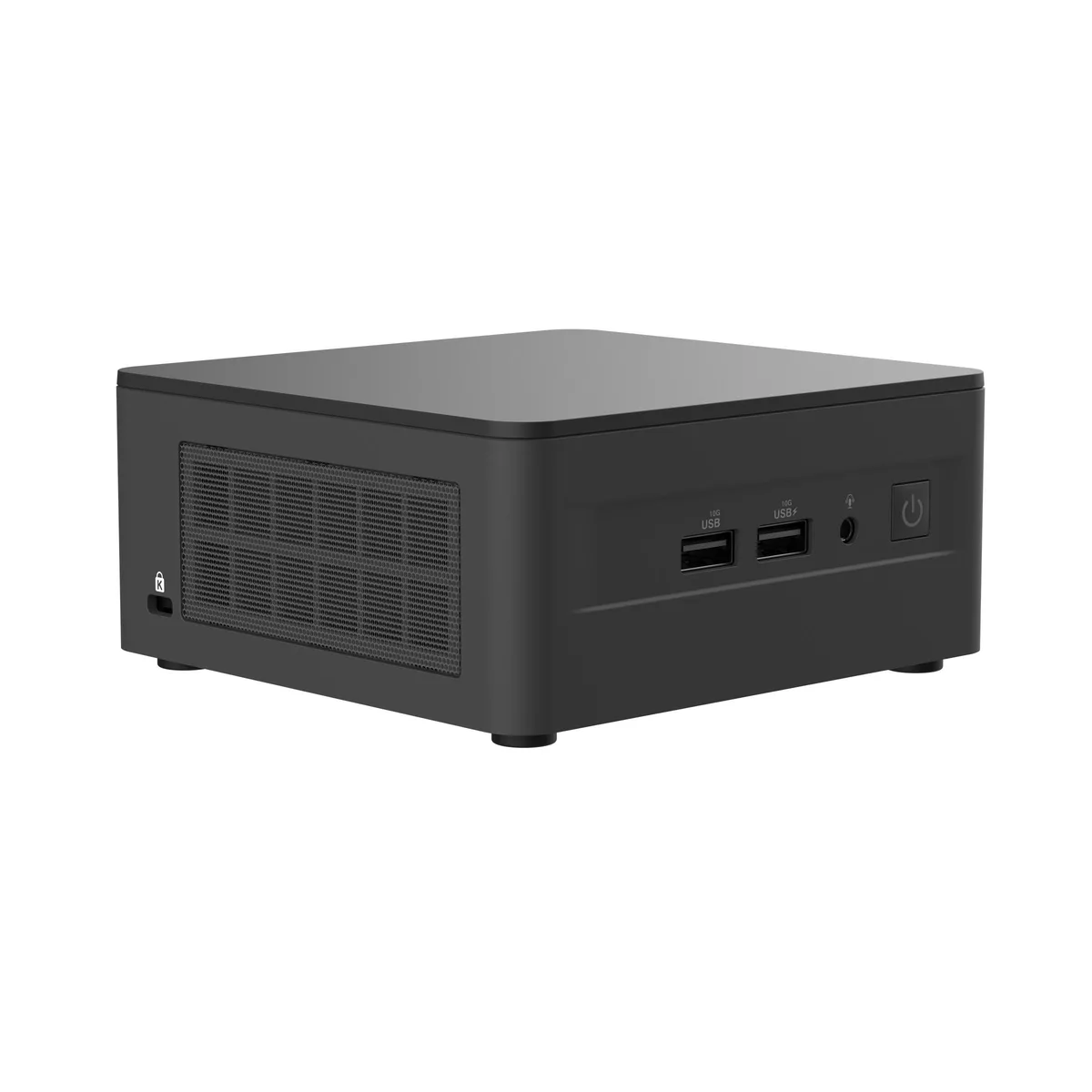

Small square black mini PC on a plain background

ASUS

ASUS NUC13ANHi5 barebone mini PC, i5-1340P, 64GB DDR4, 2TB

SKU CH-8VBN-1BED2 MPN NUC13ANHi5

Compact barebone mini PC with a 13th Gen Intel Core i5-1340P processor, 64GB DDR4 memory and 2TB storage installed

  • Integrated GraphicsIntel Iris Xe Graphics
  • Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
  • BluetoothBluetooth 5.3
  • LANIntel® Ethernet Controller i226-V
  • Max LAN Speed2.5Gbps
  • HDMI2 x HDMI 2.1 (TMDS)
  • 12-core i5-1340P powers demanding workloads up to 4.5GHz
  • 64GB DDR4-3200 dual-channel memory handles heavy multitasking
  • 2TB pre-installed storage plus SATA and M.2 expansion
  • Intel Iris Xe 96EU graphics drives multiple 4K displays
  • 5GbE LAN Wi-Fi 6E and Thunderbolt 4 connectivity

Compact Business Mini PC

The ASUS NUC13ANHi5 barebone mini PC is a 4x4 form-factor system aimed at commercial deployments that need manageable, space-efficient computing. It ships with a 13th Gen Intel Core i5-1340P processor, 64GB of DDR4-3200 memory and a 2TB SATA drive already installed, so it can enter service immediately.

64GB DDR4-3200 Memory Ceiling

The platform tops out at 64GB across two SO-DIMM slots running in dual-channel mode, and this unit already reaches that limit. Buyers who want more storage than the single 2.5-inch SATA bay and one M.2 slot provide should look elsewhere.

Sustained Iris Xe Graphics Output

Intel Iris Xe Graphics with 96 execution units runs at a 1.50GHz dynamic frequency, delivering steady frame rates for digital-signage loops and multi-monitor productivity without the thermal throttling seen in shorter bursts. The 2.5GbE LAN, Wi-Fi 6E AX211 and dual Thunderbolt 4 ports keep data flowing during extended sessions.

Points forts

  • 12-core i5-1340P powers demanding workloads up to 4.5GHz
  • 64GB DDR4-3200 dual-channel memory handles heavy multitasking
  • 2TB pre-installed storage plus SATA and M.2 expansion
  • Intel Iris Xe 96EU graphics drives multiple 4K displays
  • 5GbE LAN Wi-Fi 6E and Thunderbolt 4 connectivity

Caractéristiques

BrandASUS
SeriesArena Canyon
ModelNUC13ANHi5
Integrated GraphicsIntel Iris Xe Graphics
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
BluetoothBluetooth 5.3
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
HDMI2 x HDMI 2.1 (TMDS)
Thunderbolt2 x Thunderbolt 4 Type-C
Rear USB1 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ451 x RJ45 LAN
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Memory installed64GB
Serial ATA1 x Support 128GB~2TB 2.5" SATA SSD/HDD Port
Storage Installed2T
M.2 Slot1 x M.2
CPU TypeIntel Core i5 13th Gen
Onboard AudioIntegrated
ChannelRealtek ALC269
Front USB2 x USB 3.2 Gen2 Type-A
Front Audio Ports1 x 3.5mm Headset Jack
Other Front Ports1 x Kensington Lock
Input20VDC, 6.0A
Power Supply120W
Dimensions117 x 112 x 54 [mm] (LxWxH)
Weight610g
PackagingOriginal packaging

Questions sur cet article

What does the 12-core i5-1340P running up to 4.5GHz actually deliver inside this 4x4 chassis?

The 12-core 13th Gen Intel Core i5-1340P reaches 4.5GHz boost across 16 threads with 12MB Smart Cache, giving desktop-class responsiveness for productivity, content creation and light gaming while staying within the NUC 13 Pro thermal envelope.

What real-world throughput does the dual Thunderbolt 4 and 2.5GbE LAN combination cap at?

Two Thunderbolt 4 Type-C ports each provide 40Gbps bidirectional bandwidth for displays, storage and docks, while the Intel i226-V controller drives the single RJ45 port to a full 2.5Gbps wired link.

Which physical slots and bays are free for adding storage or memory after the 64GB DDR4 and 2TB are installed?

Both SO-DIMM slots are already populated with 64GB DDR4 3200, the single M.2 slot is occupied by the 2TB drive, and one 2.5-inch SATA bay remains open for an additional 128GB to 2TB SATA SSD or HDD.
