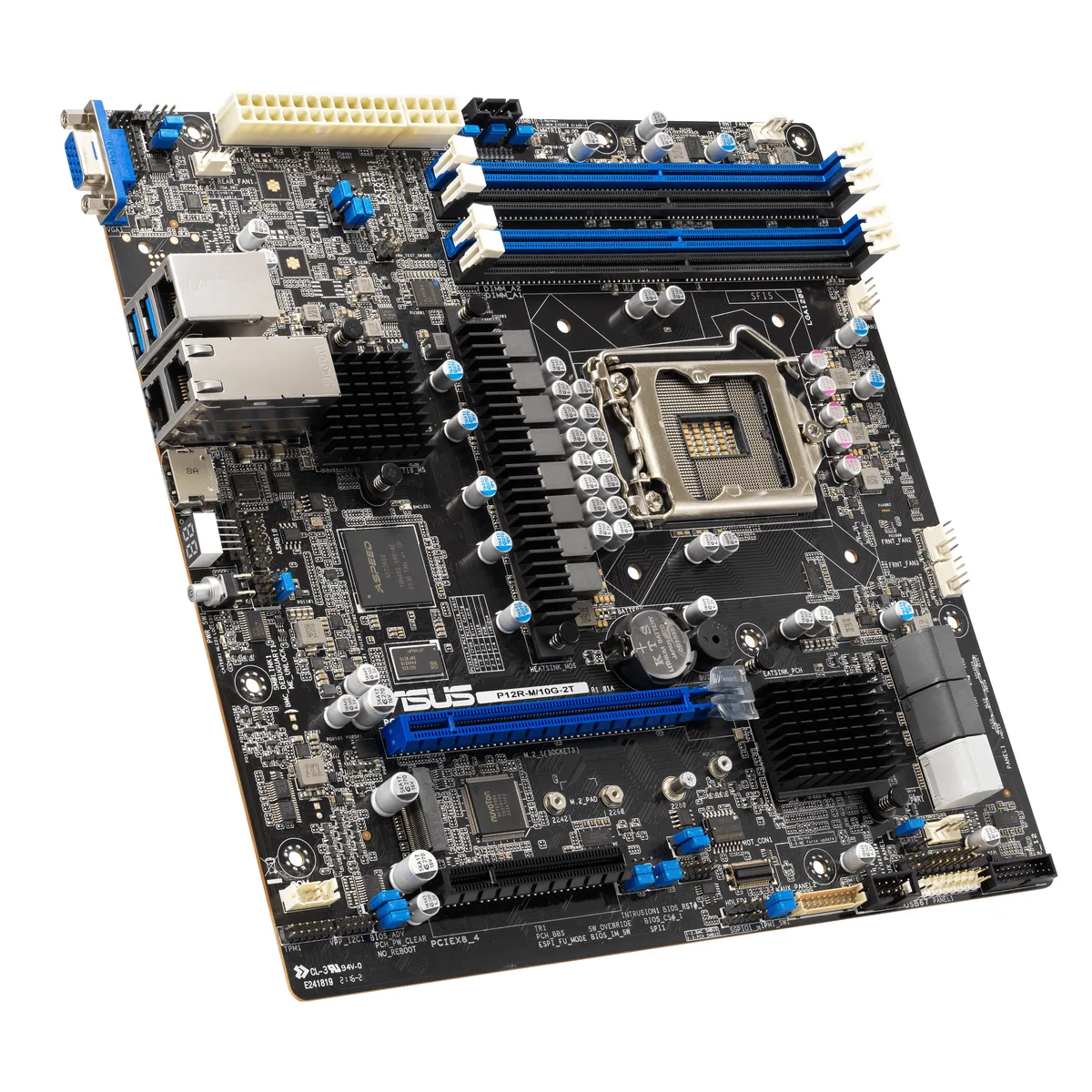

uATX server motherboard with LGA 1200 socket, four DDR4 slots, dual 10GbE LAN, HDMI, VGA, USB ports

ASUS

ASUS P12R-M/10G-2T server motherboard LGA 1200 10GbE uATX

SKU CH-1BG8-H0PM9 MPN P12R-M/10G-2T

uATX server board with dual 10 GbE LAN, four DDR4 3200 slots up to 128 GB, six SATA 6.0 Gb/s ports with RAID, and PCI Express 4.0 expansion

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports Intel Pentium / Xeon E processors
  • North BridgeIntel C252
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 3200
  • Maximum Memory Supported128GB
  • Dual 10 GbE LAN for high-speed networking
  • Supports up to 128 GB DDR4 3200 memory
  • PCI Express 4.0 x16 slot for fast expansion
  • Integrated ASMB10-iKVM with AST2600 for remote management
  • Hardware root-of-trust FPGA protects firmware integrity

Server Motherboard with Dual 10GbE

The ASUS P12R-M/10G-2T is a uATX server motherboard built for LGA 1200 processors. It supports Intel Pentium and Xeon E processors up to 95 W TDP with the Intel C252 chipset. Four DDR4 3200 slots provide dual-channel memory up to 128 GB. Dual 10 GbE LAN ports and a dedicated management LAN handle heavy network traffic.

Best for ROBO and Small Business

This board suits remote offices and everyday business servers that need high-speed networking and out-of-band management. The ASPEED AST2600 controller enables ASMB10-iKVM for remote monitoring. Builders who require more than two PCIe slots or a different CPU socket should look at other platforms.

LGA 1200 Socket Decides Compatibility

The processor socket is the single specification that determines whether this motherboard fits your build. It accepts only LGA 1200 Pentium or Xeon E CPUs. No other socket type will work with this board.

Points forts

  • Dual 10 GbE LAN for high-speed networking
  • Supports up to 128 GB DDR4 3200 memory
  • PCI Express 4.0 x16 slot for fast expansion
  • Integrated ASMB10-iKVM with AST2600 for remote management
  • Hardware root-of-trust FPGA protects firmware integrity

Caractéristiques

BrandASUS
ModelP12R-M/10G-2T
CPU Socket TypeLGA 1200
CPU TypeSupports Intel Pentium / Xeon E processors
North BridgeIntel C252
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x16Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
PCI Express x8Slot Location 4 : PCI-E x8 (Gen4 X4 Link)
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Back I/O Ports2 x USB 3.2 Gen 2
1 x VGA Port
1 x HDMI Port
2 x 10 GbE LAN + 1 x Mgmt LAN
Other Connectors1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
2 x USB3.2 Gen2 ports
1 x USB3.2 Gen1 header
1 x USB 2.0 pin header
6 x Fan Header, 4pin
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port Header
1 x M.2 Connector
1 x VGA Header
1 x Onboard header for optional management card
Form FactoruATX
Dimensions (W x L)9.6" x 9.6"
Poids d’expédition1.36 kg
Dimensions du colis305 × 305 × 127 mm

Questions sur cet article

How can I confirm the ASMB10-iKVM out-of-band management is responding after first power-on?

Connect the dedicated Mgmt LAN port, browse to its IP address, and log in to the ASMB10-iKVM web interface; the dashboard should display sensor readings and remote-console access.

Which cables and modules are not included with the motherboard and must be sourced separately?

The board ships with the I/O shield; you must add DDR4 3200 ECC UDIMMs, an LGA 1200 Xeon E or Pentium CPU, 24-pin and 8-pin ATX power cables, SATA data cables, and any M.2 or PCIe 4.0 add-in cards.

Which memory capacity should I choose for a dual-channel configuration that reaches the 128 GB maximum?

Populate all four 288-pin slots with 32 GB DDR4 3200 ECC UDIMMs to run dual-channel at the full 128 GB limit supported by the C252 chipset.
