Black slim barebone mini PC with VESA mount

ASUS

ASUS PN54-S1-BB7000ETL barebone mini PC, Ryzen 7 260, Radeon 780M

SKU CH-XFGH-18HQP MPN PN54-S1-BB7000ETL

Barebone mini PC with 8-core AMD Ryzen 7 260 CPU, Radeon 780M graphics, dual 2.5GbE LAN, WiFi 7 and Bluetooth 5.4, supporting DDR5 memory and dual NVMe SSDs

  • ColorBlack
  • Form FactorSlim
  • AI FeaturesAI Ready
  • CPU TypeAMD Ryzen 7 260
  • CPU Cores8-Core
  • Memory slot2 x 262Pin SO-DIMM

Type AMD Ryzen 7 260

  • Powerful multitasking with 8-core AMD Ryzen 7 260 processor
  • Integrated Radeon 780M graphics drives up to four 4K displays
  • WiFi 7 and Bluetooth 5.4 deliver up to 5.7 Gbps wireless speed
  • Dual 2.5 GbE LAN ports for high-speed wired networking
  • Tool-free chassis enables quick memory and storage upgrades

Barebone Mini PC for Commercial Workspaces

The ASUS ExpertCenter PN54-S1-BB7000ETL is a slim barebone mini PC built around an AMD Ryzen 7 260 processor with eight cores. It integrates AMD Radeon 780M graphics and supports up to four 4K displays for digital signage or multi-monitor productivity. The 34 mm chassis includes a VESA mount and is rated for 24/7 operation. Tool-free access simplifies the installation of memory and storage.

Suits IT Teams Deploying Managed Endpoints

This unit suits organisations that need compact, fanless-class reliability with modern connectivity including dual 2.5 GbE LAN, Wi-Fi 7 and Bluetooth 5.4. Front USB 3.2 Gen2 Type-C delivers 10 Gbps and 5 V/3 A power for peripherals. Buyers who require discrete graphics performance or legacy COM ports should evaluate alternative form factors. The barebone state also means an operating system licence must be sourced separately.

Configure with DDR5 5600 SO-DIMMs and PCIe Gen4 NVMe

Two 262-pin SO-DIMM slots accept DDR5 5600 memory while dual M.2 2280 slots support PCIe Gen4x4 NVMe SSDs from 256 GB to 2 TB each. Selecting compatible modules and drives is the single step that determines whether the system meets your capacity and throughput targets.

Points forts

  • Powerful multitasking with 8-core AMD Ryzen 7 260 processor
  • Integrated Radeon 780M graphics drives up to four 4K displays
  • WiFi 7 and Bluetooth 5.4 deliver up to 5.7 Gbps wireless speed
  • Dual 2.5 GbE LAN ports for high-speed wired networking
  • Tool-free chassis enables quick memory and storage upgrades

Caractéristiques

BrandASUS
SeriesExpertCenter
ModelPN54-S1-BB7000ETL
Part Number90MR01D2-M001E0
ColorBlack
Form FactorSlim
AI FeaturesAI Ready
CPU TypeAMD Ryzen 7 260
CPU Cores8-Core
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
M.2 Slot2 x M.2 2280 PCIe Gen4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsAMD Radeon 780M
LAN2 x Realtek RTL8125B-CG (2.5 GbE)
Max LAN Speed2.5Gbps
Wireless LANMediatek MT7925B22M, Wi-Fi 7, 2x2
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4

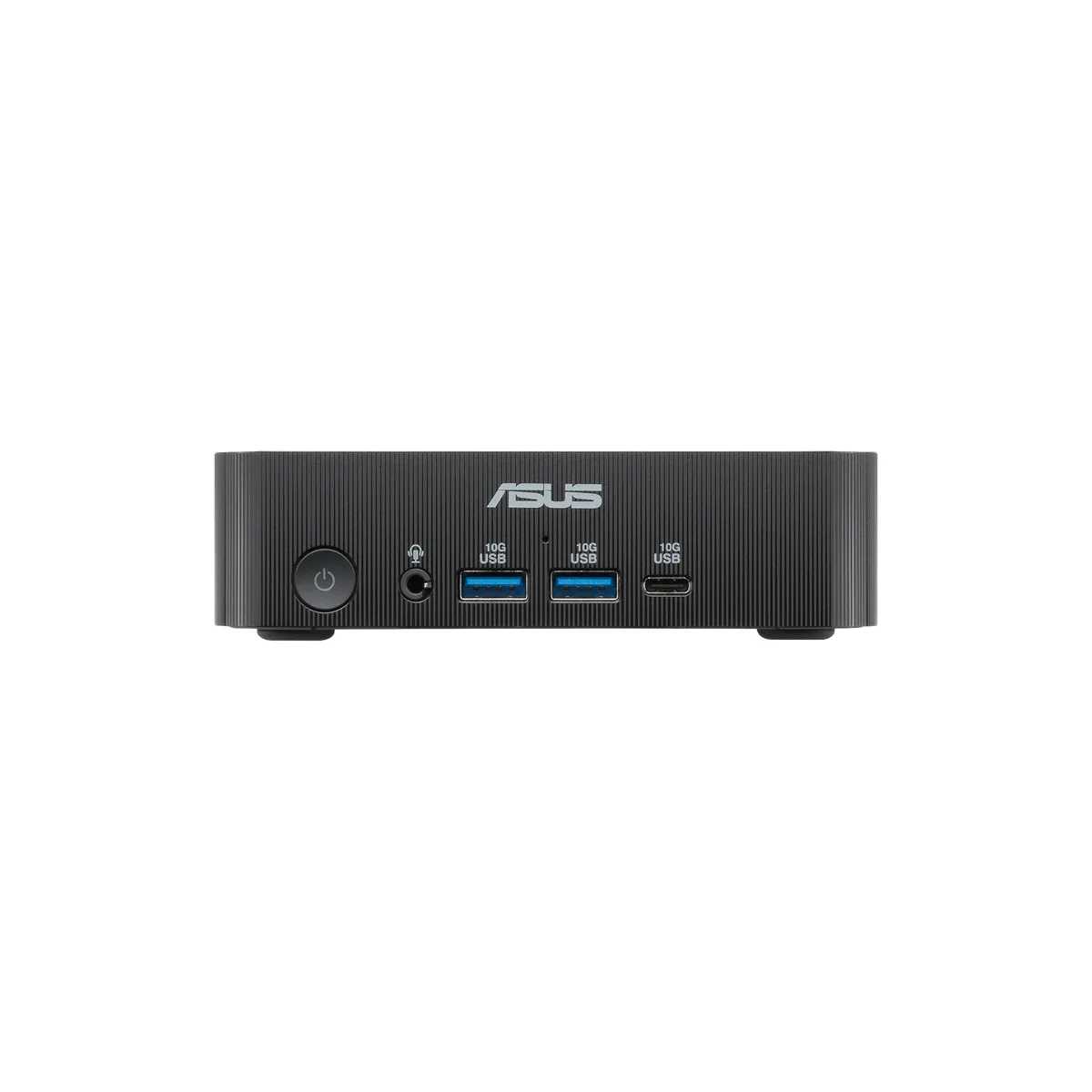

Front USB1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI1 x HDMI 2.1 (up to 4K@60Hz)
DisplayPort2 x DisplayPort 1.4

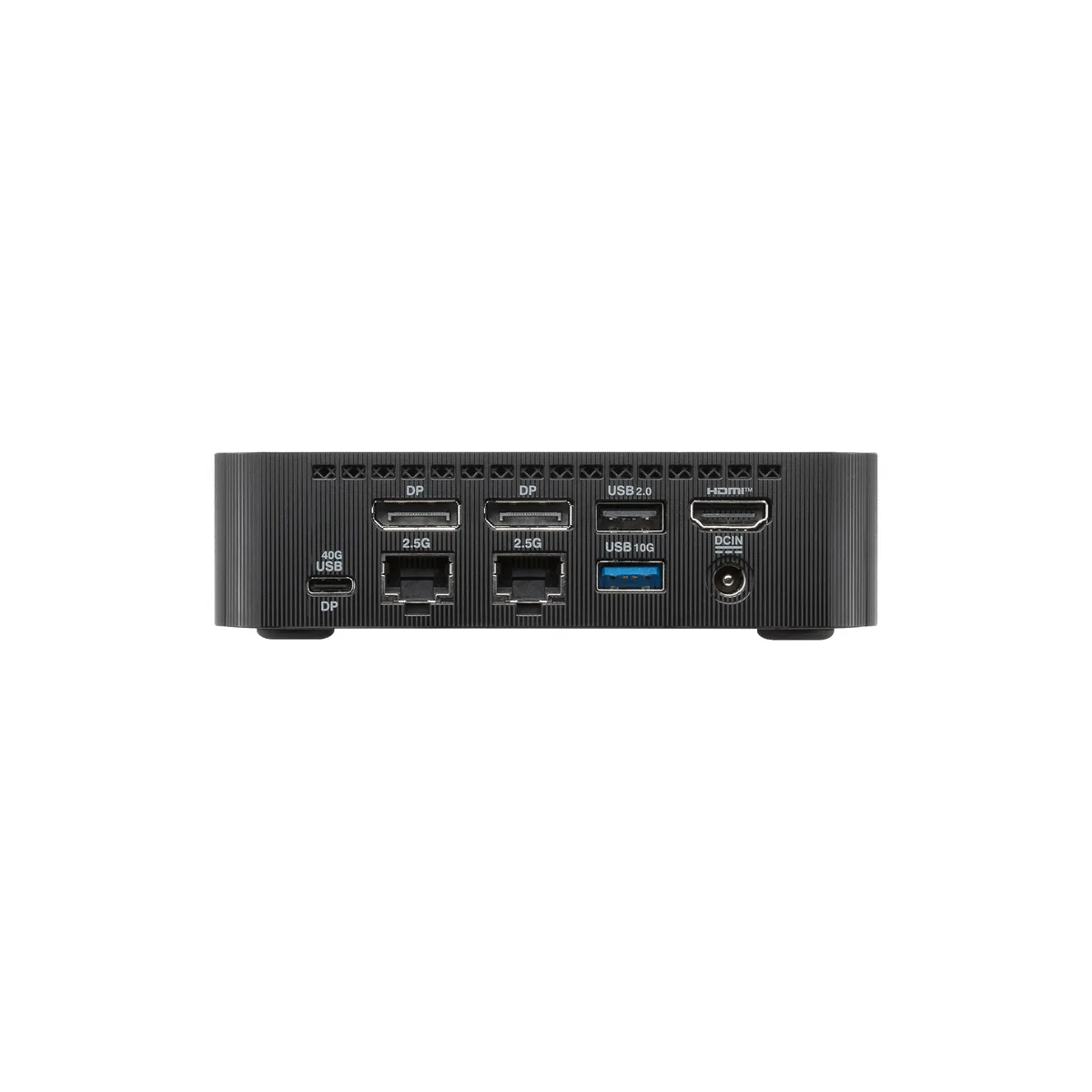

Rear USB1 x USB 4.0 Type-C (with DP1.4/PD-in*, 5V/3A, 40Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 (5V/0.5A)
RJ452 x Realtek 2.5G LAN (RJ45)
Other Rear Ports1 x DC-in
1 x Kensington Lock Slot (Side)
Power Supply120W Power Adapter
Dimensions1.34" x 5.12" x 5.12" (0.6L)
Weight1.21 lbs.
FeaturesTPM: dTPM 2.0 (Hardware)
Internal Speaker: Yes
PackagingVESA Mount / AC Power Adapter / Power Cord
Poids d’expédition1.59 kg
Dimensions du colis188 × 157 × 127 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much space does the 34 mm slim chassis need for VESA mounting?

The 34 mm slim chassis includes a VESA mount bracket for attachment to a monitor or wall; allow clearance for the bracket depth and rear-facing ports.

Which memory modules does the tool-free chassis accept for a DIY upgrade?

Insert two DDR5 5600 SO-DIMMs into the 262-pin slots; the tool-free cover slides off without screws for quick access.

What storage drives can be added later through the M.2 slots?

Two M.2 2280 PCIe Gen4x4 NVMe SSDs from 256 GB to 2 TB are supported for future capacity increases.
