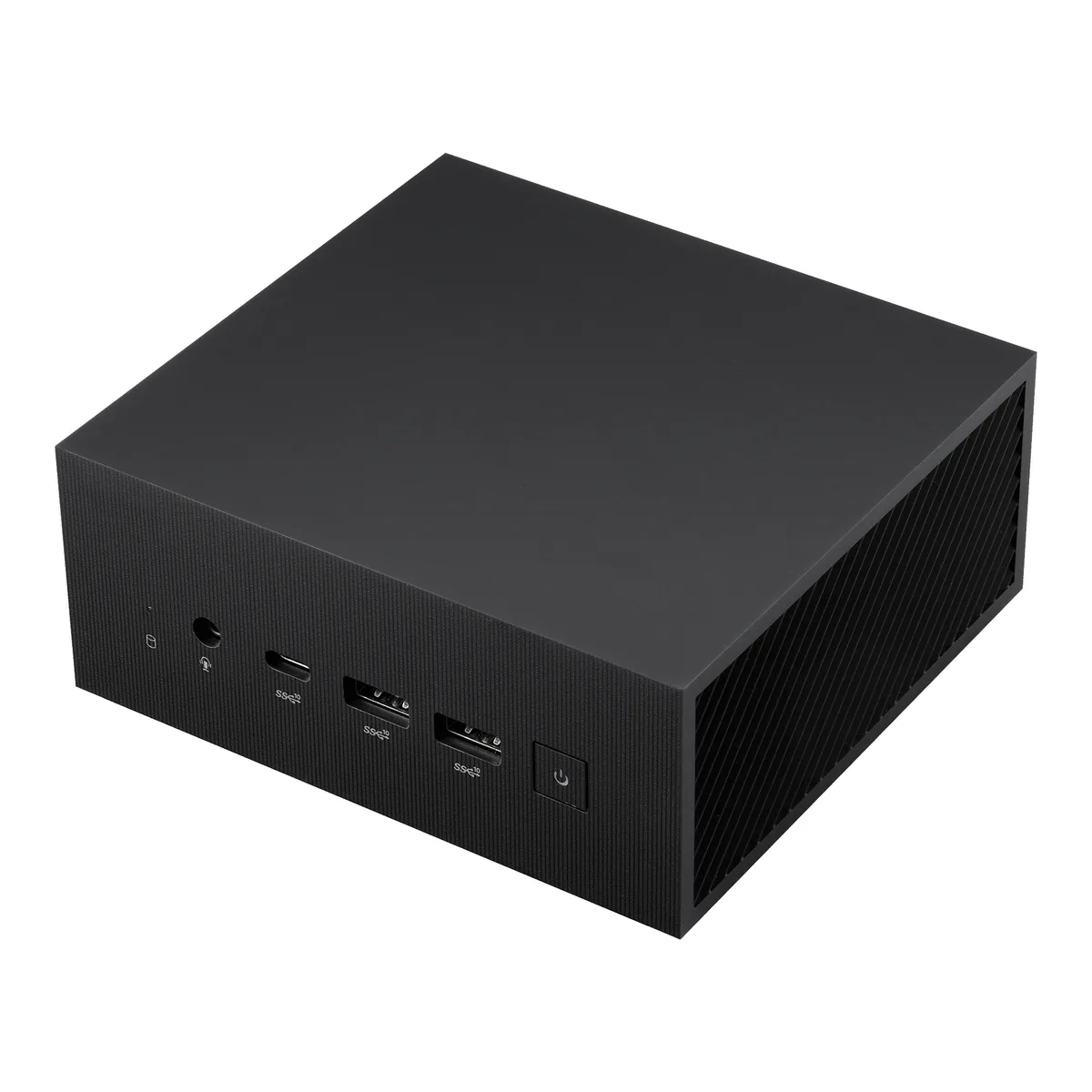

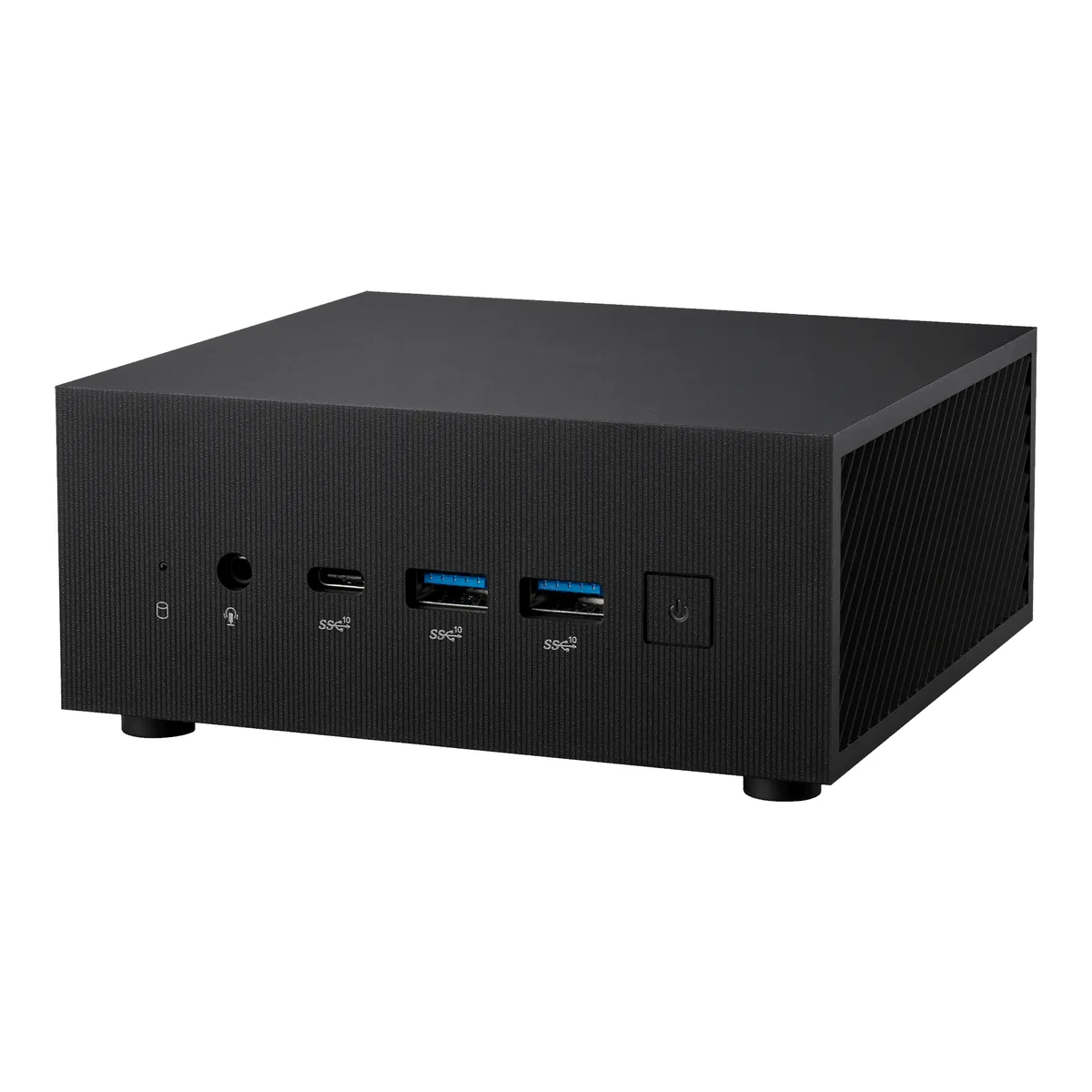

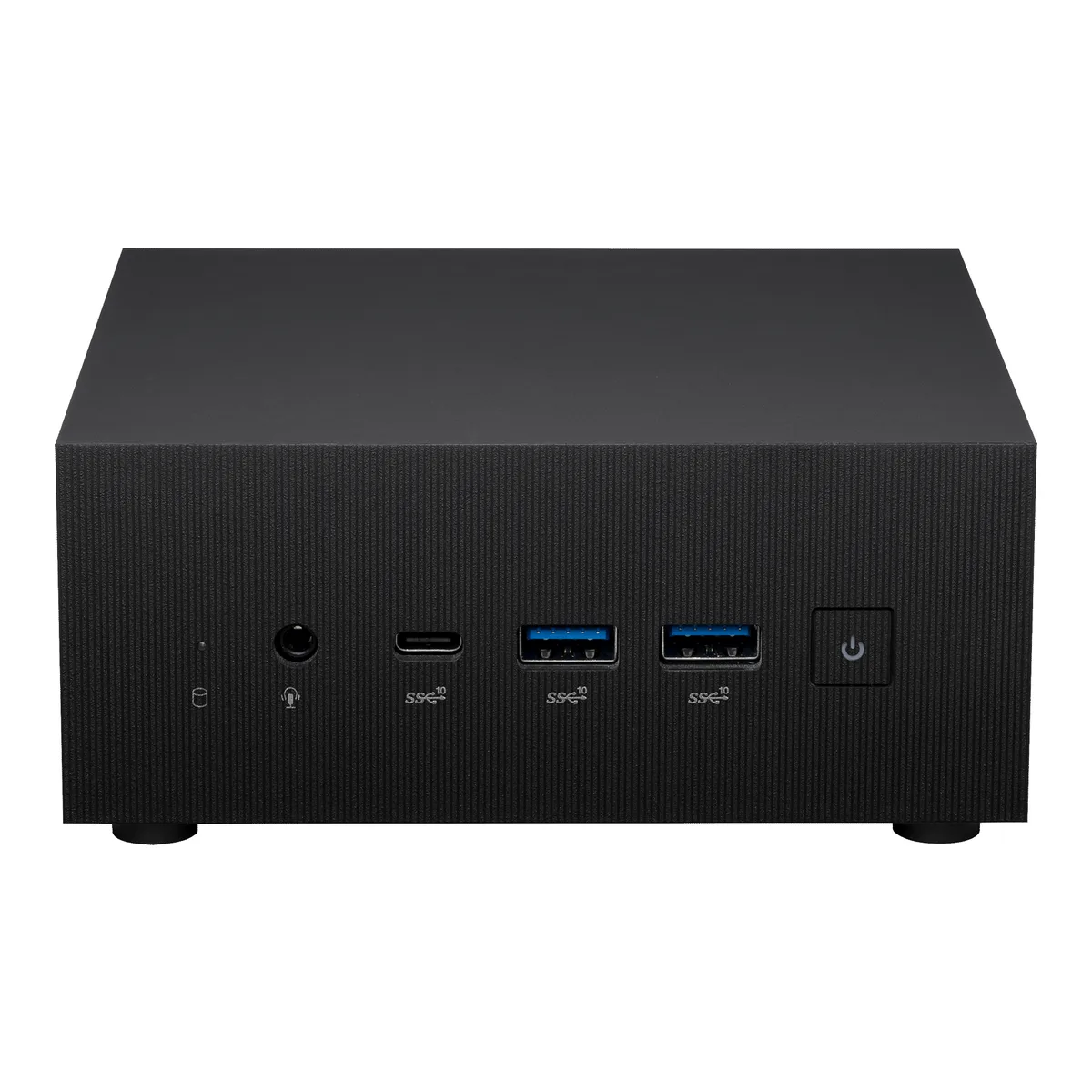

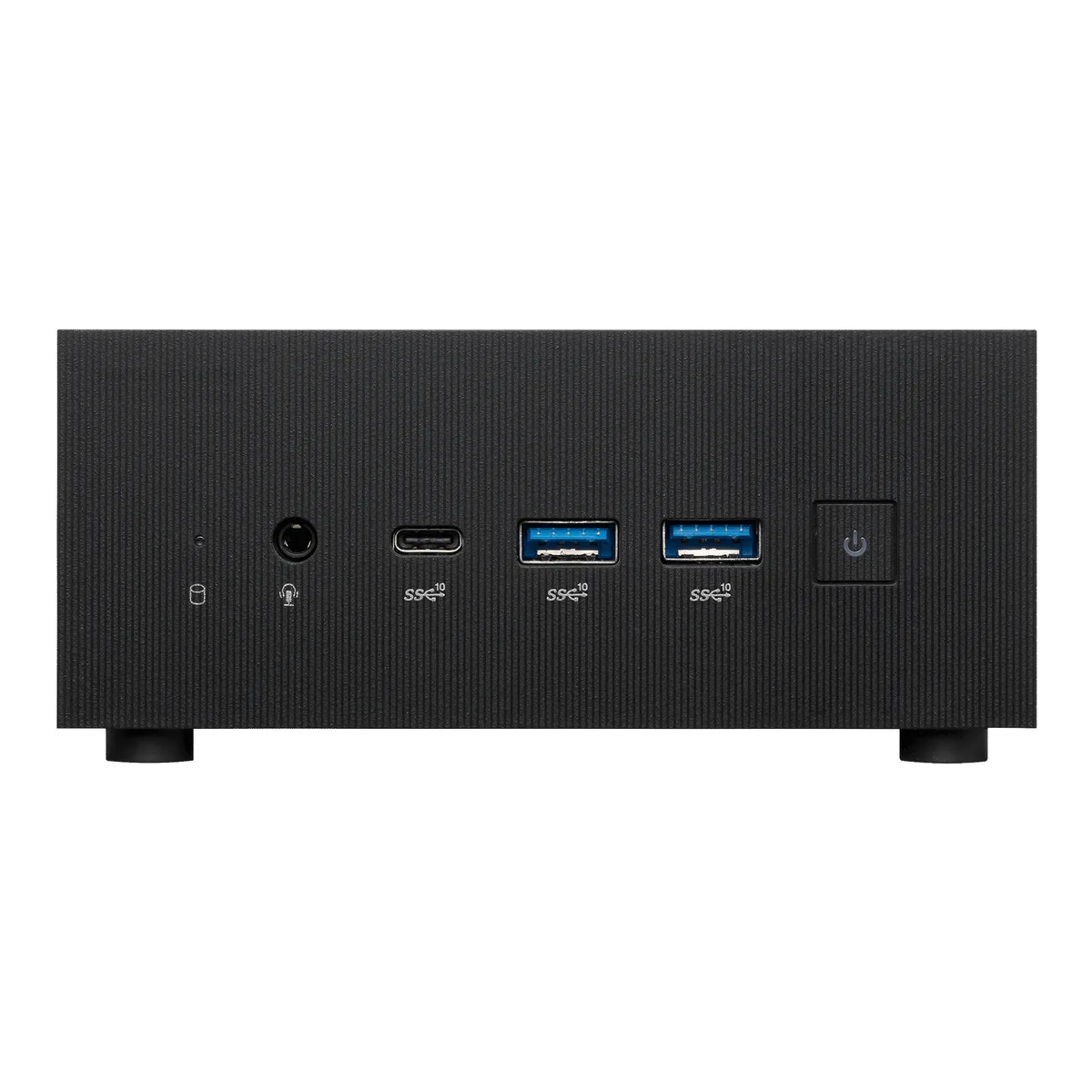

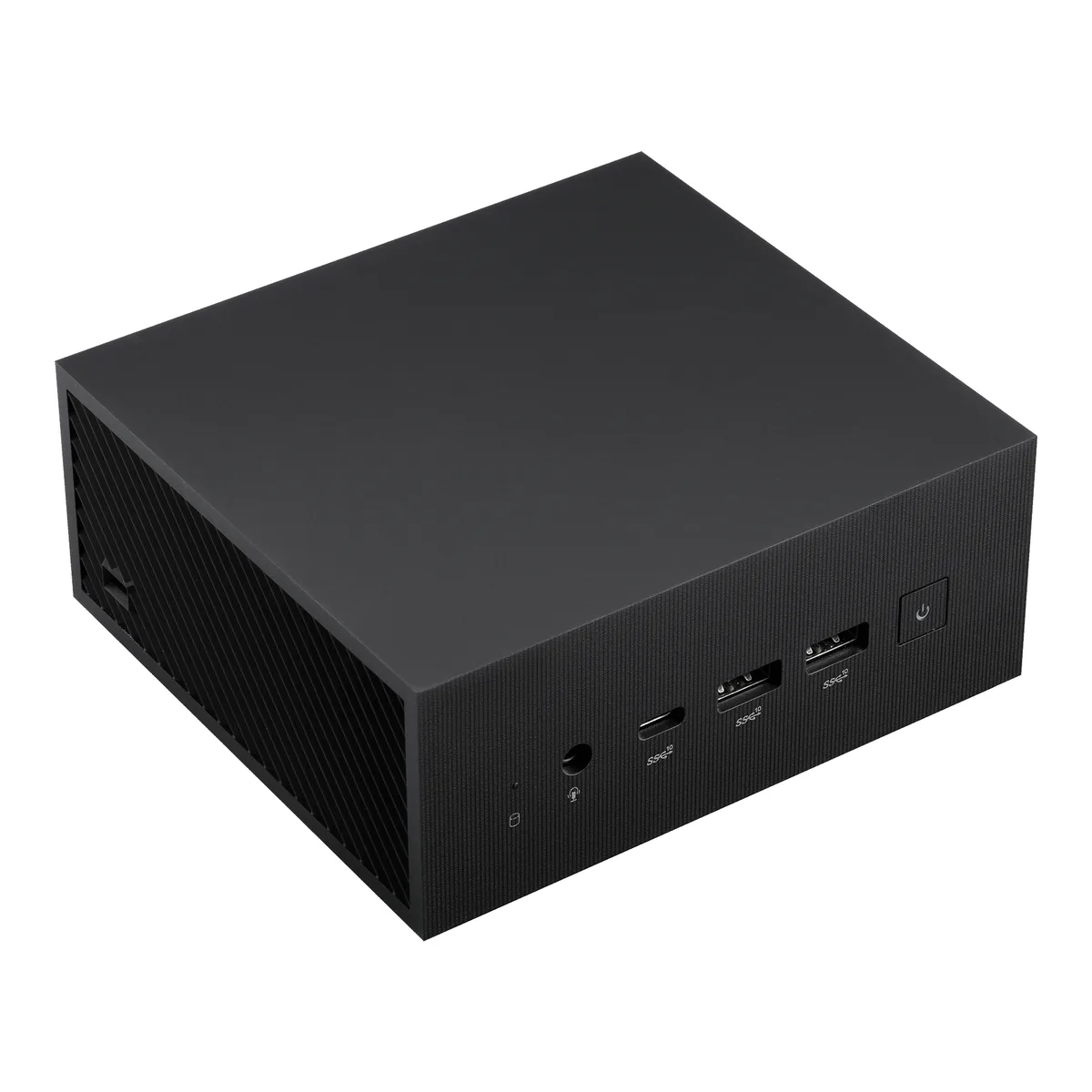

Small black square mini PC barebone unit with compact form factor

ASUS

ASUS PN64-BB7000X1TDR-NL barebone mini PC i7-13700H DDR5 64GB

SKU CH-ZZRX-N3W48 MPN PN64-BB7000X1TDR-NL

A barebone mini PC with a 13th Gen Intel Core i7-13700H, dual DDR5 SO-DIMM slots supporting 64 GB, one PCIe Gen4 M.2 slot and a 2.5-inch SATA bay, Intel Iris Xe graphics driving four 4K displays.

  • ColorBlack
  • CPU TypeIntel Core i7-13700H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 4800
  • Max Memory Supported64GB
  • 13th gen Intel Core i7-13700H up to 5.0GHz for demanding workloads
  • Quad 4K display support via dual HDMI 2.0, DisplayPort and USB-C DP Alt Mode
  • Dual storage with PCIe Gen4x4 M.2 and 2.5-inch SATA bay
  • Wi-Fi 6E and Bluetooth 5.2 for fast wireless connectivity
  • Two-Way AI Noise Cancellation for clear online voice communication

ASUS PN64 barebone for i7-13700H builds

This barebone mini PC ships with an Intel Core i7-13700H processor and supports up to 64GB of DDR5 4800 memory across two SO-DIMM slots. It targets system integrators and IT buyers who need a compact desktop platform without pre-installed RAM or storage.

Sustained load on Iris Xe graphics and dual storage

The Intel Iris Xe graphics drive up to four 4K displays at 60Hz through two HDMI 2.0 ports, one DisplayPort 1.4 over USB-C and one USB-C with DP Alt Mode. A single M.2 2280 PCIe G4x4 slot accepts NVMe SSDs from 256GB to 2TB alongside a 2.5-inch SATA bay for 7mm drives.

Tool-less access and common fitment issues

The chassis opens without tools for memory and storage installation, and a VESA mount is included for behind-monitor placement. Buyers who need discrete graphics or more than two memory channels cannot use this platform. The 10Gbps USB 3.2 Gen2 ports on both front and rear panels require compatible cables to reach rated speed.

Points forts

  • 13th gen Intel Core i7-13700H up to 5.0GHz for demanding workloads
  • Quad 4K display support via dual HDMI 2.0, DisplayPort and USB-C DP Alt Mode
  • Dual storage with PCIe Gen4x4 M.2 and 2.5-inch SATA bay
  • Wi-Fi 6E and Bluetooth 5.2 for fast wireless connectivity
  • Two-Way AI Noise Cancellation for clear online voice communication

Caractéristiques

BrandASUS
SeriesExpertCenter
ModelPN64-BB7000X1TDR-NL
Part Number90MR00U2-M005S0
ColorBlack
CPU TypeIntel Core i7-13700H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 4800
Max Memory Supported64GB
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe G4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i225V
Max LAN Speed2.5Gbps
Wireless LANIntel AX210 (Gig+)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s 7200rpm 7mm HDD (supports 1TB)
Front USB1 x USB 3.2 Gen2 Type-C (5V/3A, 10Gbps)
2 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x Audio Jack (Line out/Mic in/Headphone out)
HDMI2 x HDMI 2.0 (up to 4K@60Hz)
Rear USB1 x USB 3.2 Gen2 Type-C (with DP1.4/PD-in / 5V/3A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Configurable Port (DisplayPort 1.4)
1 x Padlock Ring
Power Supply120W Power Adapter
Dimensions4.72" x 5.12" x 2.28" (0.9L)
Weight1.65 lbs.
PackagingVESA Mount / AC Power Adapter / Power Cord
Poids d’expédition1.84 kg
Dimensions du colis502 × 349 × 108 mm

Questions sur cet article

How loud and hot does the i7-13700H get when the PN64 runs continuously?

The PN64 uses a compact active cooler rated for the i7-13700H 3.7-5.0 GHz range; sustained loads spin the fan higher but stay within Intel thermal limits for this chassis.

Which DDR5 SO-DIMMs and M.2 SSD must I supply to complete this barebone?

You need two 262-pin DDR5 4800 SO-DIMMs up to 64 GB total and one M.2 2280 PCIe Gen4 x4 NVMe SSD between 256 GB and 2 TB.

Will my SATA 6 Gb/s 2.5-inch HDD and HDMI 2.0 monitors work with the PN64's ports?

Yes, the PN64 provides one internal SATA 6.0 Gb/s bay for a 7 mm 2.5-inch drive and two HDMI 2.0 outputs supporting 4K at 60 Hz.
