ASUS

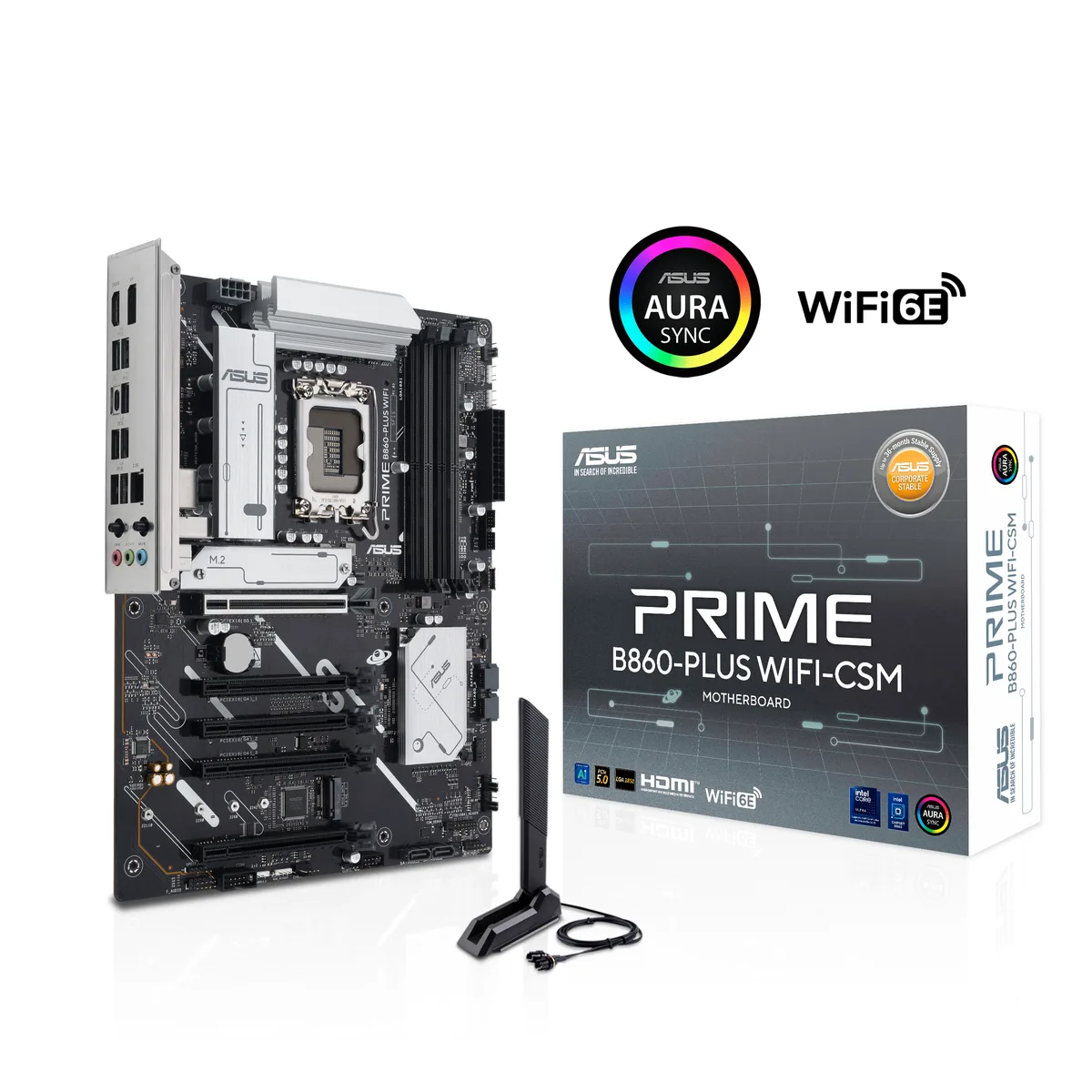

ASUS PRIME B860-PLUS WIFI-CSM Intel motherboard CSM
LGA 1851 ATX board for Intel Core Ultra Series 2 with DDR5 up to 8200 MT/s, PCIe 5.0 x16, dual M.2, WiFi 6E, 2.5 Gb Ethernet and USB 20 Gbps Type-C
- CPU Socket TypeLGA 1851
- CPU TypeIntel Core Ultra Processors (Series 2)
- ChipsetIntel B860
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardSupport up to 8200+MT/s (OC)
- Maximum Memory Supported256GB
- Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
- DDR5 memory up to 8200 MT/s across four slots with XMP 3.0
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 with heatsink for fast graphics and storage
- WiFi 6E and 2.5 Gb Ethernet plus Bluetooth 5.3 for high-speed networking
- ASUS Control Center Express and CSM program for enterprise IT management
Ready for Intel Core Ultra Series 2

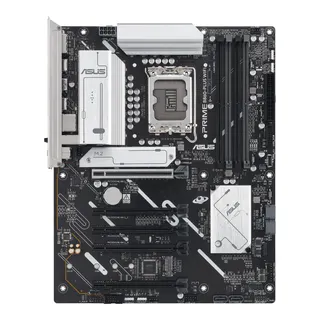

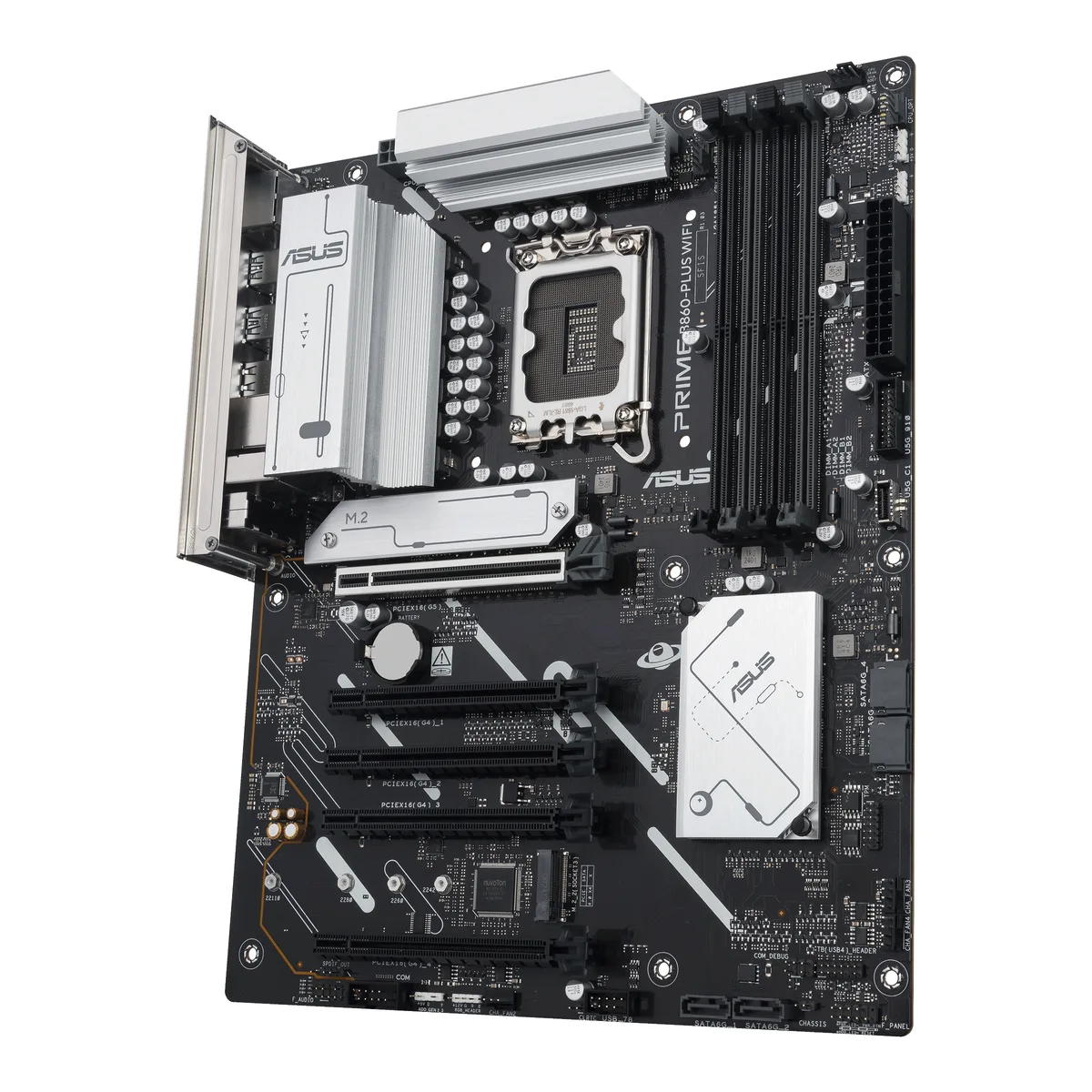

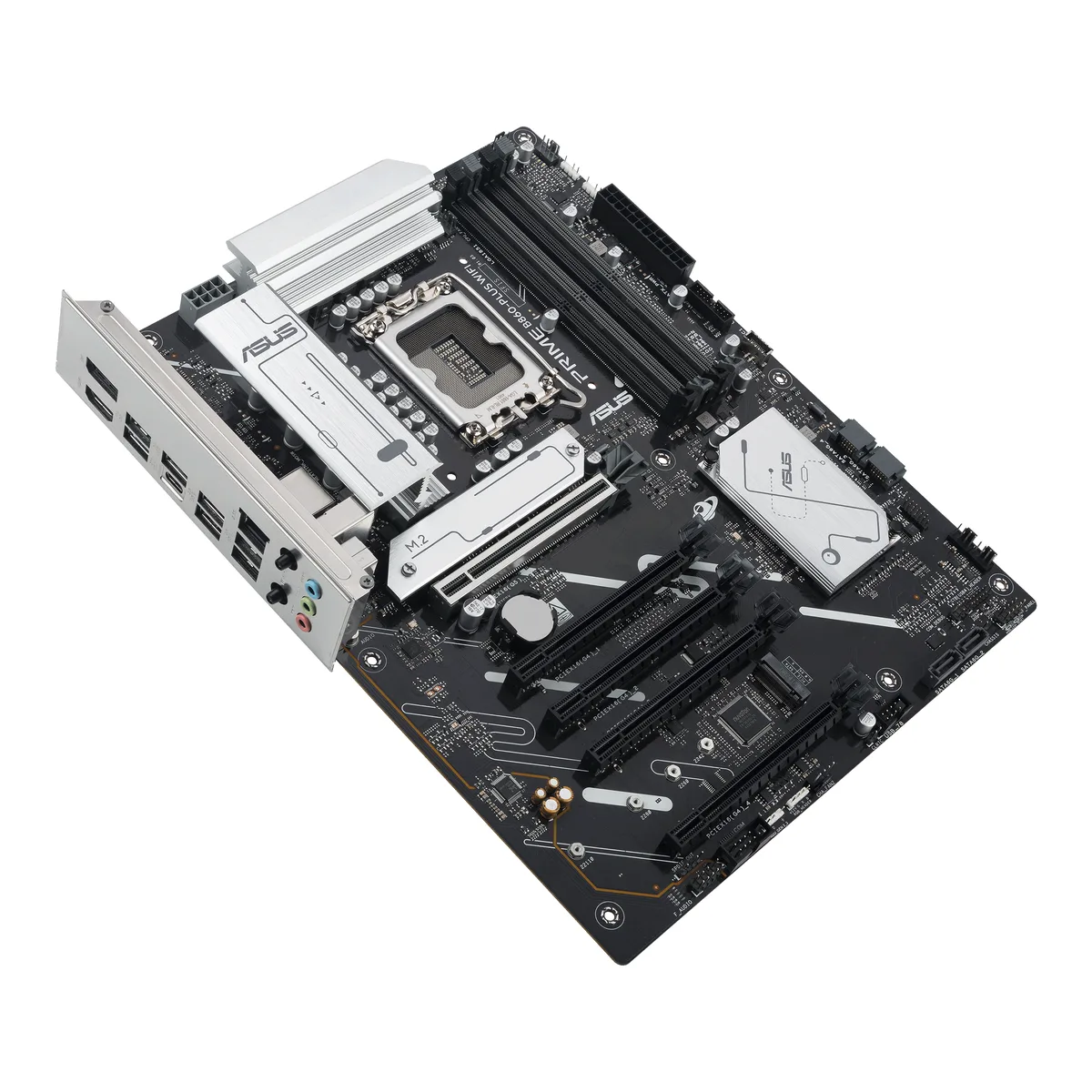

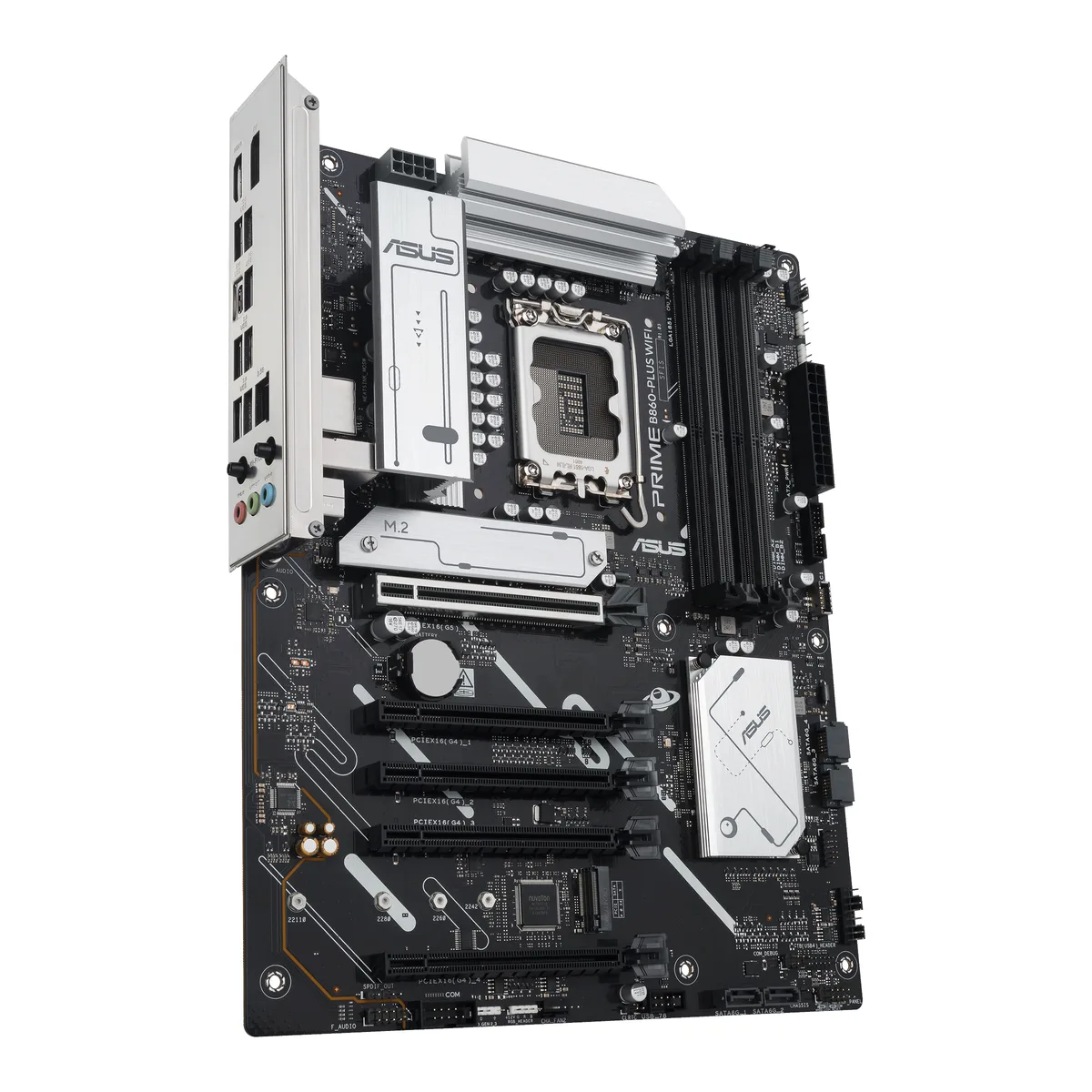

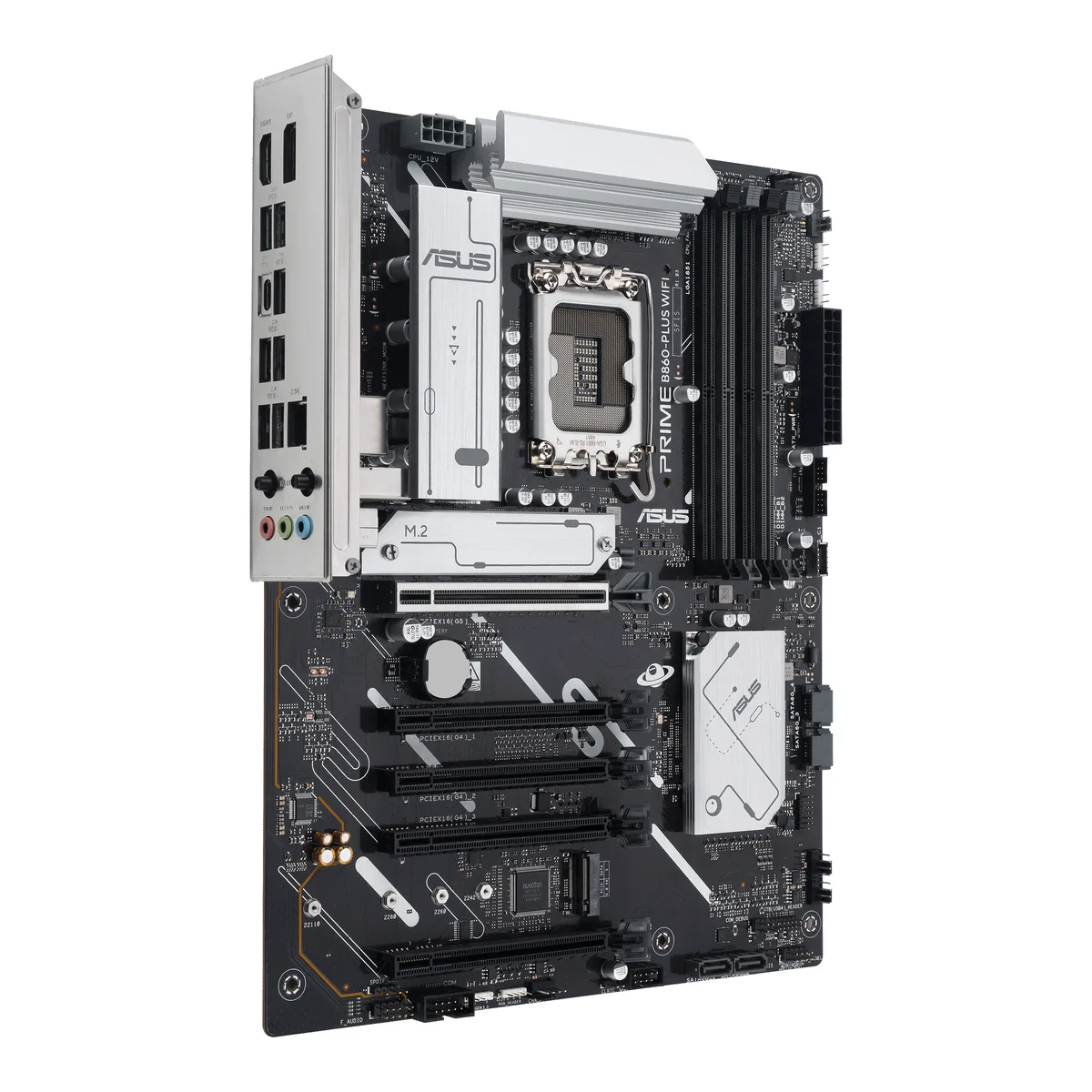

The ASUS PRIME B860-PLUS WIFI-CSM is an ATX motherboard built for the LGA 1851 socket and Intel Core Ultra Processors (Series 2). It targets system builders and IT departments that need a stable, long-life platform backed by the ASUS CSM programme. The board delivers robust power through 8+1+1+1 80A DrMOS stages and an 8-pin ProCool connector.
ASUS Control Center Express and CSM support
The bundled ASUS Control Center Express software provides integrated IT monitoring and remote management for enterprise administration. The CSM programme adds a stable motherboard supply chain, end-of-life notifications and validated longevity for business deployments. These tools reduce fleet overhead without adding hardware cost.
DDR5 up to 8200 MT/s and dual M.2 slots
Four DDR5 slots support up to 256 GB in dual-channel mode with Intel XMP 3.0 profiles reaching 8200+ MT/s when overclocked. Storage headroom comes from one PCIe 5.0 x4 M.2 slot (2242/2260/2280) with a heatsink and one PCIe 4.0 x4 M.2 slot (2242/2260/2280/22110). Four SATA 6Gb/s ports add further capacity.
Points forts
- Supports Intel Core Ultra Series 2 processors with LGA 1851 socket
- DDR5 memory up to 8200 MT/s across four slots with XMP 3.0
- PCIe 5.0 x16 slot and PCIe 5.0 M.2 with heatsink for fast graphics and storage
- WiFi 6E and 2.5 Gb Ethernet plus Bluetooth 5.3 for high-speed networking
- ASUS Control Center Express and CSM program for enterprise IT management
Caractéristiques
| Brand | ASUS |
|---|---|
| Model | PRIME B860-PLUS WIFI-CSM |
| CPU Socket Type | LGA 1851 |
| CPU Type | Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Support up to 8200+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | Intel XMP 3.0 |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCIe 4.0 x16 slot (supports x4 mode) 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | Intel Core Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| SATA RAID | * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |
| Back I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header |
| BIOS Feature | 2 x 128 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Windows 11 | Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | ATX |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector |
| Features | ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Poids d’expédition | 1.54 kg |
| Dimensions du colis | 362 × 277 × 71 mm |
Questions sur cet article
Will the M.2_1 heatsink need to be replaced if I upgrade to a hotter PCIe 5.0 SSD?
The board ships with one M.2 heatsink on the PCIe 5.0 slot; it is not user-serviceable, so a hotter drive would rely on case airflow rather than a swap.
What caps the PCIe 5.0 x16 slot bandwidth during long GPU workloads?
The single PCIe 5.0 x16 lane from the CPU is the hard ceiling; sustained throughput cannot exceed that link.
How loud and hot does the 8+1+1+1 80A DrMOS VRM get under all-day load?
The 80A DrMOS stages and alloy chokes are rated for continuous delivery; actual noise and temperature depend on your cooler and chassis airflow.
