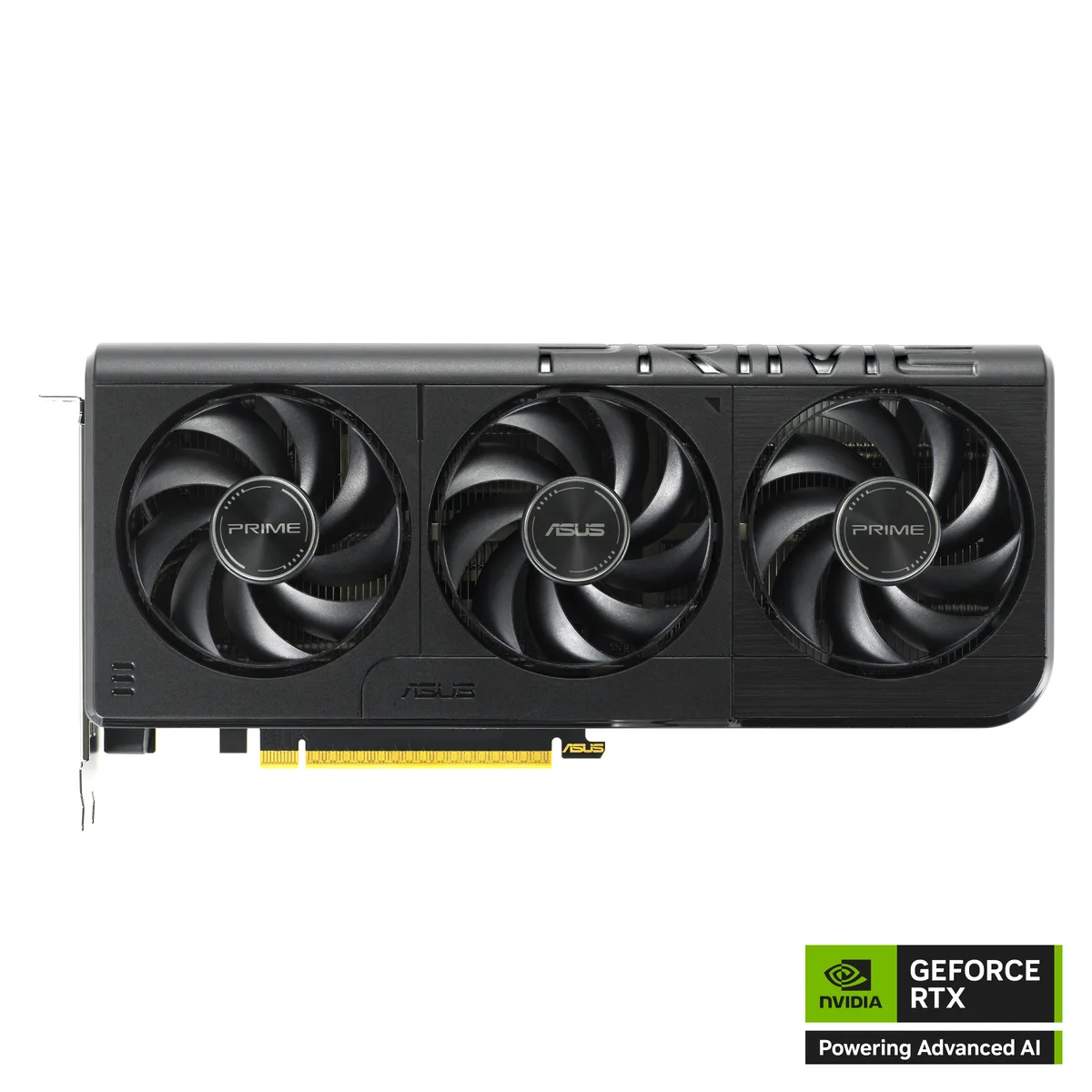

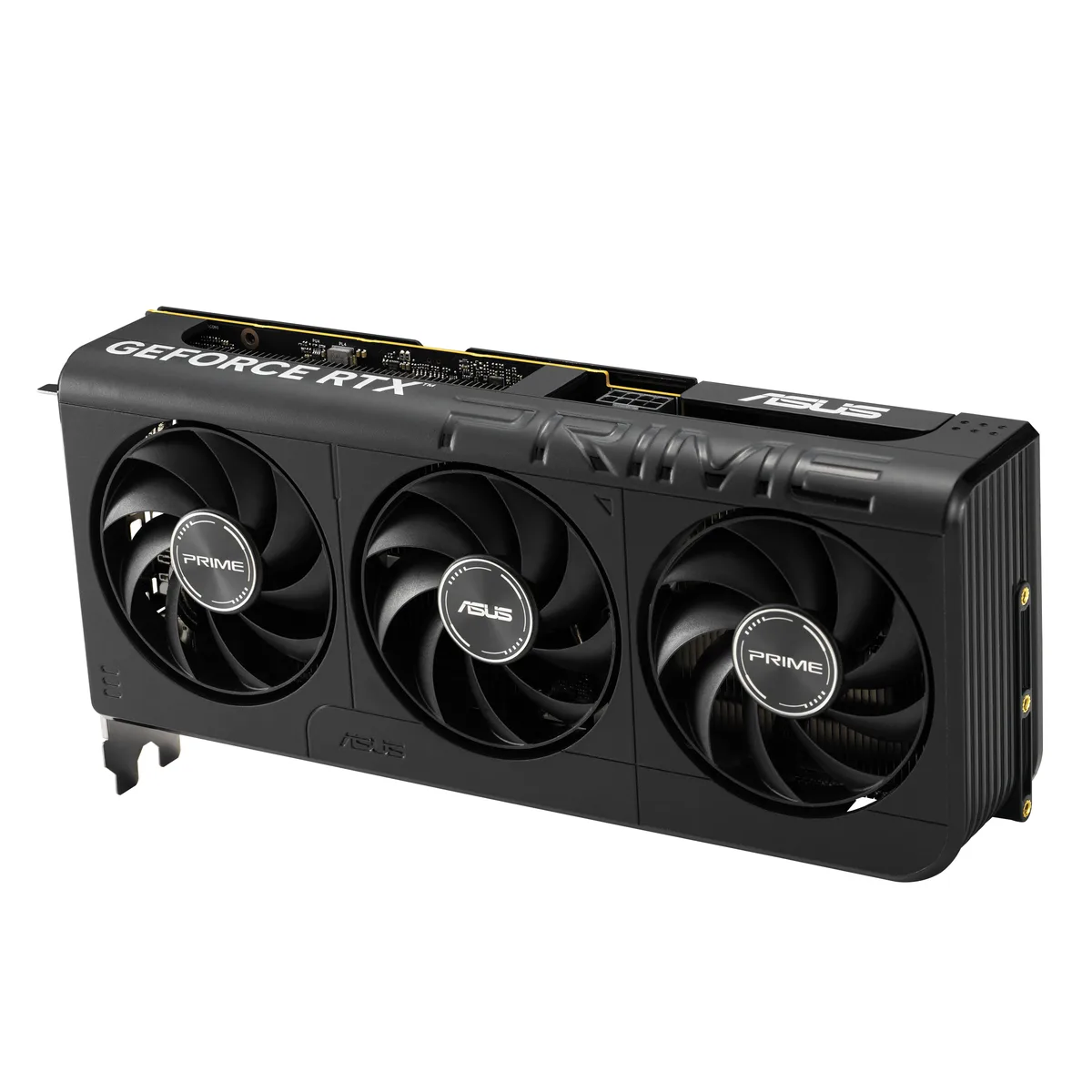

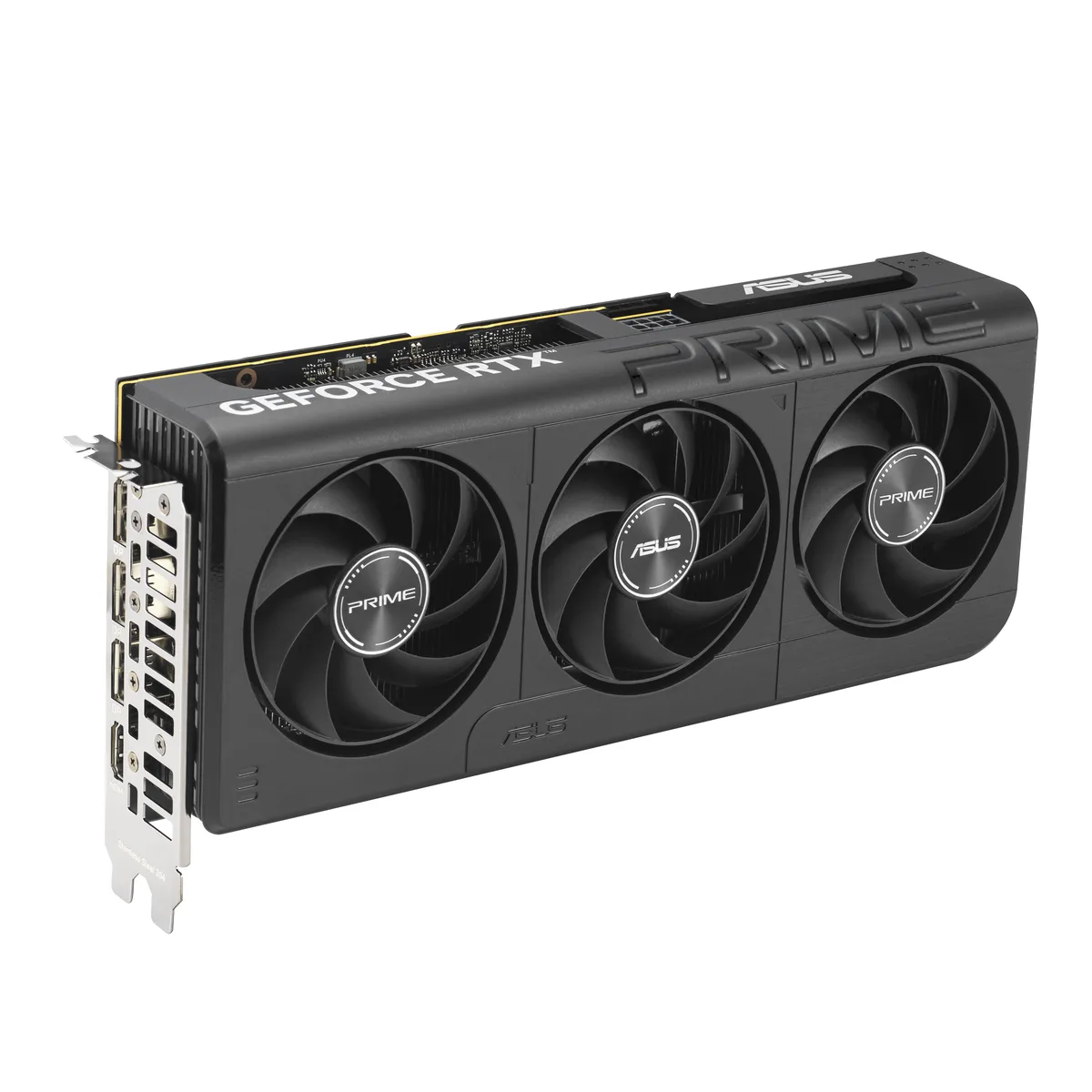

ASUS PRIME GeForce RTX 5060 graphics card with triple fan cooler and 2.5 slot design

ASUS

ASUS PRIME-RTX5060-O8G GeForce RTX 5060 8GB graphics card

SKU CH-A4D8-NB4D5 MPN PRIME-RTX5060-O8G

Triple-fan GeForce RTX 5060 with 8GB GDDR7 memory and 3840 CUDA cores for high-frame-rate 1440p gaming

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost ClockOC mode: 2595MHz Default mode: 2565MHz (Boost Clock)

Edition Prime OC

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • 3840 CUDA cores accelerate ray-tracing and AI workloads on Blackwell architecture
  • Boost clock reaches 2595 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x8 interface doubles host bandwidth versus previous standard
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four 4K displays

SFF-Ready 2.5-slot design

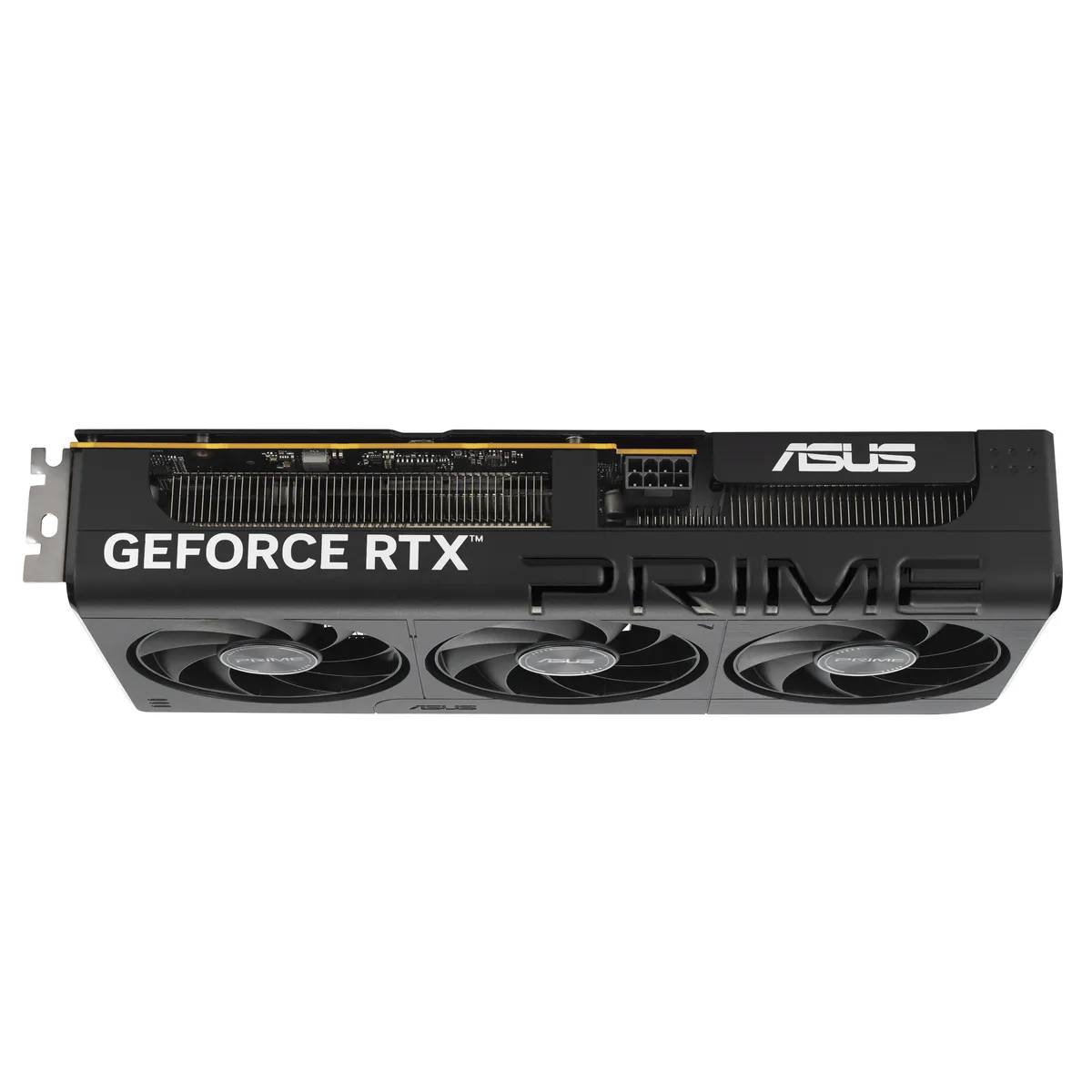

The ASUS PRIME GeForce RTX 5060 uses a 2.5-slot form factor built for small-form-factor cases. A triple-fan layout moves air across the heatsink to keep the Blackwell GPU cool. The card draws power through a PCI Express 5.0 x8 interface. It targets builders who need full performance in a compact chassis.

Thermals and power in daily use

The 8GB GDDR7 frame buffer runs at 28 Gbps across a 128-bit bus. Boost clocks reach 2595 MHz in OC mode and 2565 MHz in default mode. The 3840 CUDA cores handle DirectX 12 Ultimate and OpenGL 4.6 workloads. Fan curves stay quiet at idle and ramp only under sustained load.

Connectivity for four displays

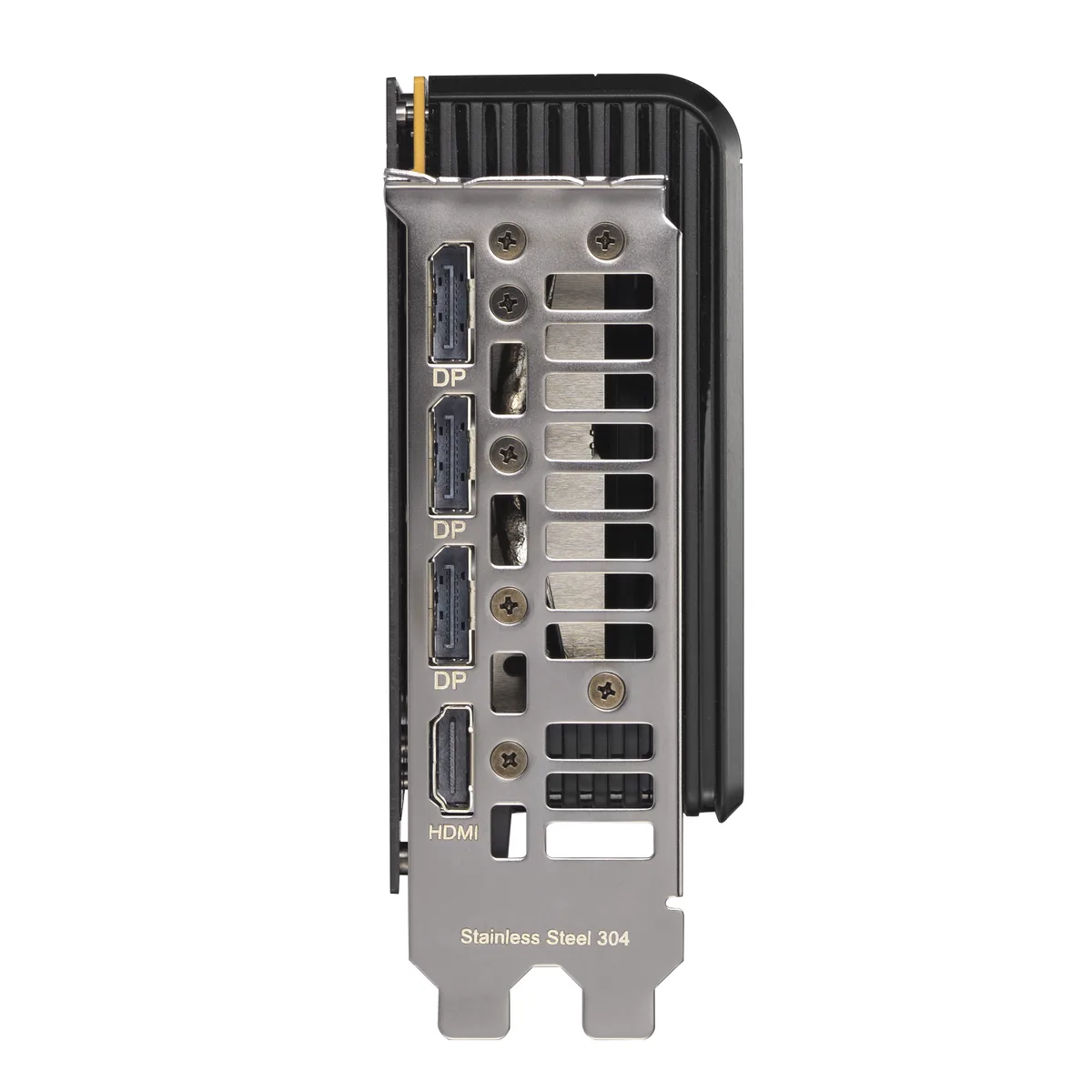

One HDMI 2.1b port and three DisplayPort 2.1b outputs drive up to four monitors simultaneously. The metal rear bracket and reinforced mounting points resist sag during transport or vertical mounting. The 2.5-slot width clears most motherboard heatsinks without blocking adjacent slots.

Points forts

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-speed texture streaming
  • 3840 CUDA cores accelerate ray-tracing and AI workloads on Blackwell architecture
  • Boost clock reaches 2595 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x8 interface doubles host bandwidth versus previous standard
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four 4K displays

Caractéristiques

BrandASUS
SeriesPRIME
ModelPRIME-RTX5060-O8G
Part Number90YV0N00-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost ClockOC mode: 2595MHz
Default mode: 2565MHz (Boost Clock)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length269 mm
Card Dimensions (L x H)268.3 x 120 x 50 mm
10.56 x 4.72 x 1.97 inches
Slot Width2.5 Slots
Poids d’expédition1.36 kg
Dimensions du colis406 × 229 × 89 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the ASUS PRIME GeForce RTX 5060 with its 2.5-slot design and PCI Express 5.0 x8 interface?

Insert the card into a PCI Express 5.0 x8 slot, secure the 2.5-slot bracket with two case screws, and connect power. The step many miss is using both bracket screws to prevent the heavier triple-fan cooler from sagging over time.

What maintenance does the triple-fan cooling system on this RTX 5060 require?

Use compressed air to clear dust from the three fans and heatsink fins every few months. The fans use dual-ball bearings rated for long life; no lubrication is needed. If a fan fails, the entire cooler assembly must be replaced by a qualified technician.

What limit appears first when the 8GB GDDR7 memory runs sustained workloads on a 128-bit bus?

The 128-bit memory interface caps bandwidth at 28 Gbps effective, so memory-intensive tasks hit a throughput ceiling before the GPU compute units saturate. Lowering texture resolution or enabling compression avoids the bottleneck.
