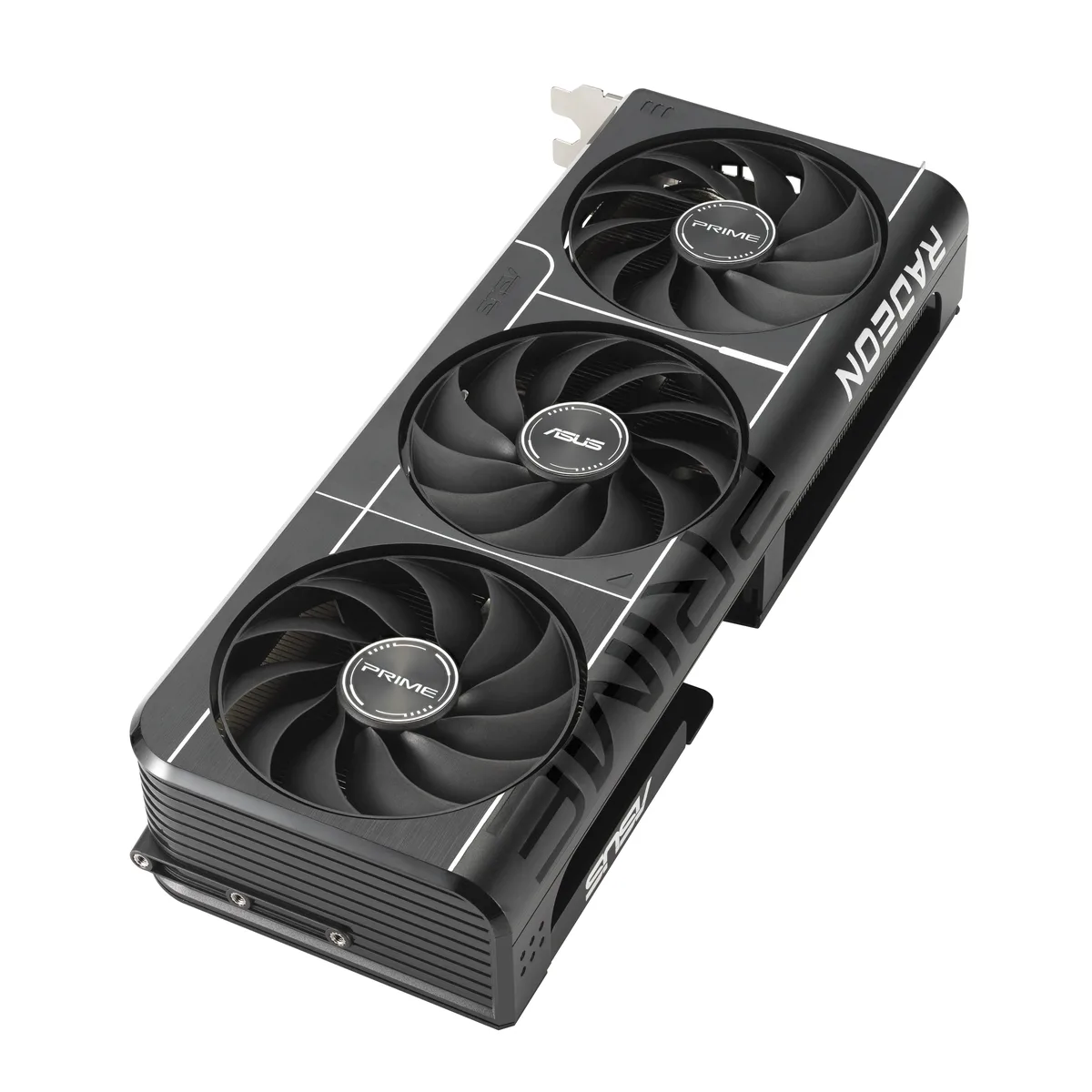

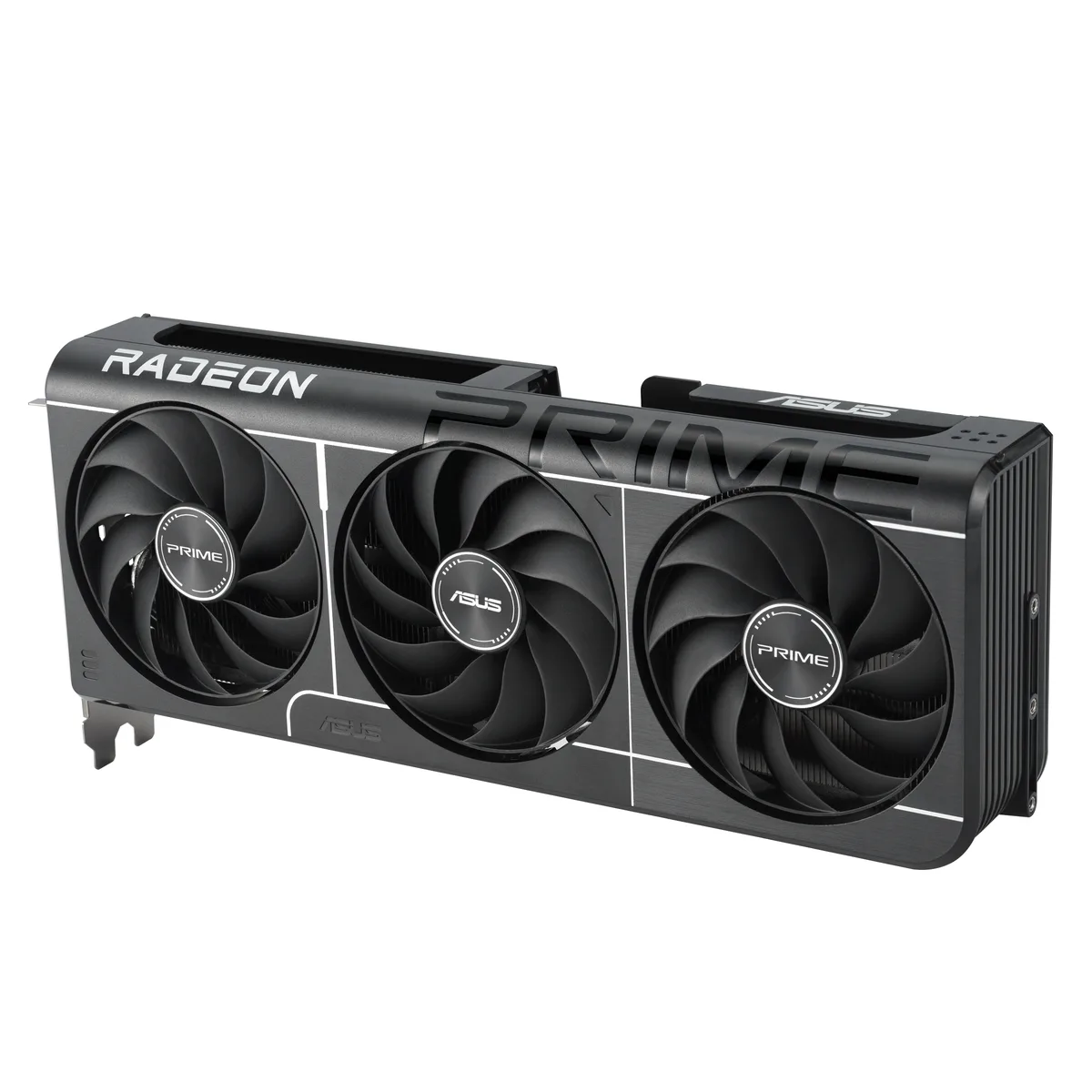

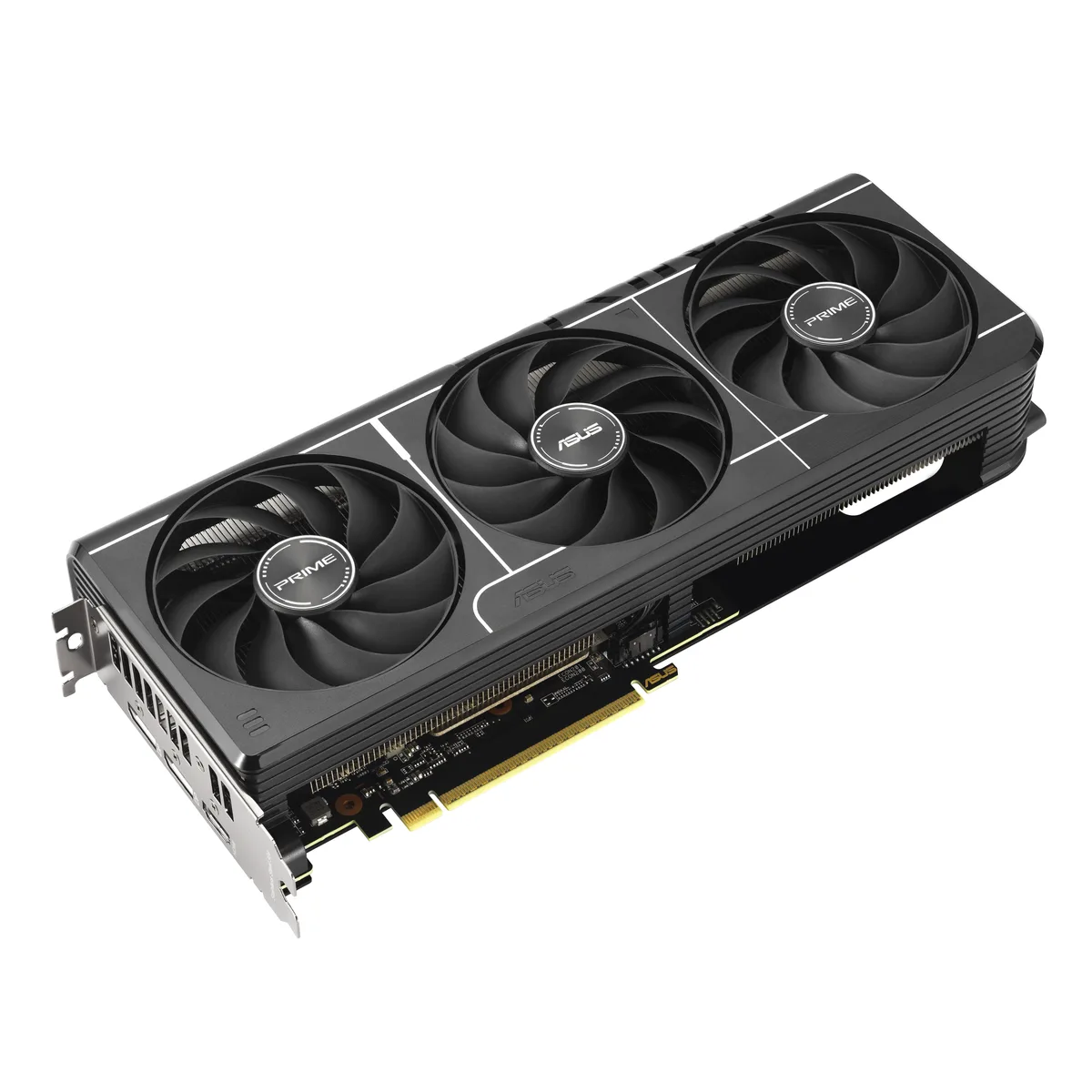

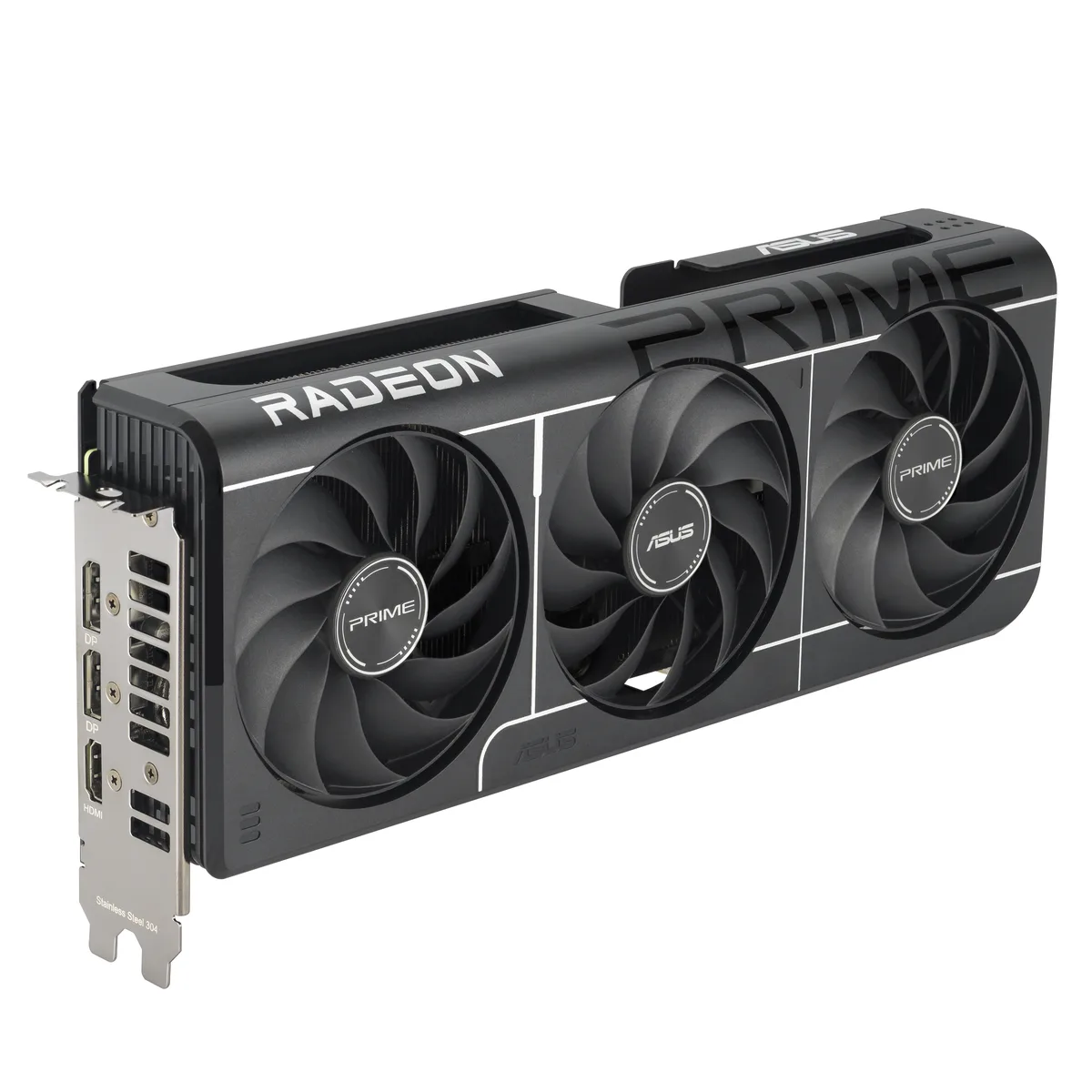

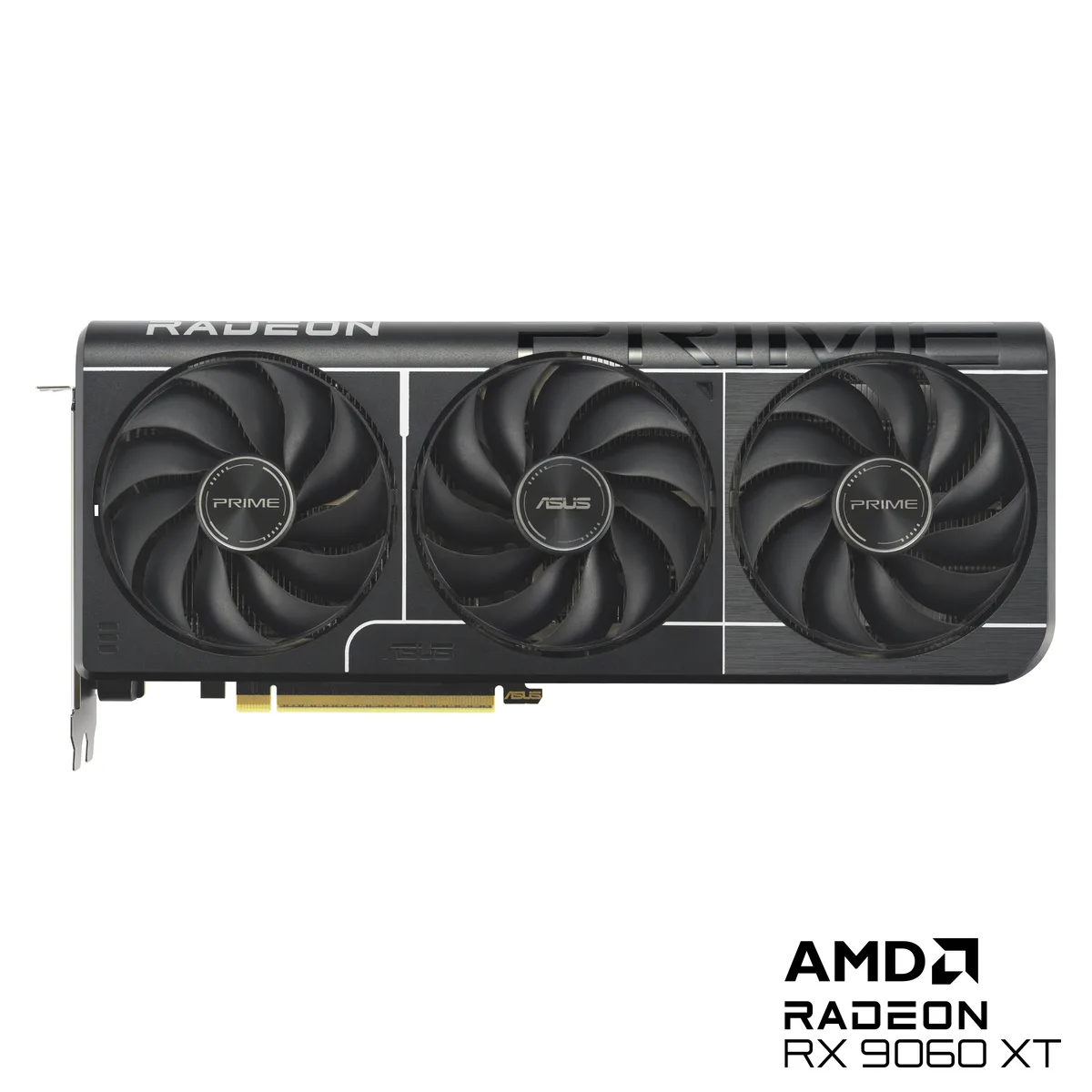

Black triple-fan graphics card, 304 mm long, 2.5-slot thickness

ASUS

ASUS PRIME-RX9060XT-O16G Radeon RX 9060 XT 16GB graphics card

SKU CH-EXKX-WB01T MPN PRIME-RX9060XT-O16G

RDNA 4 GPU with 2048 stream processors, 16GB GDDR6 at 20 Gbps on a 128-bit bus, PCIe 5.0 x16, triple-fan cooler and HDMI 2.1b plus dual DisplayPort 2.1a for up to 7680 x 4320 resolution

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Stream Processors2048

Option RX 9060 XT 16GB

Edition PRIME OC

  • 16 GB GDDR6 memory handles large textures and high-resolution assets
  • 20 Gbps effective clock keeps data flowing to the GPU cores
  • RDNA 4 architecture with 2048 stream processors delivers modern compute performance
  • PCI Express 5.0 x16 interface provides high-bandwidth system connectivity
  • HDMI 2.1b and two DisplayPort 2.1a outputs drive up to three 8K displays

16GB GDDR6 for 1440p gaming

The ASUS PRIME Radeon RX 9060 XT targets gamers and creators who need 16GB of memory on a 128-bit bus. The RDNA 4 architecture delivers 2048 stream processors for modern titles. A PCI Express 5.0 x16 interface keeps data moving between the GPU and the platform. This card suits builds that prioritise frame-buffer capacity over bus width.

Triple-fan cooling under load

Three axial fans draw air across a heatsink that spans the full 304 mm length of the card. The 2.5-slot thickness provides surface area for sustained workloads without relying on a single blower. An 8-pin power connector feeds the board while a 550W power supply is the recommended minimum. Thermal performance scales with case airflow rather than a vapour-chamber design.

ATX form factor with modern display outputs

The matte black shroud measures 304 x 126 x 50 mm and fits standard ATX chassis. One HDMI 2.1b and two DisplayPort 2.1a connectors drive up to three monitors at 7680 x 4320 resolution. HDCP support enables protected content playback. No additional brackets or adapters are required for typical mounting.

Points forts

  • 16 GB GDDR6 memory handles large textures and high-resolution assets
  • 20 Gbps effective clock keeps data flowing to the GPU cores
  • RDNA 4 architecture with 2048 stream processors delivers modern compute performance
  • PCI Express 5.0 x16 interface provides high-bandwidth system connectivity
  • HDMI 2.1b and two DisplayPort 2.1a outputs drive up to three 8K displays

Caractéristiques

BrandASUS
SeriesPRIME
ModelPRIME-RX9060XT-O16G
Part Number90YV0LF1-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50mm
Slot Width2.5 Slots
Package Contents1 x Thank you card
1 x Speedsetup Manual
Poids d’expédition1.47 kg
Dimensions du colis406 × 234 × 89 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much power does the ASUS PRIME-RX9060XT-O16G draw when it runs all day and what cooler keeps it in check?

The card has a 550W recommended PSU and a single 8-Pin power connector; a triple-fan cooler handles heat across the 304 mm length.

Which motherboard slot and display cables do I already need for this Radeon RX 9060 XT?

It requires a PCI Express 5.0 x16 slot and provides 1 x HDMI 2.1b plus 2 x DisplayPort 2.1a for up to three monitors.

Will the 2.5-slot width and 304 mm length fit alongside my older ATX parts?

The card uses a standard ATX form factor, occupies 2.5 slots and measures 304 x 126 x 50 mm, so it fits most mid-tower cases with older components.
